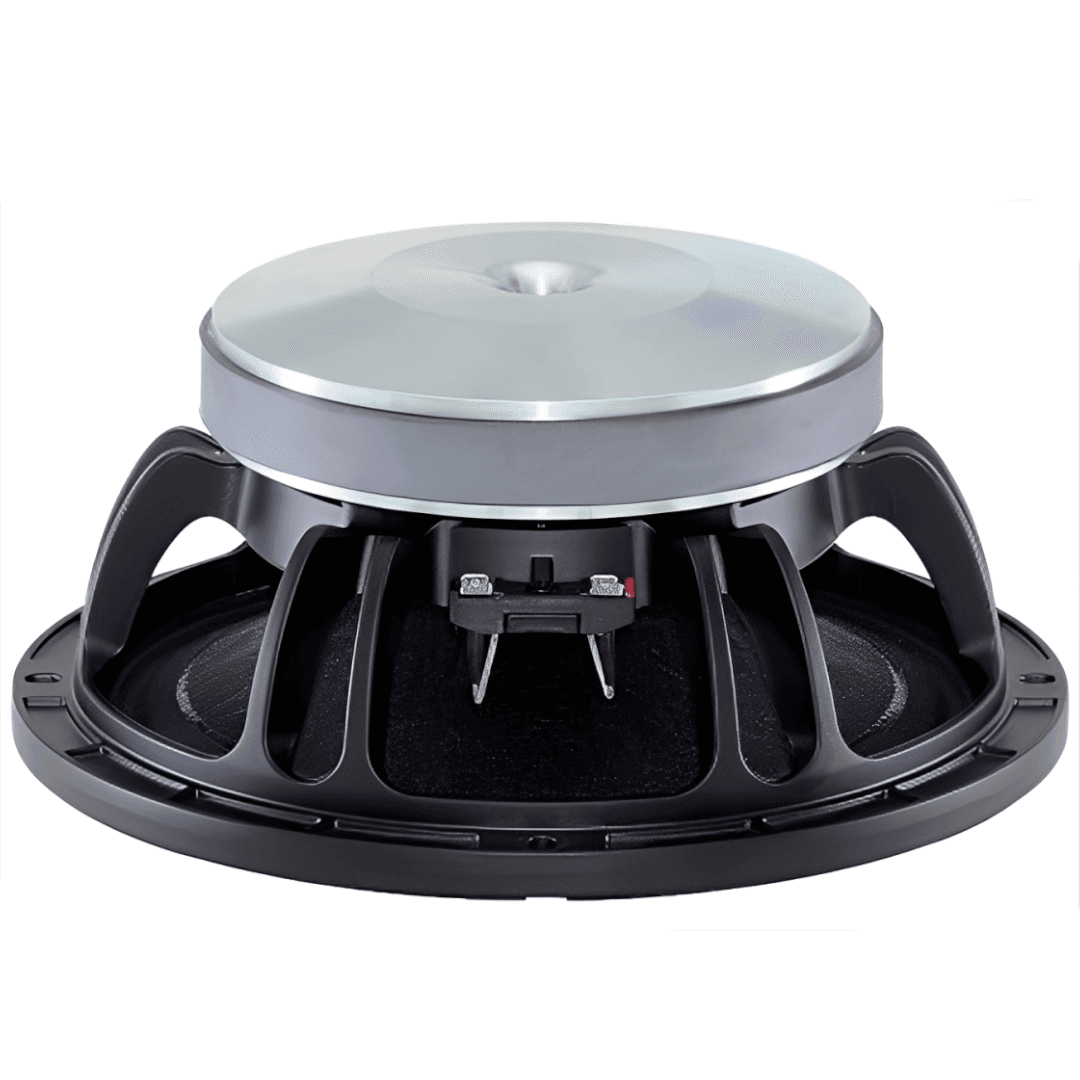

B&C 10FW64 – 10″ High-Efficiency Mid-Bass Driver

The B&C 10FW64 is a compact 10-inch low/mid-frequency driver engineered for professional loudspeaker systems that demand a balance of sensitivity, durability, and wide frequency response. Built in Italy by one of the most respected names in transducer design, this driver delivers tight, responsive bass and clear midrange, making it ideal for two-way enclosures, compact tops, and stage monitors.

Focused Mid-Bass Performance

With a nominal diameter of 250 mm (10 inches), the 10FW64 is optimized for high-output mid-bass reproduction in smaller format cabinets. Its frequency range from 65 Hz to 3000 Hz makes it an excellent choice for applications requiring strong low-end presence with extended midrange clarity.

Whether you’re building a compact front-of-house enclosure, a powered portable box, or a multi-purpose monitor, the 10FW64 brings controlled, musical performance without the bulk of larger-format woofers.

Efficient Power Handling with Low Compression

Rated at 250 watts nominal power handling and 500 watts continuous program, the 10FW64 delivers solid output without sacrificing thermal reliability. Its 64 mm (2.5-inch) aluminium voice coil is wound on a high-temperature-resistant glass fibre former, helping the driver maintain thermal stability during sustained high-output operation.

The ventilated magnet assembly helps dissipate heat efficiently, reducing power compression and preserving consistent performance even in long gigs, rehearsal sessions, or installations operating at high SPL.

High Sensitivity for Energy-Efficient Designs

The 10FW64 boasts a sensitivity rating of 98 dB (1W/1m), allowing for strong acoustic output with moderate amplifier power. This makes it especially well-suited for active and passive speaker systems that need to maximize output without drawing excessive current or requiring high-output amps.

Its sensitivity and power-to-weight ratio give system designers flexibility in optimizing amplifier budgets while still achieving the performance expected in pro audio environments.

Smooth Impedance Curve for Easy System Integration

Operating at a nominal impedance of 8 ohms with a minimum impedance of 6.4 ohms, the 10FW64 integrates seamlessly into common crossover designs and amplifier platforms. Its electrical behavior is predictable, making it easy to model and integrate into two-way or three-way cabinet systems without introducing complex impedance interactions.

Whether you’re designing passive crossovers or deploying active DSP-based systems, the 10FW64 plays nicely in a wide range of configurations.

Touring-Grade Construction

The 10FW64 features a weather-resistant, treated-paper cone designed to perform reliably in environments where humidity and temperature can fluctuate. The front-treated cone offers protection in semi-outdoor or rugged mobile applications.

Its mechanical structure is reinforced with a double silicone spider and a progressive suspension system to maintain linear excursion and prevent mechanical fatigue over time. The demodulating ring in the motor structure reduces harmonic distortion by stabilizing the magnetic field during high-excursion movement.

This attention to detail gives the 10FW64 the durability needed for repeated transport, long-term use, and consistent tonal character across all output levels.

Versatile Application Range

Thanks to its controlled response and robust design, the 10FW64 is well-suited for:

• Two-way speaker cabinets requiring strong mid-bass and vocal reproduction

• Compact PA tops and powered enclosures where size-to-output ratio matters

• Stage wedges that demand clarity, tight dispersion, and punchy response

• Install systems in clubs, churches, schools, or small venues

• OEM speaker manufacturing with consistent build quality and performance standards

This driver’s balance of sensitivity, bandwidth, and rugged build quality makes it a flexible choice for many cabinet types and acoustic goals.

Specifications

• Nominal Diameter: 250 mm (10 in)

• Voice Coil Diameter: 64 mm (2.5 in)

• Continuous Power Handling: 500 W

• Nominal Power Handling: 250 W

• Nominal Impedance: 8 Ω

• Minimum Impedance: 6.4 Ω

• Frequency Range: 65 Hz – 3000 Hz

• Sensitivity: 98 dB (1W/1m)

Conclusion

The B&C 10FW64 is a lightweight yet powerful 10-inch driver that delivers clean, responsive performance across the low- and mid-frequency range. Built to handle the rigors of professional use while maintaining excellent thermal behavior and low distortion, it’s a smart choice for designers and engineers who need reliable mid-bass performance in a compact format.

For mobile systems, installs, or OEM builds, the 10FW64 stands out as a dependable, high-sensitivity workhorse with premium sound and rugged reliability.
