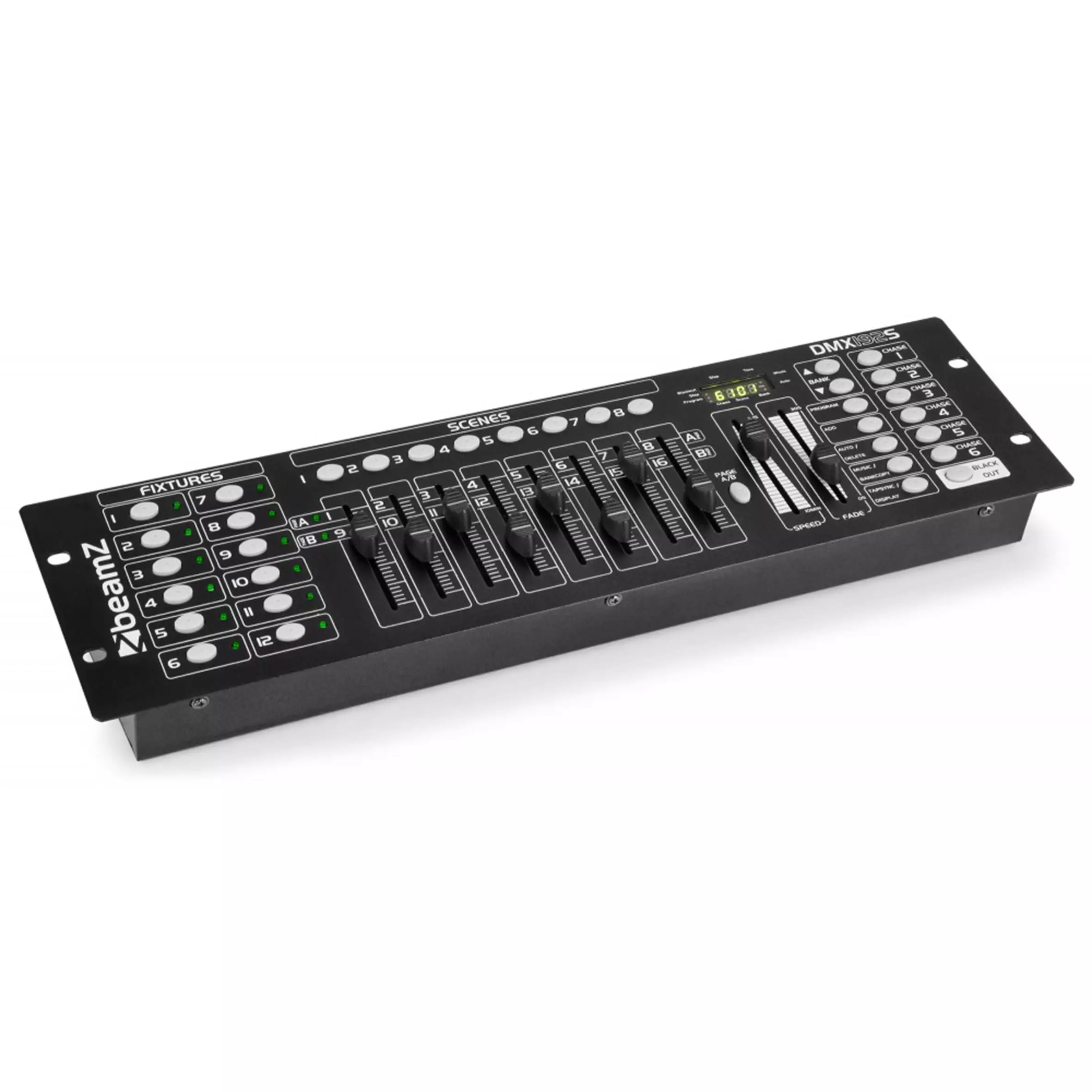

Control panel for various DMX units. Comes with 30 banks of memory up to 240 scenes. Programs can be completed sound activated, auto, manual and via midi. Clear LED display for black out, step, programming, music and automatic trigger setting.

FEATURES:

• 192 Channels, ideal to control up to 12 light effects with 16 channels max. each
• MIDI connection facility (MIDI IN) to run the unit synchronous with your MIDI unit
• Auto mode or as a stand-alone unit
• Music controlled via a built-in microphone
• Fogmachine control button
• 30 Memory banks storing up to 240 scenes
• 6 Programmable chase memories
• Ideal for 19in panel mounting

SPECIFICATIONS:

• DMX channels: 192
• DMX connection: 3-pin XLR
• MIDI input: 5-pin DIN
• Power supply: 220-240Vac/50Hz – (9VDC – 500mA)
• Dimensions: 482 x 132 x 82mm
• Weight: 2.6kg
