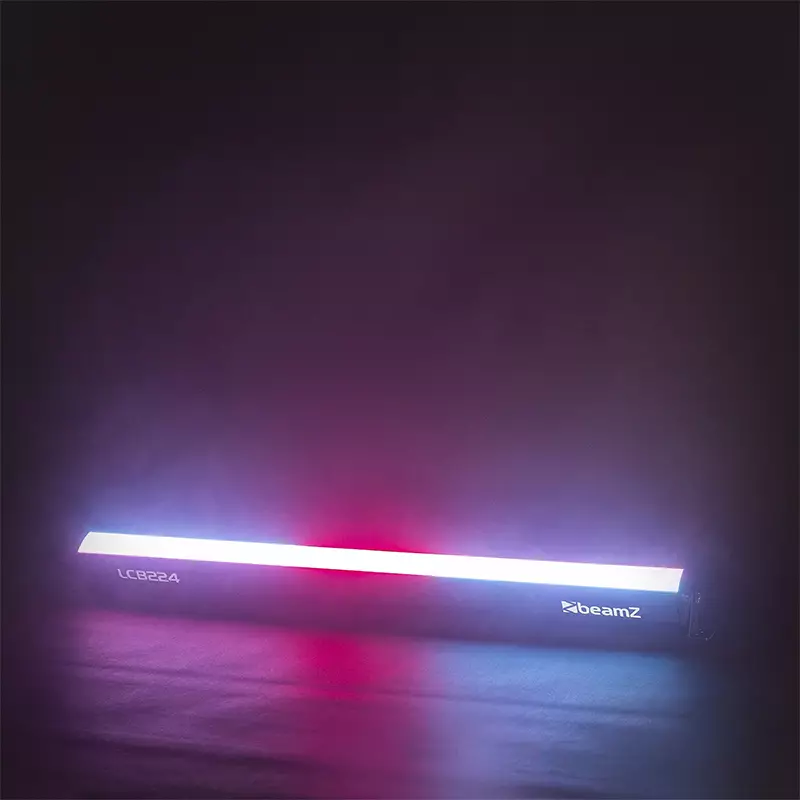

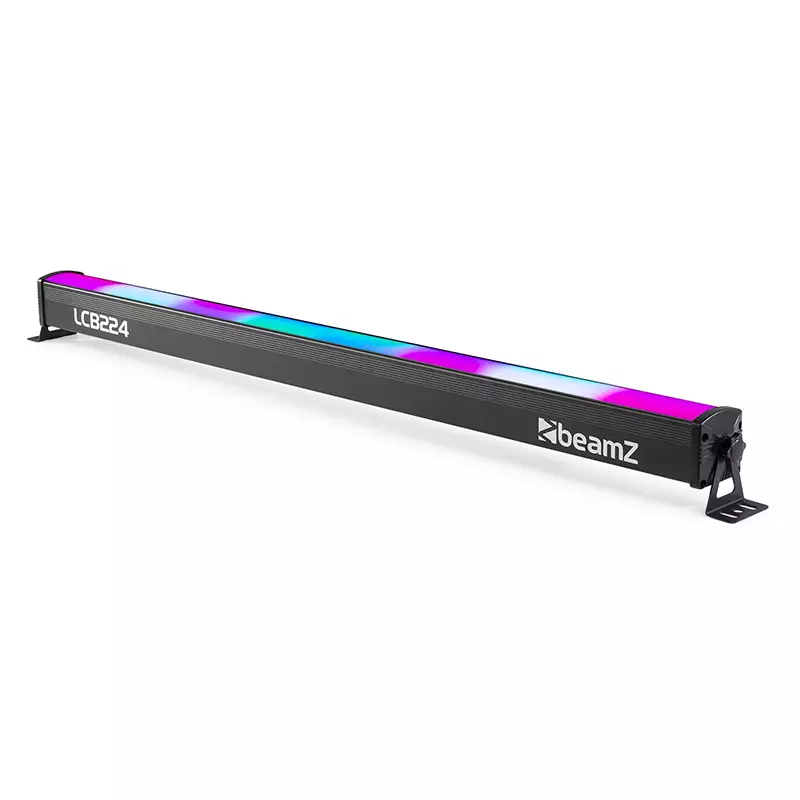

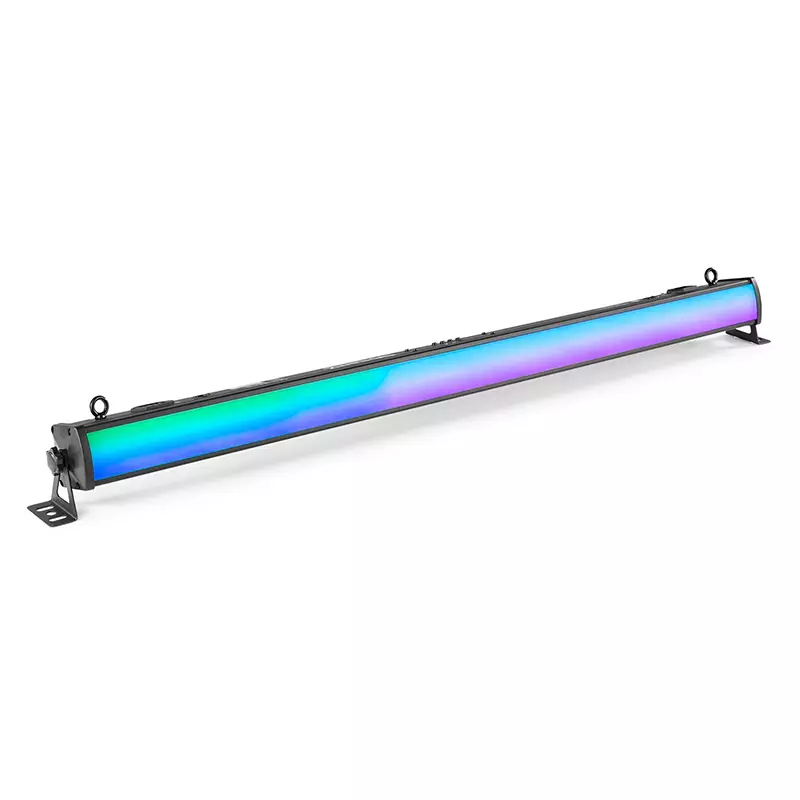

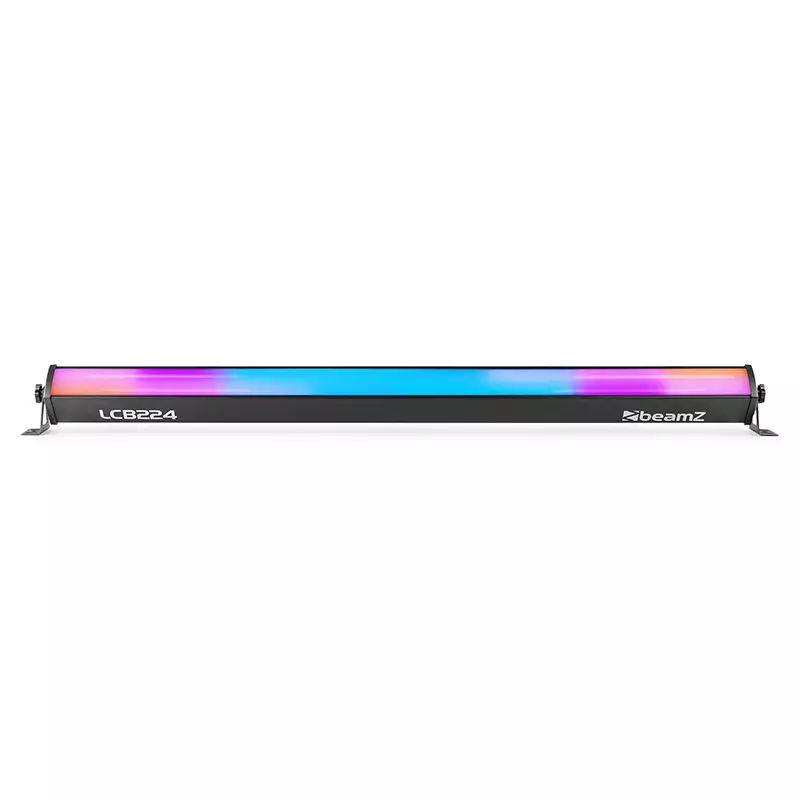

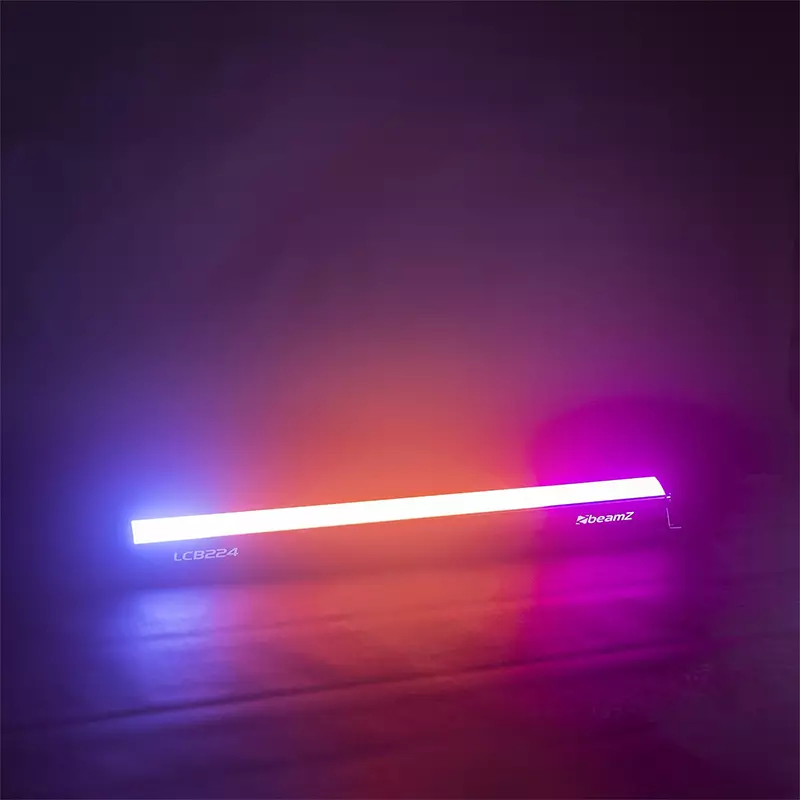

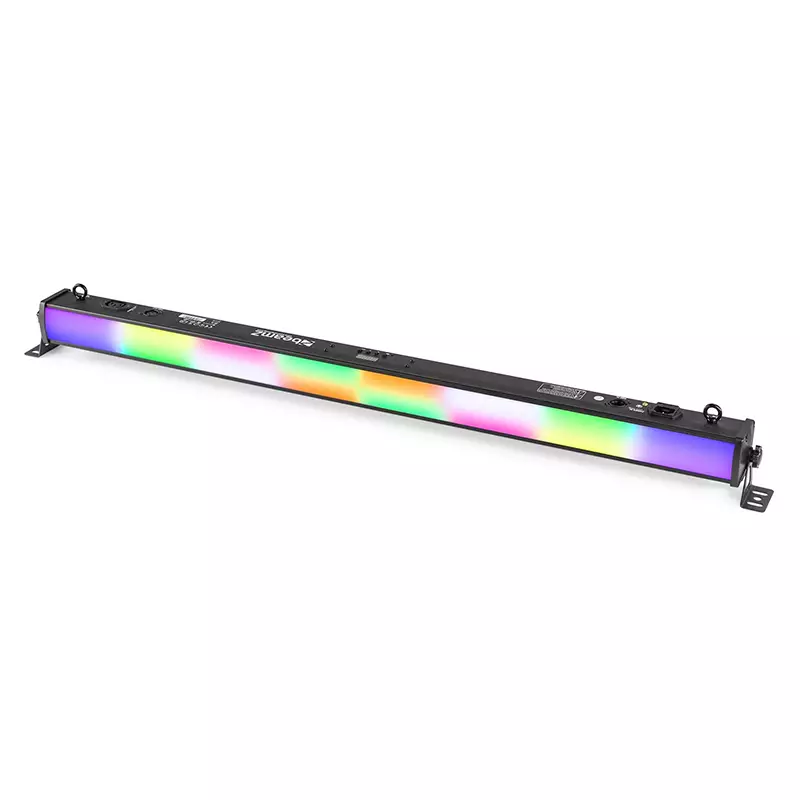

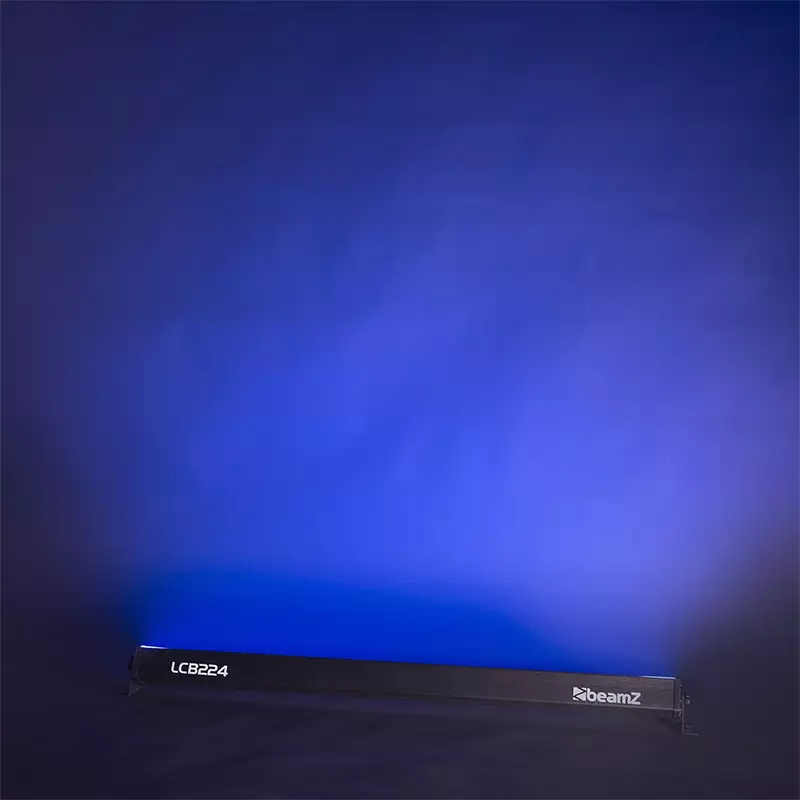

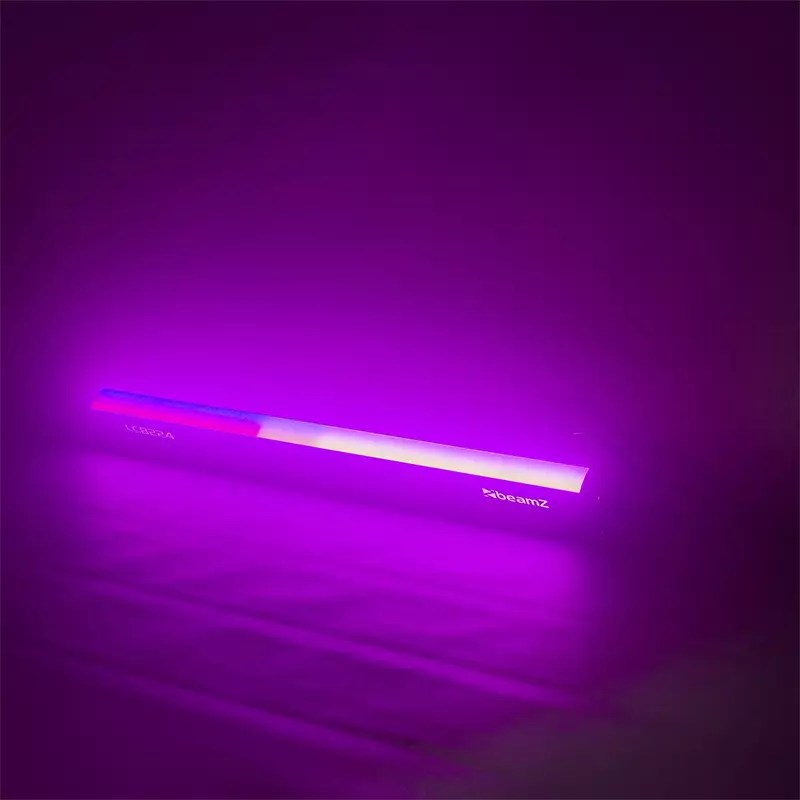

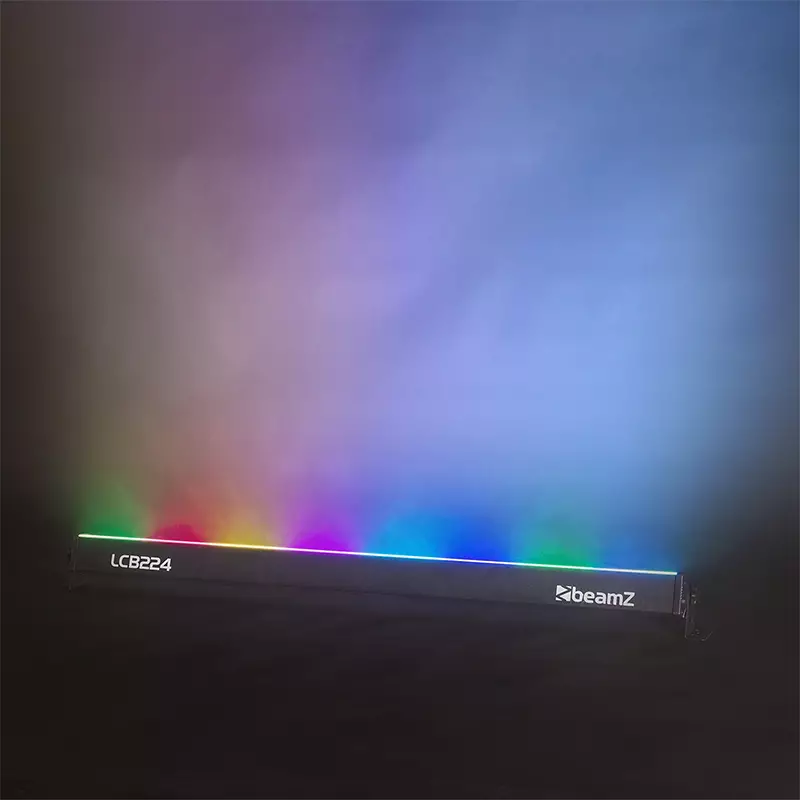

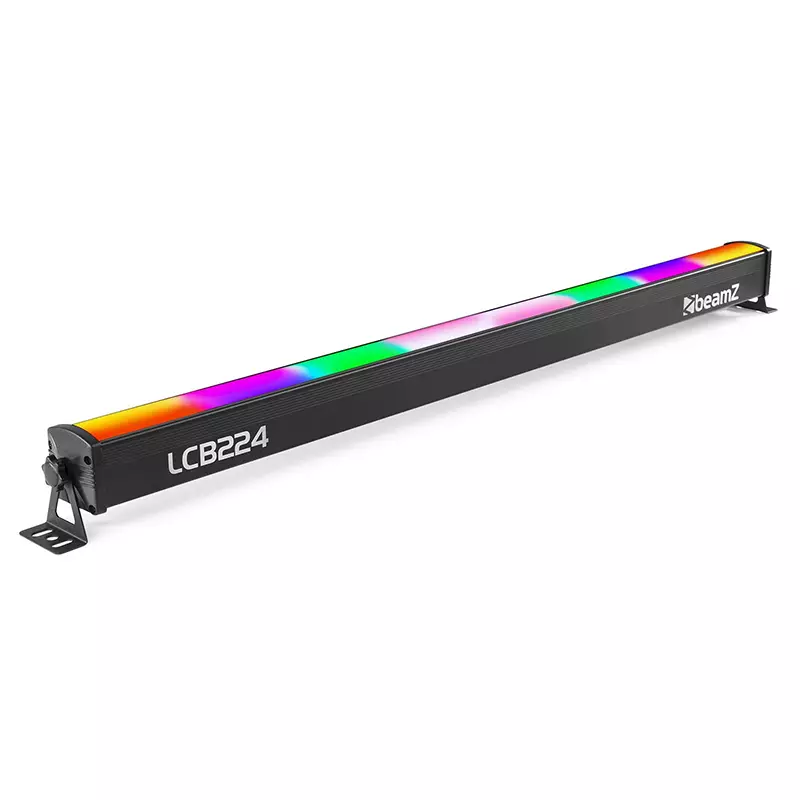

The LCB224 is a LED bar with 224 pieces SMD RGB LEDs. The LEDs are divided in 16 separately controllable sections, with each section having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are pre-programmed shows runs automatically or sound activated, pick from pre-programmed automatic programs or create your own mixture of colours in RGB mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket.

FEATURES:

• 224x SMD RGB LEDs
• 3, 5, 8, 24, 48 or 53 DMX channels
• 16 Sections controllable
• DMX and Stand-alone mode
• Master/slave function
• Sound activated with adjustable sensitivity
• 54 Built-in effects
• Pre-programmed shows
• 25 Colour pre-sets
• 24 Effect patterns

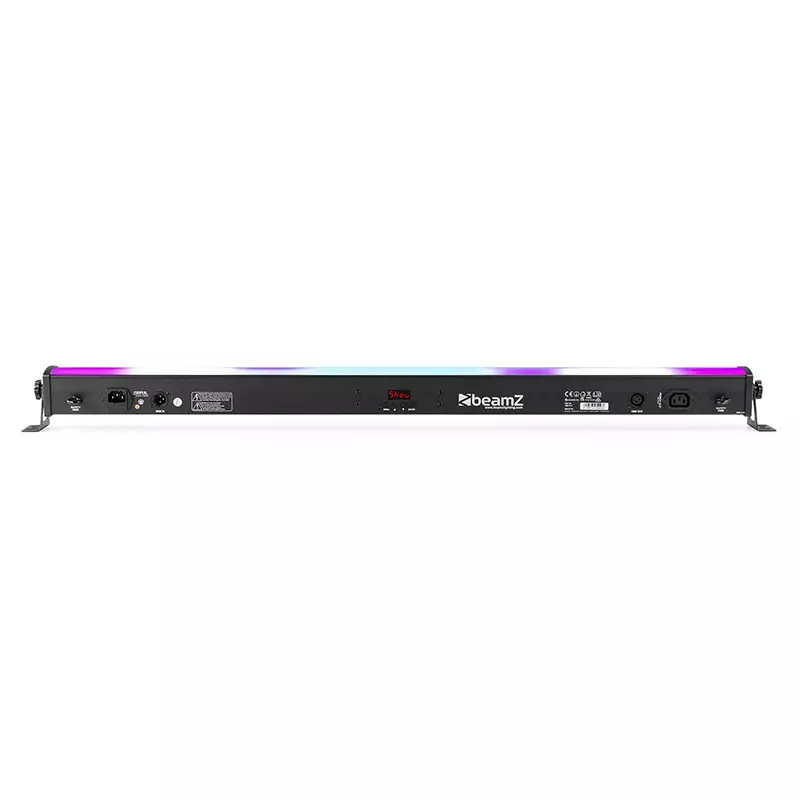

• DMX in/output via 3-pin XLR
• IEC-connector input/output

SPECIFICATIONS:

• Features: Master/Slave mode
• Light source: 3-in-1 LED
• LED colours: Red, Green, Blue
• Quantity of LEDs: 224
• Beam angle: 90°
• Flash rate per second: 1 – 19Hz
• DMX channels: 3, 5, 8, 24, 48, 53
• DMX connection: 3-pin XLR
• Modes: Automatic programs, DMX, Manual, Master/Slave
• IP rating: IP20
• Cooling: Convection
• Display: LED
• Power plug: IEC
• Power consumption: 0.75 – 0.41A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 1000 x 65 x 90mm
• Weight: 1.65kg
• Accessories: Mounting bracket, Power cable
