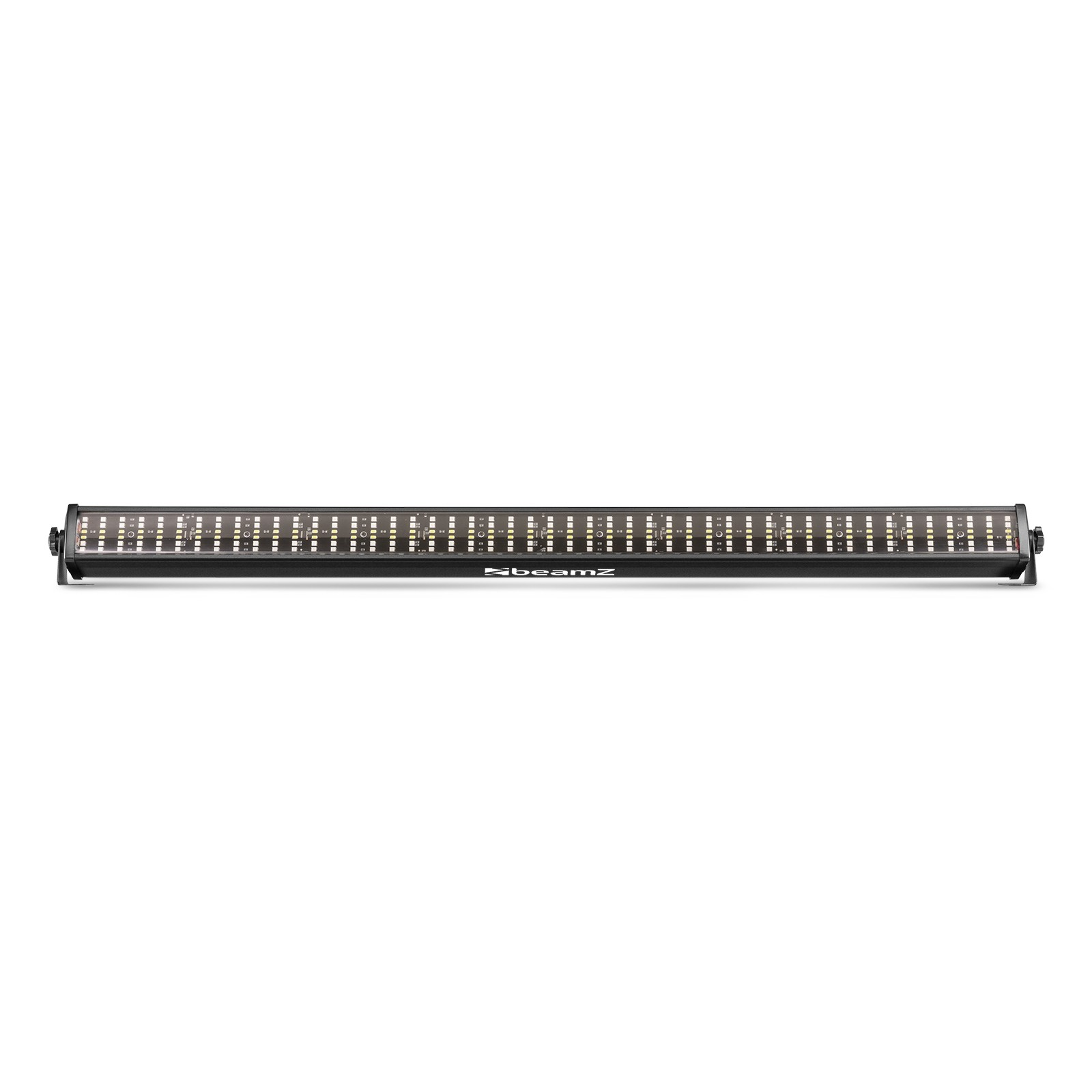

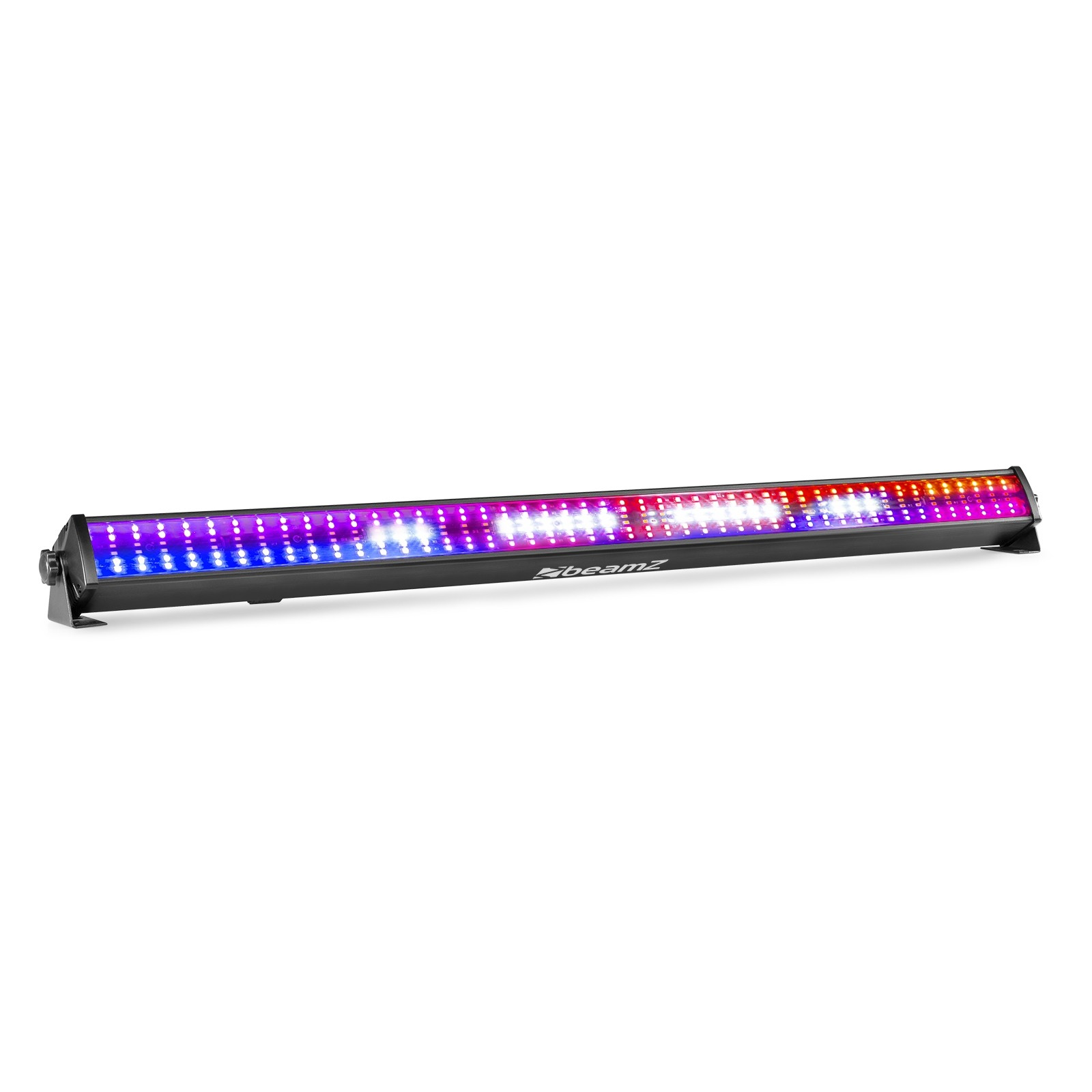

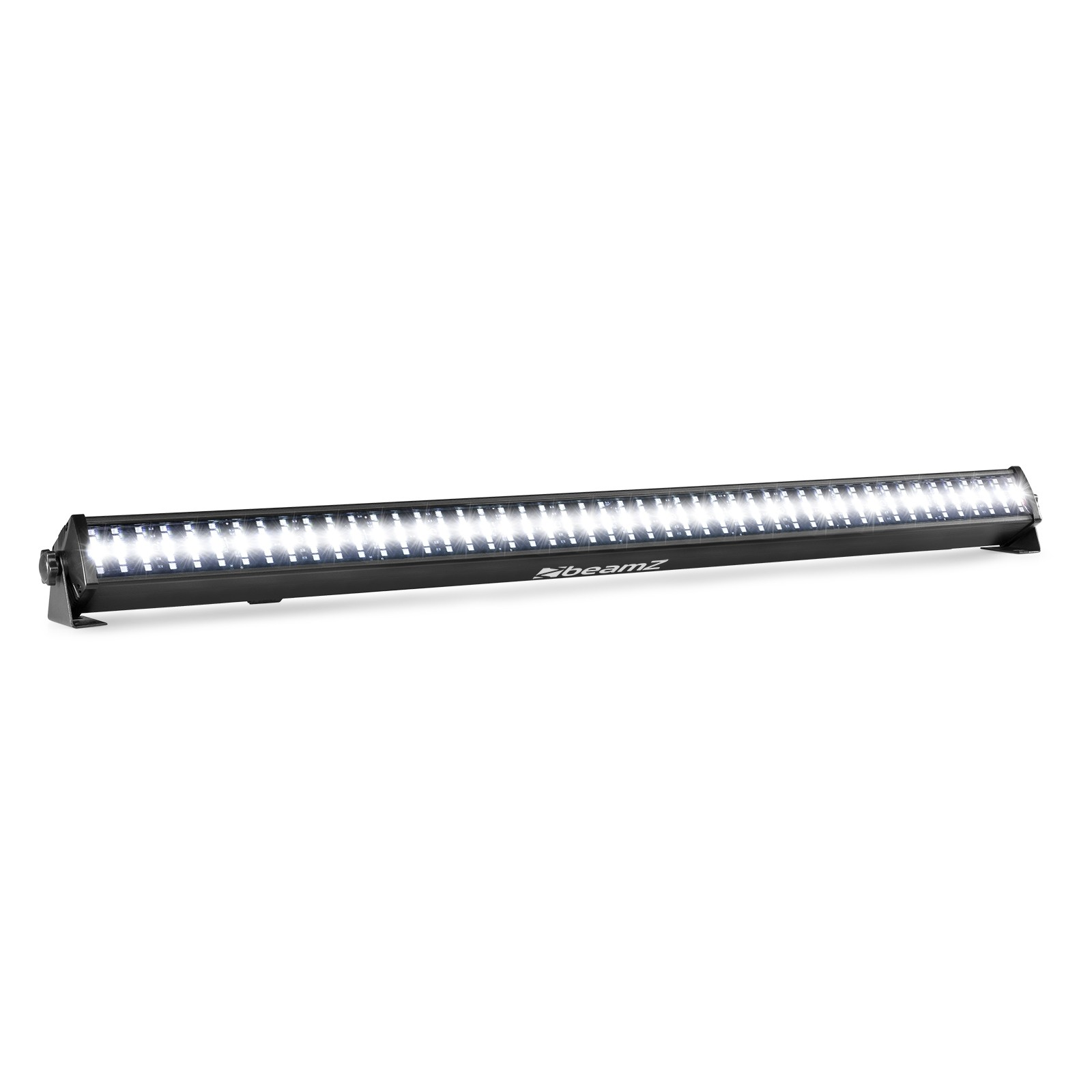

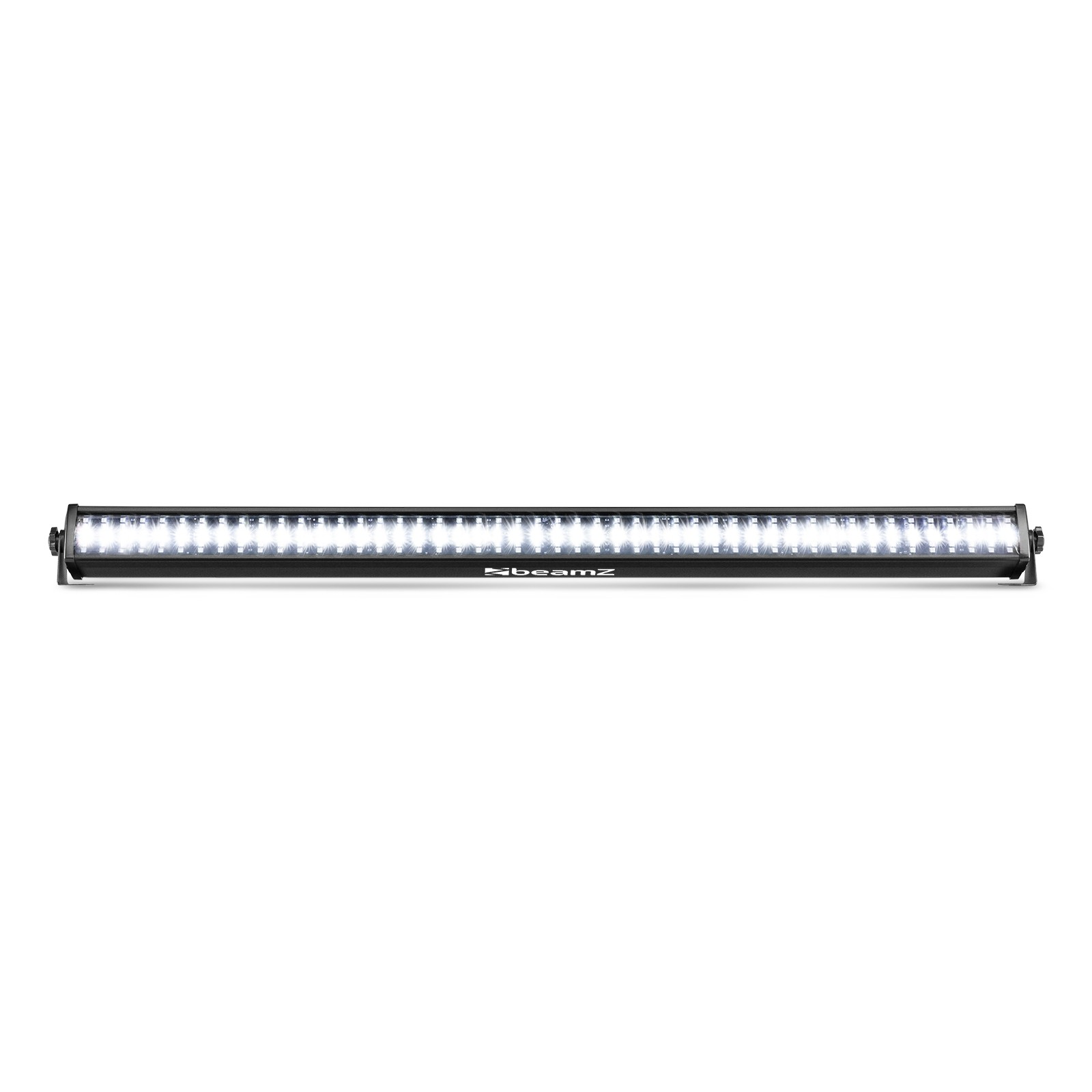

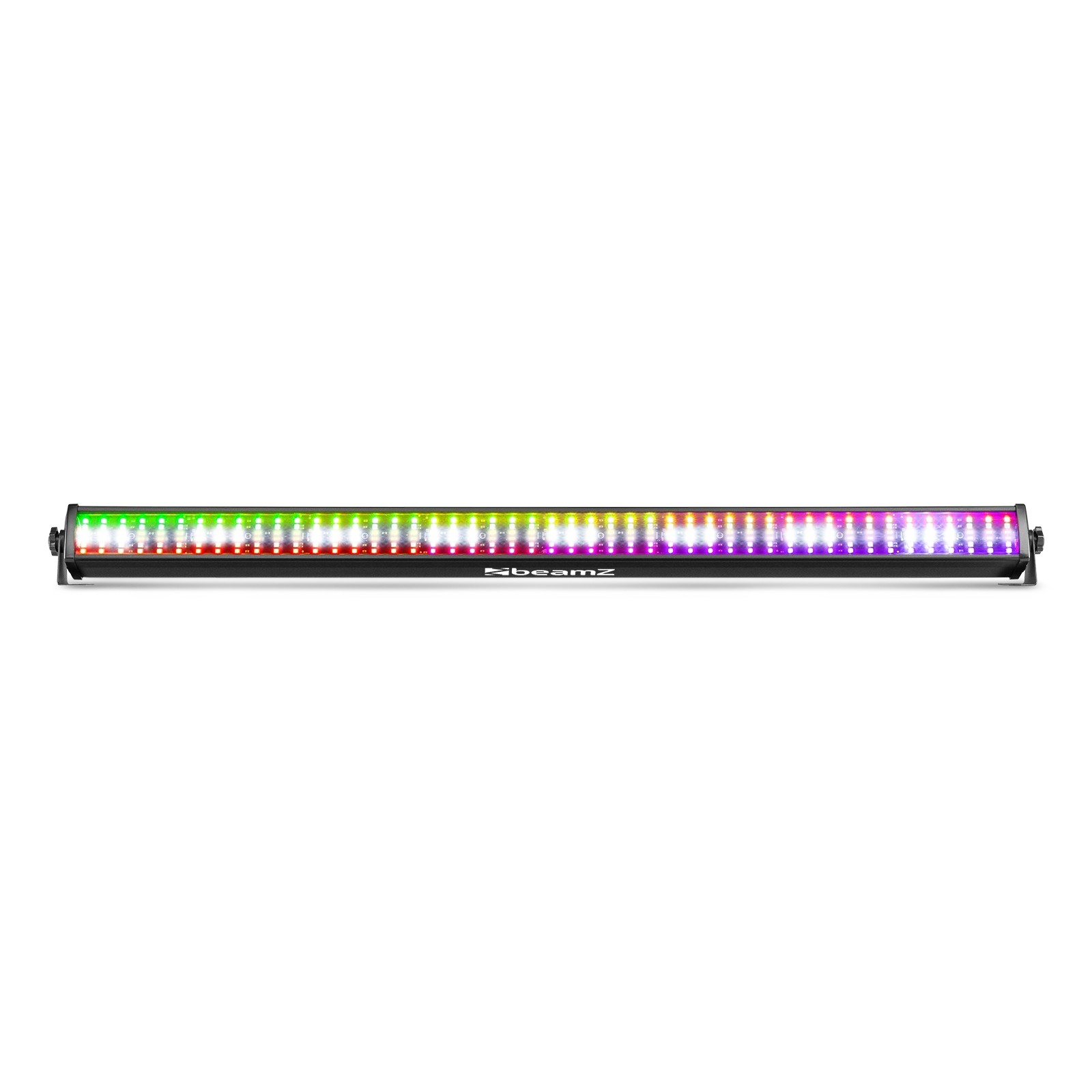

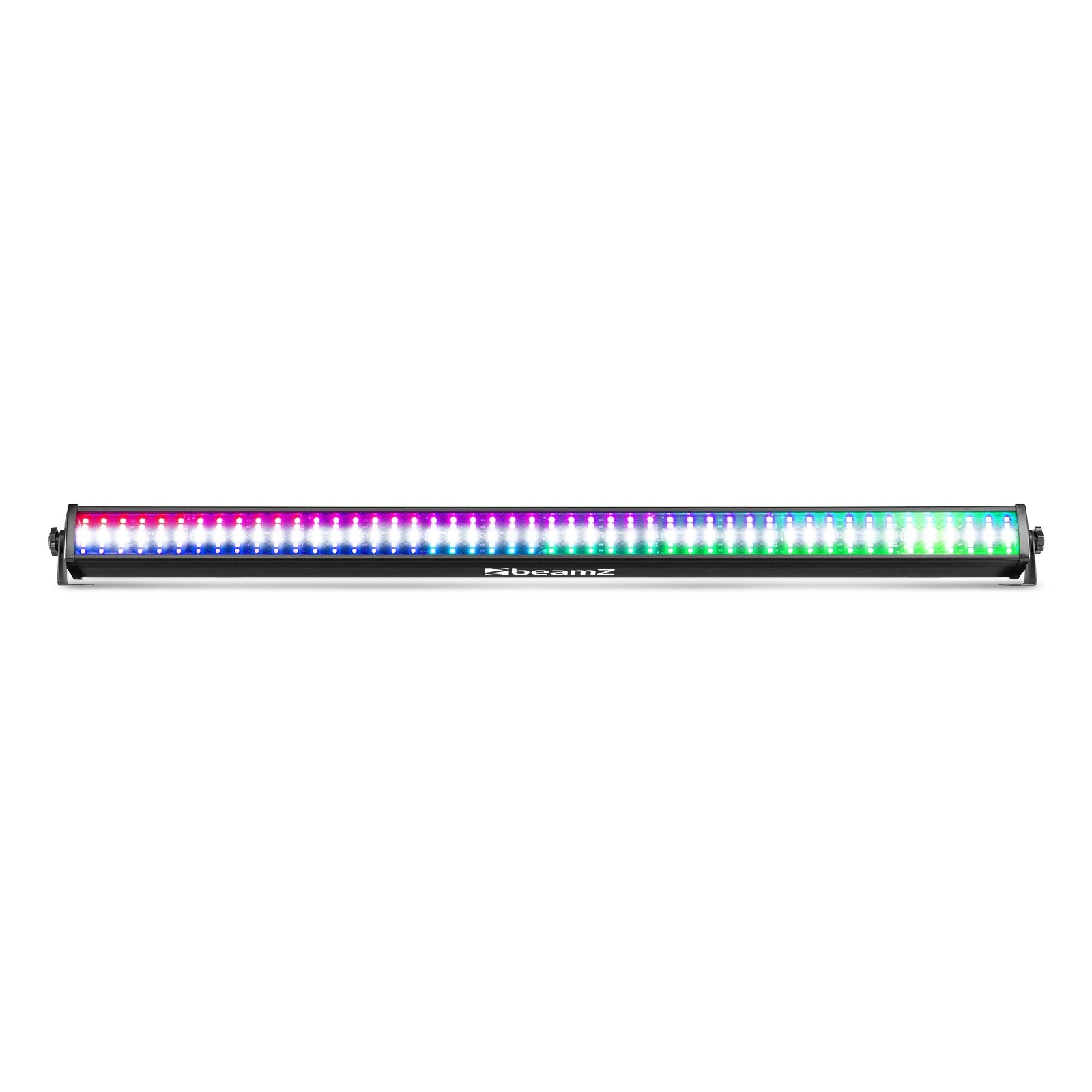

The LCB288 is a Wash and Strobe LED bar with 288 pieces SMD LEDs, divided into a top and bottom section of a total of 192 RGB LEDs and a center section of 96 white SMD LEDs. The LEDs are divided in 3x 16 separately controllable sections, the top and bottom sections having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. The extra PowerConnector enables you to simply link the power of multiple units together into a single socket.

FEATURES:

• Wash and Strobe LED Bar
• 192x SMD RGB LEDs (top and bottom)
• 96x SMD White LEDs (center)
• 6, 9, 32, or 64 DMX channels
• 3x 16 Sections controllable
• DMX and Stand-alone mode
• Master/slave function
• Sound activated with adjustable sensitivity
• Auto mode with adjustable speed
• DMX in/output via 3-pin XLR
• Power-connector input/output
• Control panel with LED display

SPECIFICATIONS:

• Product colour: Black
• Light source: Single colour LED, 3-in-1 LED
• Colours: Red, Green, Blue, White
• LED power: 0.5W
• Quantity of LEDs: 192
• LED power: Strobe: 1W
• Quantity of strobe LEDs: 96
• Beam angle: 135°
• Illuminance: 1.483 lx @ 1m
• Flash rate per second: 1 – 21Hz
• Modes: Automatic programs, DMX, Manual, Master/Slave
• DMX channels: 6, 9, 32, 64
• DMX connection: 3-pin XLR
• Daisy chain: Yes (max. 6 bars)
• IP rating: IP20
• Cooling: Convection
• Display: LED
• Power plug: P-Con
• Power consumption: 1.67 – 0.804A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 1021 x 68 x 68 mm
• Weight (kg): 1.75
• Included accessories: Mounting bracket, Power cable
