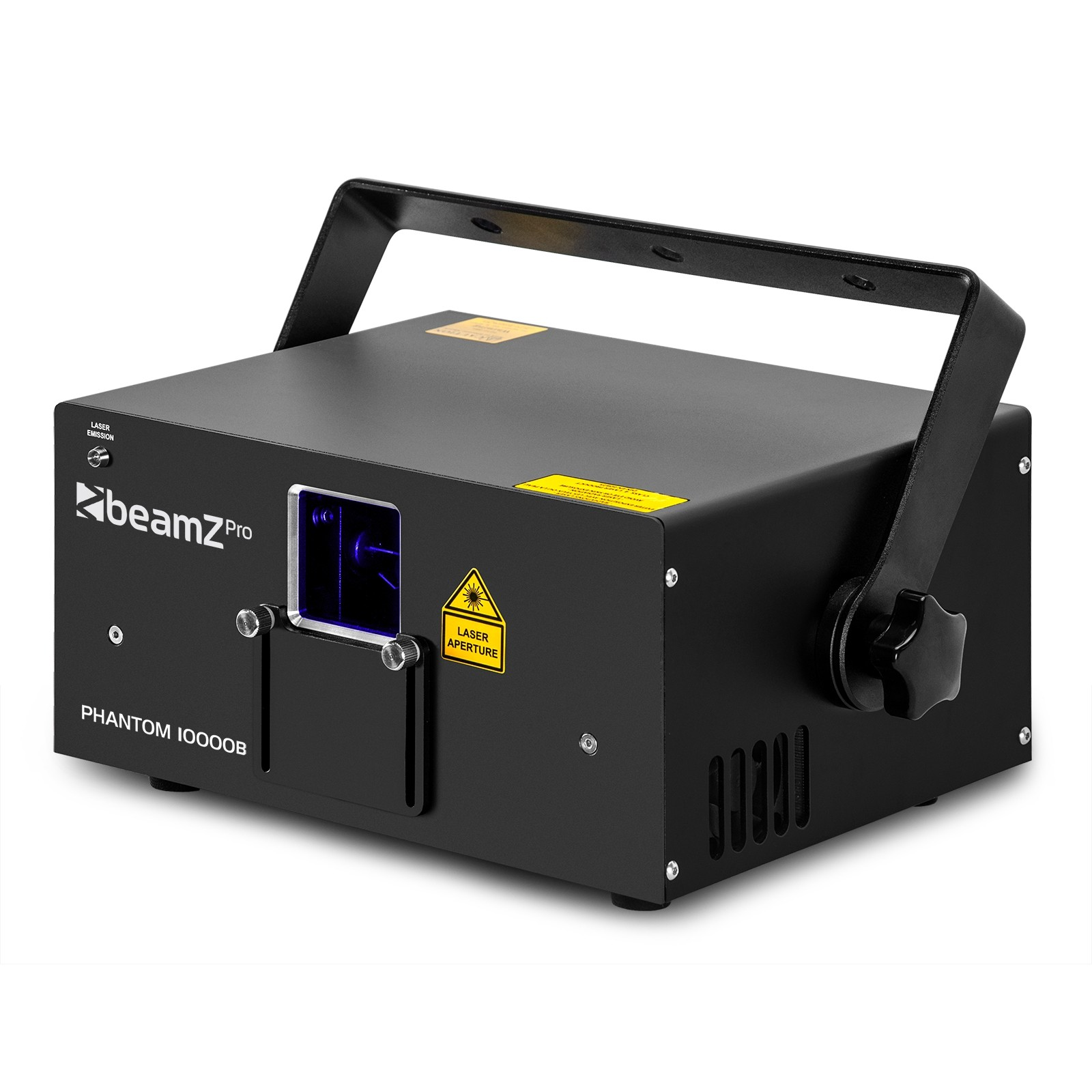

The Phantom Laser Series are characterized by the compact design and the guaranteed output power. These show lasers provides an analogue modulation what results in a better colour fading and a much broader colour. The lasers can be controlled over ILDA and DMX or run stand-alone in auto or sound activated mode. You can produce the exact effect you want with the DMX and ILDA control. Ideal for any kind of application – fixed installations, mobile use, multimedia projects, long distance outdoor applications and extra precise graphics projections. Delivery in a customized waterproof PP flightcase.

FEATURES:

• Red (2700mW), Green (2700mW) and Blue (4600mW) Powerful laser
• Guaranteed 10W output
• Analog RGB colour modulation
• 30K @ 8° high speed optical scanner system
• X- and Y-Size inverter
• DMX and Stand-alone mode
• 12 or 23 DMX channels
• Master/slave function
• Sound activated or auto mode
• Pre-programmed shows
• DMX in/output via 3-pin XLR
• Ilda in/output
• Control panel with LED display
• Interlock
• Powerconnector in/output

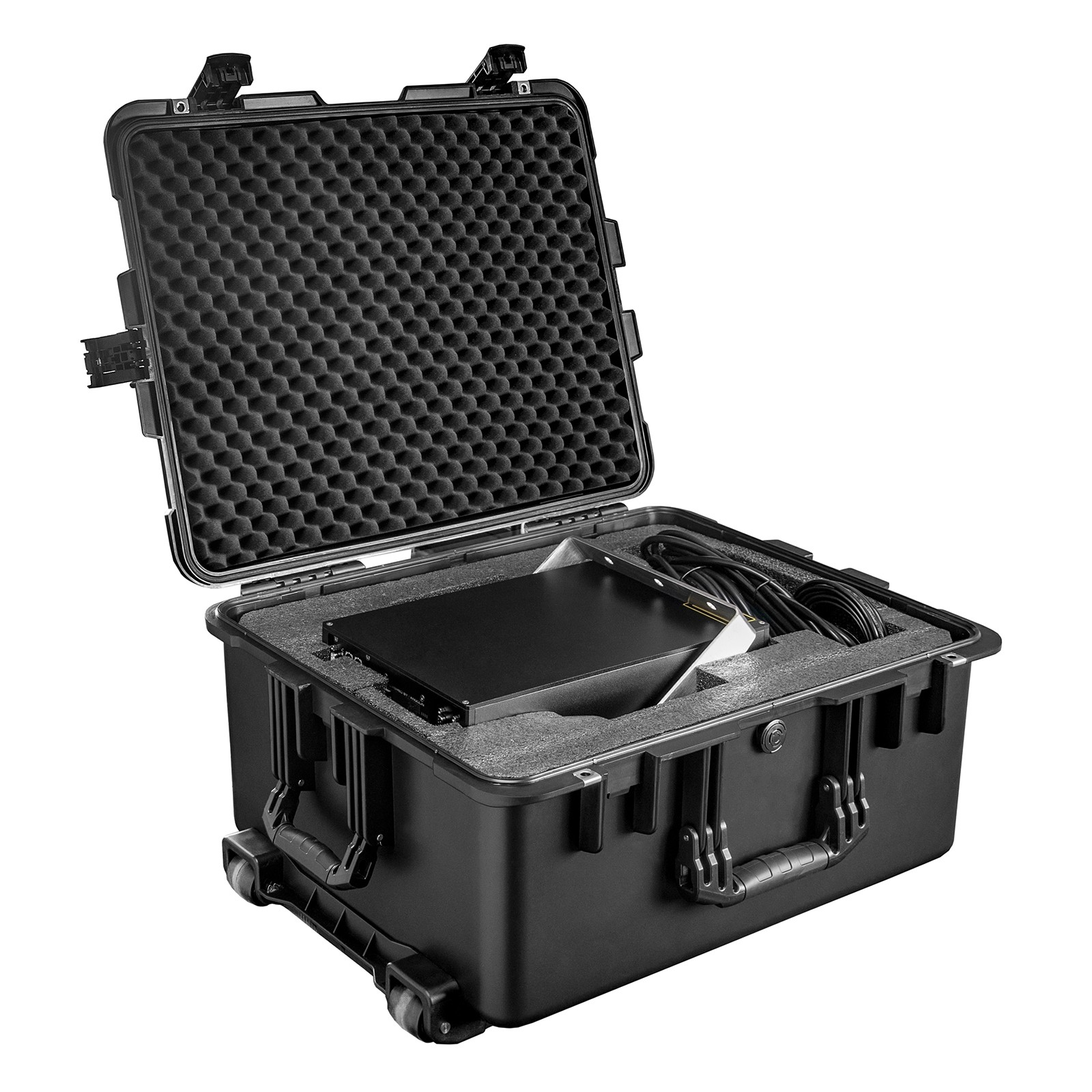

• Including solid waterproof PP flightcase

SPECIFICATIONS:

• Input Connections: XLR (3-pin)
• Output connections: XLR (3-pin)
• DMX channels: 12, 23
• DMX connection: 3-pin XLR
• ILDA DB25
• Laser Red: 2700mW @ 638nm
• Laser Green: 2700mW @ 525nm
• Laser Blue: 4600mW @ 455nm
• Scanner system: 30kpps @ 8°
• Maximum scanner: angle 60 degrees
• Guaranteed output: 10000mW
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 340 x 247 x 148mm
• Weight: 12kg
