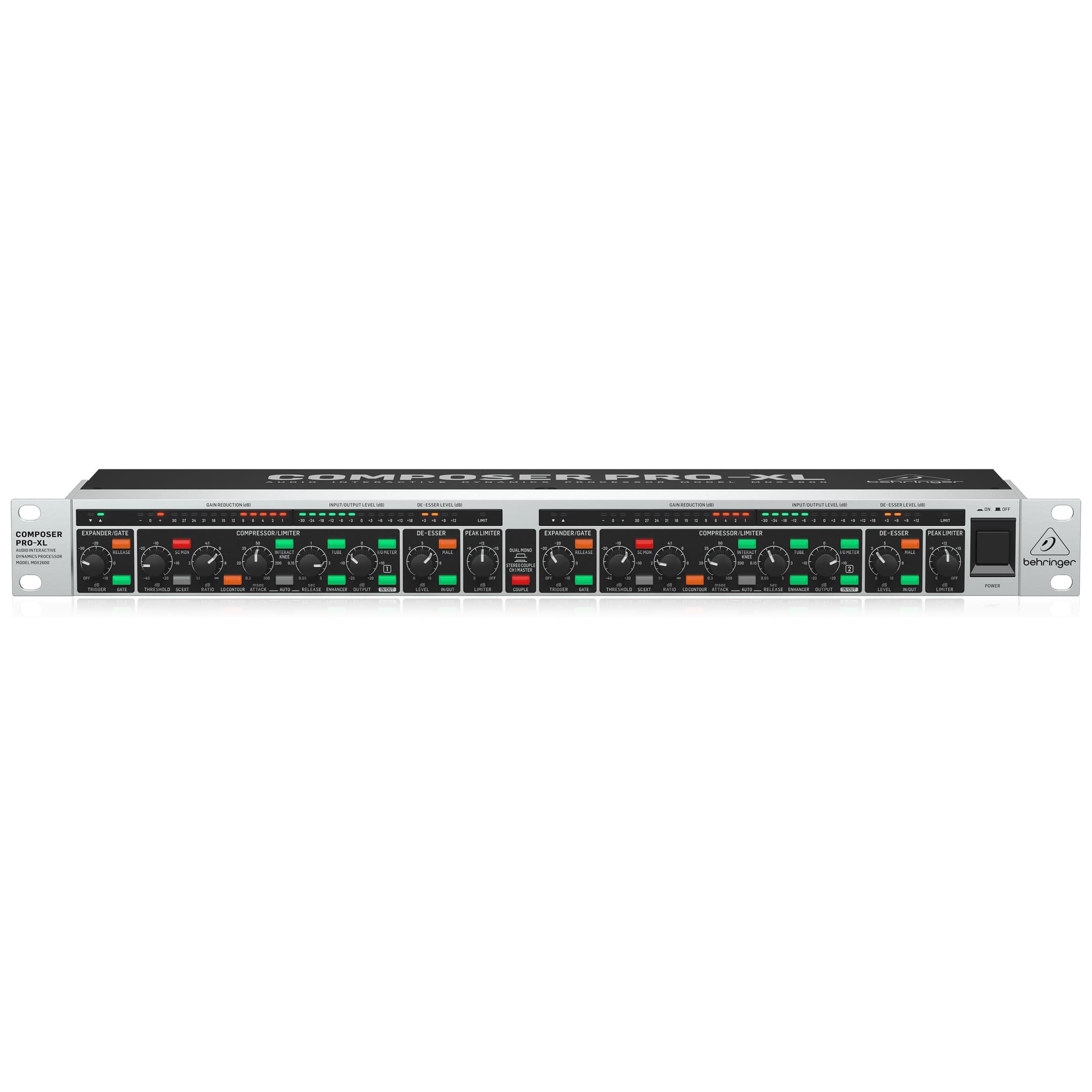

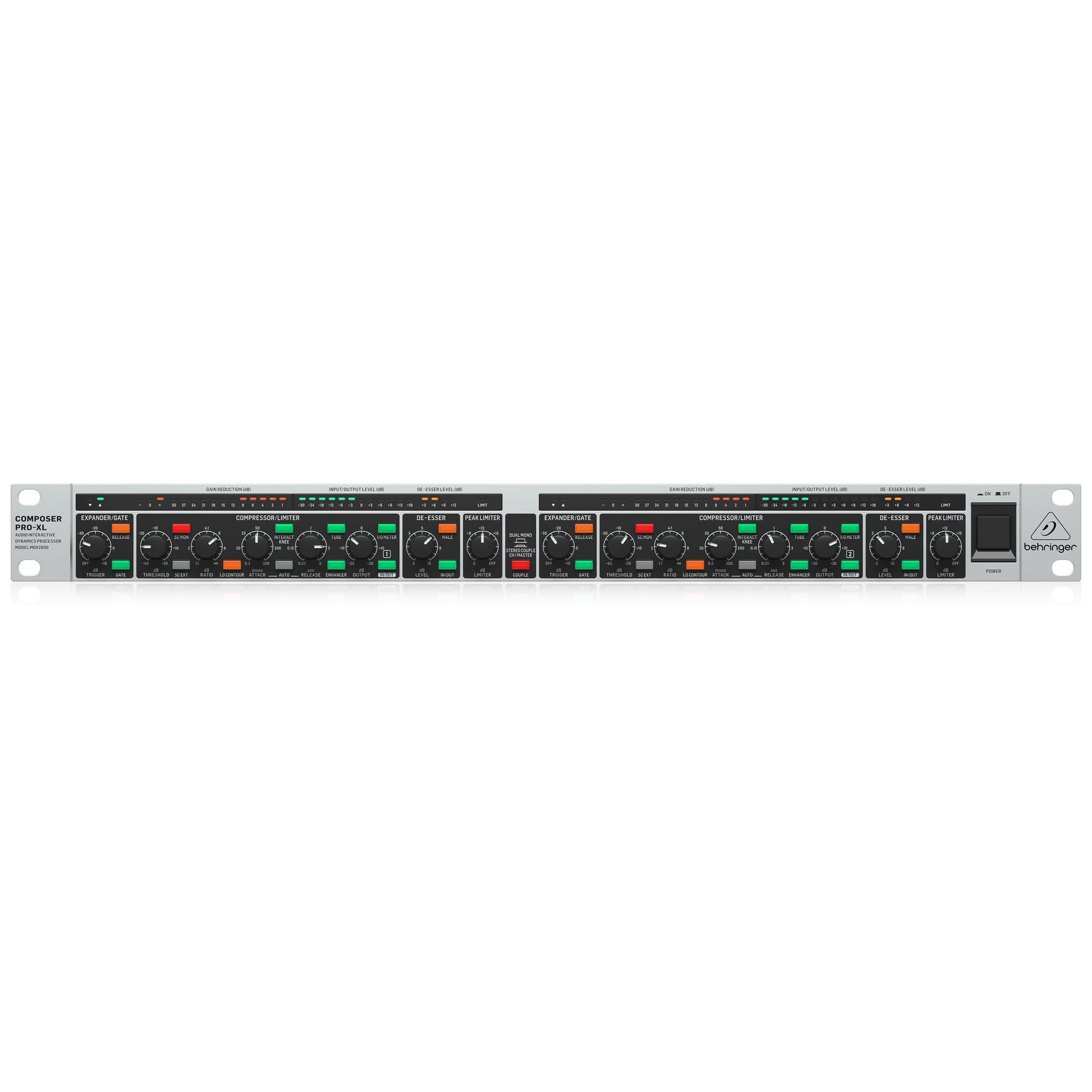

COMPOSER PRO-XL MDX2600 V2
The reference-class MDX2600 is a marvelous dual-channel Expander/Gate/Compressor/Peak Limiter that is ideal for: compressing mono/stereo signals and providing virtually inaudible noise suppression, without loss of high frequencies; increasing vocal presence and energy; and limiting, or smoothing out extremely-high signal peaks. Additionally, the MDX2600 features an integrated Dynamic Enhancer, De-Esser, Low-Contour filter and our revolutionary, switchable Tube simulation – for the extra warmth and transparency of classic tube circuitry. Put simply, the MDX2600 can do amazing things for your vocals or instruments – providing virtually everything you need for studio-quality dynamics processing!

Audio Dynamics Toolkit
THere are just a few of the MDX2600�s outstanding capabilities:
Switchable IKA (Interactive Knee Adaptation) � provides program-adaptive compression, combining all the advantages of both hard and soft-knee compression
IGC (Interactive Gain Control) � combines clipper and program limiter for reliable, inaudible protection against signal peaks
Enhancer � lets you emphasize the Bass, Midrange and Hi output at selectable frequencies for maximum punch, clarity and detail � without raising overall volume
Tube Simulation � provides the extra warmth and transparency of classic tube circuitry, creating a sound rich in harmonic content
De-Esser � �must-have� tool with switchable male/female voice recognition for reducing sibilance, while preserving natural voice timbre � often used to enhance upper-mid, to high-frequency smoothness in vocals, drum overheads, strings, etc.
Side Chain � allows insertion of graphic/parametric EQ to reduce specific frequencies � also often used to �tighten up� tracks using an internal or external signal to trigger compression, or gating of signal being processed (ex. using bass guitar signal to un-gate kick drum)
Stereo Couple � links both channels, allowing Channel 1 dials and switches to provide dynamics control over both channels (true stereo processing)

Revolutionary Tube Simulation
The secret behind the COMPOSER PRO-XL MDX2600’s incredible sound is our Tube Modeling processor, which exudes the very essence of tube and compression. This amazing circuitry accurately emulates the performance characteristics of highly sought-after classic tube compressors, creating a sound that is so rich in harmonic content – you’ll wonder where we hid the tubes!

Options Abound

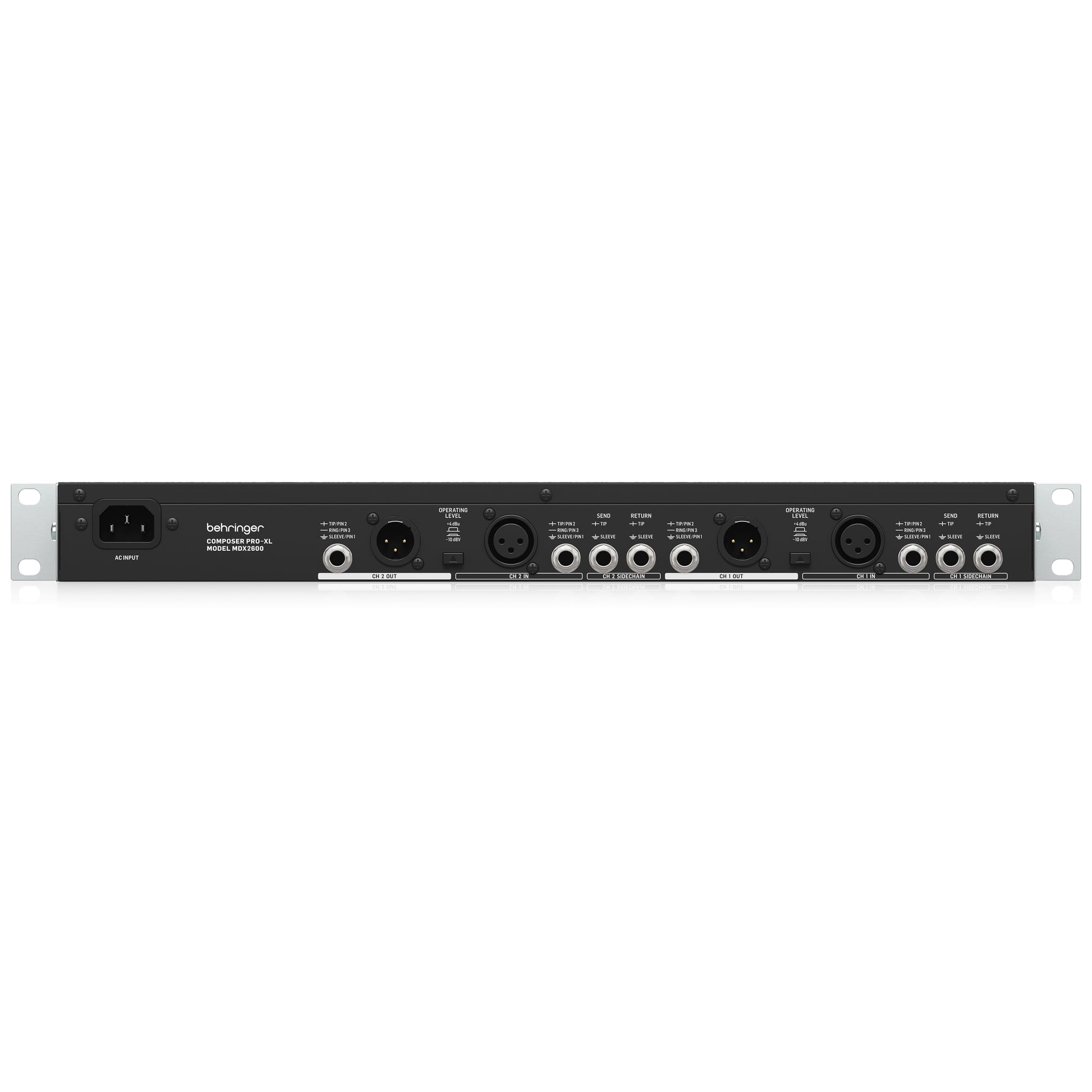

The MDX2600 features amazingly-accurate 12-segment LED meters for In/Out Level and Gain Reduction, switchable +4 dBu or -10 dBV operating level, Side Chain I/O, and servo-balanced XLR and 1/4″ Inputs and Outputs. Best of all, the COMPOSER PRO-XL MDX2600 takes up just a single rackspace.

Sound Value
The incredible MDX2600 is the ideal solution for becoming the master of your dynamics. With its flexible routing options, all the I/O you could ask for, plus a host of other professional features – the MDX2600 is an exceptional tool for your live shows – and an absolute “must-have” for your studio! Check out the COMPOSER PRO-XL MDX2600 at your Behringer dealer, or place your order online today.
Audio Inputs
| Type | XLR and 1/4″ TRS connectors, servo-balanced |
| Impedance | |
| +4 dBu | 50 kΩ balanced, 50 kΩ unbalalanced @ 1 kHz |
| -10 dBV | 50 kΩ balanced, 100 kΩ unbalanced @ 1 kHz |
| Operating Level | +4 dBu / -10 dBV, switchable |
| Max. input level | +22 dBu, balanced and unbalanced |
| CMRR | Typically 60 dB @ 1 kHz |
Audio Outputs
| Type | XLR and 1/4″ TRS connectors, servo-balanced |
| Impedance | 100 Ω balanced, 50 Ω unbalanced @ 1 kHz |
| Max. output level | +21 dBu, balanced and unbalanced |
Sidechain Inputs
| Type | 1/4″ TS connector, unbalanced |
| Impedance | 10 kΩ |
| Max. input level | +20 dBu |
Sidechain Outputs
| Type | 1/4″ TS connector, unbalanced |
| Impedance | 50 Ω |
| Max. output level | +21 dBu |
System Specifications
| Frequency range | 10 Hz to 70 kHz, +0/-3 dB |
| S/N ratio | 115 dB, unweighted |
| THD | 0.02% typ. @ +4 dBu, 1 kHz, unity gain |
| Crosstalk | -90 dB @ 1 kHz |
Expander / Gate Section
| Type | IRC (Interactive Ratio Control) expander |
| Threshold | OFF to +10 dB, variable |
| Ratio | 1:1 to 1:8, variable |
| Attack | < 1 msec / 50 dB, program-dependent |
| Release | SLOW: 100 msec/1 dB FAST: 100 msec/100 dB, variable |
Compressor Section
| Type | IKA (Interactive Knee Adaptation) compressor |
| Threshold | -40 to +20 dB, variable |
| Ratio | 1:1 to ∞:1, variable |
| Attack / release | Manual or automatic, variable |
| Manual attack time | 0.3 msec/20 dB to 300 msec/20 dB, variable |
| Manual release time | 0.05 sec/20 dB to 5 sec/20 dB, variable |
| Auto characteristic | Wave adaptive compressor |
| Auto attack time | Typically 15 msec for 10 dB, 5 msec for 20 dB, 3 msec for 30 dB |
| Auto release time | Typically 125 dB/sec, program-dependent |
| Output | -20 to +20 dB, variable |
Peak Limiter Section
| Type | IGC (Interactive Gain Control) peak limiter |
| Level | 0 dB to OFF (+21 dBu), variable |
| Level 1 limiter type | Clipper |
| Attack | “Zero” |
| Release | “Zero” |
| Level 2 limiter type | Program limiter |
| Attack | Typically <5 msec, program-dependent |
| Release | Typically 20 dB/sec, program-dependent |
Dynamic Enhancer Section
| Type | IDE (Interactive Dynamic Enhancer) |
| Filter frequency | 2.5 kHz (lower cut-off frequency) |
| Characteristic | High-pass filter (6 dB/oct.) |
| Boost | Max. 28 dB @ 7.5 kHz |
De-Esser Section
| Type | VAD (Voice-Adaptive De-Esser) |
| Filter Frequencies | 8.6 kHz (Female), 7.5 kHz (Male) |
| Filter bandwidth | Program-dependent |
| Level reduction | Max. 15 dB |
Power Supply, Voltage, Current Consumption
| Switch mode power supply | Autorange, 100-240 V~ 50/60 Hz |
| Power consumption | 15 W |
| Mains connector | Standard IEC receptacle |
Dimensions / Weight
| Dimensions (H x W x D) | 44 x 483 x 149 mm (1.7 x 19.0 x 5.9″) |
| Weight | 1.7 kg (3.7 lbs ) |
