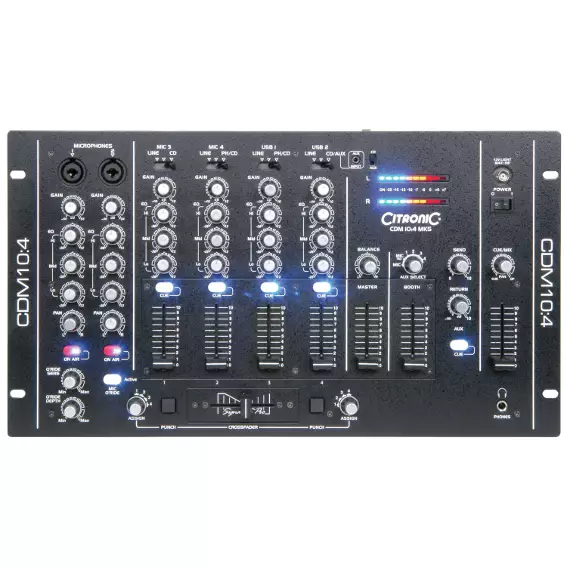

A classic mixer the Citronic CDM10:4 has always been the choice of the working DJ, with a simple layout that is packed with all the features you need. The MKV version comes with connectivity through USB and an additional auxiliary input on the top panel for external sound sources such as MP3 player.

FEATURES:

• 4 channel, 17 inputs
• 2 dedicated balanced mic channels with 3-band EQ
• Mic override facility for DJ mics
• 2 auxiliary mics on channels 1 and 2
• 8 CD/line inputs (2 switchable to phono)
• Top panel 3.5mm aux input for MP3 player
• 2 USB input/outputs for channels 3 and 4
• Fully assignable VCA crossfader
• Punch buttons
• Hotswap channel faders
• Individual gain control per channel
• 3-band EQ with total kill
• Fully assignable send and return
• 10-bar LED monitor display
• 12V BNC light socket (light not supplied, 173.501 recommended)
• Booth output
• Balanced XLR and unbalanced RCA outputs

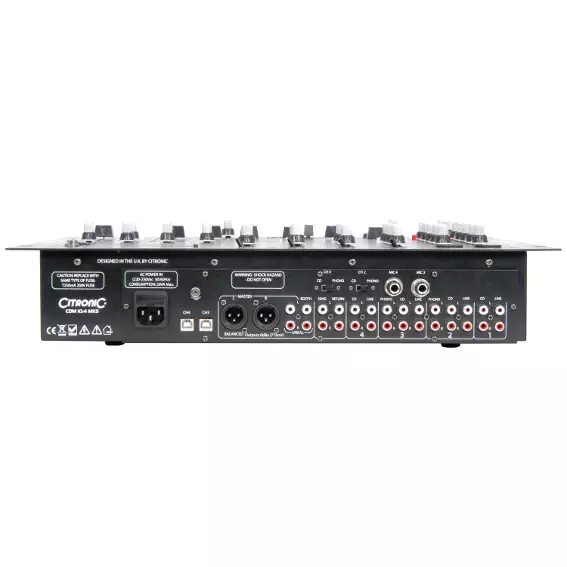

• Rotatable back panel for convenient installation
• 19″ (6U) rack mountable

SPECIFICATIONS:

• Power supply: 220-230Vac, 50/60Hz (IEC)
• Cutout: 440 x 250mm
• Equaliser : bass: +12dB, -26dB @ 100Hz
• Equaliser : midrange: +12dB, -26dB @ 800Hz
• Equaliser : treble: +12dB, -26dB @ 9kHz
• Headphone output: 112mV @ 32 Ohms
• Input : line: 195mV, 50k Ohms
• Input : mic: 1.5mV, 2k Ohms
• Input : phono: 4mV, 47k Ohms
• Signal to noise ratio : line: >87dB
• Signal to noise ratio : mic: 68dB
• Signal to noise ratio : phono: 73dB
• Dimensions: 483 x 266 x 80mm (6U)
• Weight: 5kg
• Fuse rating: T250mA (240V) / T500mA (110V)
