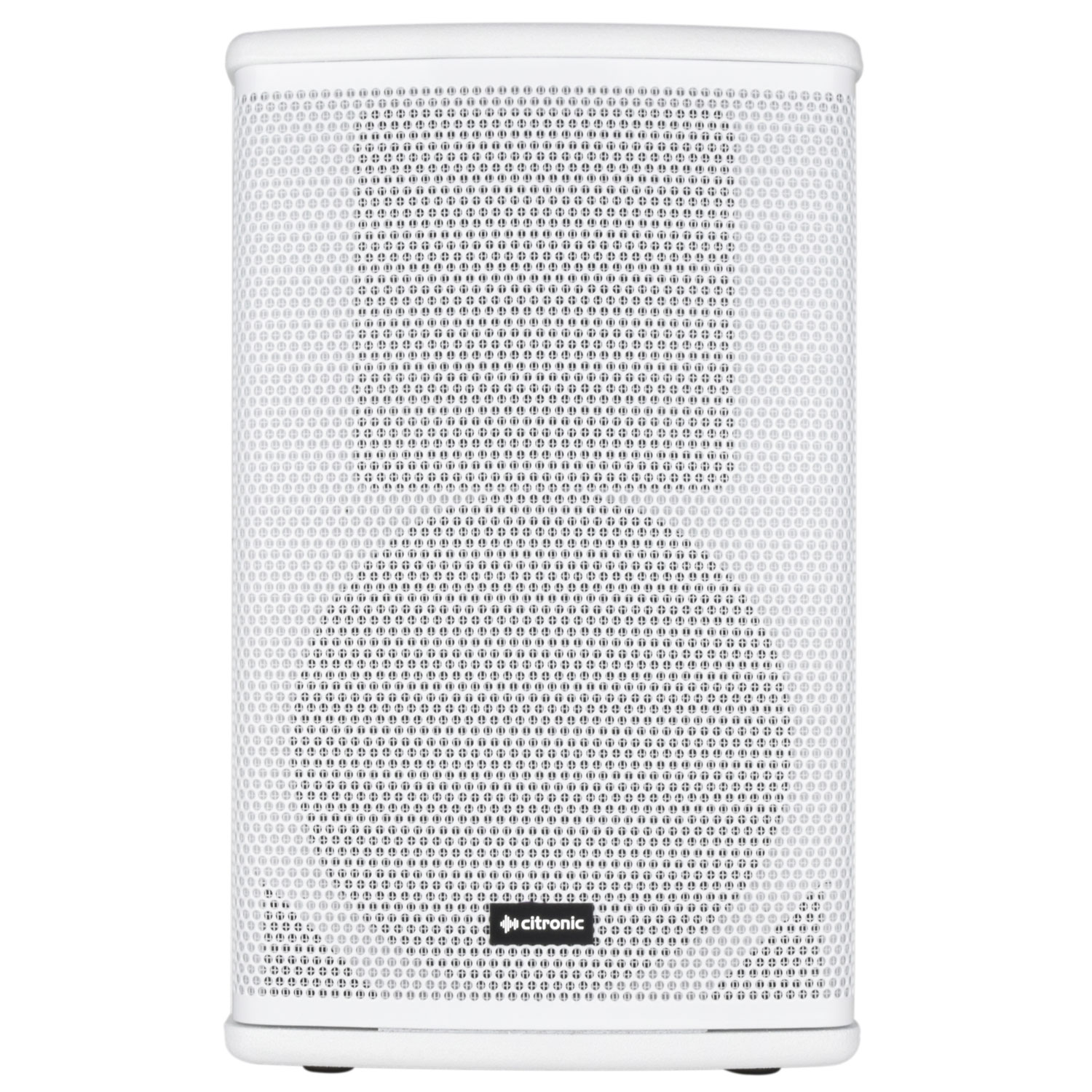

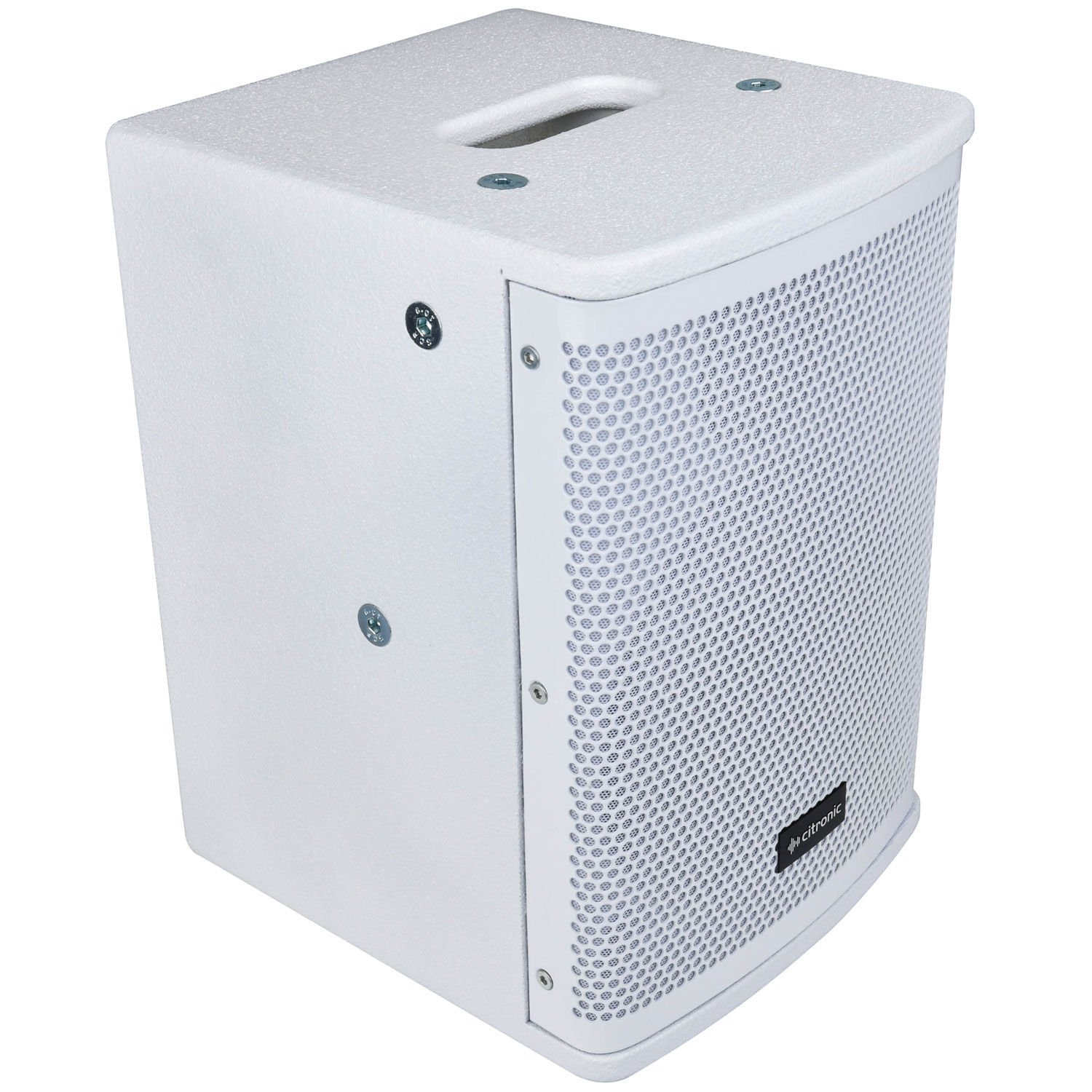

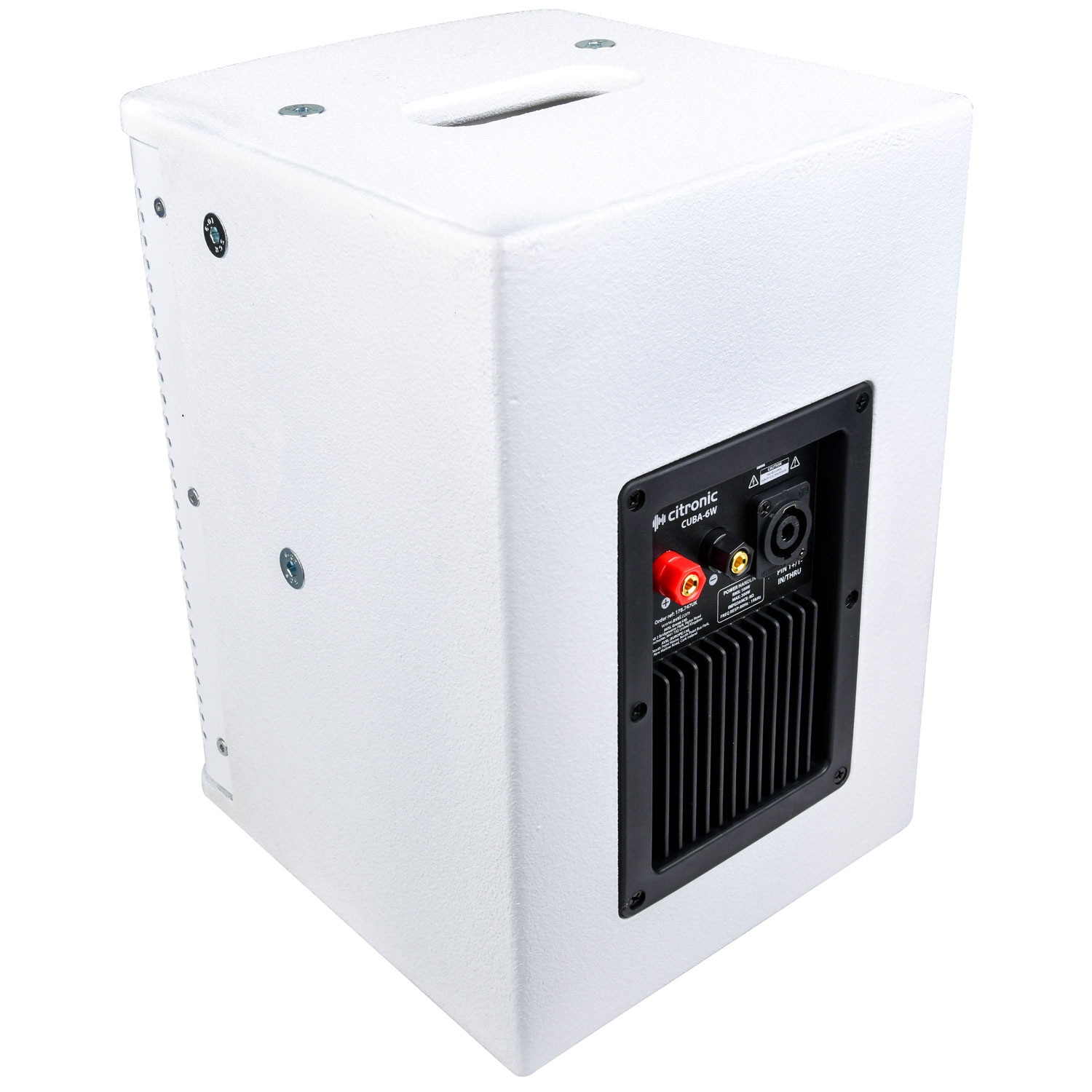

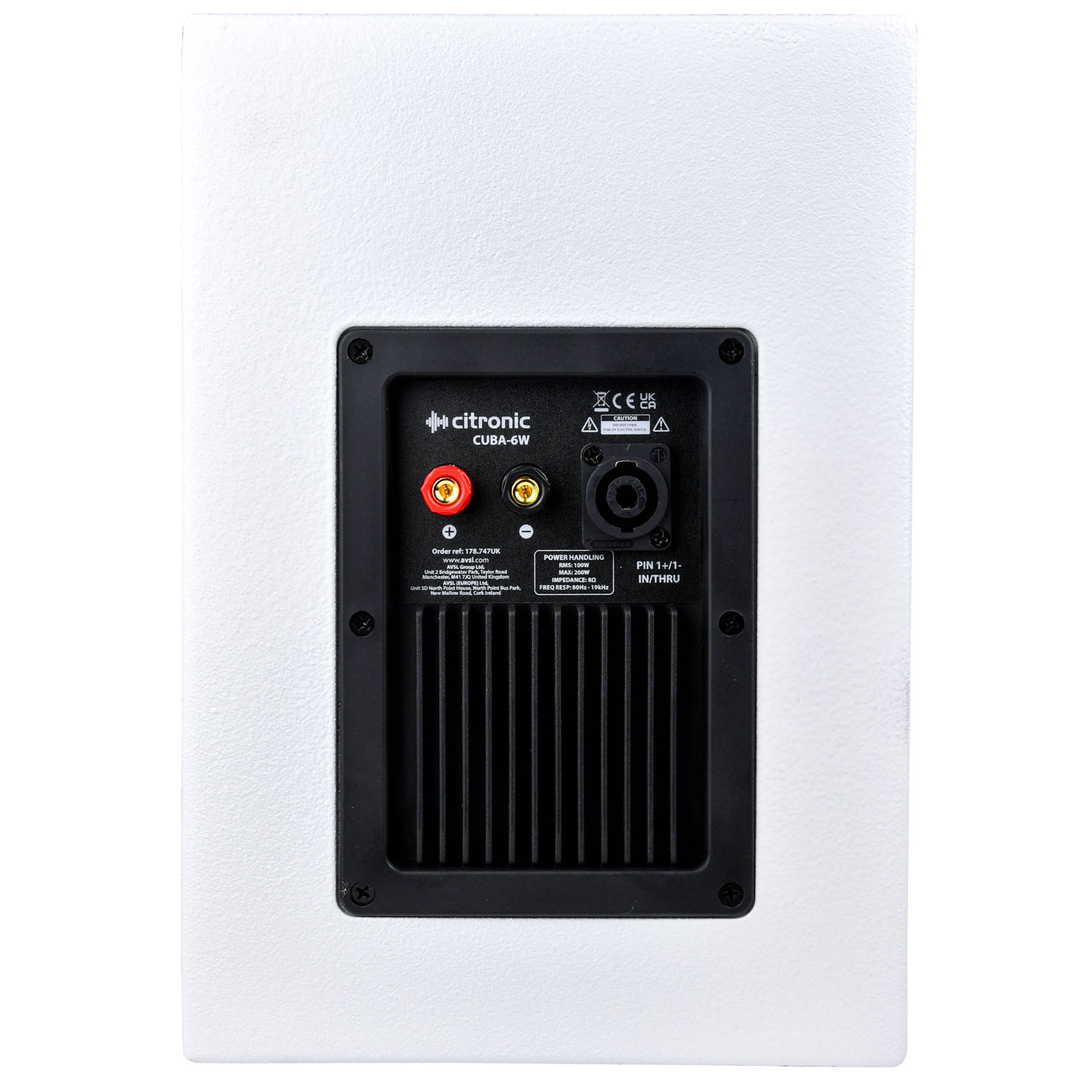

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient HF compression or dome tweeter combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has either 2 x Speakon or a single Speakon with 4mm binding posts (depending upon model), enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.
FEATURES:
- Hard-wearing polyurea cabinet coating

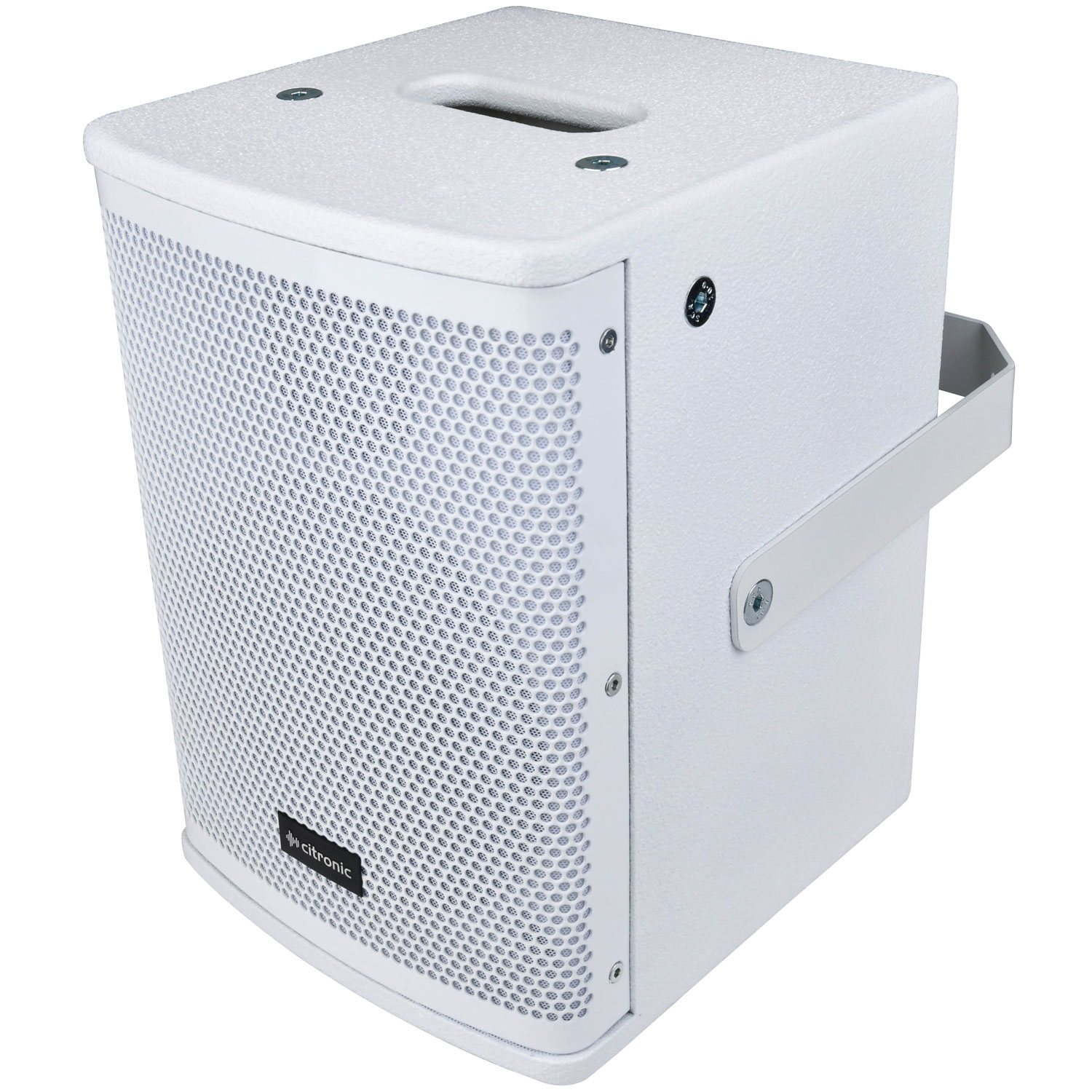

- CUBA-6, CUBA-8 & CUBA-10 supplied with a U-bracket
- 35mm pole mount socket and M8 flying points
- Custom designed high power LF and HF drivers
SPECIFICATIONS:Â
- Weight: 5.2kg
- Dimensions: 325 x 235 x 210mm
- HF dispersion: 100° x 100°
- Max. SPL: 115.0dB
- Sensitivity: 92dB
- Frequency response: 80Hz-19kHz
- Power handling max: 200W
- Power handling rms: 100W
- HF driver: 25mmØ (1″) silk dome tweeter
- Voice coil: 38mmØ (1.5″)
- Main driver: 165mmØ (6.5″)
- Colour: White
- Input: SPK socket and 4mm binding posts
- Construction: Polyurea coated MDF + powder-coated steel grille
- Impedance: 8 Ohms
