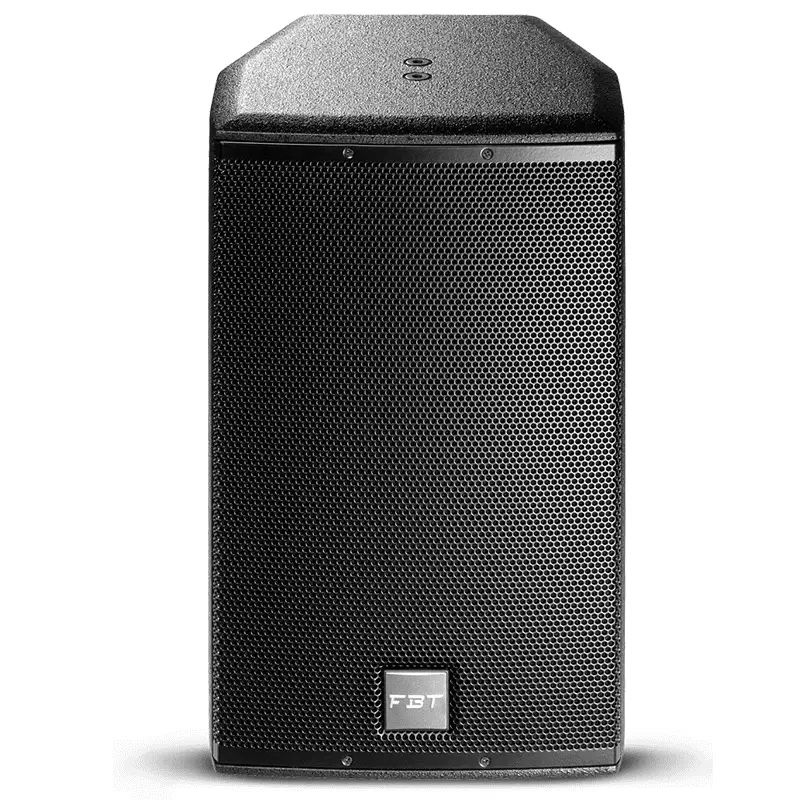

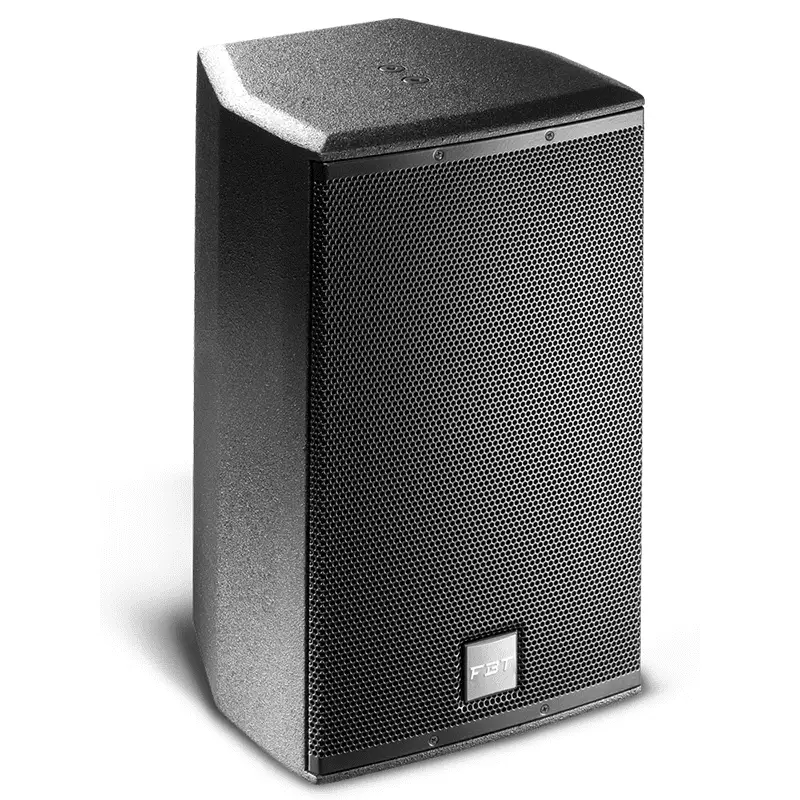

The Archon 108 is a 8″ and 1″ domed full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.

FEATURES:

• Stylish architectural cabinet design
• Acoustically transparent steel grilles with protection cloth
• High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
• Baltic birch plywood cabinets available in black or white extra texture paint
• Choice of different RAL paint colours on order
• Choice of different paint finish: glossy, matt, textured and more, on order
• Custom designed low frequency woofers, made in Italy
• Custom designed high frequency compression drivers, made in Italy
• Rotatable horns for optimal horizontal or vertical sound dispersion angle
• Selectable bi-amp/full range crossover network
• Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
• Possibility to install line transformers for 100V/70V applications
• Possibility to order weatherproof versions for outdoor use
• Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)

SPECIFICATIONS:

• Configuration: 2 Way
• Frequency response: 60Hz – 22kHz
• Low frequency woofer: 8″ with 1.5″ VC
• High frequency driver: 1.5″ Dome Tweeter
• Maximum SPL cont/peak: 118/121dB SPL
• Dispersion: 90 x 90 (H x V)
• Crossover frequency: 2kHz
• Input connector: 4x Euroblock
• Net Dimension (WxHxD): 248 x 411 x 248mm
• Net Weight: 6.5kg
• Transport Dimension (WxHxD): 330 x 491 x 330 mm
• Transport Weight: 8.5kg
• Recommended Amplifier: 300w RMS
