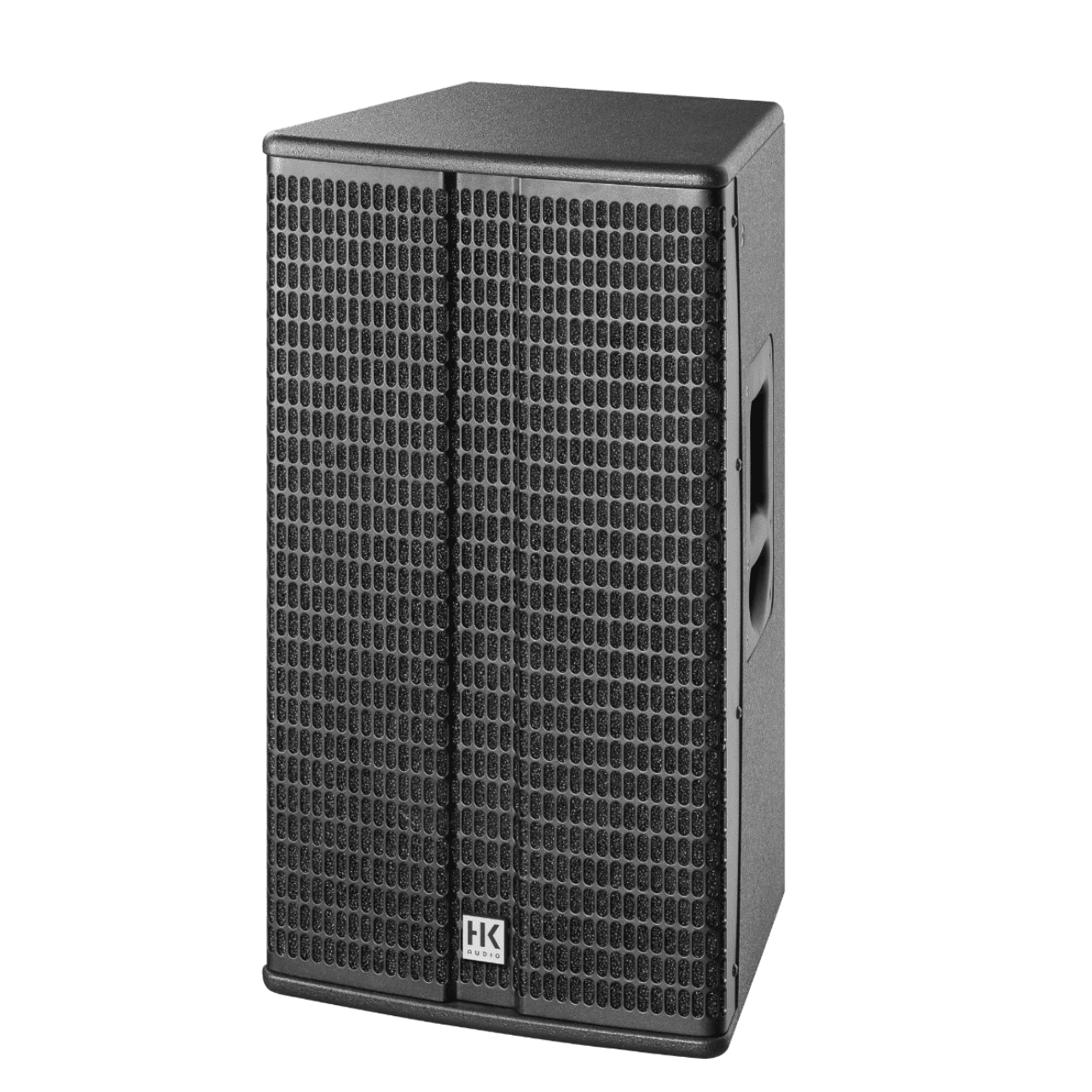

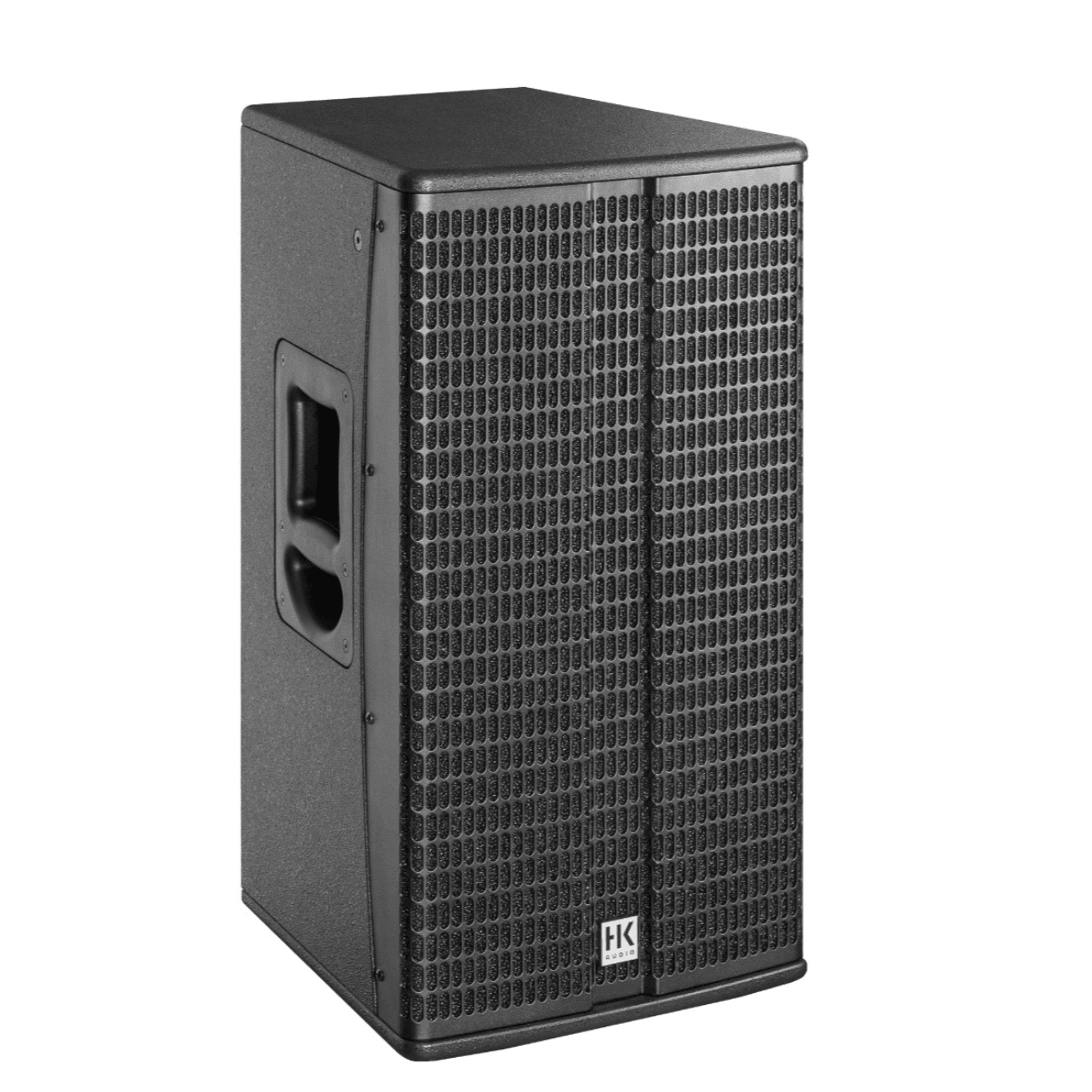

The active 12″/1″ full-range mid/high unit is incredibly powerful with its 1,200 watts of power. The four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – also make it suitable for a wide range of applications and offer top performance and easy handling in every situation.
General Specifications
| Max. SPL @ 10% THD | 126 dB half space (70 Hz – 12 kHz averaged) |
| Max. SPL peak @ 10 % THD | 135 dB half space |
| Frequency response +/-3 dB | 65 Hz – 19 kHz |
| Frequency response -10 dB | 58 Hz – 18 kHz |
| Power amp output (peak power) | 1200 W |
| Preamp | DSP (Time Alignment) |
| Amp type | Class D – biamped |
| Active protective circuits | Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters |
| Low-/mid speaker | 1x 12″, 2″ voice coil |
| HF driver | 1″, 1″ voice coil |
| Horn directivity | 90° x 55° CD horn |
| Active crossover frequency | 2.3 kHz FIR X-over with 72 dB/oct. |

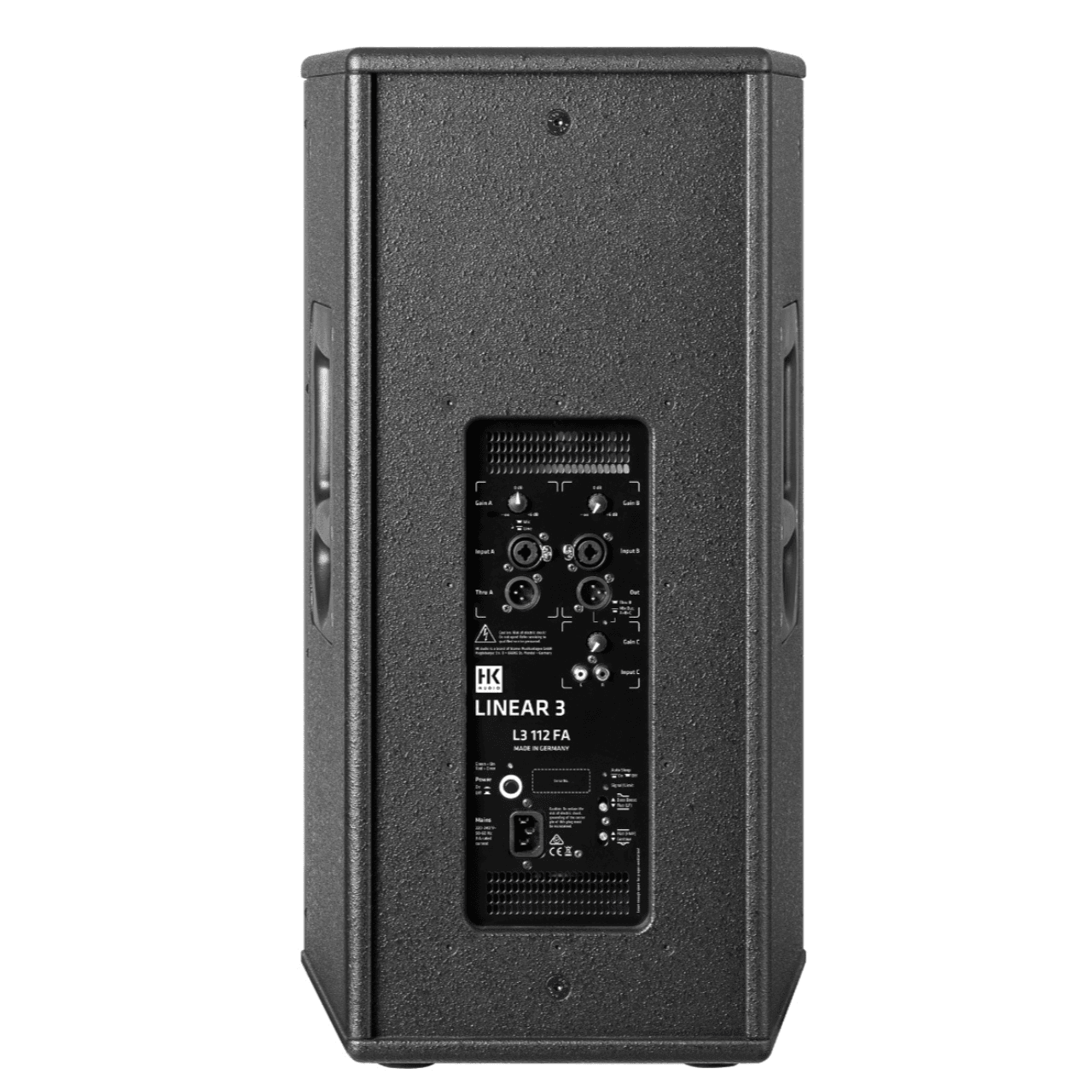

| Analog inputs | 2x XLR combo balanced, 1x Stereo RCA |
| Analog outputs | 2x XLR Thru balanced, 1x XLR Mix Out |
| Input sensitivity | +4 dBu @ Gain center-notched |
| Sensitivity switch | Line/Mic Input A |
| Filter presets | 2 EQ switches: Bass Boost/Flat & Flat/Contour |
| Mains connector | 1x IEC socket with V-Lock cord retainer |
| Power consumption | 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065 |

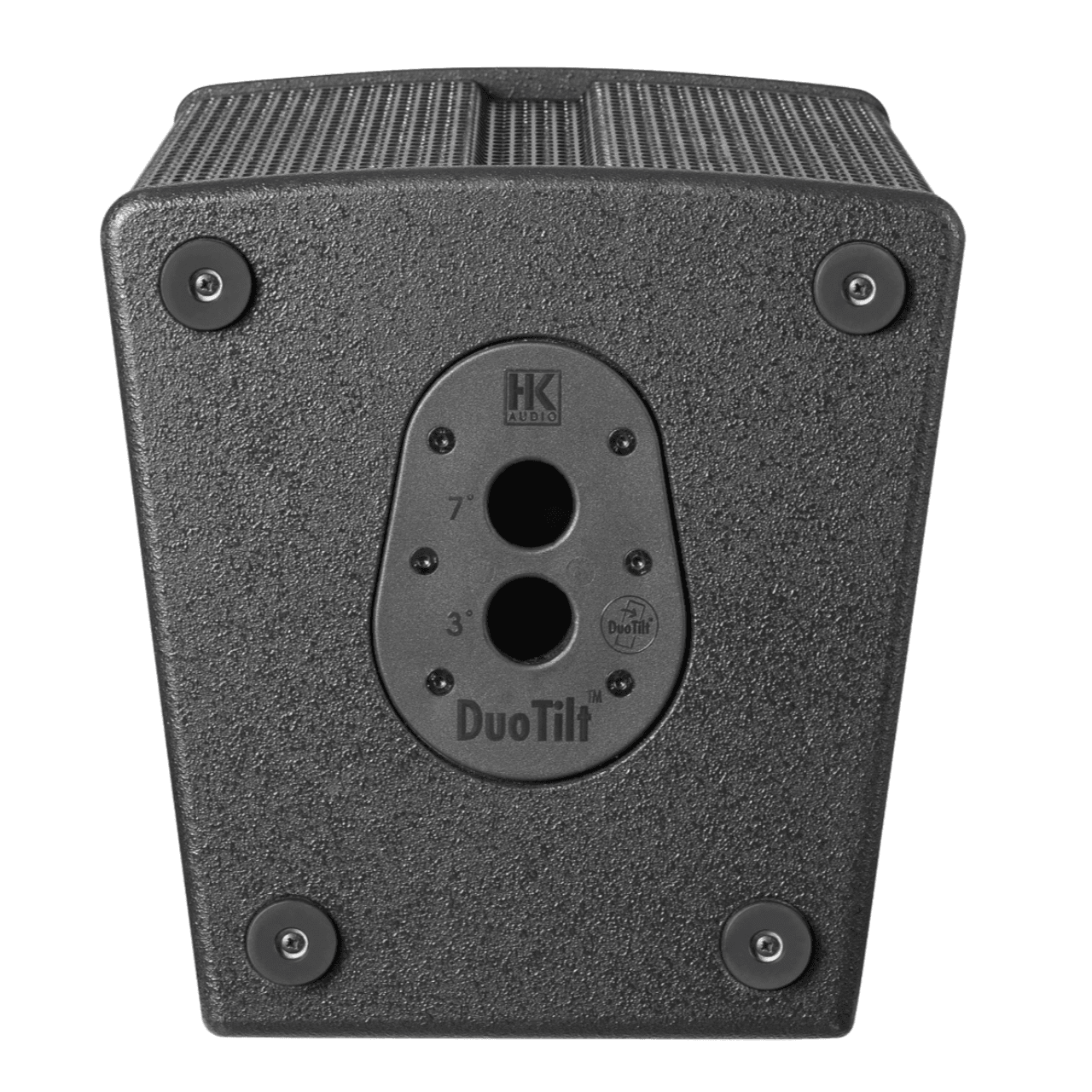

| Pole mount | DuoTilt 3°/7° |
| Rigging points | 4x M8 (AP-8) |

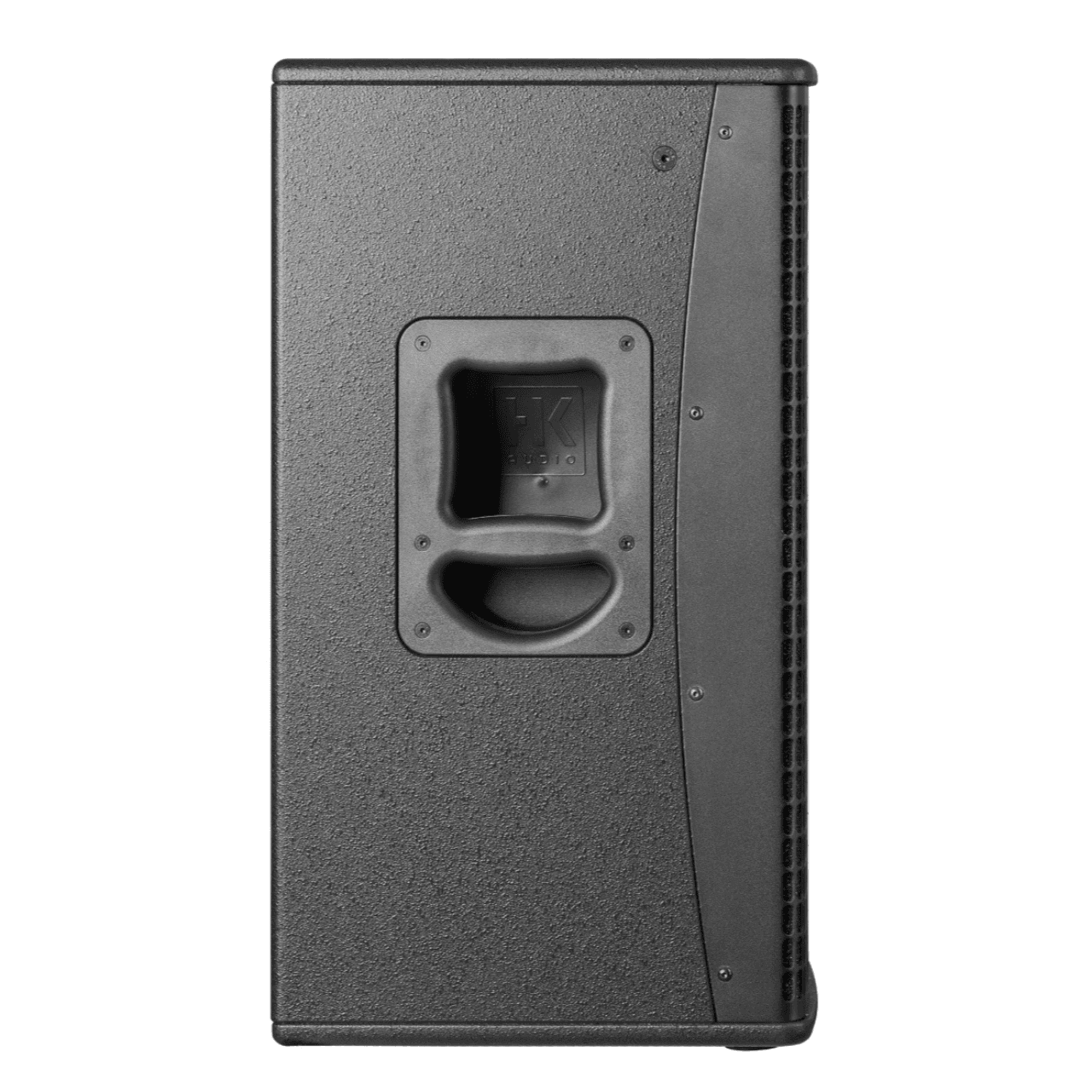

| Carrying handles | 2x MultiGrip |
| Housing | 16 mm MDF |
| Finish | Black acrylic enamel |

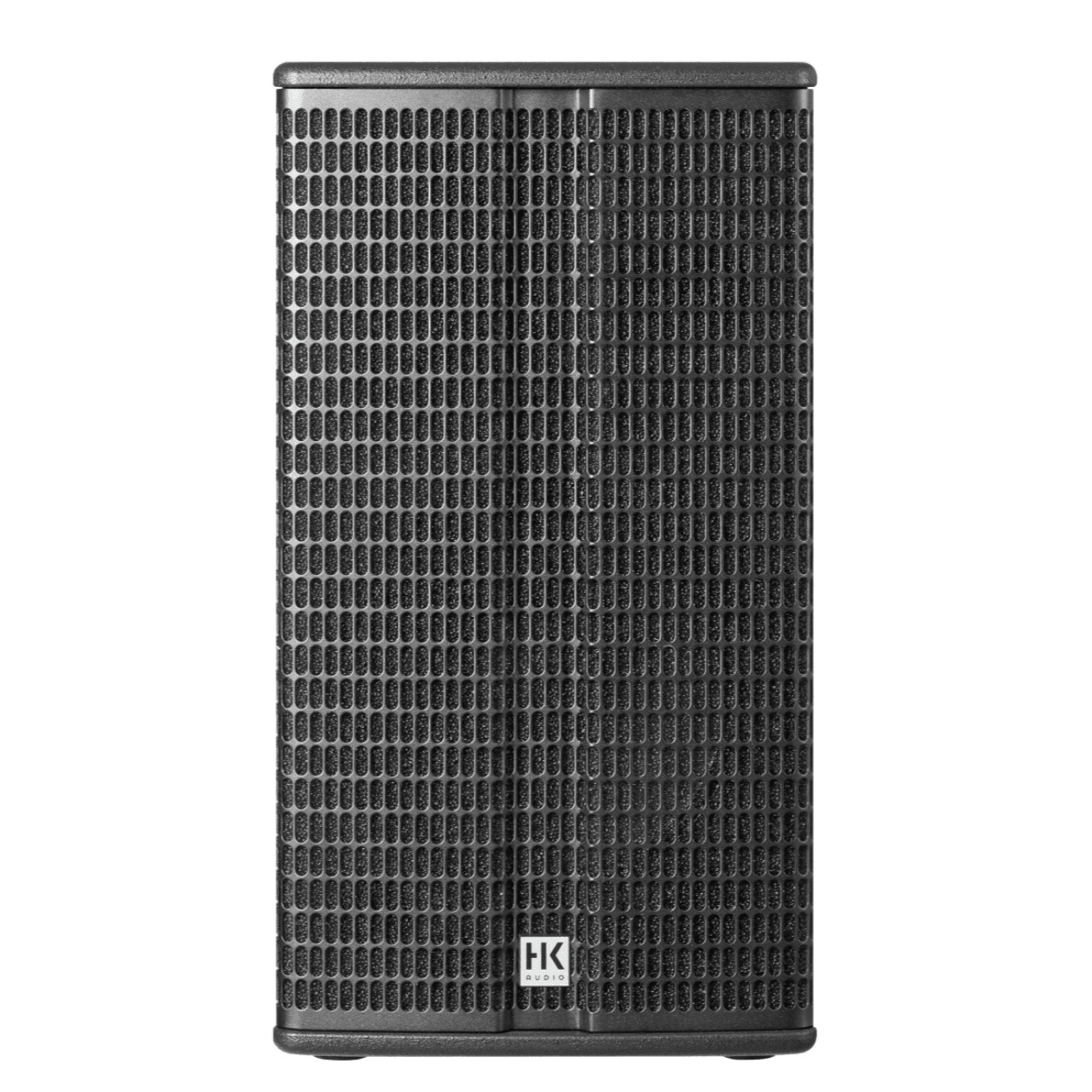

| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 36 x 66 x 36.7 cm 14-11/64 x 26 x 14-31/64″ |
| Weight | 21.5 kg / 47.4 lbs |
