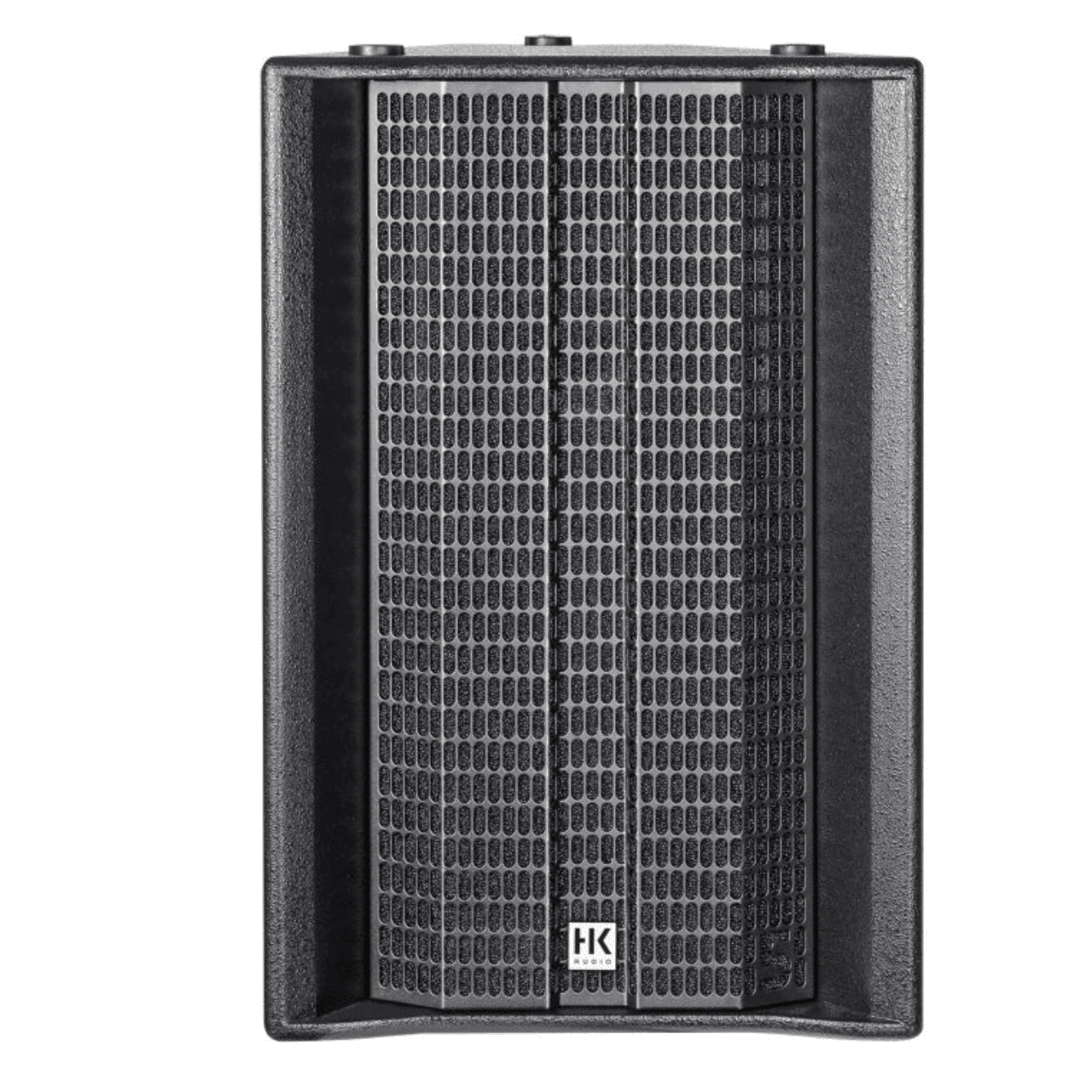

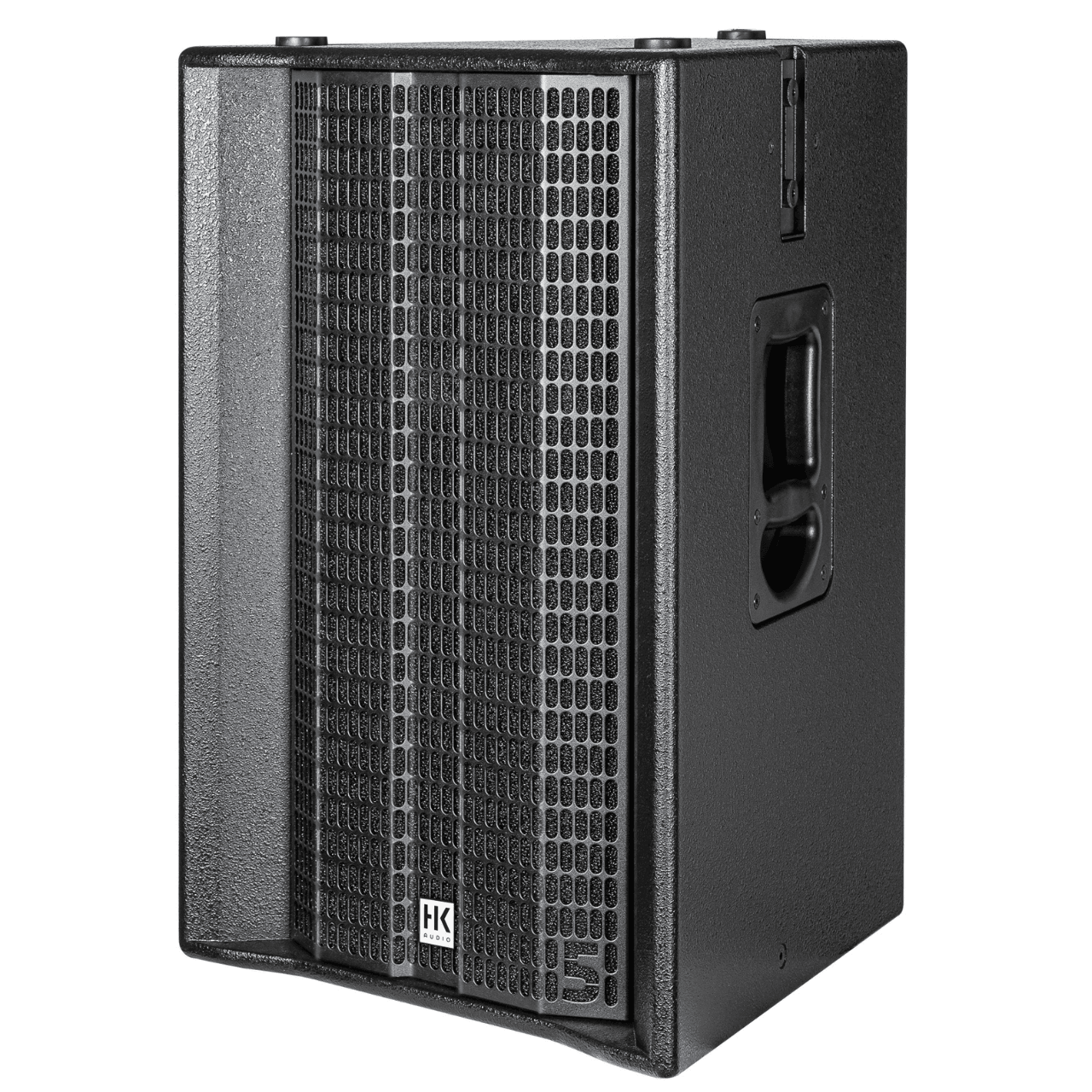

LINEAR 5 MK II 308 LTA is a highly efficient, scalable and economical long-throw active mid/high unit for large, long and wide rooms as well as open air spaces. It fills the gap between the classic point source PA and the line array in the form of a compact, horn-loaded direct sound source.

The LINEAR 5 MK II 308 LTA with 1-inch HF-Driver and Multicell Transformer (MCT) offers unprecedented sound coverage depth without treble drop-off and with compact dimensions. Balanced and powerful sound can reach up to 40 metres and up to 3000 people without having to use delay lines. The bass and mids are reproduced crisply and richly by three vertically arranged, horn-loaded 8-inch woofers.

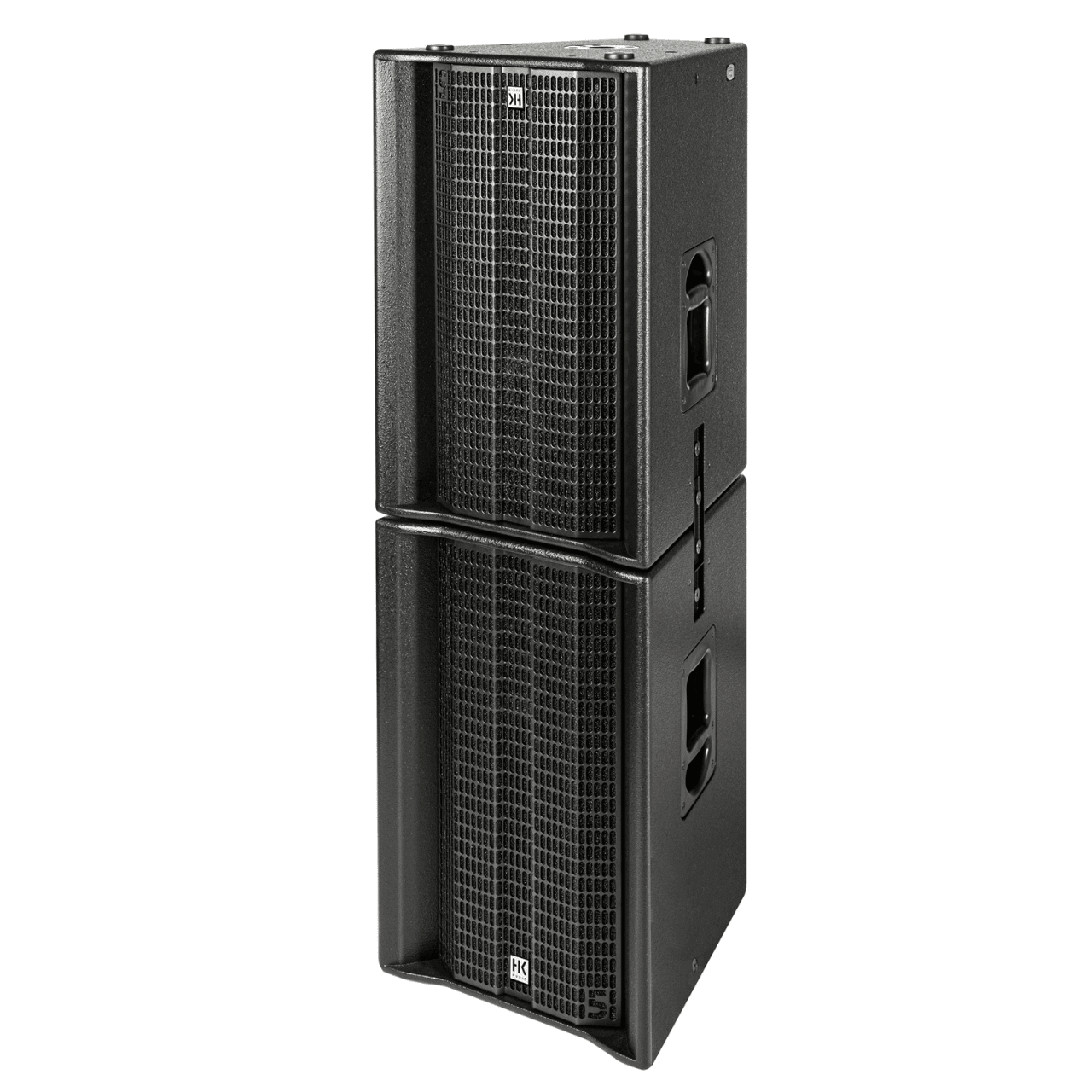

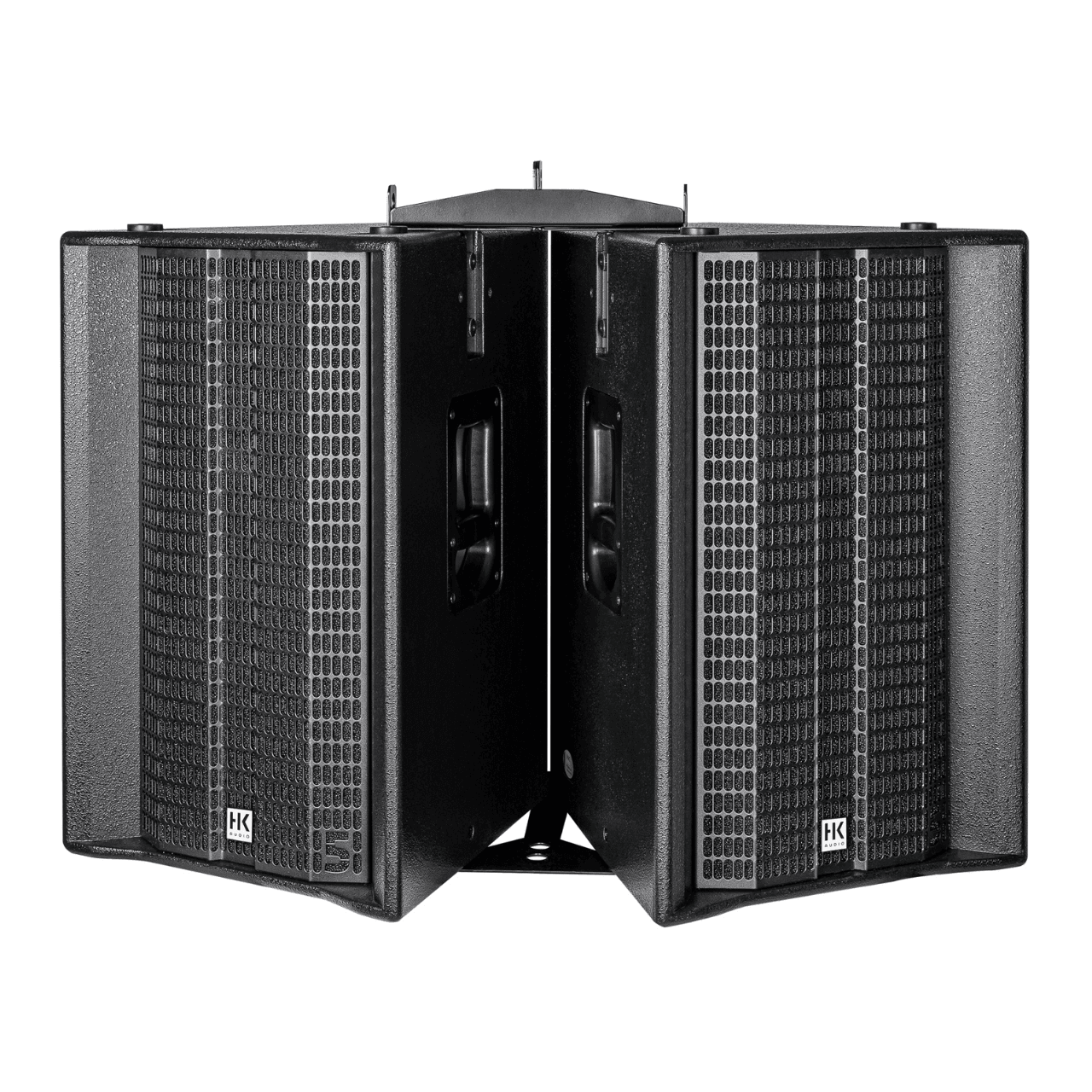

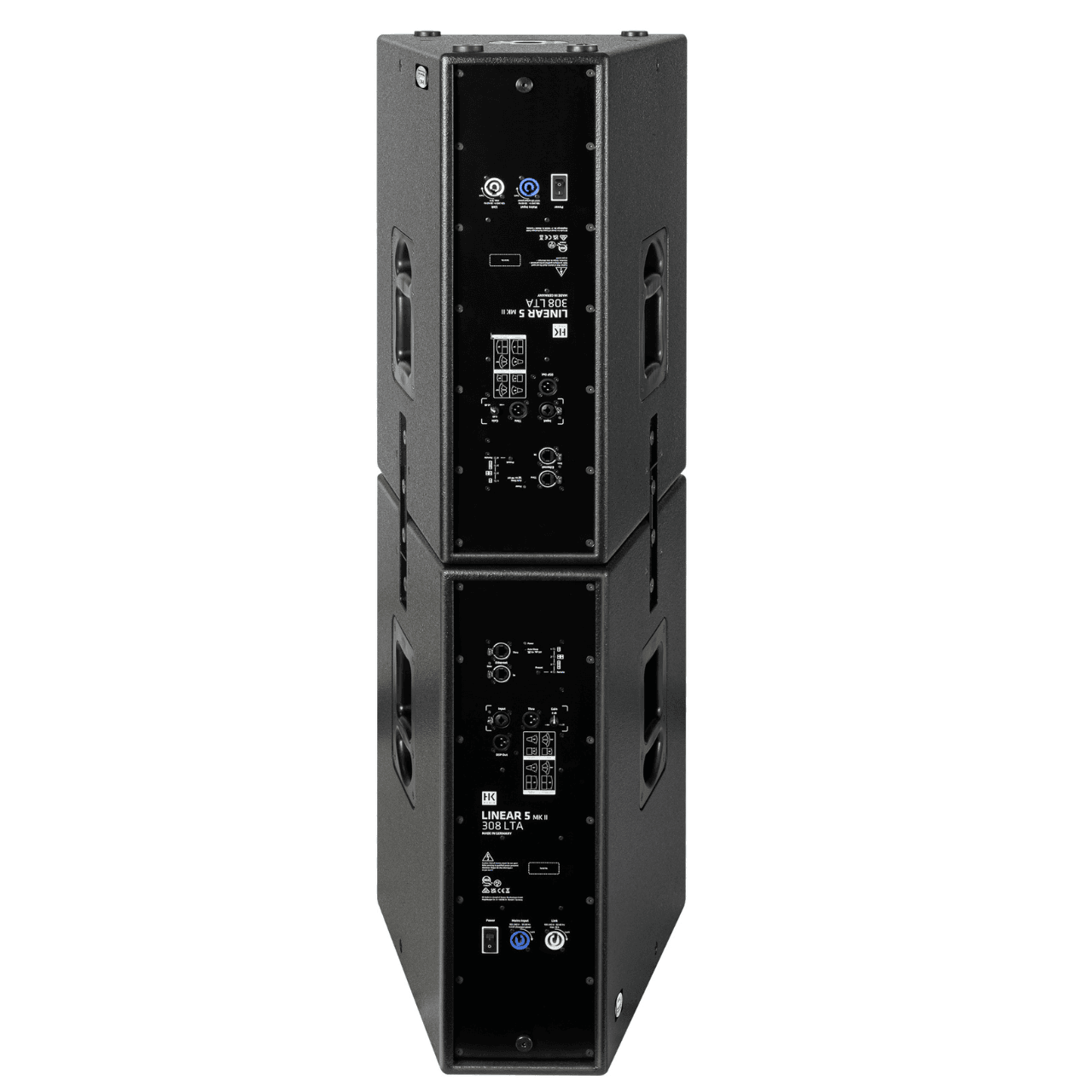

Precisely tuned presets for clustering and head stacking are available directly on the speaker. Thanks to the flexible design variants, the system can grow as required. Even with just one LINEAR 5 MK II 308 LTA mid/high unit (per side), the sound reaches much greater depths. Cluster, headstack or headstack cluster setups can be used to achieve coverage patterns with more width and depth.

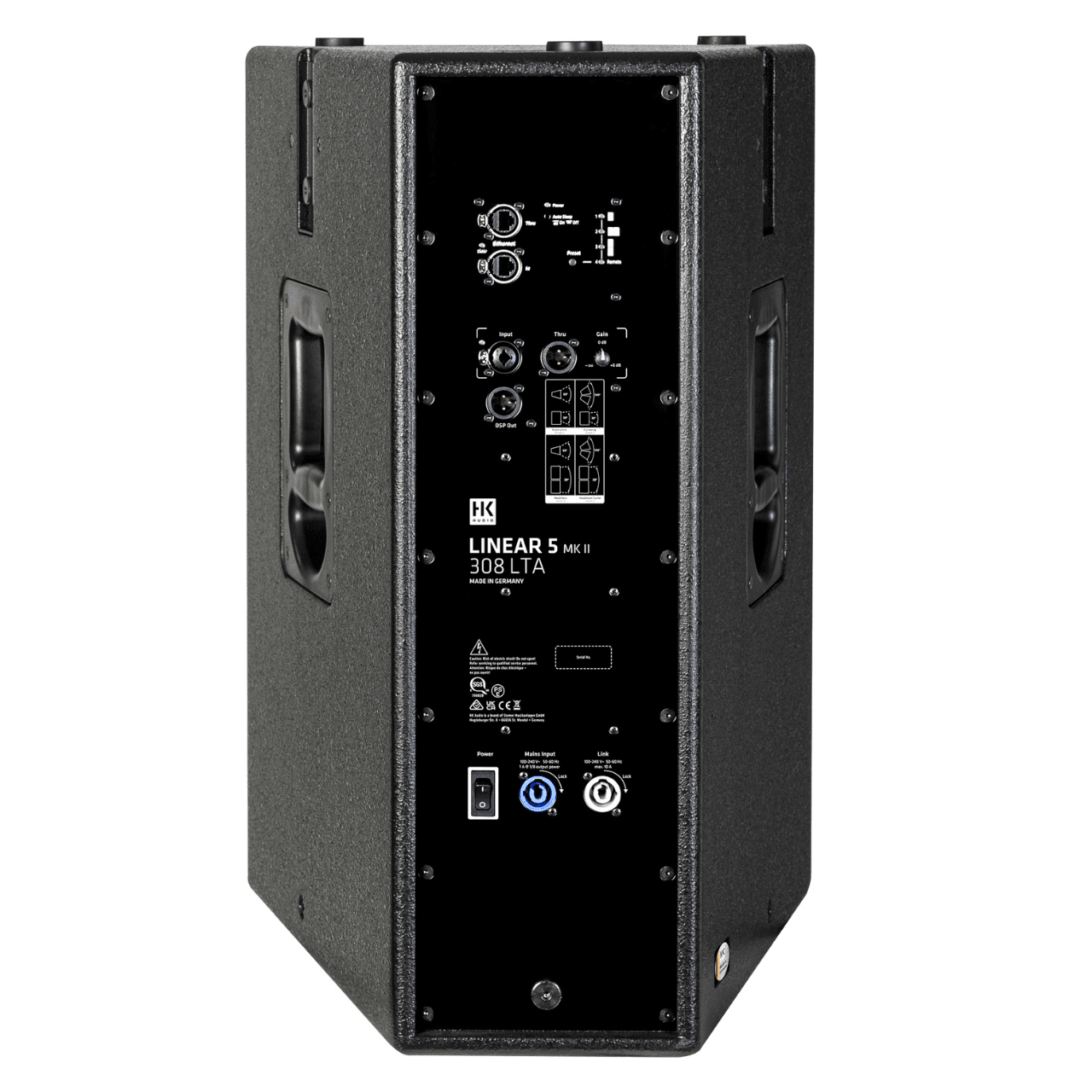

LINEAR 5 MK II 308 LTA is equipped with PowerCon connectors and PowerCon Link, which simplifies wiring and saves cable material.

General Specifications

• Model:  Linear 5 MK II 308 LTA
• Max SPL 10% THD:  133 dB half space (100 Hz – 12 kHz averaged)
• Max SPL Peak  @ 10 % THD:  138 dB half space
• Frequency Response +/-3 dB:  105 Hz – 17 kHz
• Frequency Response  -10 dB:  98 Hz – 19 kHz
• Power Amp Output (rms/peak):  600 / 1200 W
• Amplifier:  Class D – biamped
• Low- / mid Speaker: 3 X 8″, 1.5″ voice coil
• HF Drive:  1″ Compression driver, 1.7″ voice coil
• Horn Directivity:  60° x +5/-25° MCT horn
• Active Crossover Frequency:  1.6 kHz FIR X-over with 60 dB/oct.
• Maximum Input Level:  +20 dBu
• Analog Inputs:  1X XLR Combo balanced
• Analog Thru:  1X XLR balanced
• DSP Out:  1x XLR balanced
• Network Port:  Ethercon RJ45, 1X In , 1X Thru
• Filter Presets
  • Single
  • Cluster
  • Headstack
  • Remote
• Remote Software: DSP CONTROL (Windows, Mac OS)
• DSP Functions
  • Fully parametric 10-band EQ with variable filter characteristics
  • High-Pass Filter
  • Low-Pass Filter
  • Polarity
  • Level
  • Delay
  • Limiter
  • Mute
• Sample Rate:  48 kHz
• System Latency:  <= 2.9 ms
• Mains Connector:  1X Powercon NAC3 In, 1X Powercon NAC3 Thru, 100–240 V
• Power Consumption:  1 A / 100–240 V nominal according to EN 62368-1
• Pole Mount:  MonoTilt 0°
• Rigging Points:  5X M8 (AP-8)

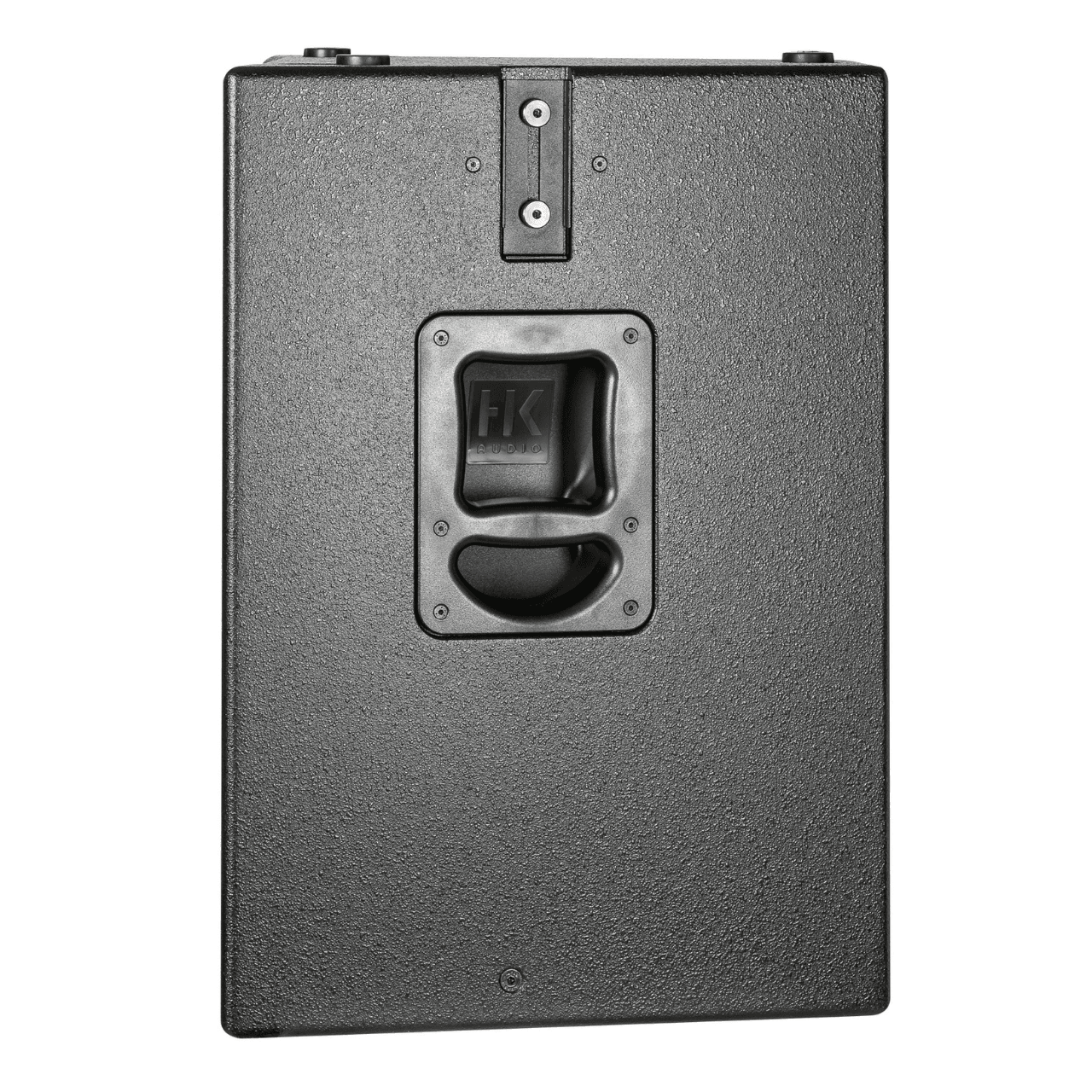

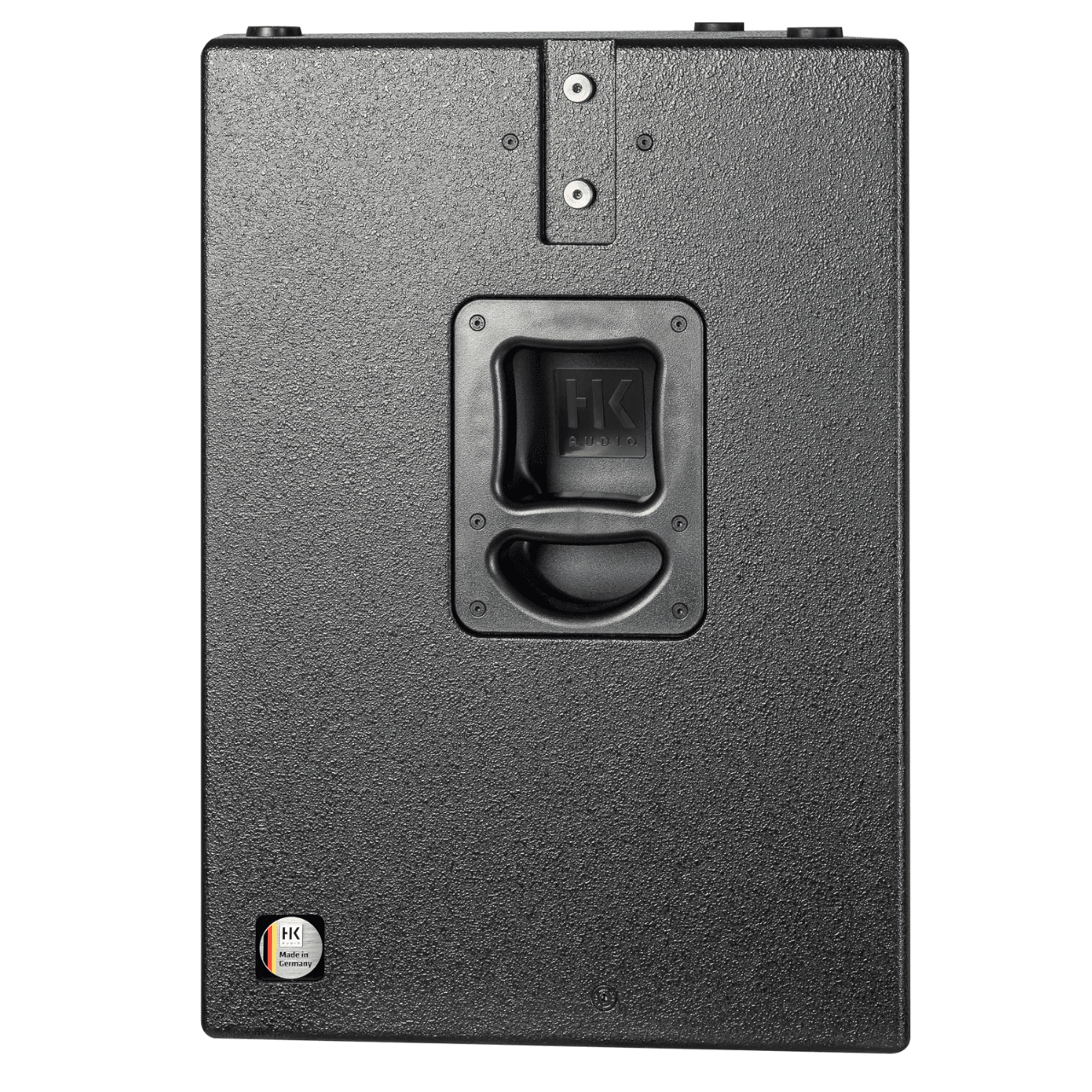

• Carrying Handles:  2X HK Audio MultiGrip
• Housing:  Birch multiplex
• Finish:  Black acrylic enamel
• Front Grille:  2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD):  44cm X 68cm X 46cm
• Weight:  25 kg / 55.1 lbs.
