Name: HK Audio Linear 9 210 LTA
Availability: OutOfStock

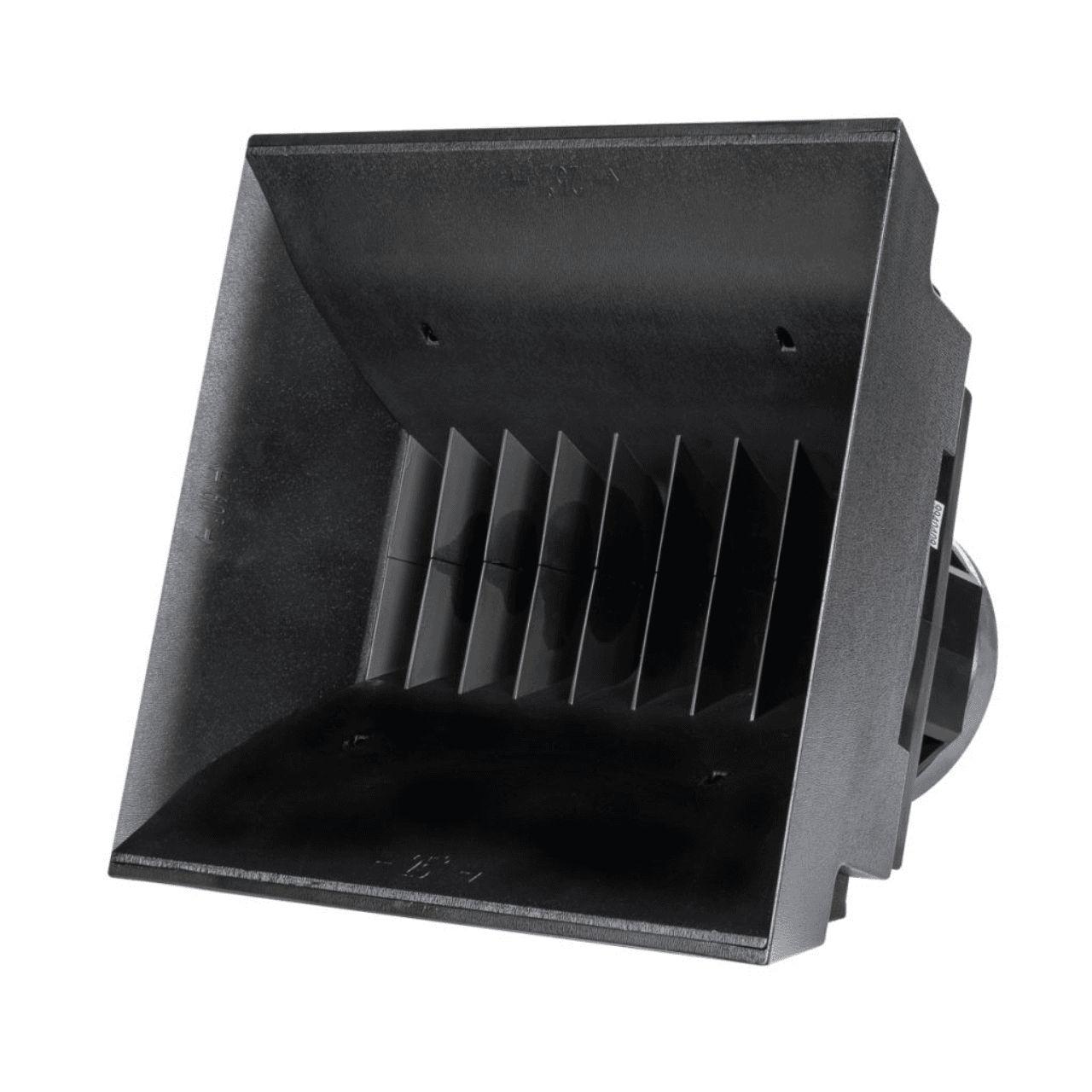

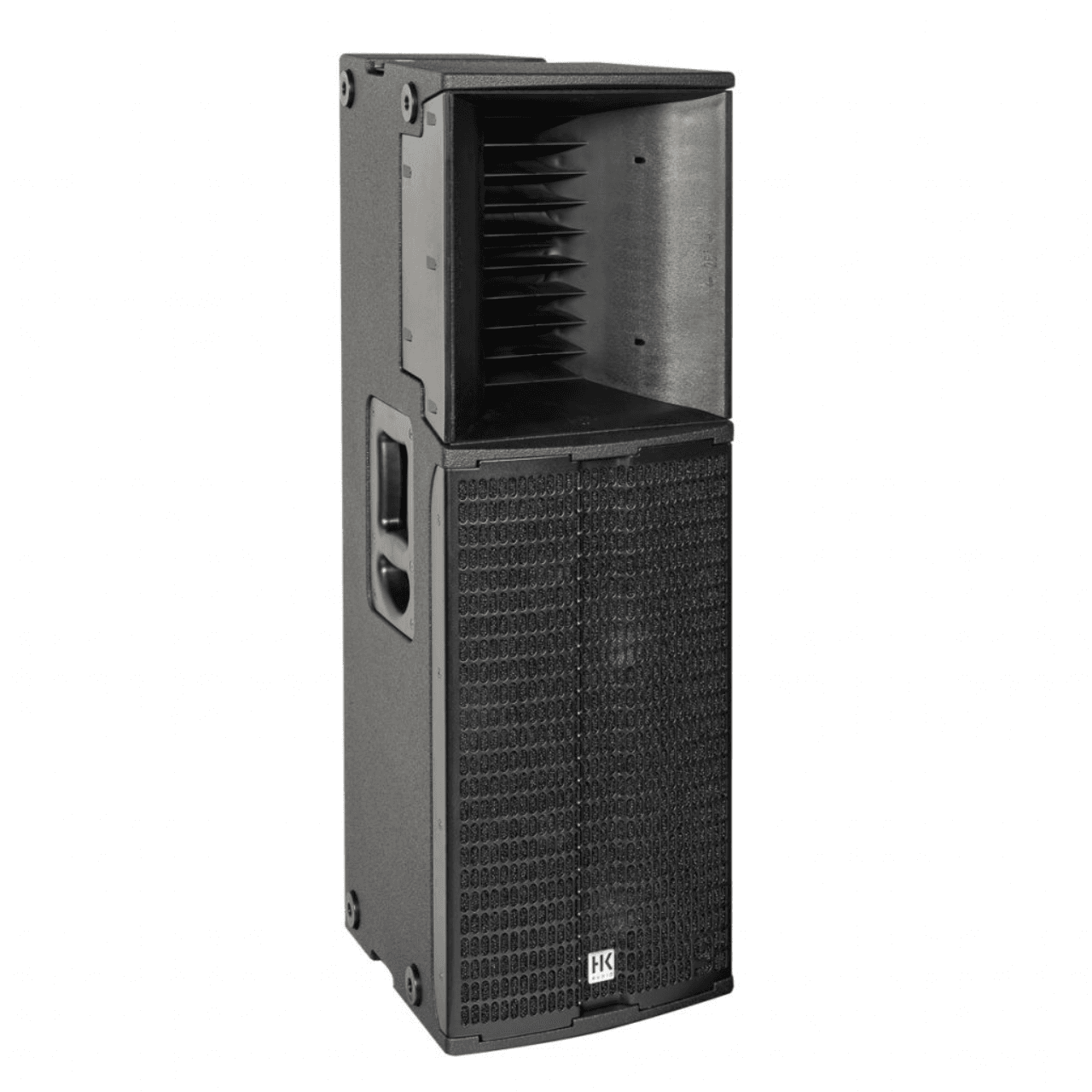

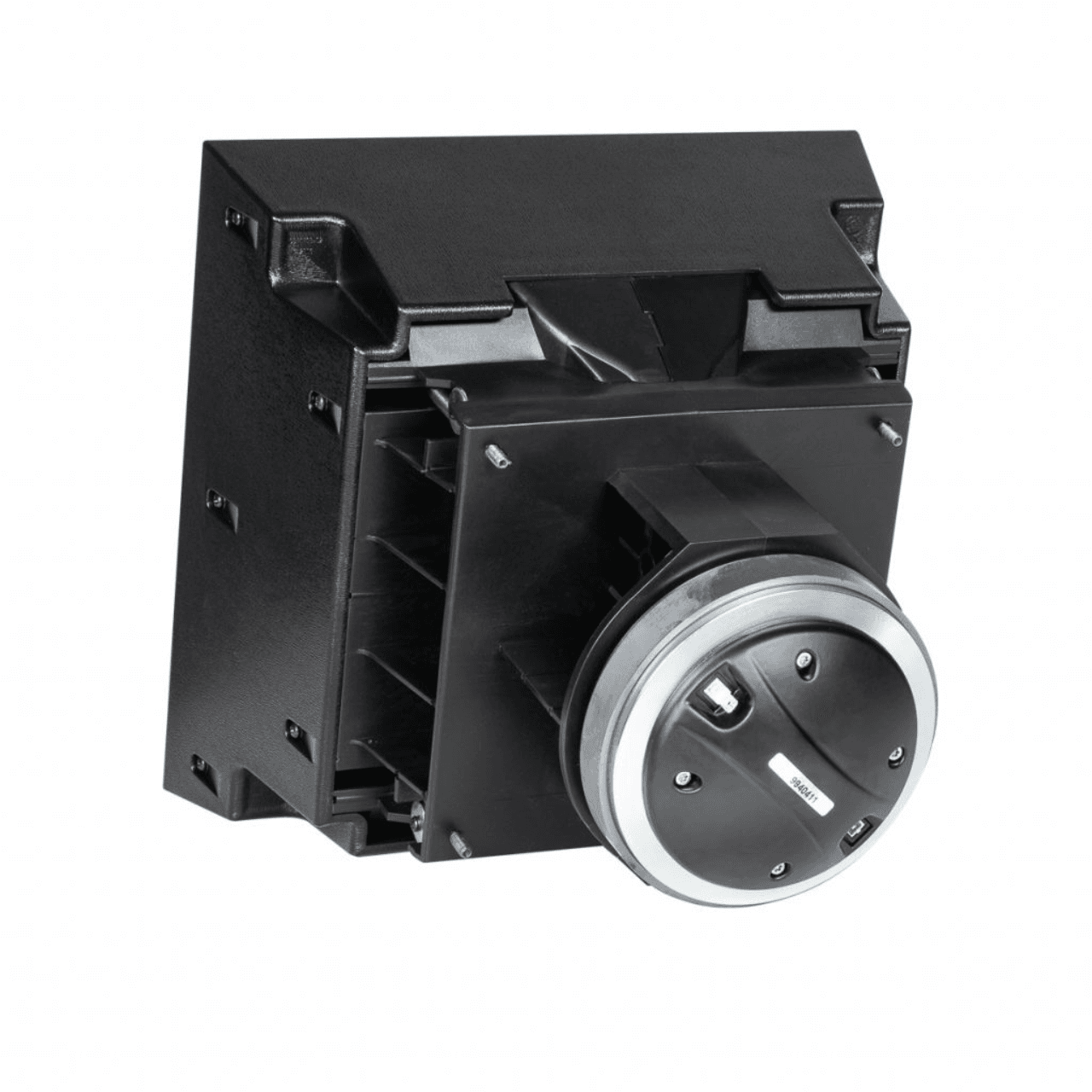

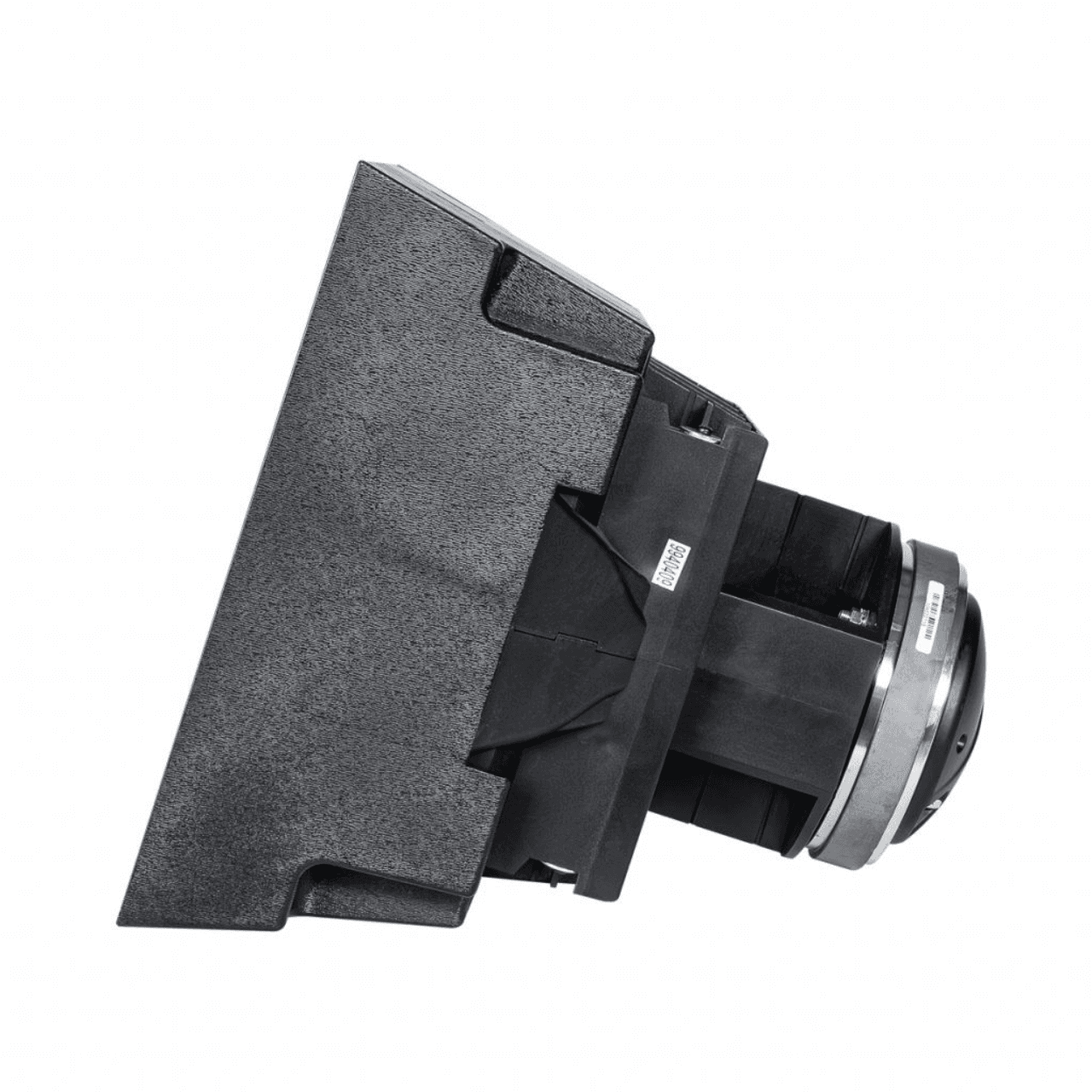

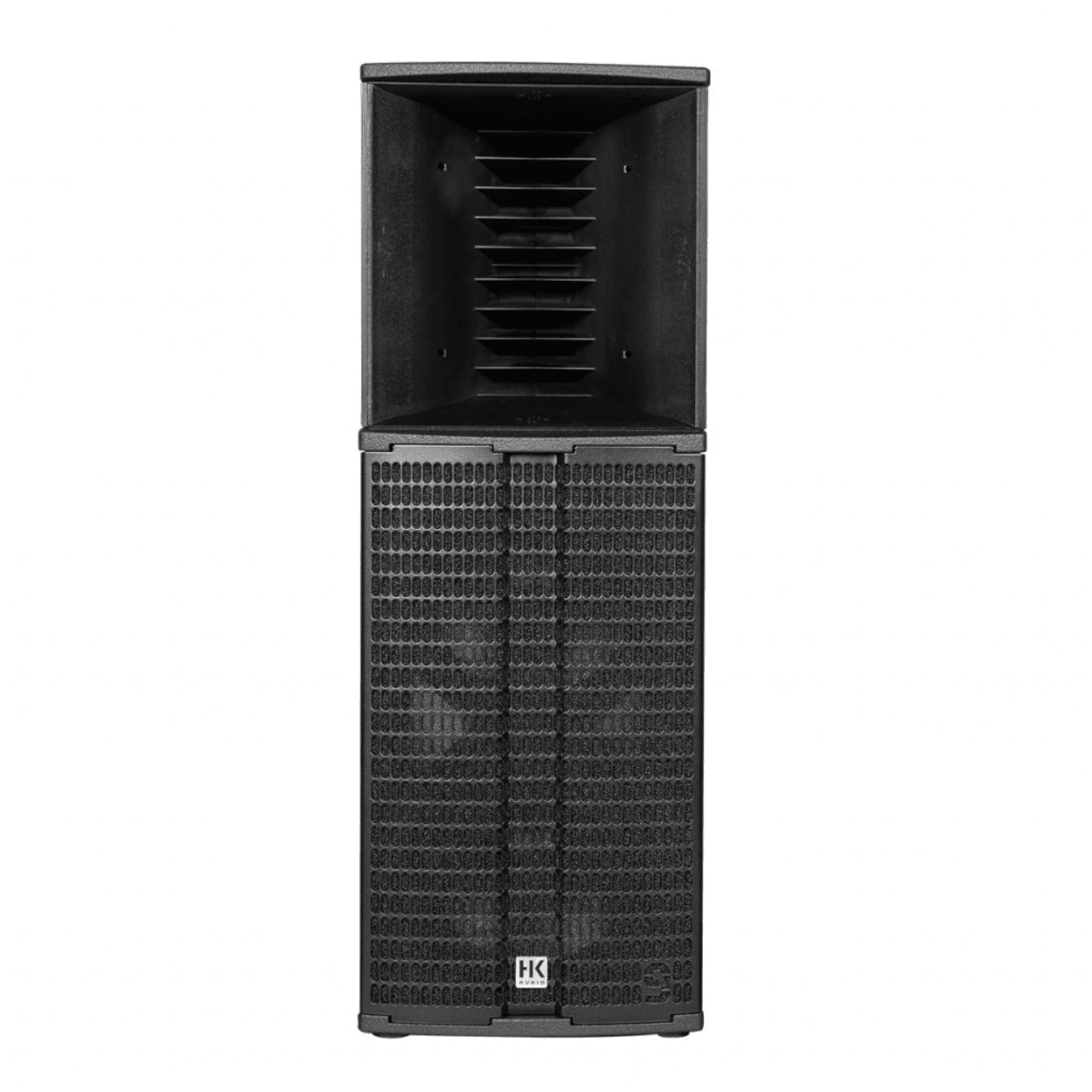

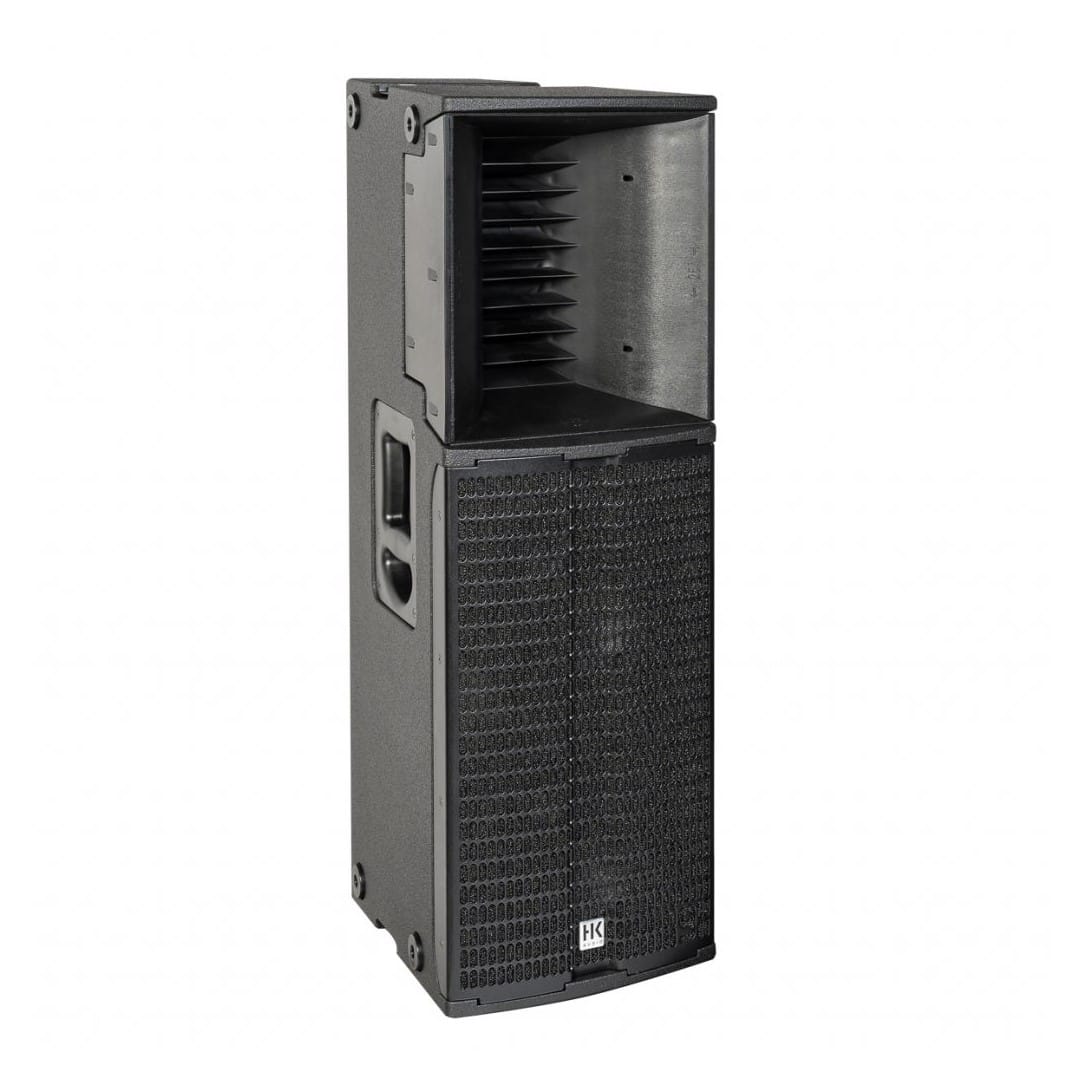

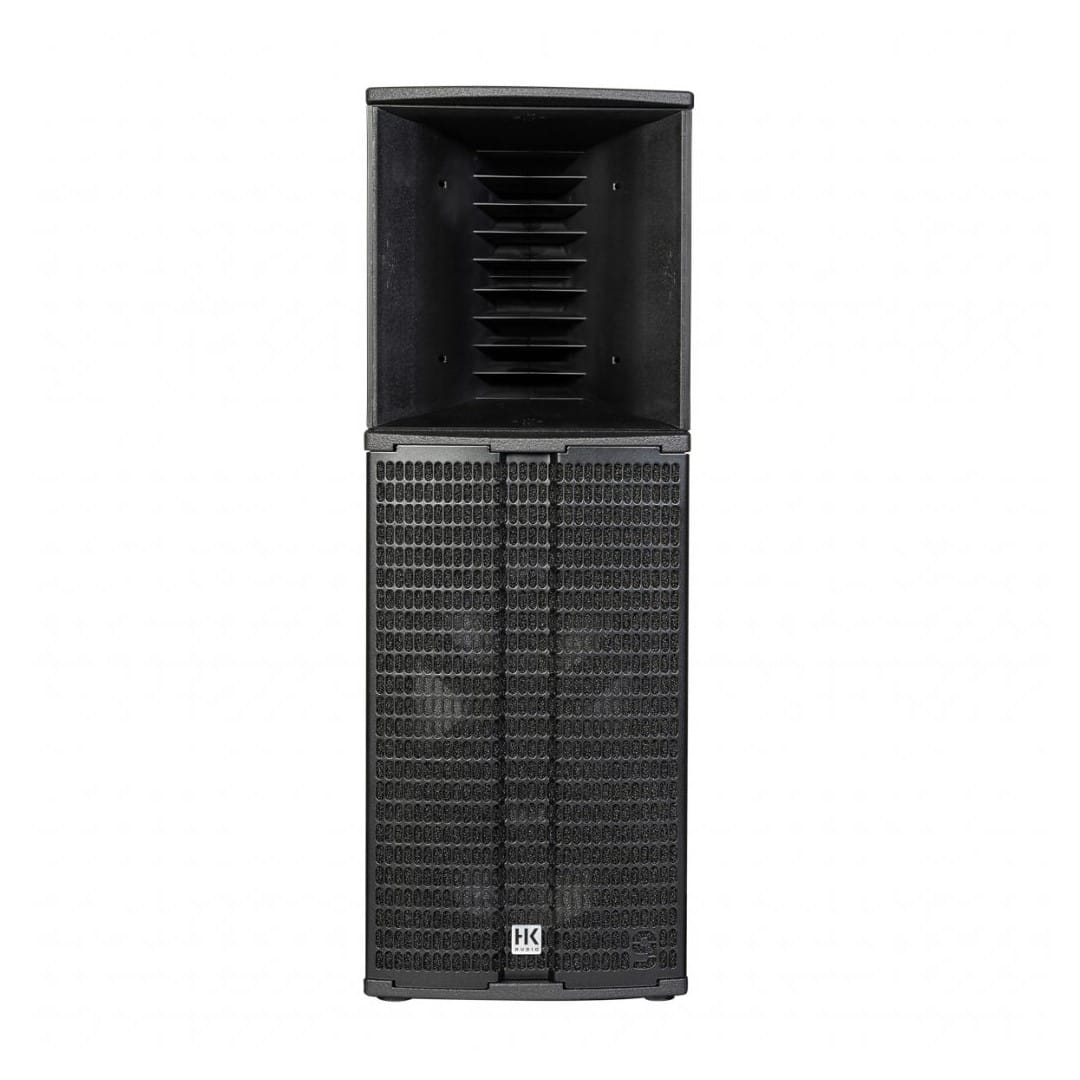

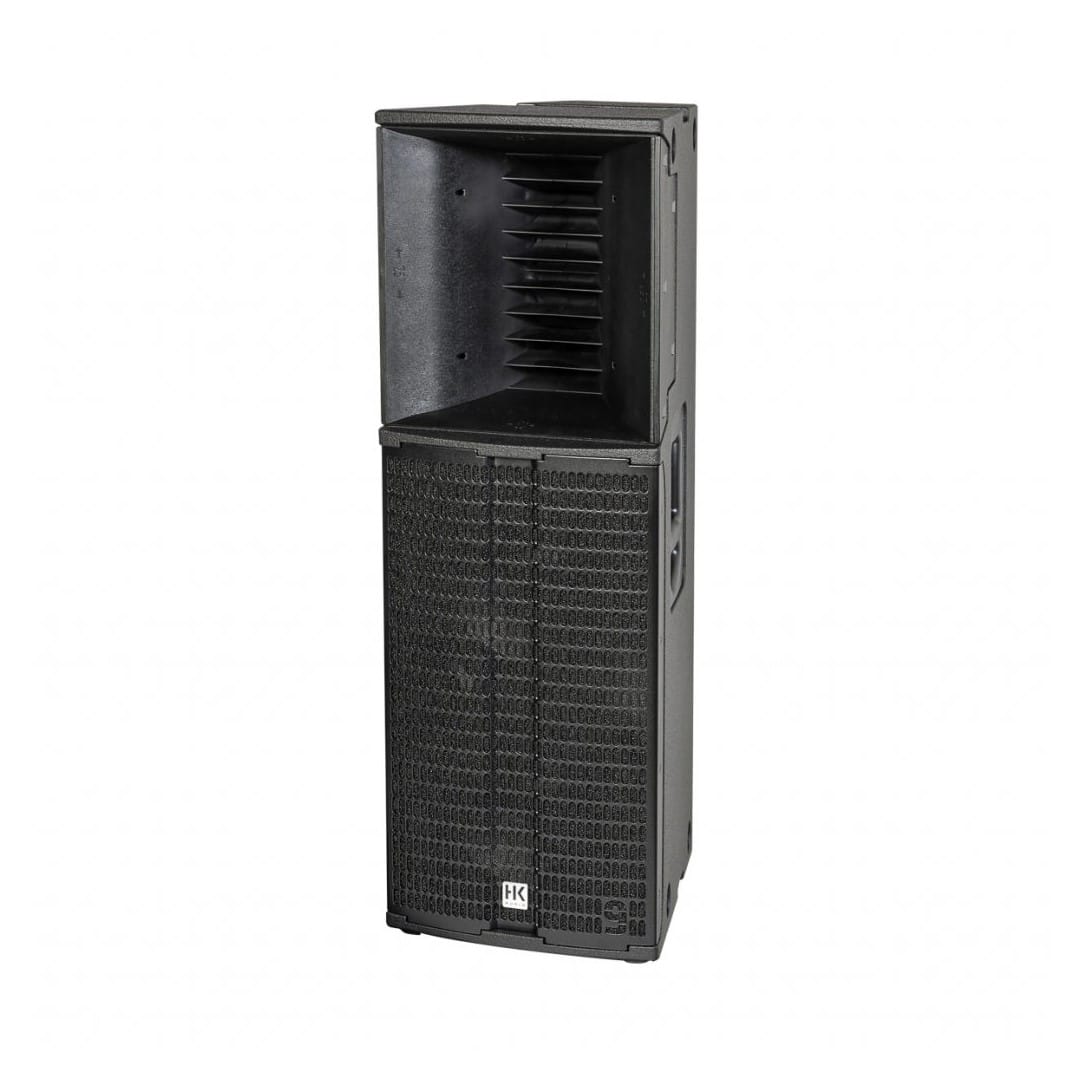

As a pure mid/high unit equipped with a rotating 60° x 25° horn with a powerful 1.4″ driver and two vertically arranged 10″ speakers, which are additionally directed by a carefully calculated sound guide, this speaker achieves remarkably high efficiency. The perfect interplay of these components with the powerful electronics and the large sound guides delivers impressive results with clearly defined directivity at a constant frequency.

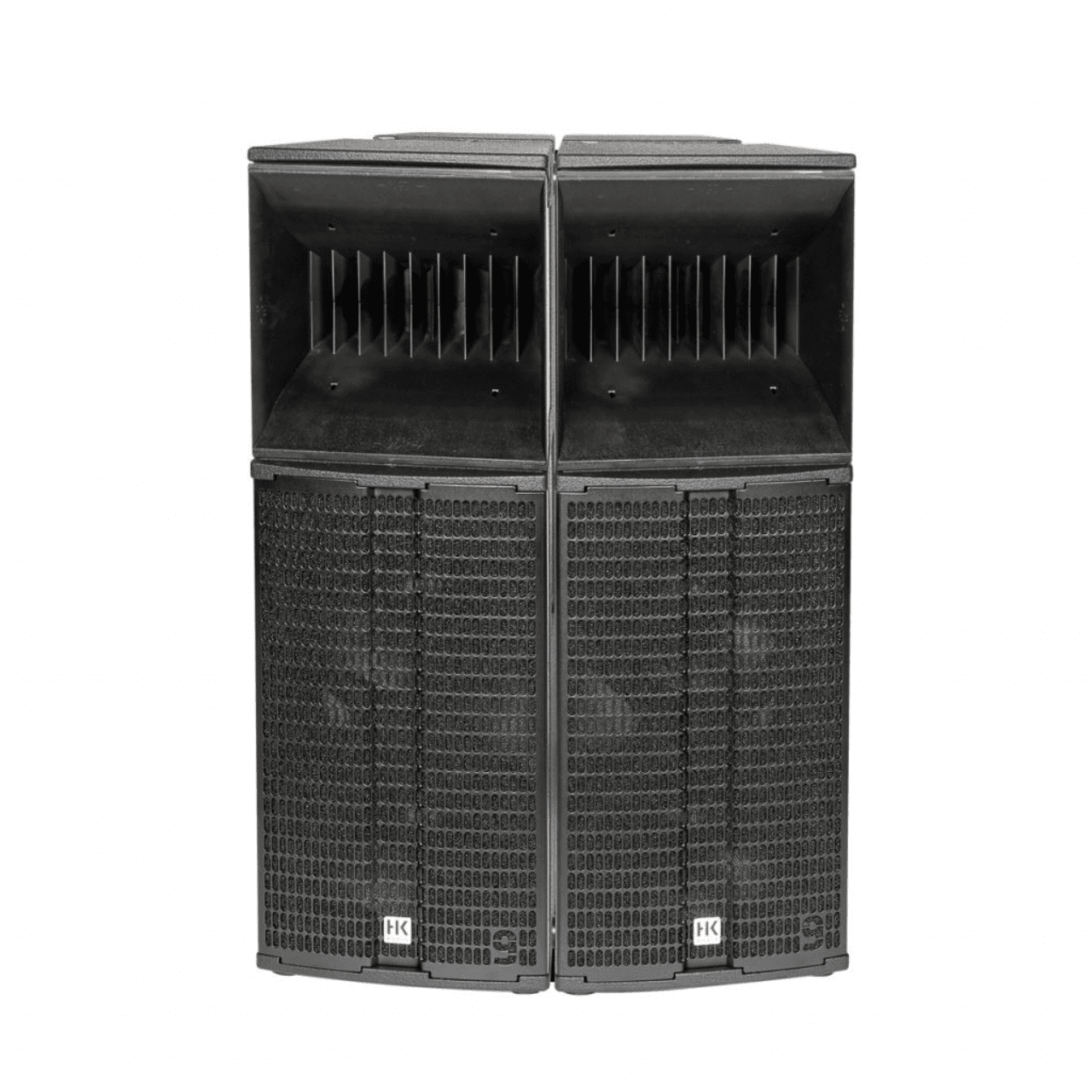

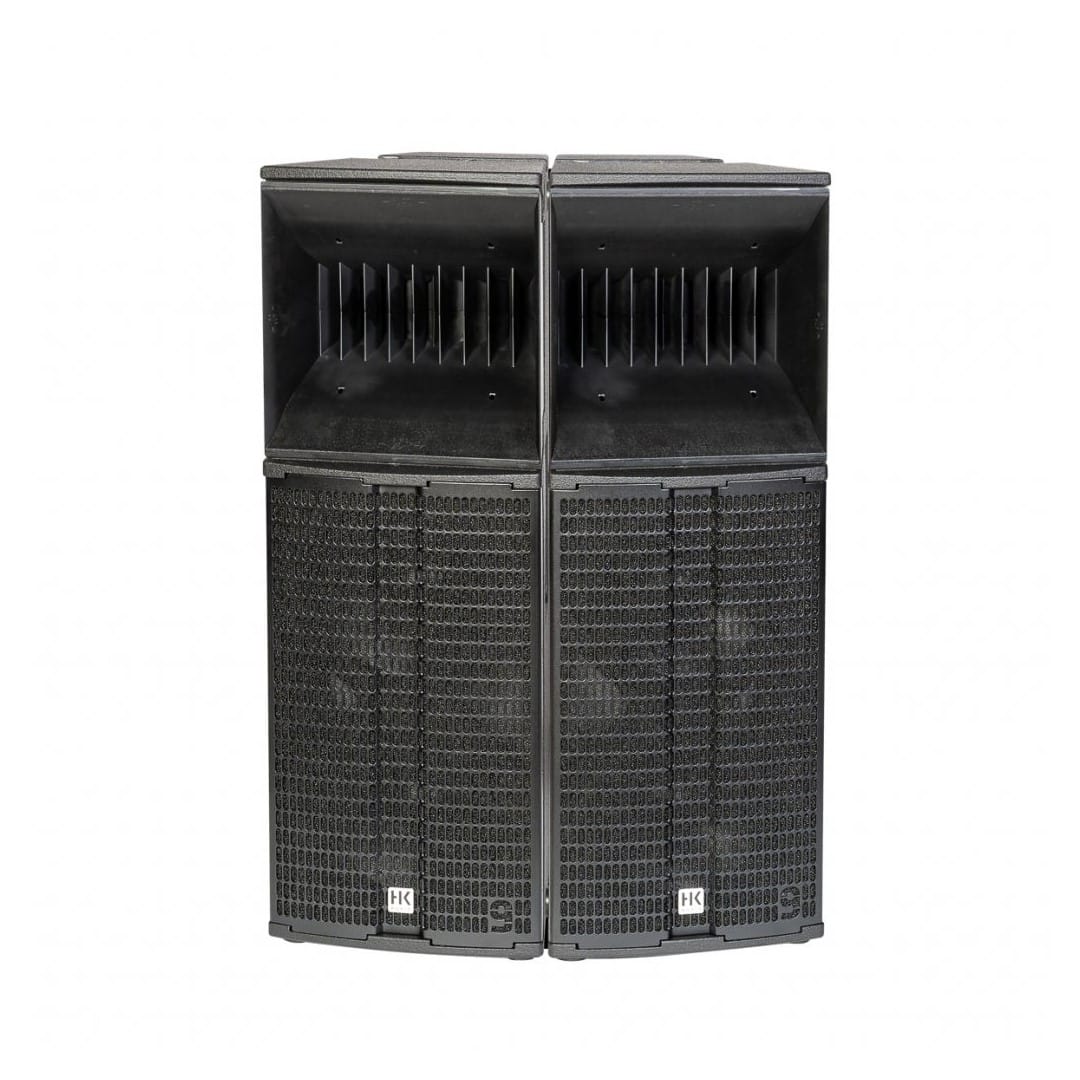

The LINEAR 9 210 LTA is the ultimate mid/high unit within the LINEAR 9 family due to its enormous throw and power. The 210 LTA is particularly impressive in applications where the sound requirements demand the creation of a horizontal cluster or straightforward flying capabilities.

General Specifications

Max. SPL @ 10% THD	133 dB half space* (88 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD	142 dB half space*
Frequency response +/-3 dB	88 Hz – 19 kHz*
Frequency response -10 dB	82 Hz 20 kHz*
Power amp output (RMS)	1,000 W
Amp type	Class D – Biamped
LF driver	–
Low-/mid speaker	2x 10″, 2.5″ voice coil
HF driver	1.4″, 2.5 voice coil
Horn directivity	60° x 25° MCT horn, rotatable
Active crossover frequency	1.35 kHz FIR X-over with 72 db/oct.
Maximum input level	+20 dBu

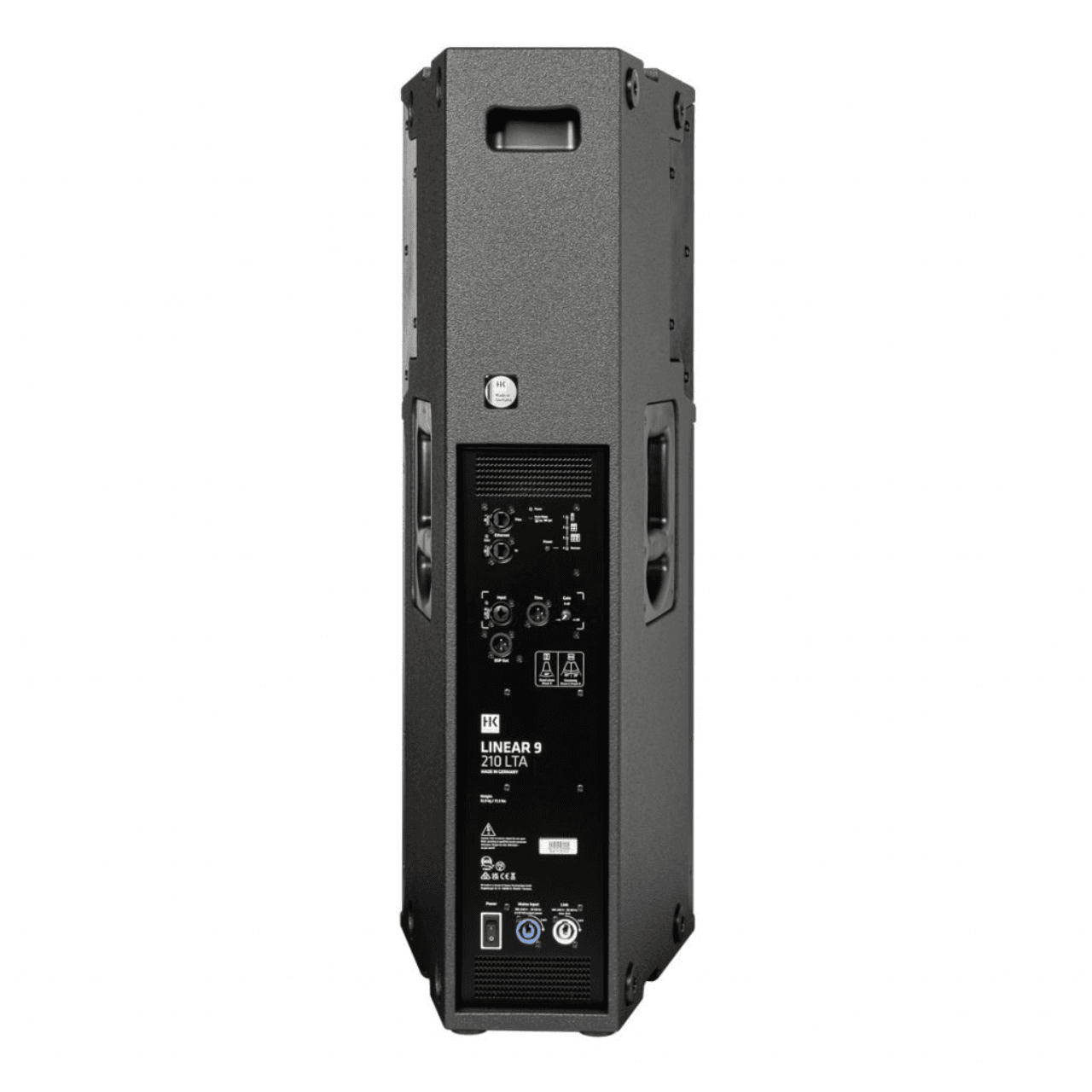

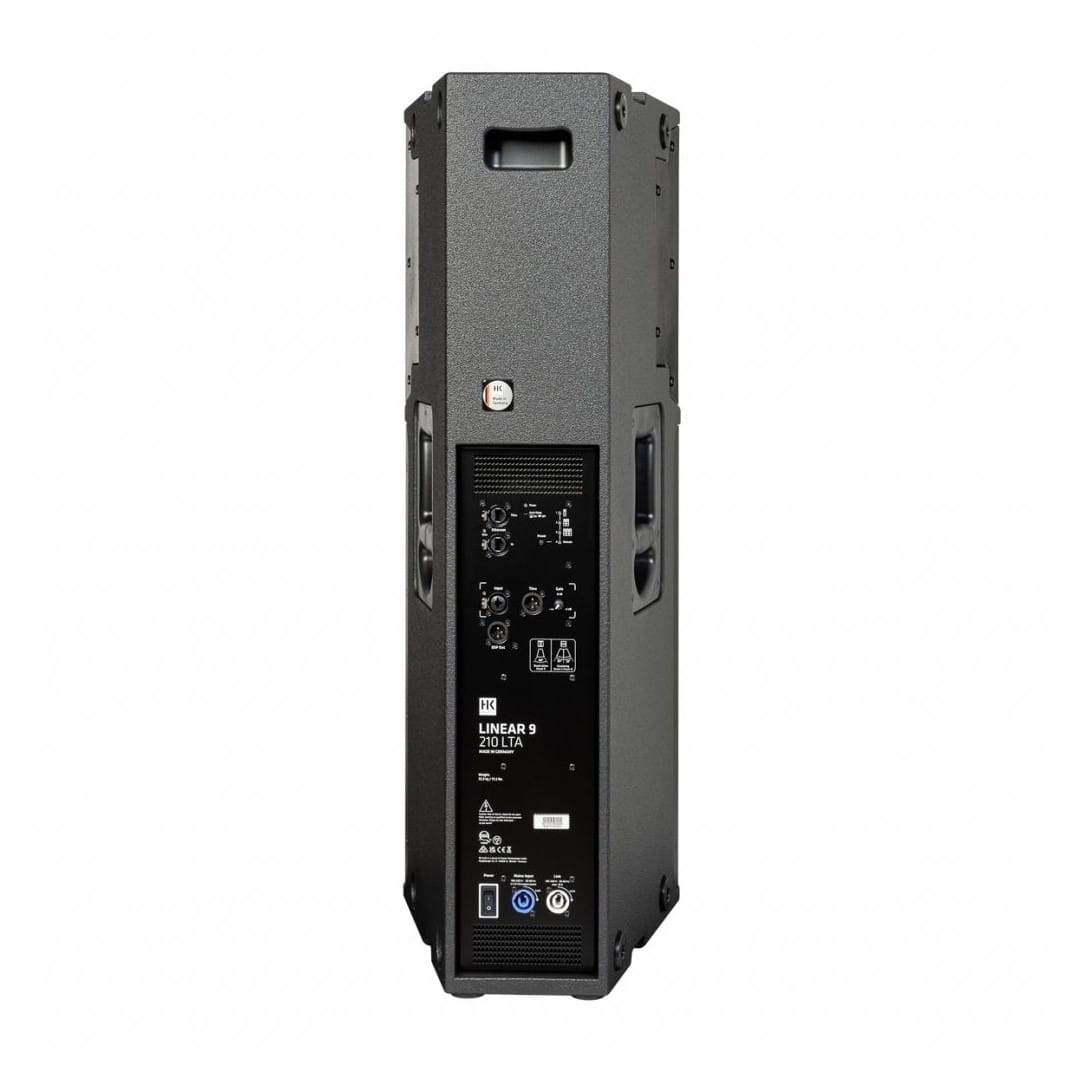

Analog inputs	1x XLR combo balanced
Analog thru	1x XLR balanced
DSP Out	1x XLR balanced
Network port	Ethercon RJ45, 1x In, 1x Thru
Filter presets	Stand Alone, Cluster (2), Cluster (3), Remote
Remote software	DSP CONTROL (Windows, macOS)
DSP functions	Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate	96 kHz
System latency	Less than 2.9 ms
Mains connector	1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption	2.5 A / 100–240 V nominal according to EN 62368-1
Clustering angle	25°
Angles up (Monitor angle)	–
Pole mount	DuoTilt 3°/7°
Rigging points	–

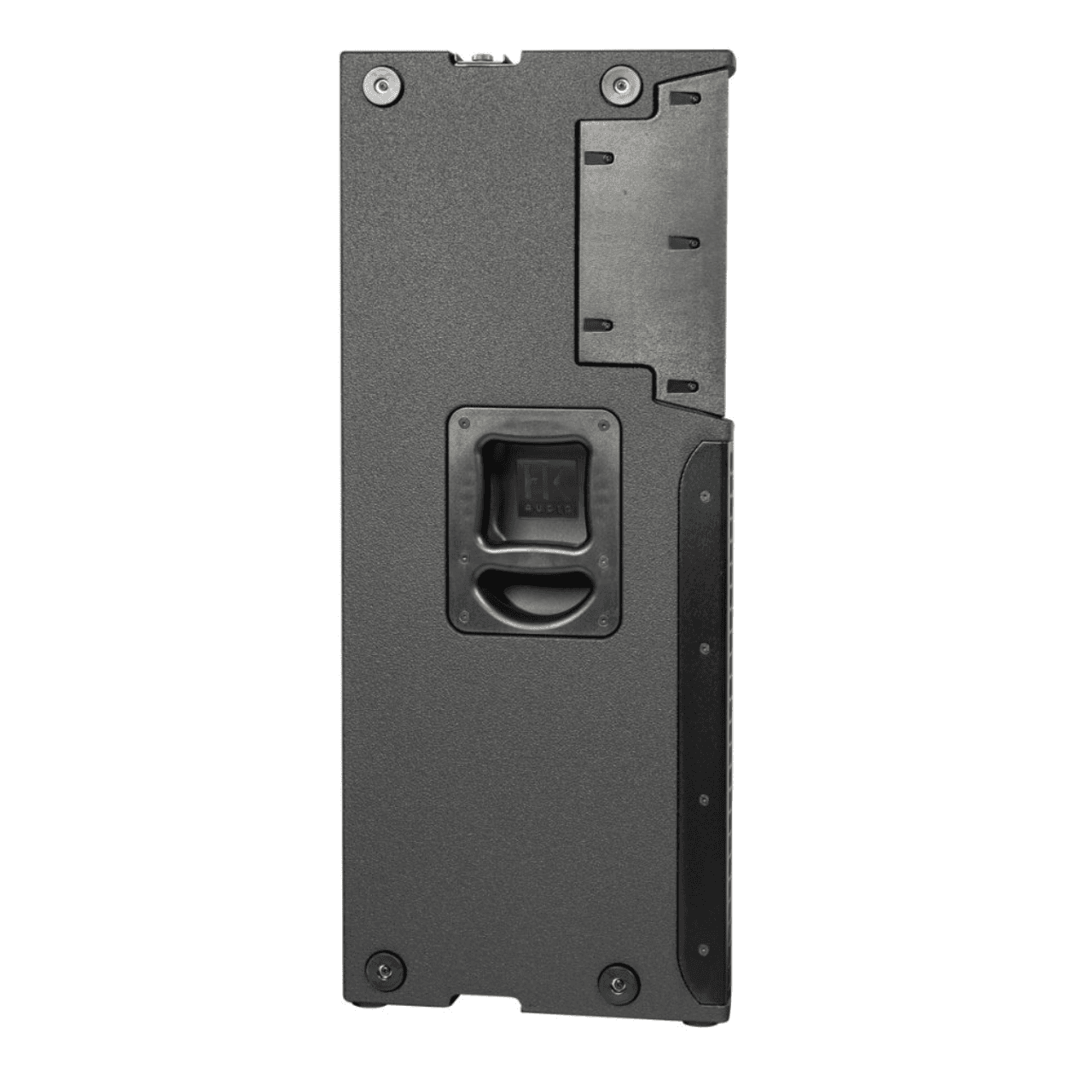

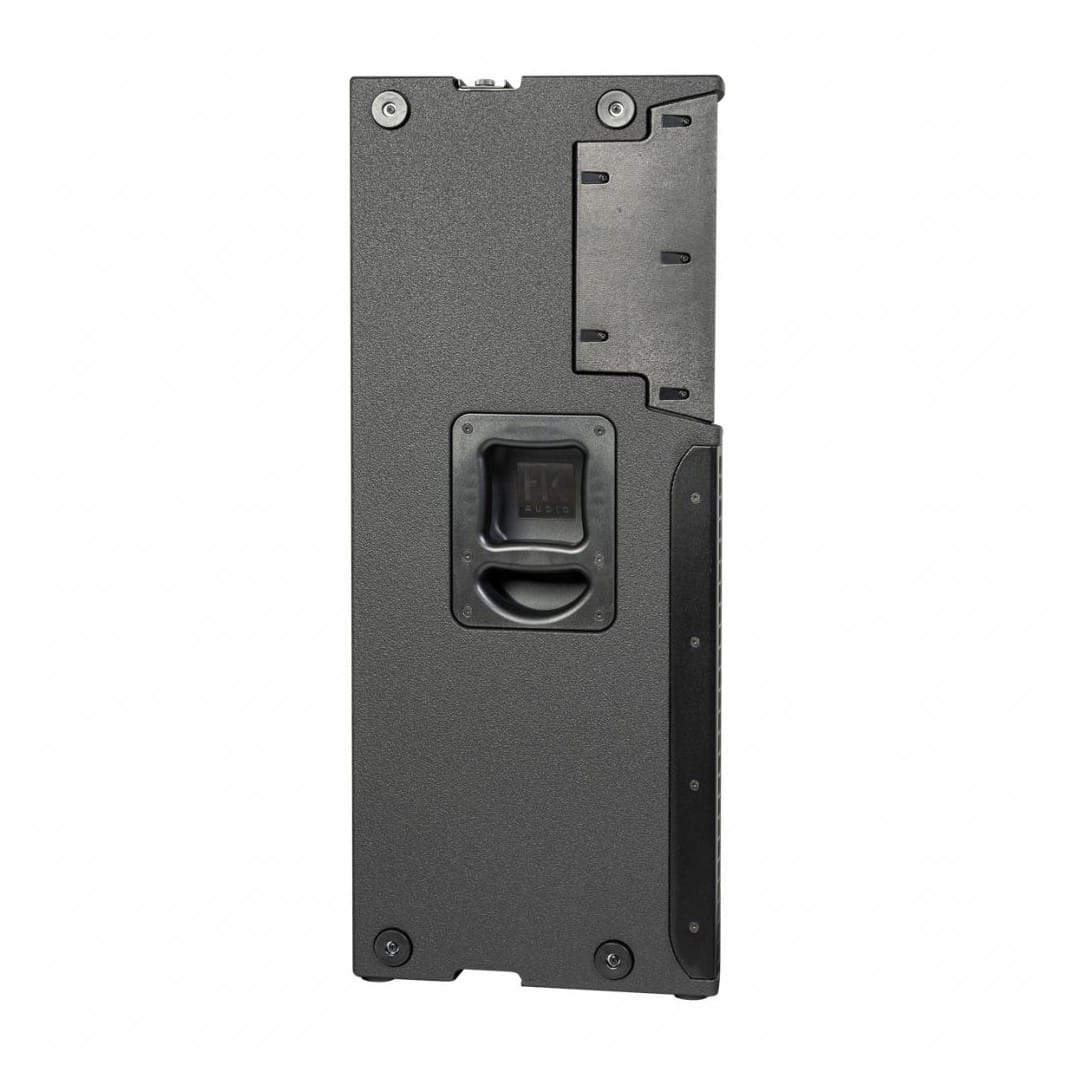

Carrying handles	2x MultiGrip
Housing	Birch multiplex
Finish	PU coating black
Front grille	2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)	34 cm x 96 cm x 39 cm
Weight	33 kg / 72.8 lbs
