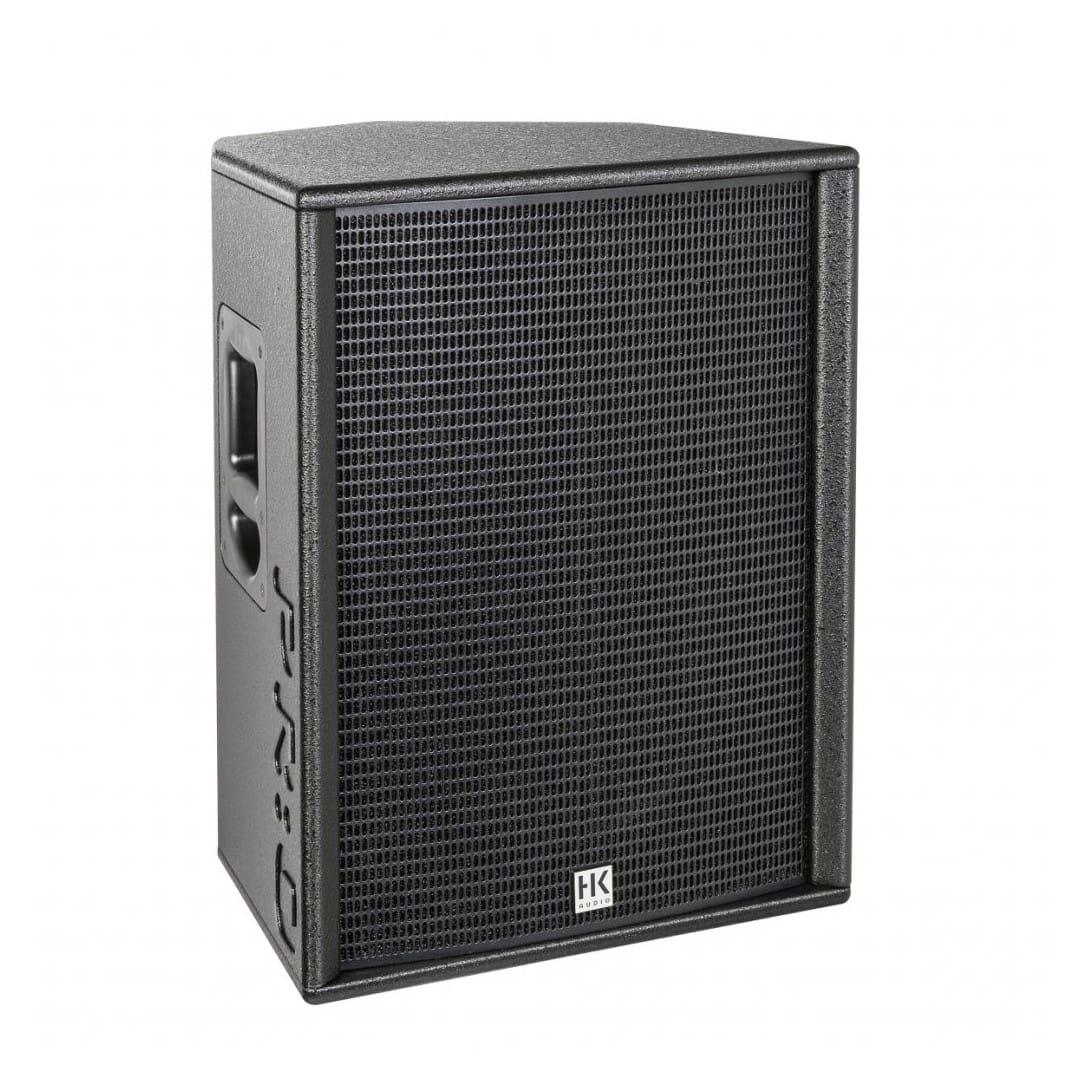

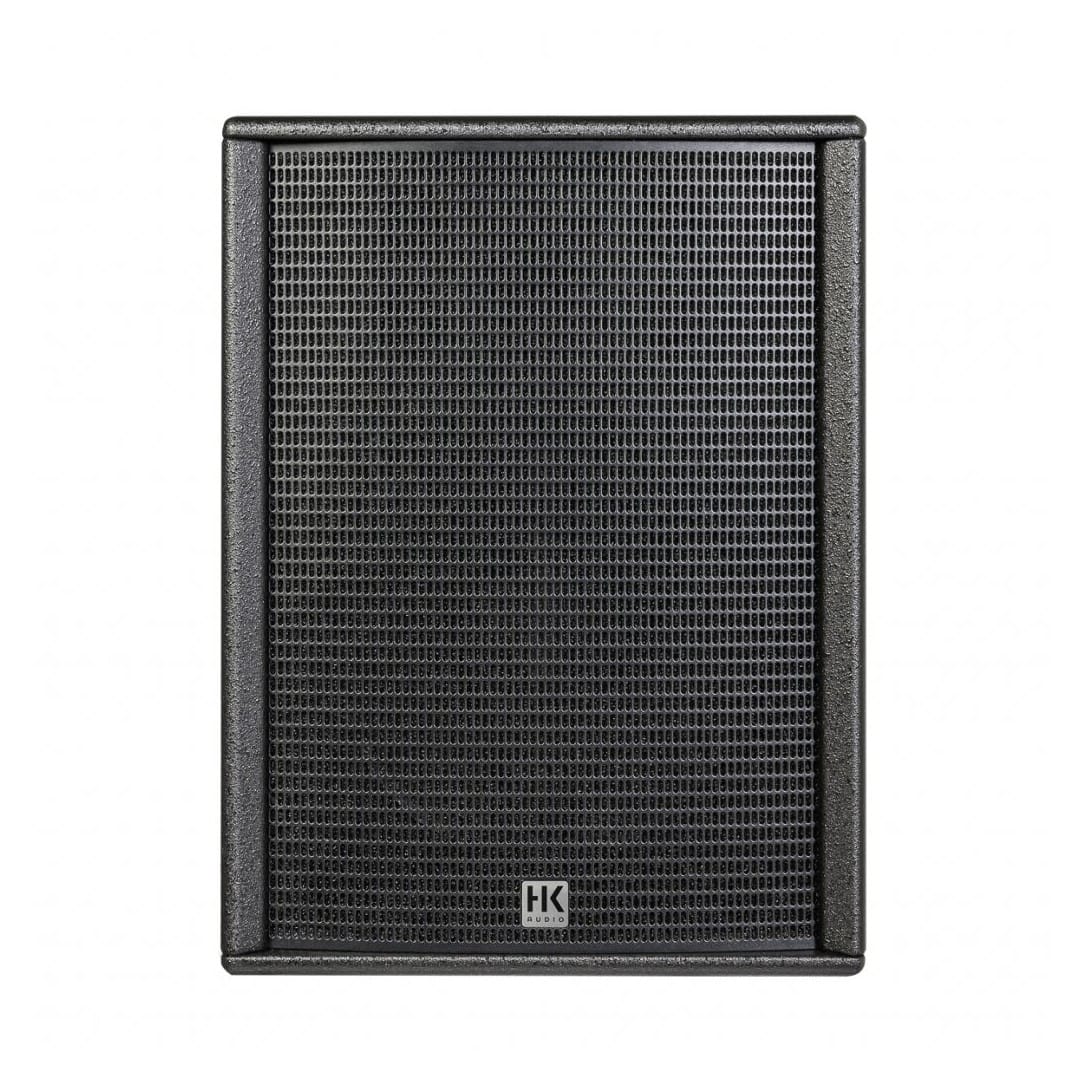

PR:O 115 XD2 – THE GERMAN AUDIO STANDARD

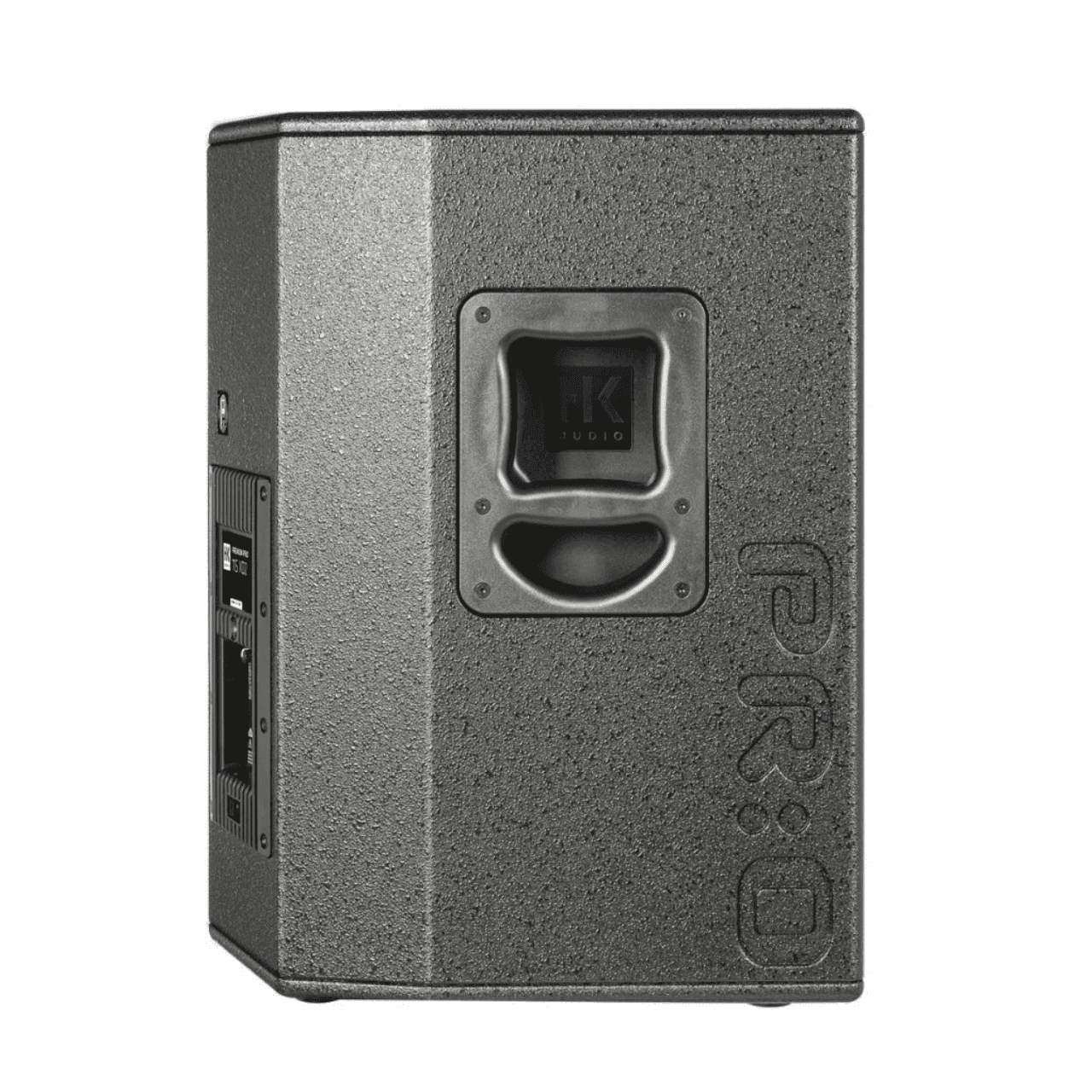

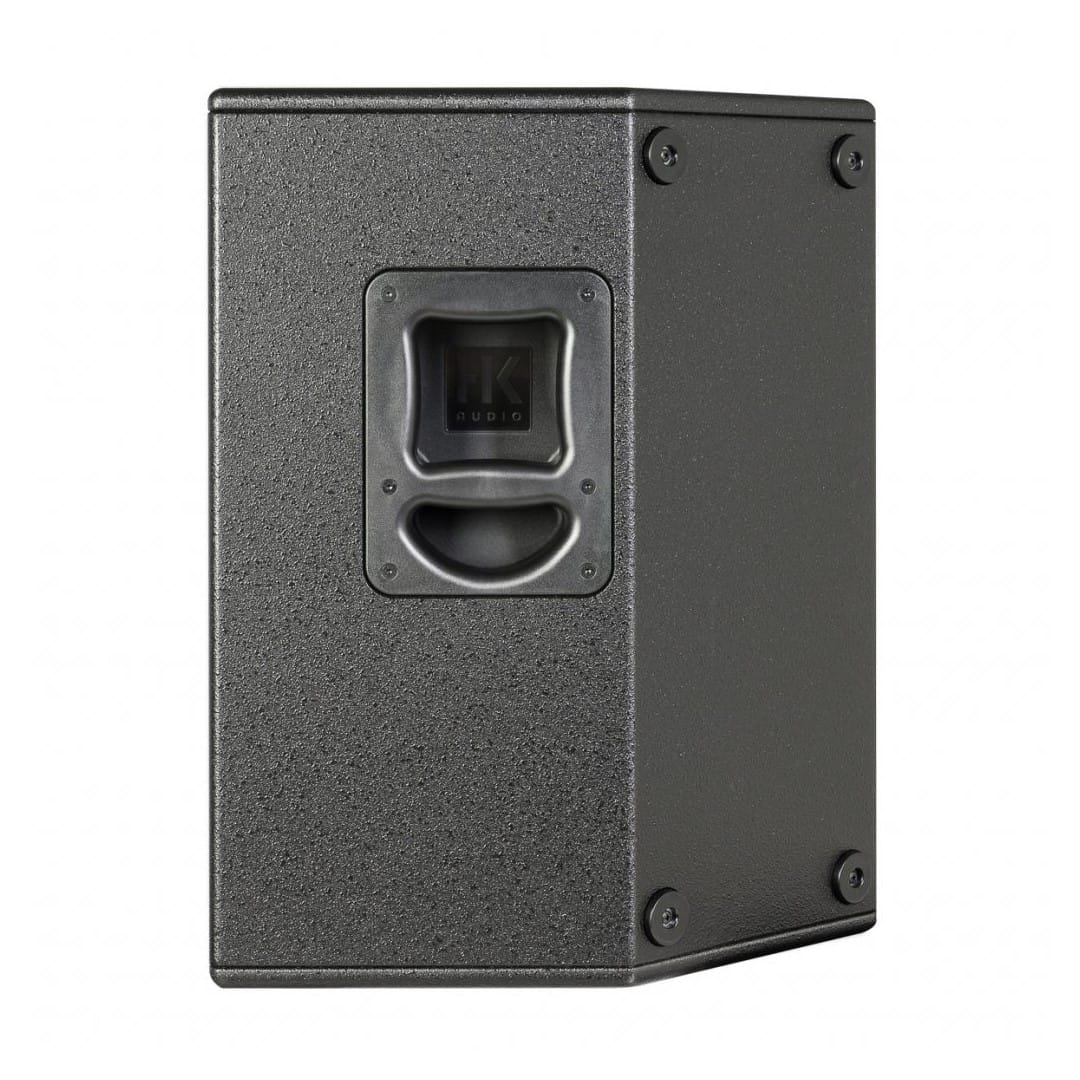

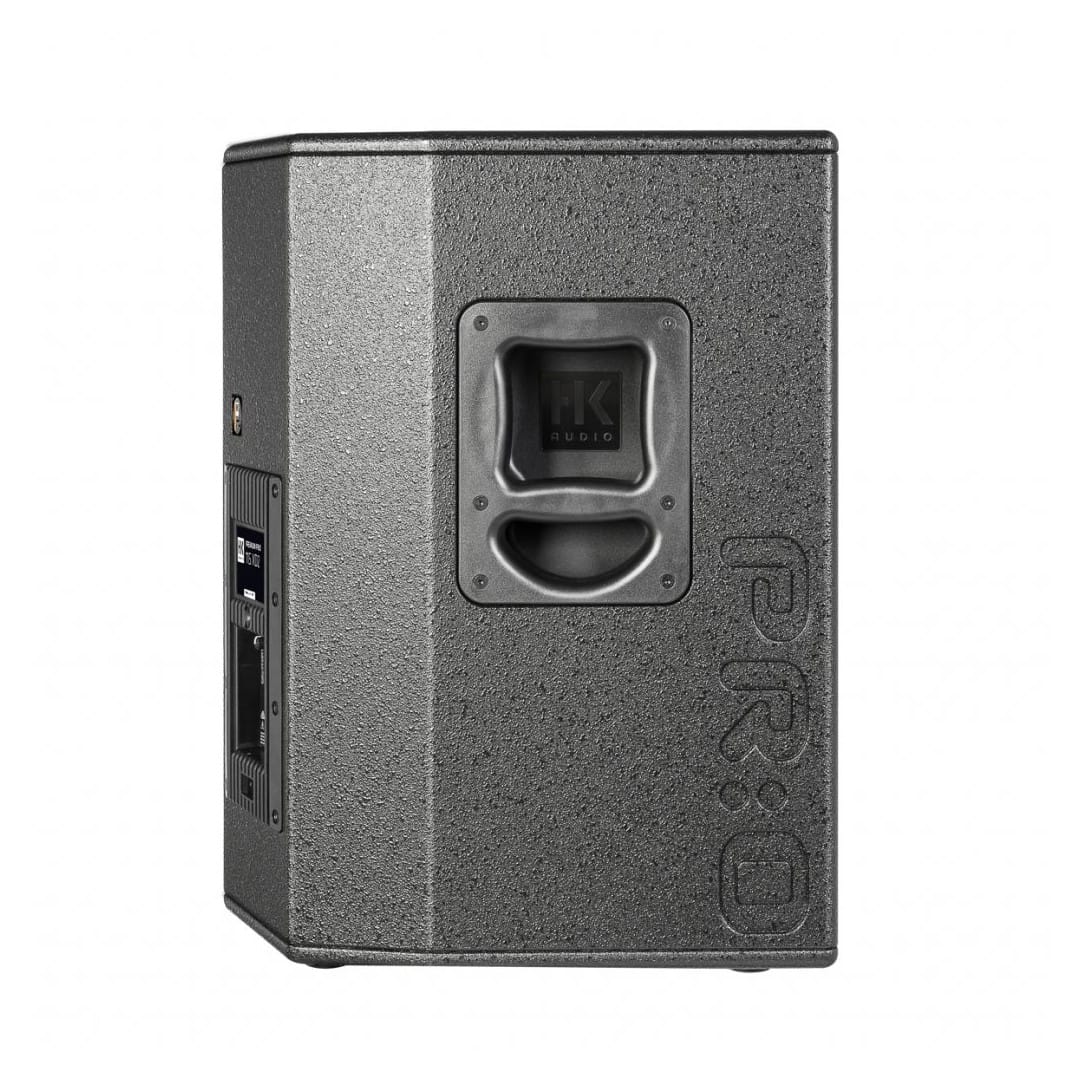

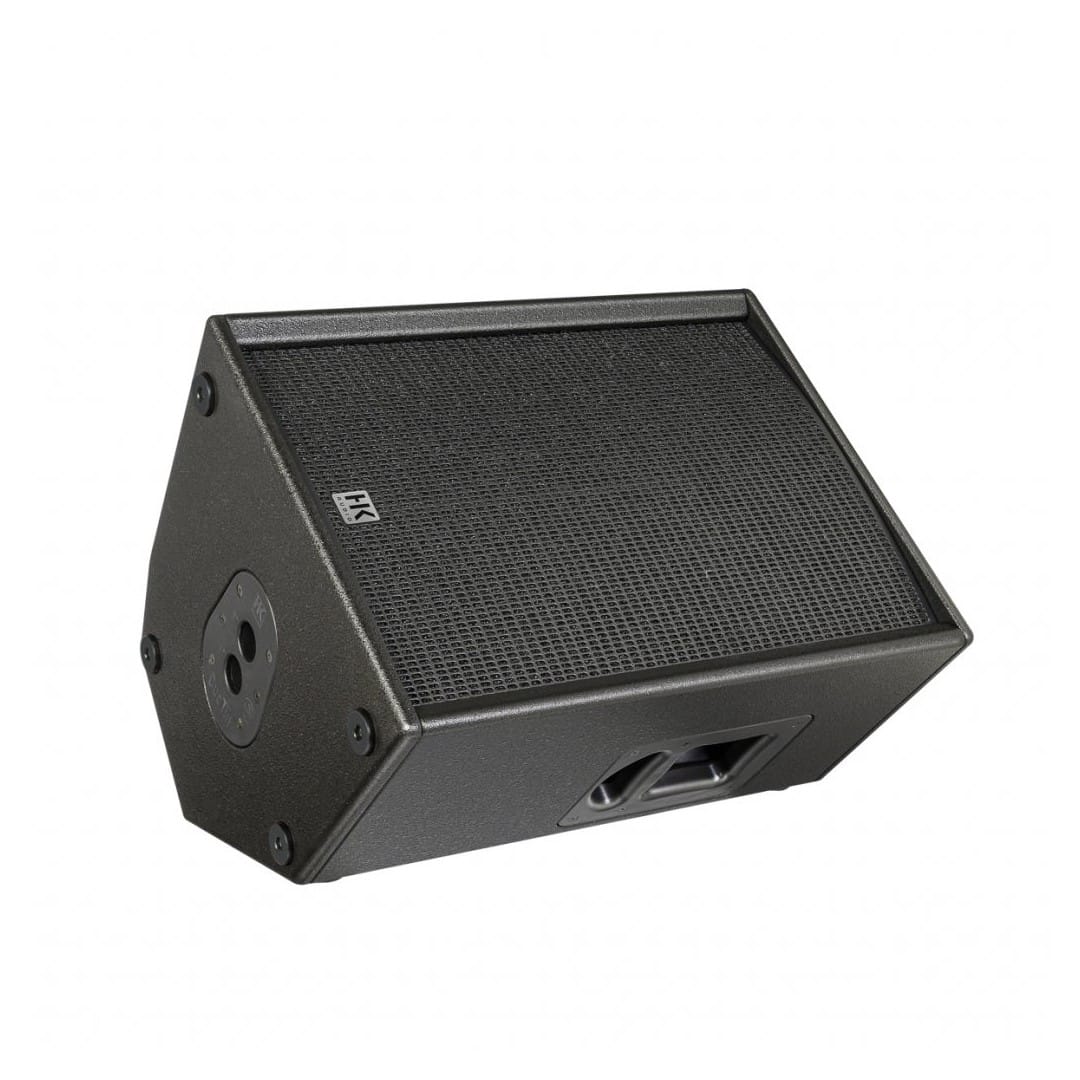

A 15″/1″ multifunctional speaker that can also be used as a full-range unit or stage monitor for an impressive performance. The well-balanced frequency response ensures low feedback and can be adapted to various applications using the Music/Speech controller. The integrated DSP-based power electronics supply the PR:O 115 XD2 with 1,200 watts of power. The cabinet volume, combined with the 15″ speaker and the acoustic tuning, provides clearer depth and higher bass content. The built-in MultiGrips allow safe and comfortable handling and make professional rigging a breeze by simply installing the TB-45N or TB-45NQ tilt brackets on them.
General Specifications
| Max. SPL @ 10 % THD | 125 dB halfspace |
| Max. SPL Peak @ 10 % THD | 130 dB halfspace |
| Max SPL calculated | 133 dB halfspace |
| Frequency response +/- 3 dB | 61 Hz – 16 kHz |
| Frequency response -10 dB | 57 Hz – 18 kHz |
| Amplifier output (Peak Power) | 1200 W |
| Amplifier type | Class D – biamped |
| Active protection circuits | Peak and RMS sound limiter (separated for HF and LMF) |
| Bass speaker | – |
| Low/mid-range speaker | 1x 15″, 2.5″ voice coil |
| HF Driver | 1″, 1″ voice coil |
| Horn characteristics | 90° x 55° CD horn |
| Crossover frequency active | 2.5 kHz FIR X-over with 48 dB/oct. |
| Audio connectors in | 1x XLR/jack combo balanced |
| Audio connectors out | 1x XLR thru bal. |
| Sensitivity switch | Mic/Line |
| Tone control | Tone controller (Music/Speech) |
| Filter presets | Flat/Boost |
| Setup angle | 42° |

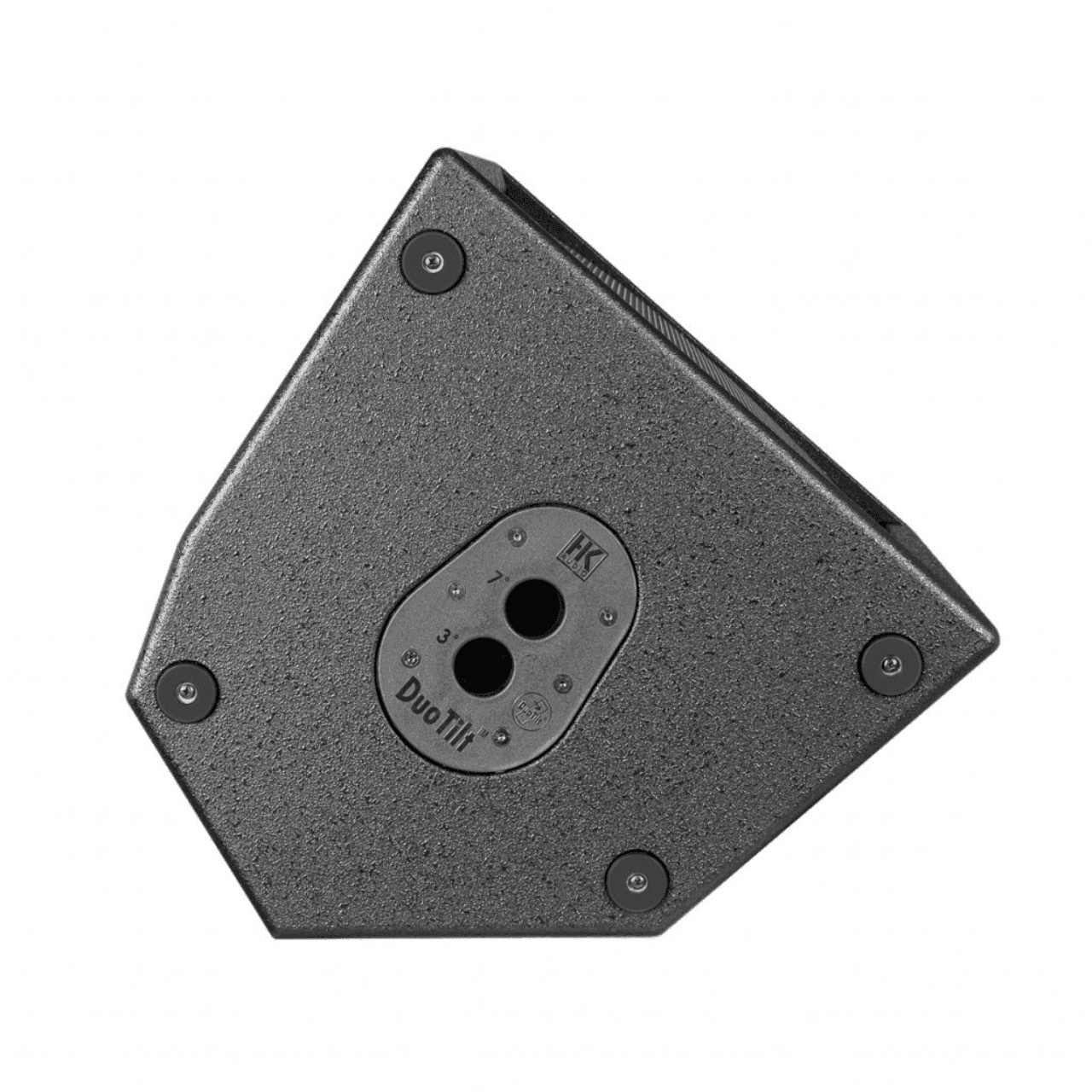

| Pole mount | DuoTilt 3/7 |
| Rigging points | – |
| Carrying handles | 2, MultiGrip |
| Housing | MDF |
| Finish | Black acrylic enamel |
| Front grille | 1.5 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 47.5 x 63 x 45.5 cm |
| Weight | 24.9 kg / 54,9 lbs |
