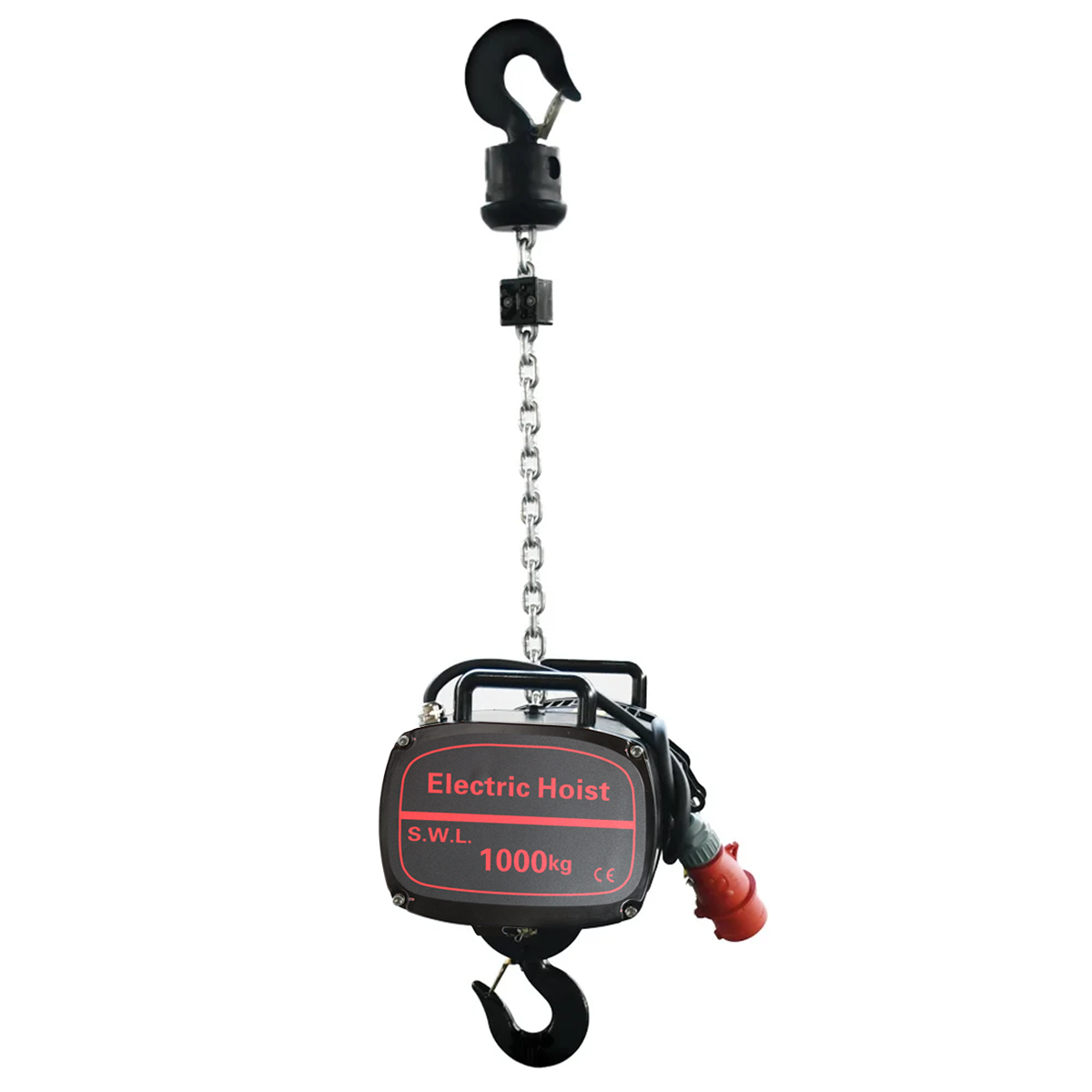

Imix 1 ton Electric Single (10m) Chain Hoist

Key Features

Dual Independent Electromagnetic Braking System

The hoist features a horizontally opposed dual brake system, with two electromagnetic brakes positioned at the front and rear along the central axis.

• Minimizes vibration and operational noise

• Faster, smoother braking response

• Independent brake operation for enhanced safety and redundancy

High-Precision Gear Transmission

Built with a helical gear design and hardened tooth surfaces, ensuring:

• Reduced wear over long-term use

• Gear accuracy grade 6 for precision performance

• Integrated oil bath lubrication system

• Automatic temperature regulation for consistent operation

• Quieter and smoother lifting performance

The one-piece driveshaft further improves stability, durability, and noise reduction.

Built-In Overload Protection (Friction Clutch)

Equipped with a mechanical overload safety clutch using high-quality friction plates:

• Automatically disengages when load exceeds rated capacity

• Prevents damage to motor, chain, and hoist body

• Ensures safe operation under demanding conditions

Optimized Chain Guide System

The 45° angled chain guide design ensures:

• Smooth and consistent chain movement

• Prevention of chain jamming or misalignment

• Increased operational reliability

Heavy-Duty Lifting Sprocket

Manufactured from special alloy steel with dual-sided bearings:

• Stable, quiet operation

• Enhanced chain engagement with multi-pocket design

• Reduced vibration and wear

• Smoother lifting and lowering cycles

High-Efficiency Aluminum Motor

Designed for continuous and high-frequency use:

• Lightweight aluminum housing with superior heat dissipation

• Protection rating: IP65 (dust and water resistant)

• Insulation class: F

• Reliable performance in demanding environments

Aluminum Alloy Gearbox

The hoist uses a high-strength die-cast aluminum gearbox:

• Lightweight yet highly durable

• Corrosion-resistant construction

• Improved heat management and efficiency

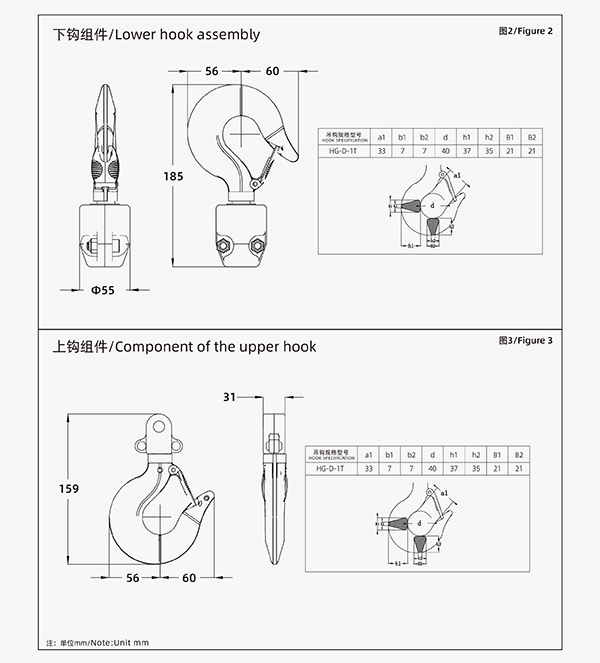

Forged Alloy Steel Hook

The lifting hook is designed for maximum safety and flexibility:

• High-strength forged alloy steel

• 360° rotation for easy positioning

• Integrated anti-drop safety latch

• High safety factor for secure lifting

Corrosion-Resistant Lifting Chain

The hoist includes a 10 meter black electrophoretic coated chain:

• Excellent corrosion resistance

• Long service life

• Smooth and reliable lifting performance

Applications

• Stage & rigging setups

• Warehousing & logistics

• Workshops & manufacturing

• Event production & installations

Imix Electronic Hoist (Single Chain)

High-Performance Lifting with Advanced Safety & Precision Engineering

The Imix Electronic Hoist (Single Chain) is engineered for demanding professional applications including warehouses, workshops, stage rigging, and industrial environments.

Built to handle a 1 Ton Load Capacity, it delivers a reliable 10 m Lifting Height, with a tested 1.25 Ton Proof Load for added safety assurance.

Featuring advanced braking technology and high-precision internal components, the hoist ensures low-noise operation, enhanced durability, and superior safety control, making it a dependable solution for continuous, heavy-duty use.
