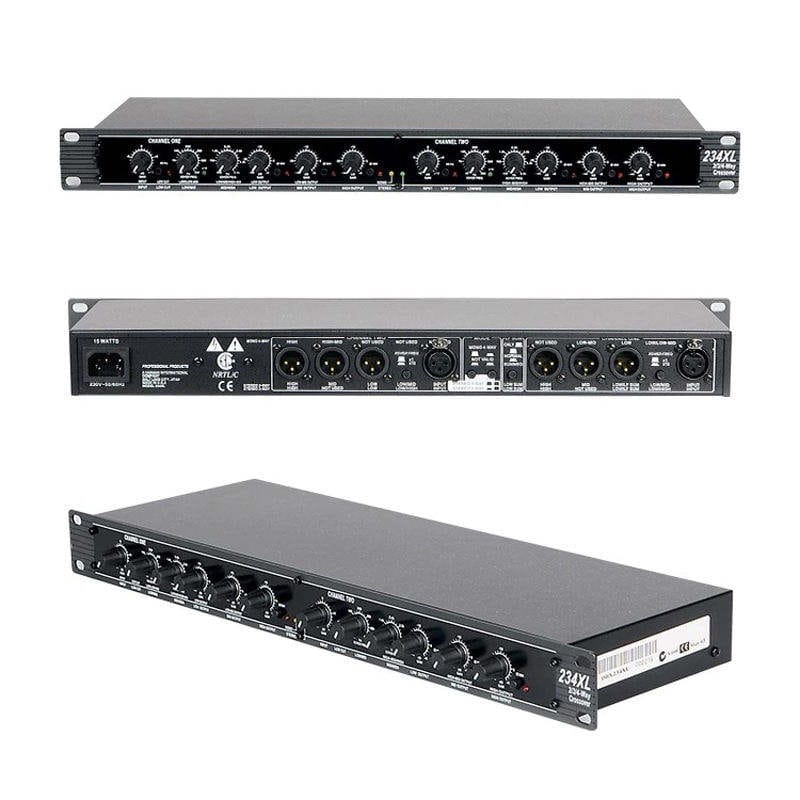

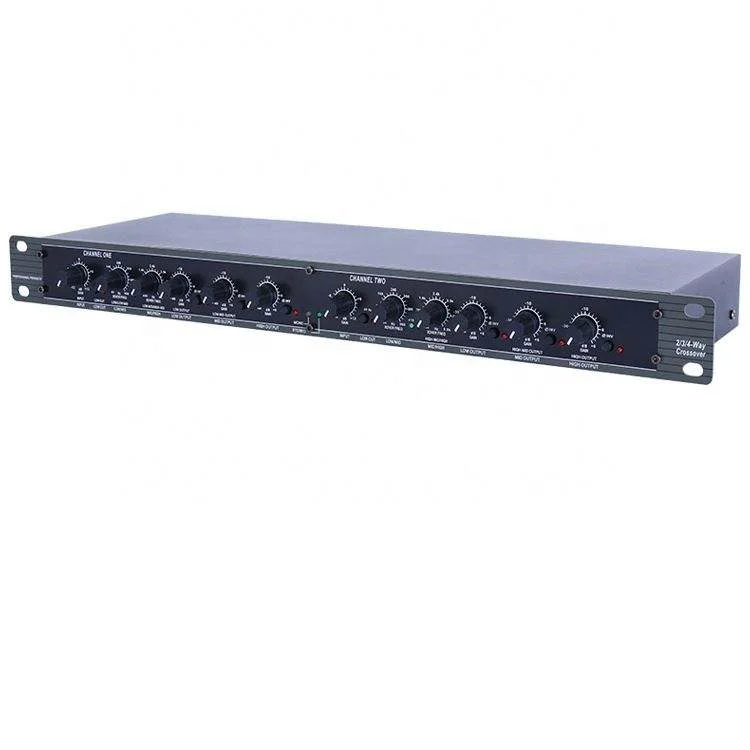

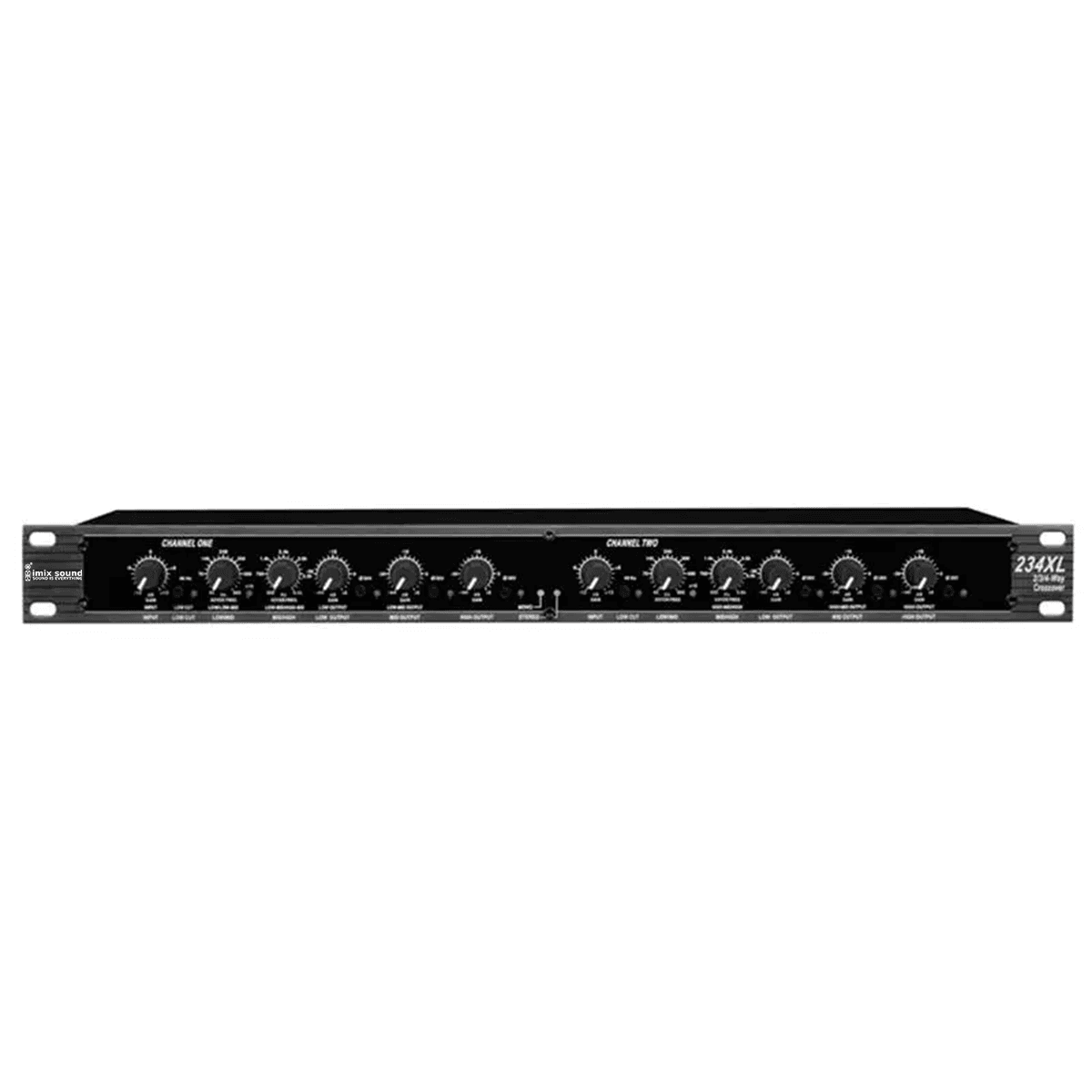

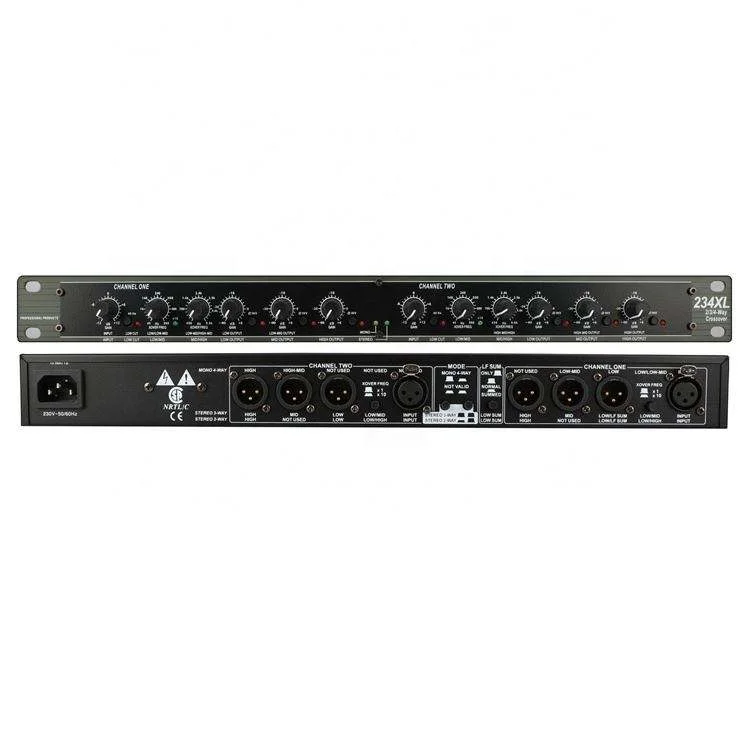

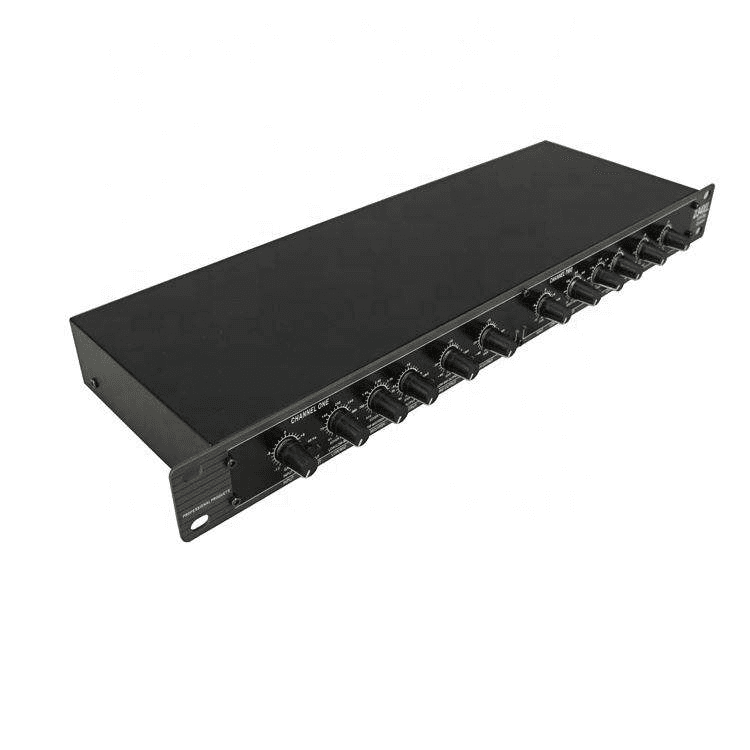

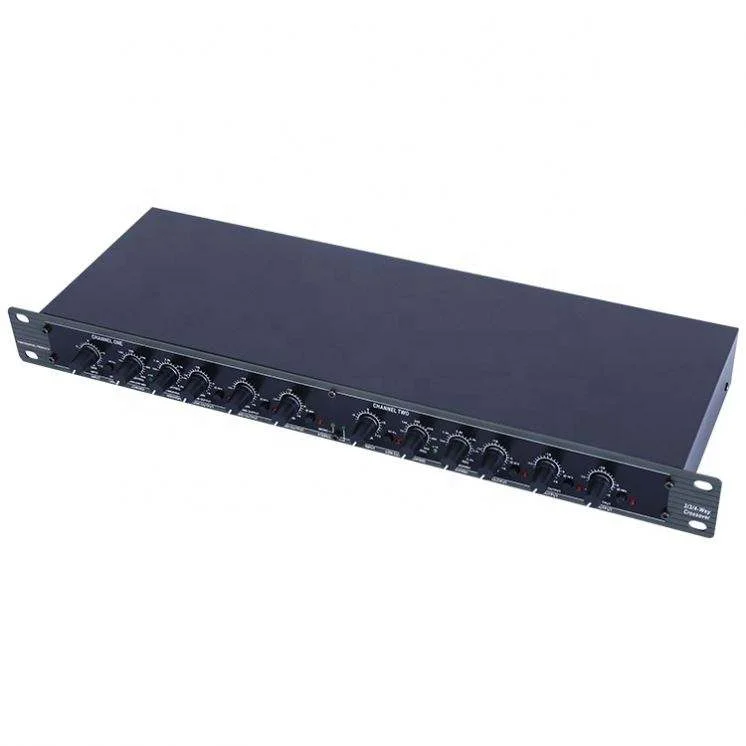

Imix CX234XL 4 way Mono/Stereo Crossover

Key Features

• Dual-channel stereo operation

• Switchable 2-way stereo or 3-way mono modes

• 24 dB per octave Linkwitz-Riley filters

• Independent gain controls on all outputs

• Subwoofer output with summed low frequencies

• Switchable 40 Hz low-cut (high-pass) filter

• Front-panel mute switches for easy system setup

• Precision potentiometers for accurate crossover tuning

• Balanced XLR inputs and outputs

• Standard 19-inch rack-mountable design (1U)

Applications

• Live sound reinforcement

• Club and venue sound systems

• Touring PA systems

• DJ systems

• Fixed installations

• Bi-amped and tri-amped speaker systems

Technical Specifications

Audio Performance

• Frequency Response: 20 Hz – 20 kHz, +0 / −0.5 dB

• Dynamic Range: >110 dB

• Signal-to-Noise Ratio: >90 dB

• THD + Noise: <0.003%

Crossover

• Crossover Type: Linkwitz-Riley

• Slope: 24 dB/octave

• Modes:




  • Stereo 2-Way

  • Mono 3-Way

Inputs & Outputs

• Inputs: 2 × Balanced XLR

• Outputs: Balanced XLR

• Input Impedance: 50 kΩ balanced

• Output Impedance: 200 Ω balanced

Controls

• Input gain controls

• Output gain controls

• Crossover frequency controls

• Mute switches

• Low-cut filter switch (40 Hz)

• Mode selection switch

Power & Physical

• Power Supply: 100–240 V AC, 50/60 Hz

• Power Consumption: <15 W

• Rack Size: 1U, 19-inch

• Chassis: Steel construction

What’s in the Box

• Imix Sound 234XS Professional Crossover

• Power cable

• User documentation

The Imix Sound CX234XL is a professional analog crossover designed for PA systems, touring rigs, installations, clubs, and live sound environments. It delivers precise frequency control, reliable performance, and clean signal separation for bi-amped or tri-amped sound systems.

Built with the same architecture and performance standards as industry-proven crossovers, the Imix Sound CX234XL ensures accurate signal routing, extended headroom, and low-noise operation in demanding audio setups.
