Imix EAGLE 100 Beam Moving Head
In stock at supplier
R2,545.00

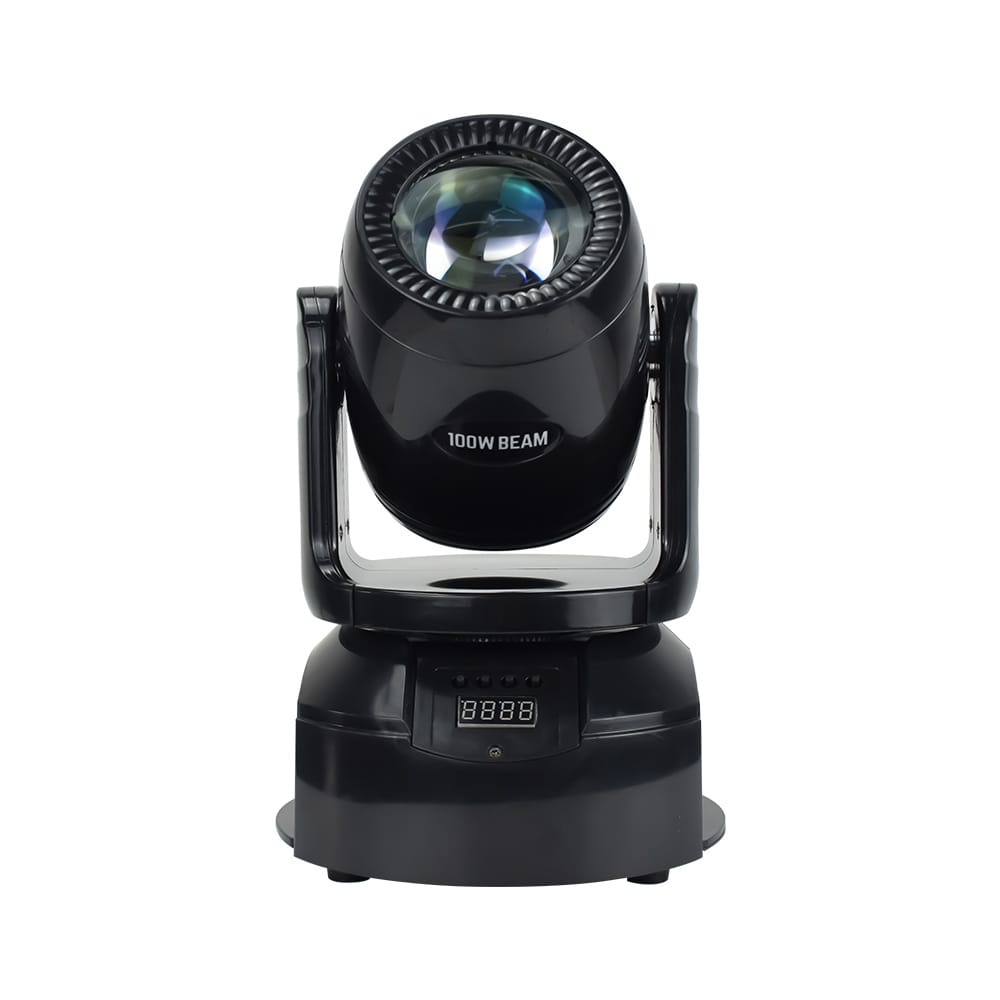

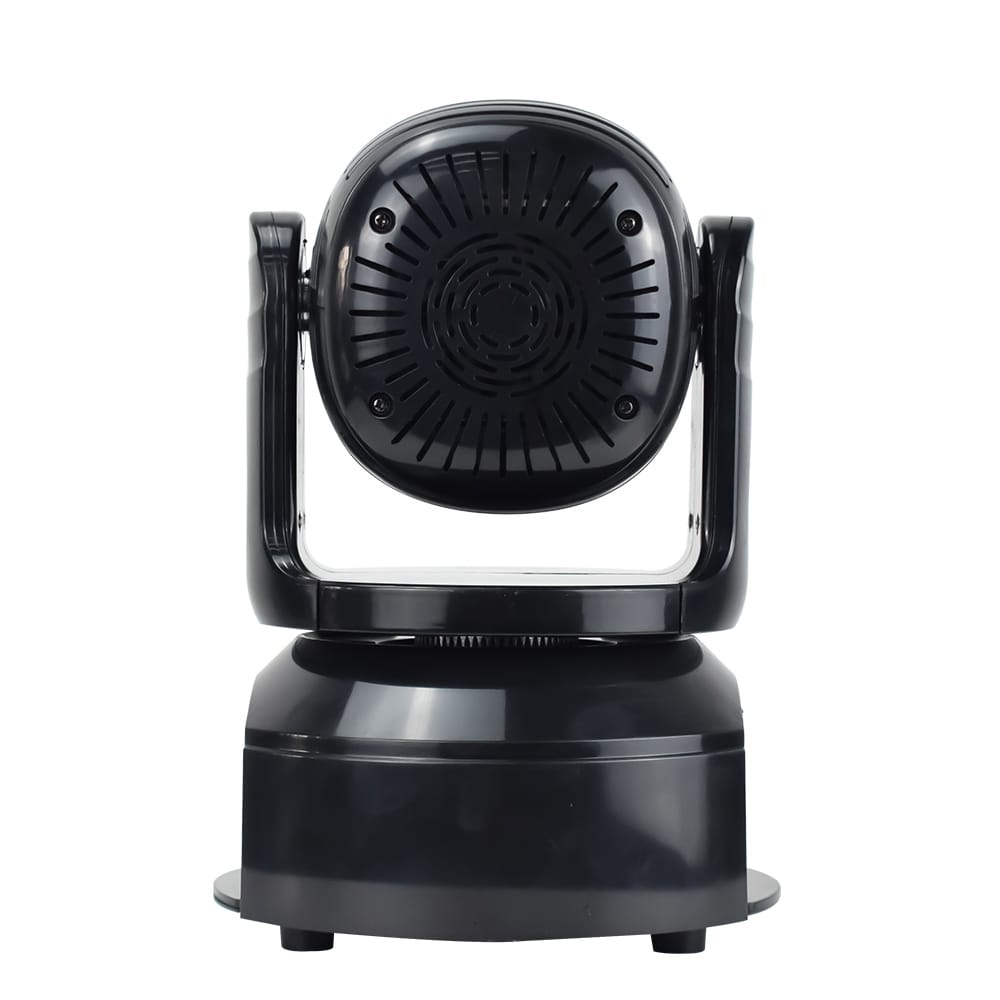

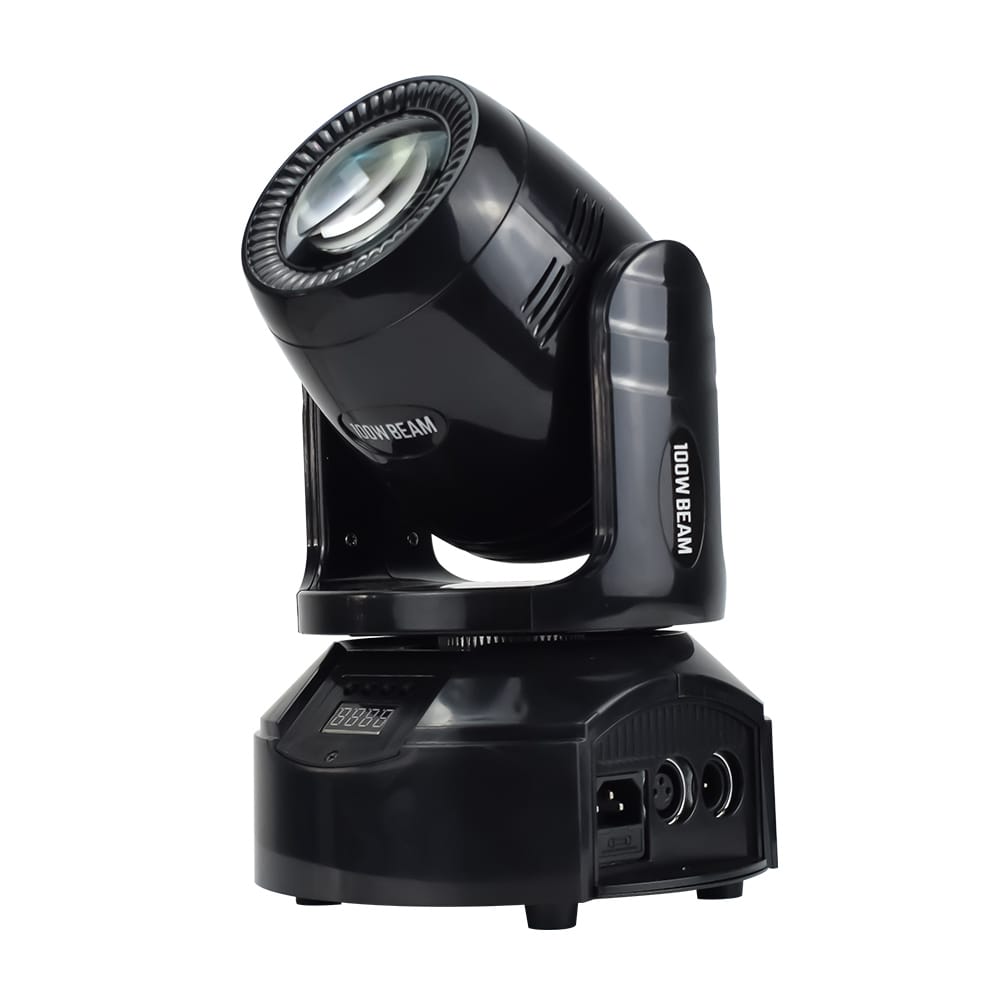

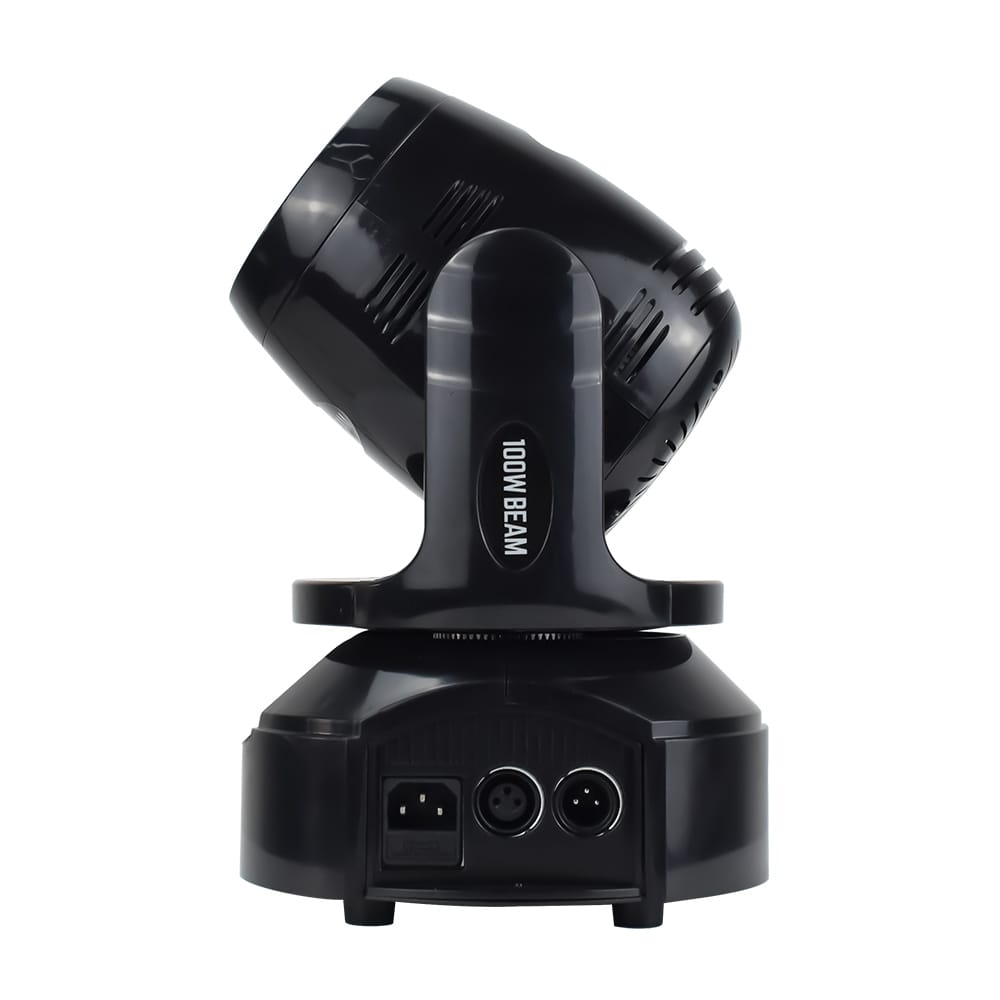

Imix EAGLE 100 Beam Moving Head
Availability: In stock
The Imix Eagle 100 is a powerful 100W LED moving head featuring gobo projection, 7-color mixing, and ultra-smooth dimming. Designed for stage productions and events, it offers 12-channel DMX512 control, auto/sound-activated modes, and ±540° pan/270° tilt movement for dynamic lighting effects.
Key Features
✅ 100W White LED – Bright, energy-efficient output (90,000+ hour lifespan)
✅ 7-Color Wheel + Gobo Projection – 7 static colors + 7 rotating gobo patterns
✅ 12-Channel DMX512 Control – Precise parameter adjustment
✅ Multiple Modes – DMX, Master/Slave, Auto, Sound-Activated
✅ Smooth Movement – 540° pan / 270° tilt with 8-bit fine-tuning
✅ Strobe Effects – Adjustable speed (0-20Hz)
Technical Specifications
| Category | Details |
|---|---|
| Power | 100W LED |
| Voltage | AC 220V, 50Hz |
| Control | DMX512 (12 channels) |
| Movement | 540° pan / 270° tilt |
| Colors | 7 static + auto-rotating color wheel |
| Gobos | 7 rotating patterns + shake effects |
| Dimming | 0-100% smooth dimming |
| Strobe | 0-20Hz |
| Display | LCD menu for settings |
DMX Channel Table (12 Channels)
| CH | Function | Value Range | Effect |
|---|---|---|---|
| 1 | Pan (X-axis) | 0-255 | 540° movement |
| 2 | Pan Fine | 0-255 | Precision adjustment |
| 3 | Tilt (Y-axis) | 0-255 | 270° movement |
| 4 | Tilt Fine | 0-255 | Precision adjustment |
| 5 | Pan/Tilt Speed | 0-255 | Fast → Slow |
| 6 | Gobo Dimming | 0-255 | Pattern brightness (dark → light) |
| 7 | Strobe | 0: Off, 1-255: 1-20Hz | Speed control |
| 8 | Color Wheel | 0-127: Static colors, 128-255: Auto-rotation | 7 colors + white |
| 9 | Gobo Selection | 0-127: Static gobos, 128-255: Rotation | 7 patterns + shake effects |
| 10 | Prism | 0-7: Off, 8-255: On/Rotation | Adds texture to beams |
| 11 | Macro Functions | 0-49: Manual, 50-200: Auto, 201-255: Sound-Activated | Mode selection |
| 12 | Reset | 241-255 | Fixture reset (hold 5s) |
Menu System
Main Menu
-
Addr: DMX address (A001-A512)
-
Clind: Channel mode (12CH)
-
SLnd: Operation mode (DMX/Auto/Sound)
-
Pset/Tilt: Motor direction (X/Y reverse)
-
SEnc: Sound sensitivity (0-100)
Fine-Tuning Menu
(Hold Menu button for 5s)
-
Pan/Tilt/Color/Gobo: -127 to +127 calibration
Imix Eagle 100
100W Beam Gobo Moving Head Light with 12-Channel DMX Control
| Weight | 3 kg |
|---|---|
| Dimensions | 28 × 28 × 34 cm |
| Light Type | Beam |
| Power Rating | 100W |
| Light Configuration | 1 x LED BEAM |
