Name: Imix Hazer 600 Professional Haze Machine
Brand: iMix
SKU: IM-HAZER600
Availability: InStock

The Imix Hazer 600 is a professional-grade haze machine designed for creating uniform, long-lasting atmospheric effects. With DMX512 control, wireless remote operation, and instant activation (no preheating), it delivers ultra-fine haze with wide coverage for concerts, theaters, and events. Features include low fluid consumption and non-toxic output for safe use in performance environments.

Key Features

✅ Instant Operation – No preheating required
✅ Triple Control Modes – DMX512, wireless remote, and manual panel
✅ Adjustable Output – Airflow (F0-F100) and timer settings (1-200s)
✅ Low Fluid Consumption – Economical and efficient
✅ Safe & Non-Toxic – Complies with performance venue safety standards
✅ Compact & Portable – Easy to transport and set up

Technical Specifications

Category	Details
Control Modes	DMX512 (2 channels), wireless remote, manual panel
Haze Output	Wide-coverage, ultra-fine particles
Tank Capacity	2L max (avoid overfilling)
Power Supply	AC 100-240V, 50/60Hz
Display	Digital tube for DMX address, airflow, and timer settings
Safety	Auto-shutoff to prevent dry burning
Weight	15kg

Setup & Operation

1. Initial Setup

Replace Lids: Remove the black air outlet cover and install the gold vent lid before use.

Fill Fluid: Use high-quality haze fluid (max 2L) to avoid clogging.

Power On: Connect to DMX or use the wireless remote. The digital tube displays a “horse racing” cycle in standby mode.

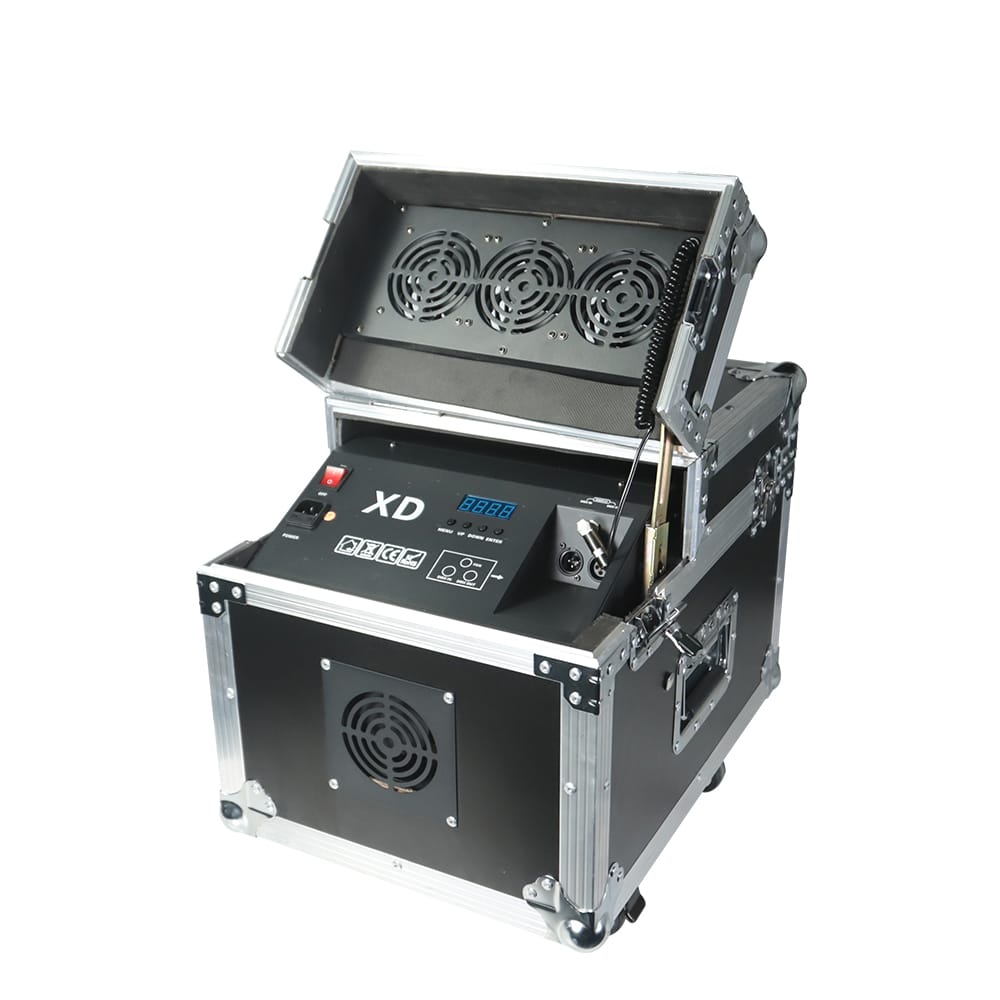

2. Control Panel

Button	Function
Menu Key	Navigate settings (DMX address, airflow, timer)
Start/Stop	Toggle haze output (`P ON`/`P OFF`)
+/- Keys	Adjust airflow (`F0`=off, `F100`=max) or timer (`D1-D200`=run time in sec)
Config Key	Confirm settings

3. DMX512 Control (2 Channels)

Channel	Value Range	Function
1	0-64: Off, 65-255: On	Activates compression pump
2	1-255	Adjusts air volume (1=min, 255=max)

Safety & Maintenance

⚠ Avoid Dry Burning – Always ensure fluid is present to prevent damage.
⚠ Ventilation – Do not use in enclosed, high-temperature, or humid spaces.
⚠ Storage – Replace the gold lid with the black cover after use to protect the outlet.
⚠ Fluid Quality – Use only recommended haze OIL BASED fluids to avoid machine clogging.

⚠️ This product is designed for use with oil-based haze liquid only. Using any other liquid may damage the unit and void the warranty.
