Voicing Modes: The KRK Systems ROKIT 7 Generation 5 Powered Studio Monitor features three distinct Voicing Modes: Mix, Create, and Focus. Mix Mode provides a flat frequency response, making it ideal for mixing and mastering audio. Create Mode offers a more inspirational sound profile, perfect for writing and producing music. Focus Mode emphasizes midrange frequencies, allowing for detailed analysis of vocals and instruments, ensuring critical listening is accurate and efficient.

Acoustic Tuning: To enhance its adaptability, the ROKIT 7 includes 25 boundary and tuning EQ combinations. These settings allow users to adjust the monitor’s performance based on their specific acoustic environment, minimizing issues like resonance and standing waves. This feature, combined with the KRK App, ensures a straightforward setup process, enabling precise acoustic tuning tailored to individual studio needs.

Driver Design: The ROKIT 7 is equipped with a 7-inch woven Kevlar® aramid fiber cone woofer, designed to provide superior damping and modal breakup control. This driver allows for an extended low-frequency response, ensuring powerful bass reproduction. Paired with a 1-inch silk dome tweeter, the monitor extends high frequencies up to 40 kHz, delivering clarity and detail across the frequency spectrum.

Power Amplification: Bi-amplified Class D amplifiers power the ROKIT 7, offering efficient performance with reduced operating temperatures. The LF amplifier outputs 97 watts, while the HF amplifier provides 48 watts, ensuring maximum transient response and dynamic range. This efficient power management maintains audio integrity, allowing professionals to work long hours without compromising sound quality.

Design and Installation: The monitor features a Low Diffraction Baffle Design, reducing distortion and enhancing stereo imaging for a more accurate listening experience. The front-ported bass reflex enclosure optimizes low-frequency performance, while integrated mounting points facilitate easy installation in various studio setups. The monitor’s universal voltage power supply ensures compatibility across global regions, making it versatile for any studio environment.

Connectivity: The ROKIT 7 includes both XLR and 1/4” TRS Combo analog inputs, ensuring broad compatibility with a variety of audio devices. This feature allows for seamless integration into any studio setup, whether you’re working with mixers, audio interfaces, or other monitoring systems. Additionally, the KRK Audio Tools App enhances usability, offering real-time room analysis and EQ recommendations for optimal sound performance.

Specifications

• Configuration: 2-Way Bass Reflex
• System Type: Active Studio Monitor
• Low-Frequency Driver: 7-inch, woven Kevlar® aramid fiber cone, ferrite magnet
• High-Frequency Driver: 1-inch, Silk Dome, Copper Cap, ferrite magnet
• Frequency Response: (+/- 3 dB) 45 Hz – 36 kHz
• Frequency Range: (+3/-10 dB) 36 Hz – 40 kHz
• Crossover Frequency: 1.64 kHz
• Amplifier Configuration: Bi-amplified (Class D)
• HF Amp Power Output: 48 Watts (Rated Amplifier Power Output measured at 1% THD+N)
• LF Amp Power Output: 97 Watts (Rated Amplifier Power Output measured at 1% THD+N)
• Total Power: 145 Watts (Rated Amplifier Power Output measured at 1% THD+N)
• Total Dynamic Power Output: 234 Watts (Rated Dynamic Power Output as instantaneous peak power at 10% THD+N)
• Max SPL: 110 dB (Calculated as a function of driver sensitivity (1W @ 1M) and Dynamic Power rating)
• Coverage Angles: 155° Horizontal x 133° Vertical (Averaged -6 dB down points from 900 Hz to 9 kHz)

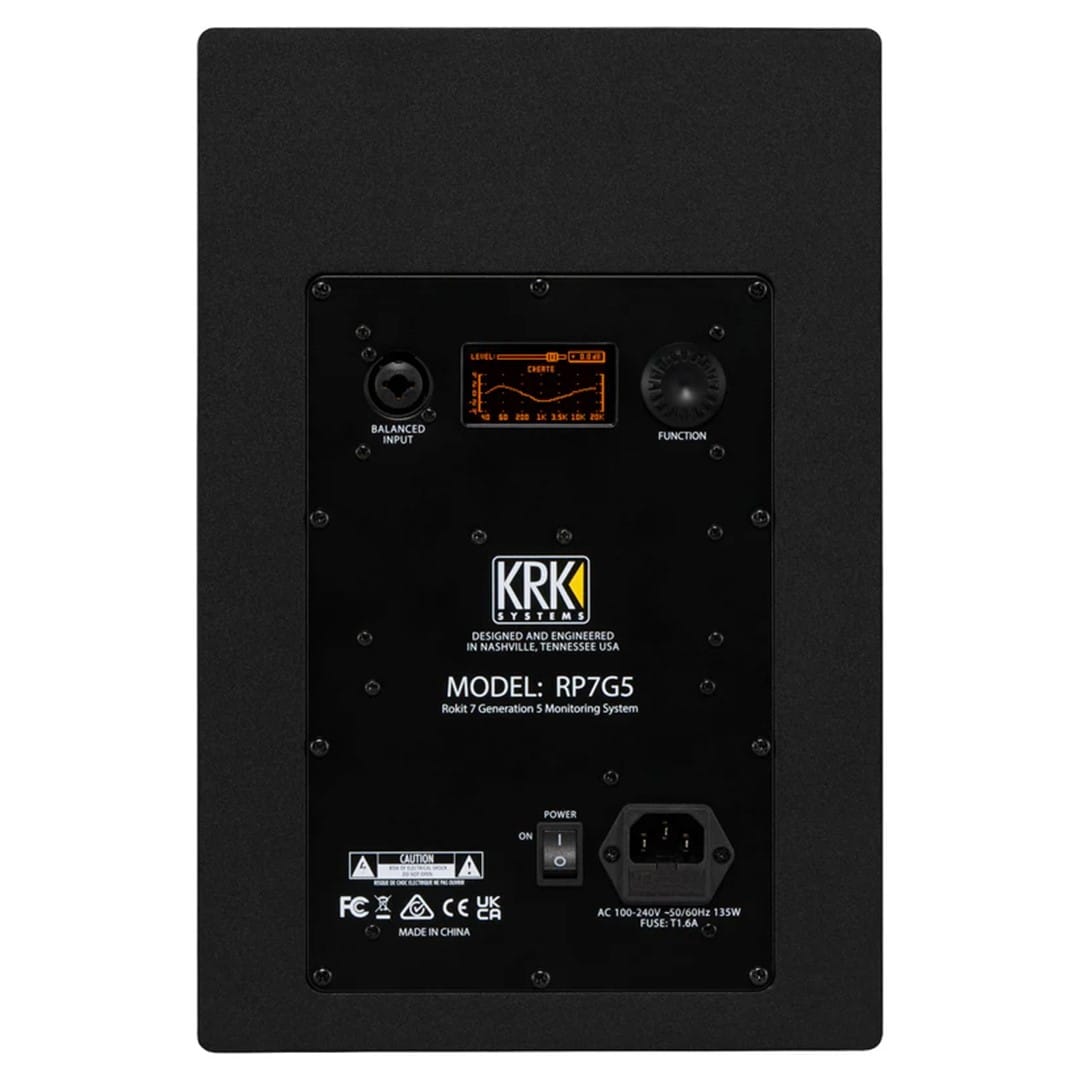

• Analog Input Connector: Balanced XLR / 1/4″ TRS Combo
• SNR (Signal to Noise Ratio): >91.5 dB (Low Sensitivity setting, balanced), >89 dB (High Sensitivity, unbalanced)
• AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60 Hz
• Fuse Type: 5×20 mm T1.6A 250V
• Enclosure Construction: PVC Vinyl Wrapped MDF
• Baffle Construction: Structurally Reinforced High Impact Polystyrene
• Product Dimensions (H x W x D): 13.35” (339 mm) x 8.86” (225 mm) x 11.42” (290 mm)
• Product Weight: 16.87 lbs. (7.65 Kg.)
• Packaged Dimensions (H x W x D): 18.11” (460 mm) x 12.20” (310 mm) x 14.57” (370 mm)
• Packaged Weight: 21.16 lbs. (9.6 Kg.)
