Lane IEM1100 In Ear Monitor Set

Wireless In-Ear Monitors Enable Clean Stage Sets And Reliable, Consistent Sound Wherever You Go, Ideal For Use By Singers And Musicians.

This In-Ear Monitor System Has Powerful Compatibility Features That One Transmitter Can Connect Multiple Receivers. Meet The Needs Of Your Group And Multiple Application Needs.

UHF Band Phase Lock PLL Whole Metal UHF Wireless In-Ear Monitor System, Among The 32mhz Band, The 40 Preset Frequencies Can Be Arbitrary Switching. Kit Includes Audio System Transmitter, Digital Beltpack Receiver, In-Ear Headphones, Power Supply, Adapter, Antenna, User Manual, Cable Line And Carrying Case.

Compact And Wireless

In-Ear Monitor And Receiver System Offers Tabletop Stage Monitoring. The Wireless System Allows Users To Move Freely Around The Stage And A Wireless Range Of Up To 250 Feet.

Design

With A Clear Digital LCD Front Display For At-A-Glance Monitoring On The Receiver. With Power And RF Reception LED. It Uses Two AA Batteries And An Efficient Power Supply Circuit, Long Service Life. Black Carrying Case For Safe Storage.

Multi Point Pairing

This In-Ear Monitor System Has Powerful Compatibility Features Allowing One Transmitter To Connect Multiple Receivers. Meet The Needs Of Your Group And Multiple Application Needs. Ideal For Stage Performance, Studio Recording, Exhibition, Lecture, Instruction, Speech, Etc.

UHF Monitoring System

Using Advanced Circuit Design, Eliminate The Receiving Blind Spot To Make The System Receiving Signal Stable. The System Is Solid, As The Case Is Made Of Durable Metal Material. It Is The Best Stage Performance Monitor Product Choice.

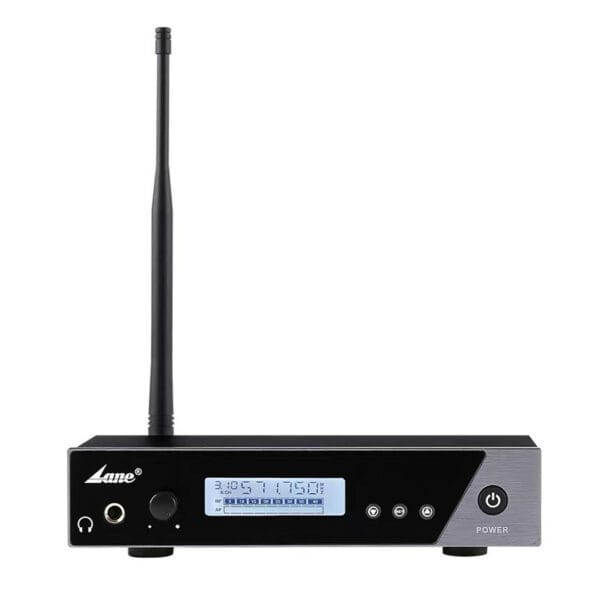

The Front Panel Of The 1/4 Inch Monitoring Transmitter Has The Headphone Jack. Used In The Scene, Achieve Admirable Listening Effect.

Transmitter Specifications

Oscillation Mode

Synthesized PLL

Frequency Stability

±0.005%

Frequency Range

550.00-580.00mhz,902.00-928.00mhz

Preset Channel

40 Channels Set Separately 4 Groups

Frequency Response

50Hz-15khz ± 3db

Transmit Output Power

100Mw(50Ω)

AF Input

XLR, 6.35mm Jack Socket

Earphone Load Impedance

≥16Ω

Current Consumption

DC12V/300ma

Receiver Specifications

Oscillation Mode

Synthesized PLL

Frequency Stability

±0.005%

Preset Channel

40 Channels Set Separately 4 Groups

Frequency Response

80Hz-15khz ± 3db

Output Power (32Ω)

2x35mw@1khz

Earphone Load Impedance

≥16Ω

Current Consumption

3V/120ma (Use Under Medium Volume)

Antenna

Detachable Antenna

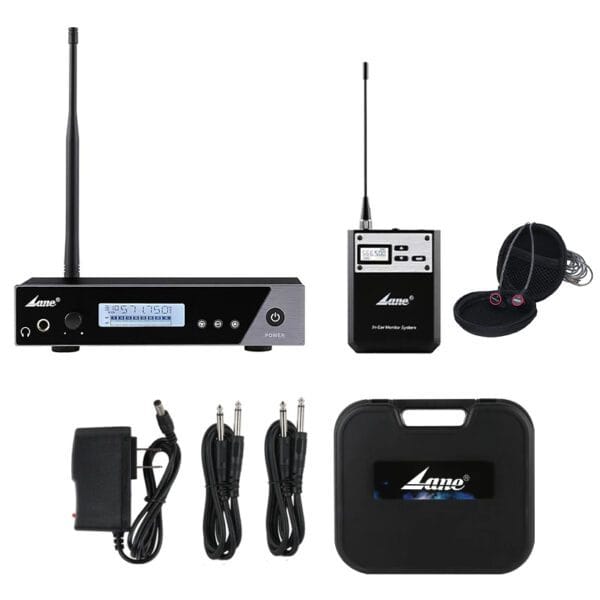

What’s Included:

• 1x UHF Transmitter
• 1x UHF Bodypack Receiver
• 1x Antenna
• 1x IEM Headphones
• 2x 6.3MM Patch Cables
• 1x 12Volt Power Adapter
• 1x Carrying Case
• 1x User Manual
