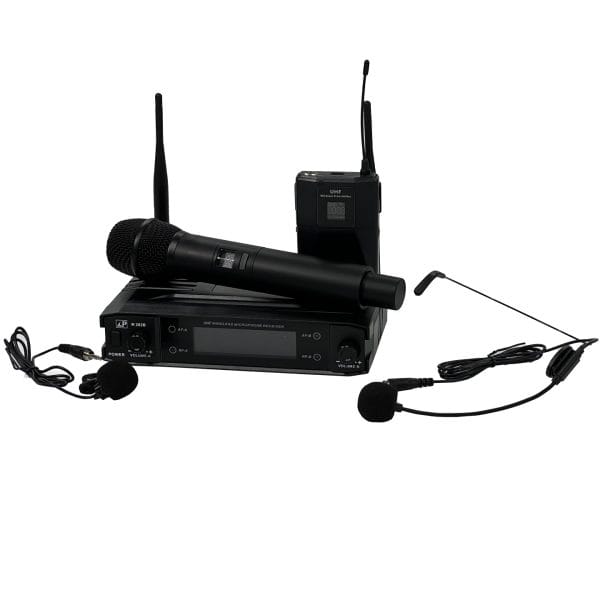

The Lane M202B is an advanced handheld and lapel/headset wireless UHF microphone system designed for versatility and high audio performance. This system is ideal for a range of applications such as public speaking, musical performances, and broadcasting, providing users with the flexibility to choose between handheld and wearable microphone options.

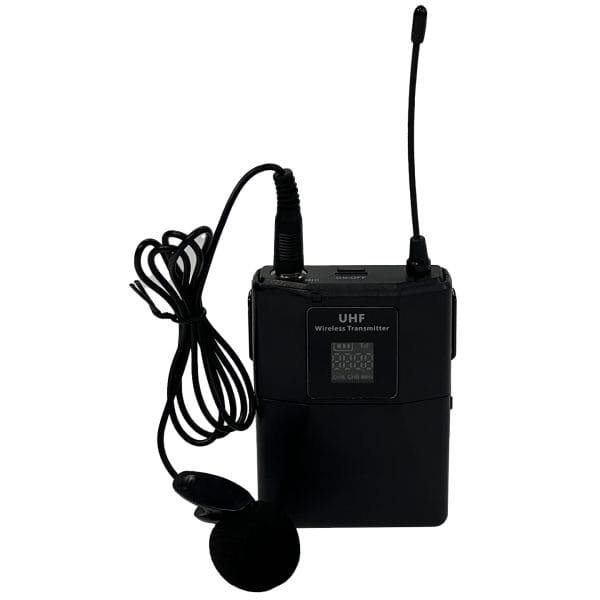

• Dual Microphone Options: The system supports both handheld and lapel/headset microphones, offering flexibility for different performance needs.
• High Audio Fidelity: With a frequency response of 30Hz to 20KHz, the Lane M202B delivers rich and clear sound quality, making it suitable for various audio applications.
• Extended Operating Range: A receiving distance of up to 50 meters (Line of Sight) allows users to move freely during performances or speeches.
• Low Power Consumption: The system operates with a power consumption of less than 2W, making it energy-efficient.
• Robust Signal Quality: With a signal-to-noise ratio of >96dB, the M202B minimizes background noise, ensuring clear audio transmission.
• User-Friendly Setup: The dual functionality and easy handling of the handheld microphone make it user-friendly for a range of environments.

The Lane M202B is an excellent choice for professionals and enthusiasts seeking a reliable, high-quality wireless microphone system available at SBR Pro Sound that offers flexibility and superior audio performance in both handheld and lapel/headset configurations.

Specification

System

Frequency range

500MHz-980MHz

Modulation mode

Digital Modulation PSK

Audio sampling rate

48KHz

Channel spacing

>300KHz

Audio signal to noise ratio

>96dB

Frequency response

30Hz-20KHz

Oscillation mode

VCO oscillation inside the chip

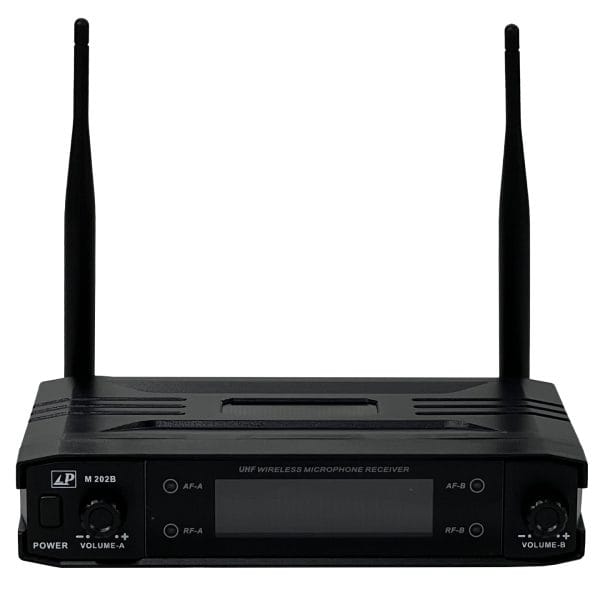

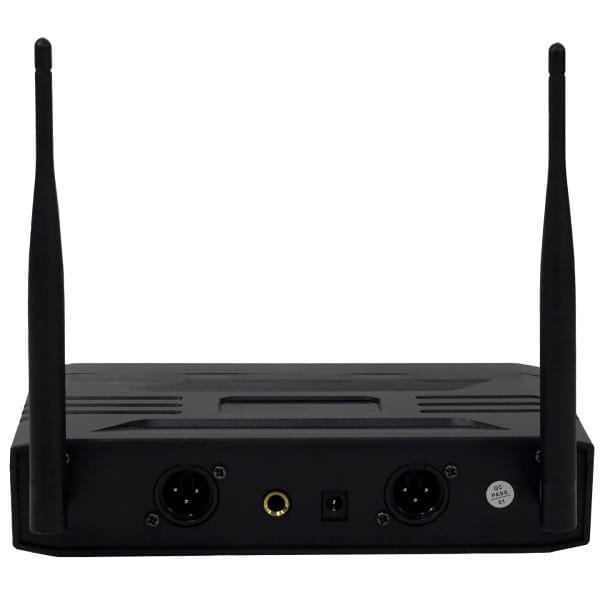

Receiver

Antenna

BNC/50 Ohm

Sensitivity

–96dBm

Harmonic interference ratio

>80dB

False interference ratio

>70dB

Power consumption

<2W

Audio output

Ф 6.35 socket mixed unbalanced output

Power

DC 12V / 500mA

Receiving distance

50 Meters (LOS)

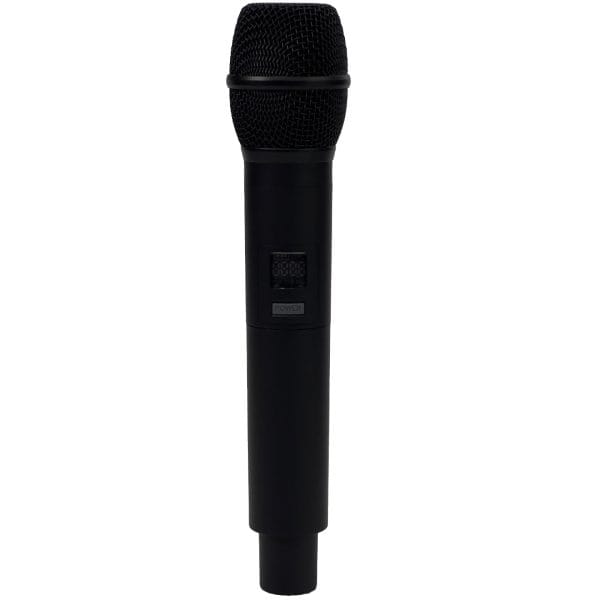

Transmitter

Frequency range

500MHz-980MHz

Transmit power

10mW

Maximum input sound pressure

100dB

Cartridge

Dynamic

Audio frequency response

30Hz~20KHz±3dB

Battery

AA 1.5V × 2

Battery life

±6 Hours
