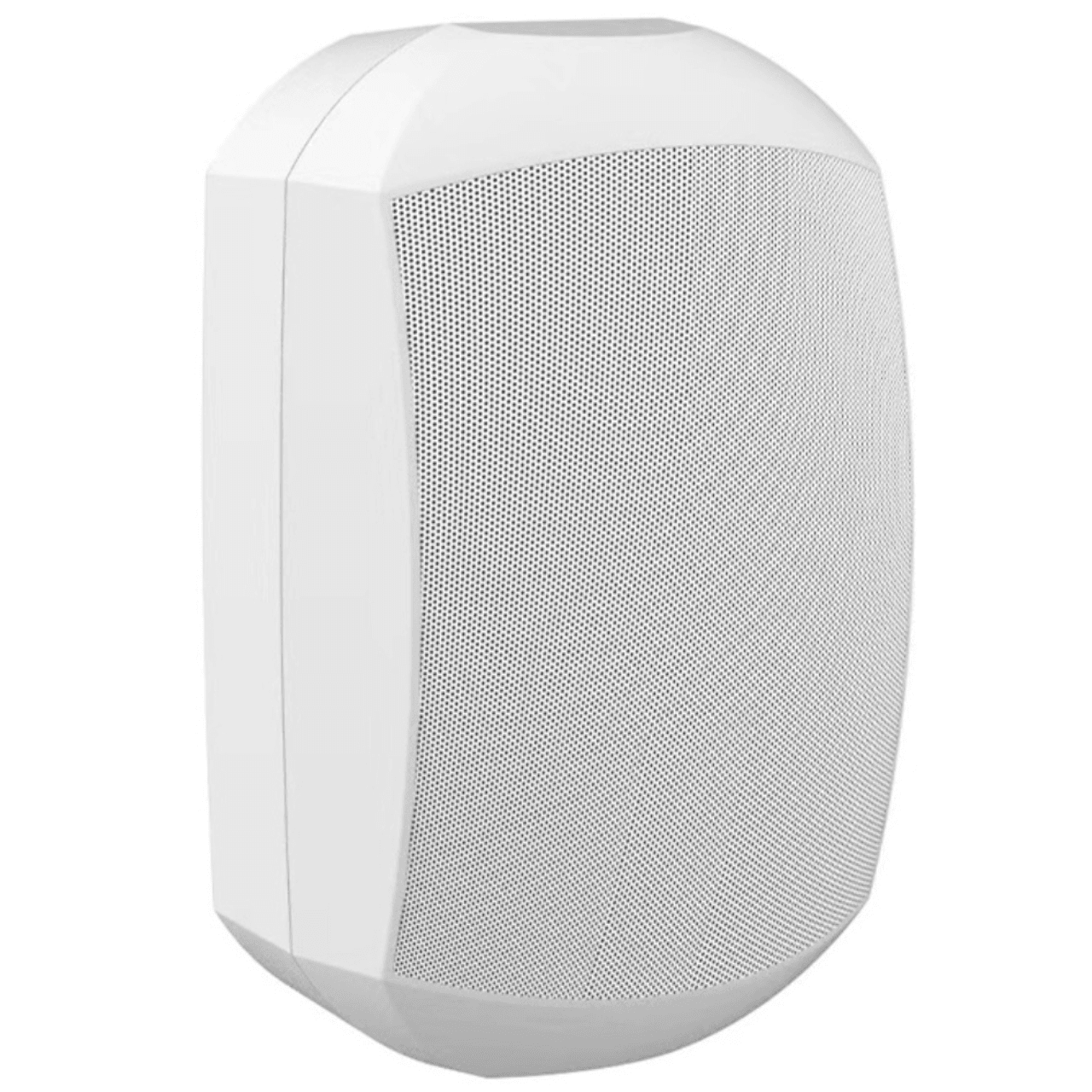

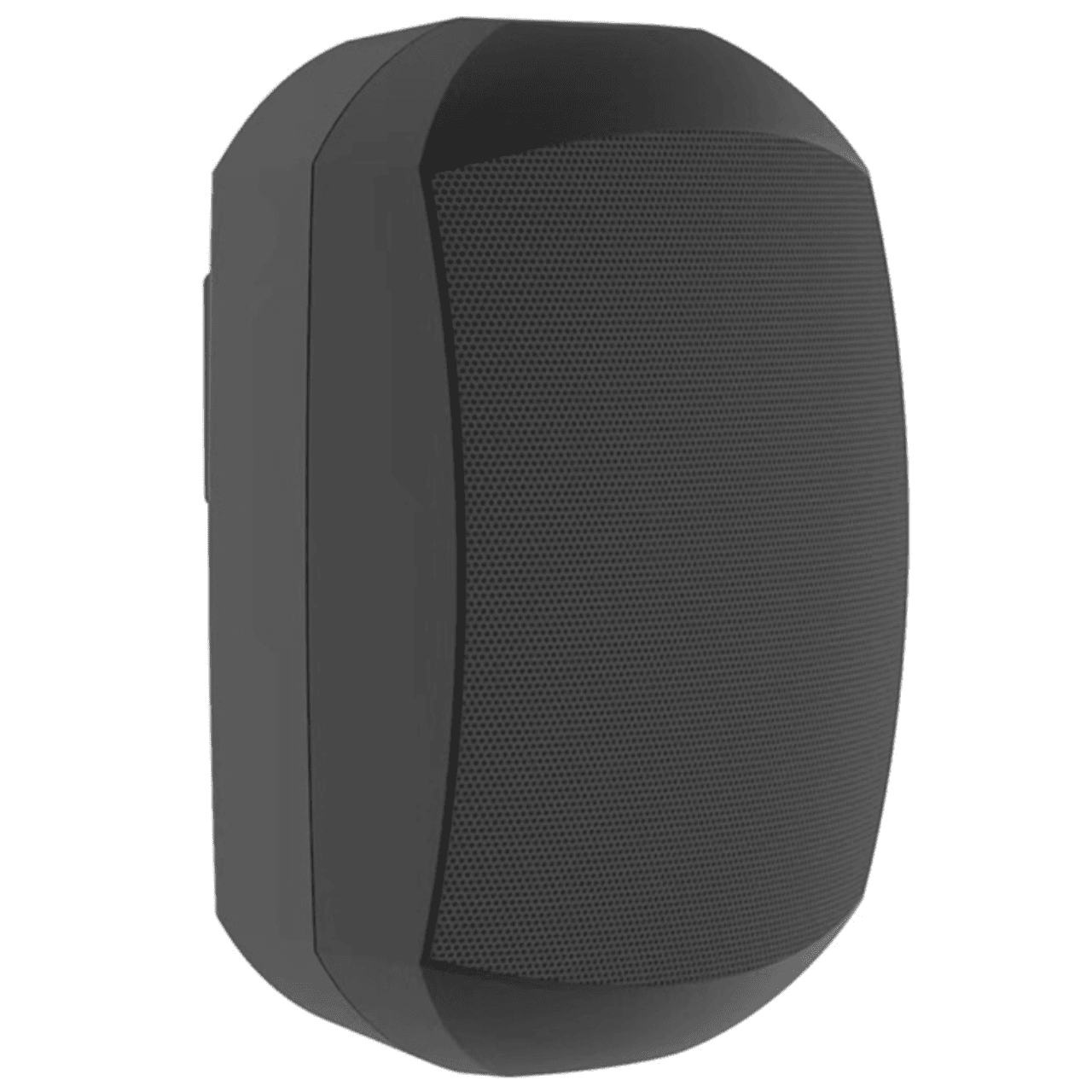

The all-weatherproof wall mount speaker shall be designed with a 4” weatherproof woofer and a 1” silk tweeter 2-way speaker system. The rated power output at 20 watts and the max power output at 40 watts. The music loudspeakers shall support 70V/100V transformer power tapping of 20W, 10W, 5W, 2,5W & 1,25W, or as a low impedance 8 Ohm version. The wall mount speaker shall be IP66 waterproof rate, which is made of a high-quality PP enclosure. Aluminum grille and alloy mounting bracket. The wall mount loudspeaker shall support a wide range dispersion angle up to vertical: 180° and horizontal: 180° (1KHz). The loudspeaker is designed for high SPL up to 87±3dB and Max 112dB (1m). The wall-mount loudspeaker support all music and paging system because of its wide range frequency response of 80-20KHz. The supplied mount bracket shall support a 360° rotatable bracket for horizontal and vertical installation angle adjustment. The wall weatherproof wall mount speaker comes with black & white two color option.

General Specifications

• Model: PW-4IP66BK PW-4IP66WH
• Rated Power Output: 20W and Max. 40W
• Power Taps: 20-10-5-2,5-1,25W & 8Ω
• Line Input: 100V or 70V & 8Ω
• Frequency Response: 80-20KHz
• SPL(@1W/m): 87dB ±3dB and Max 112dB (1m)
• IP Rate: IP66
• Speaker Unit: 4″ weatherproof woofer and 1” silk tweeter 2-way speaker system
• Dispersion Vertical: 180° and Horizontal: 180° (1KHz)
• Dimension:  220mm ×138mm ×120mm
• Material: PP enclosure, Aluminium grille & mounting bracket
• Color: Black and White

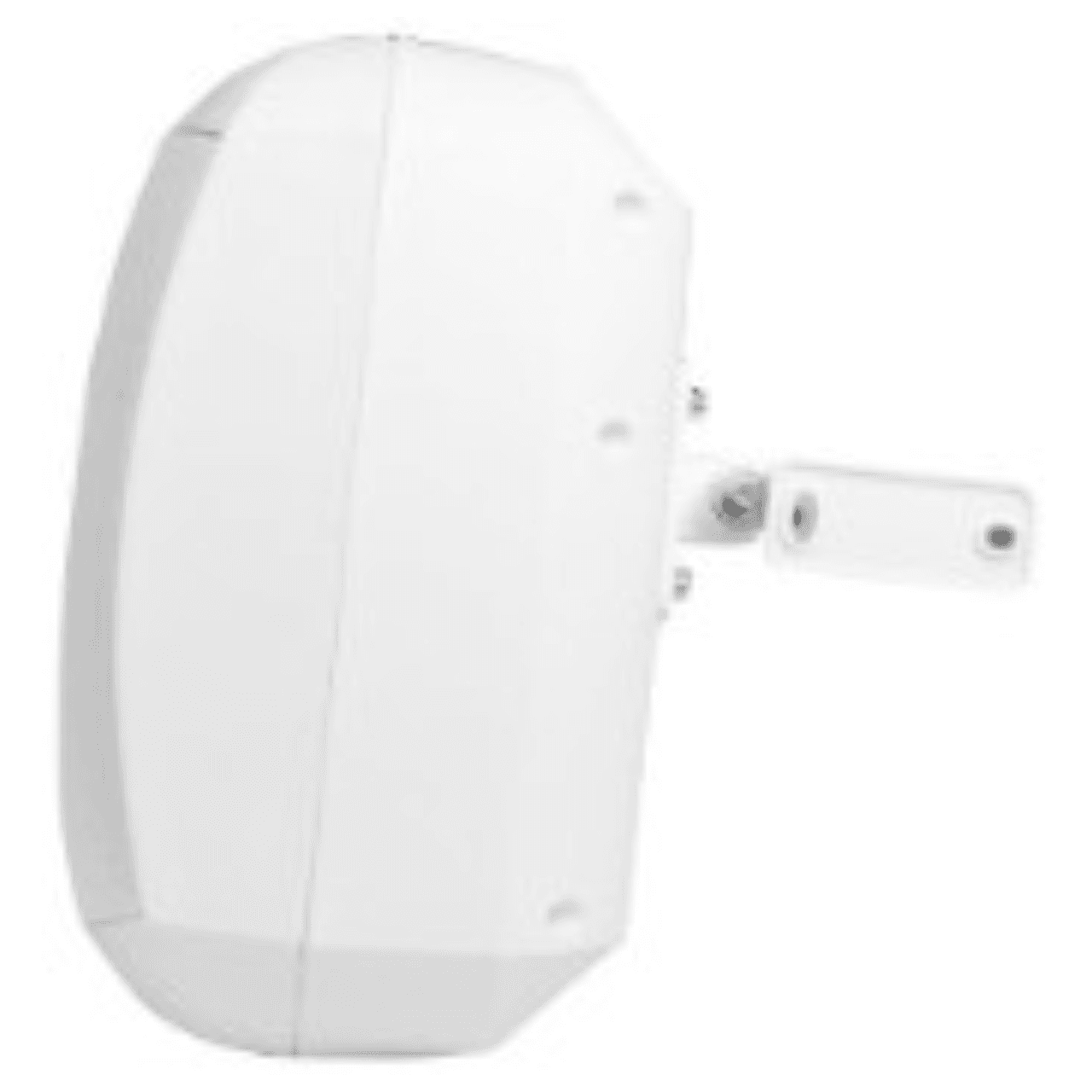

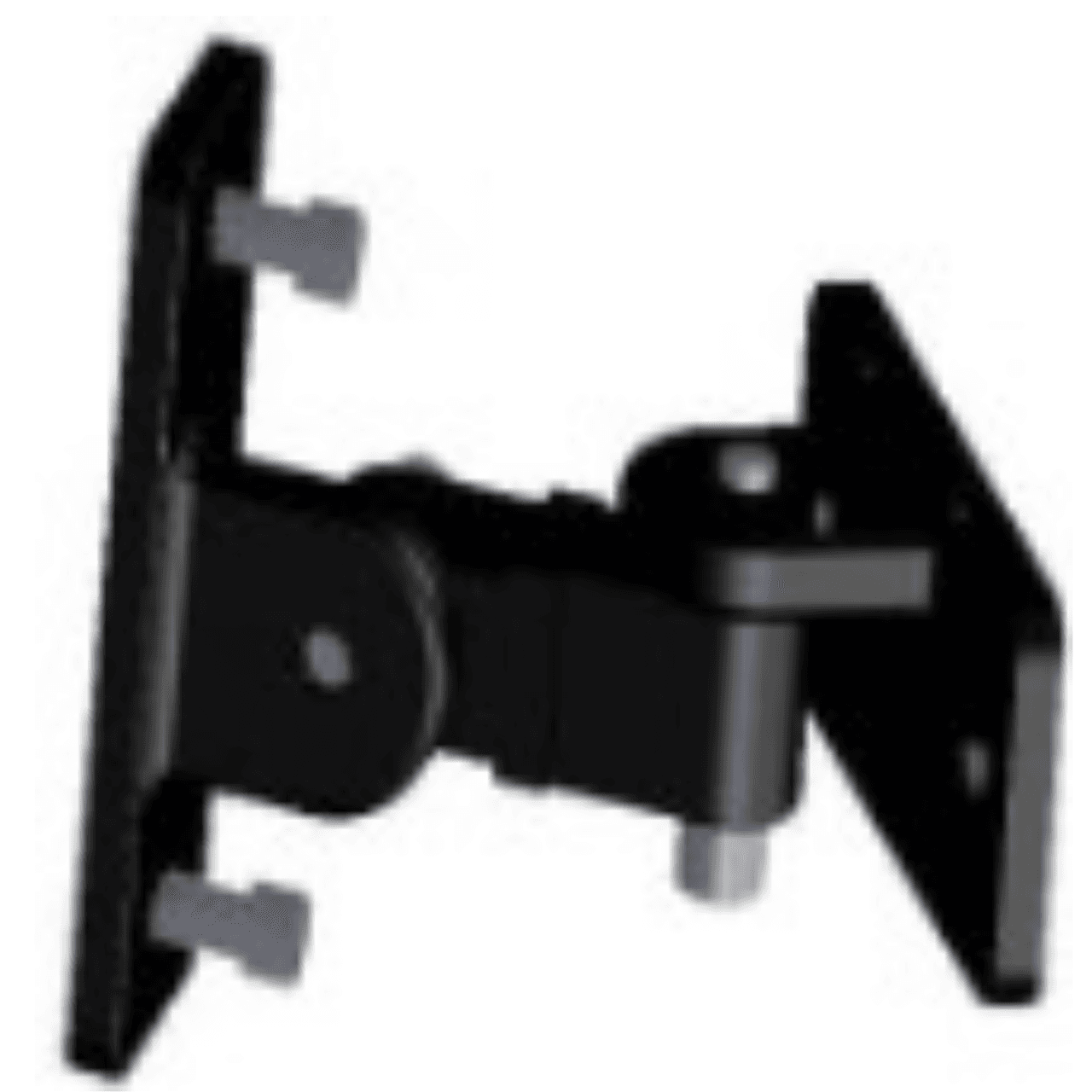

• Mounting Way: 360° rotatable bracket for horizontal and vertical installation angle adjustment
• Net Weight: 1.5kg
• Gross Weight: 1.9kg
