POWERWORKS PW-SET6WH – Pair

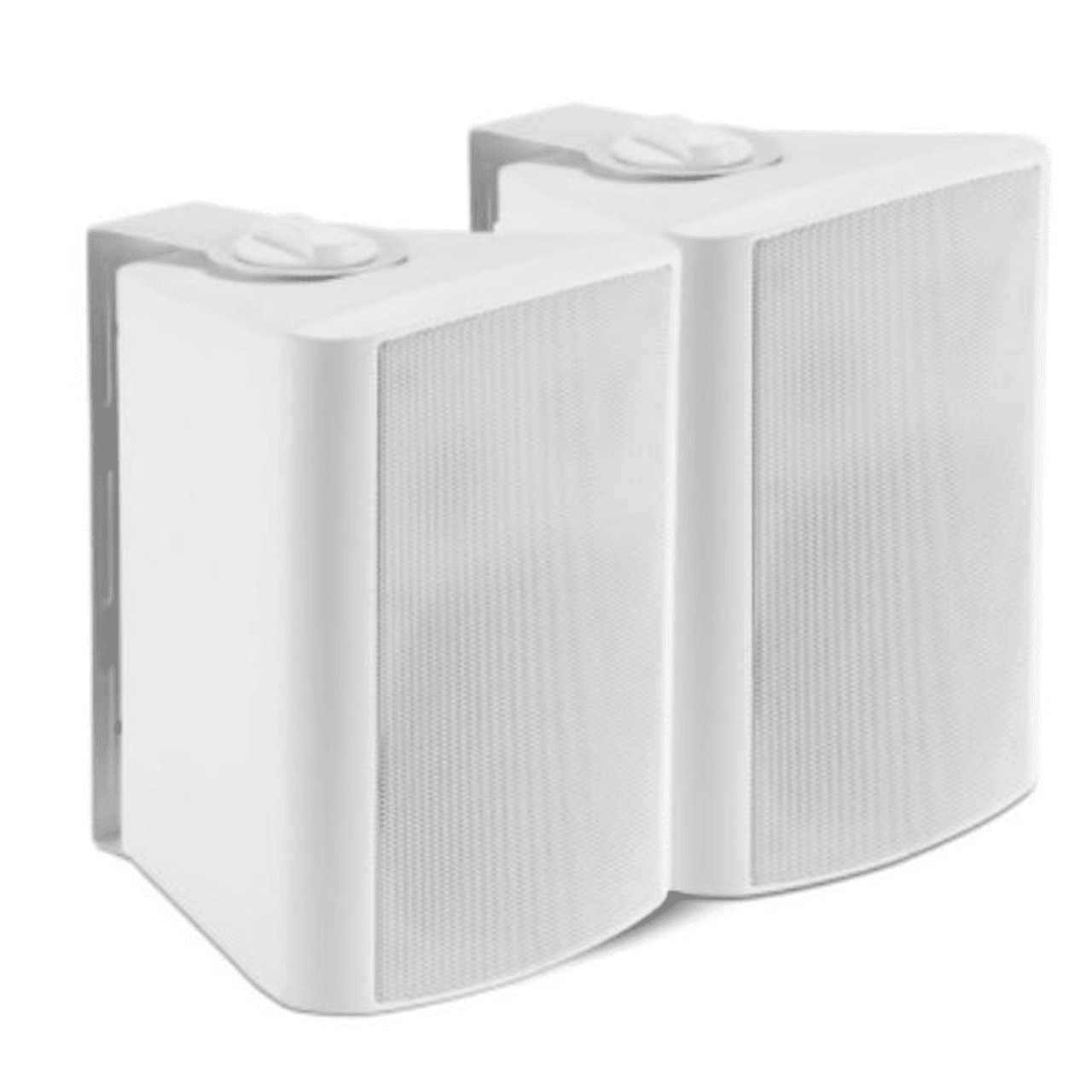

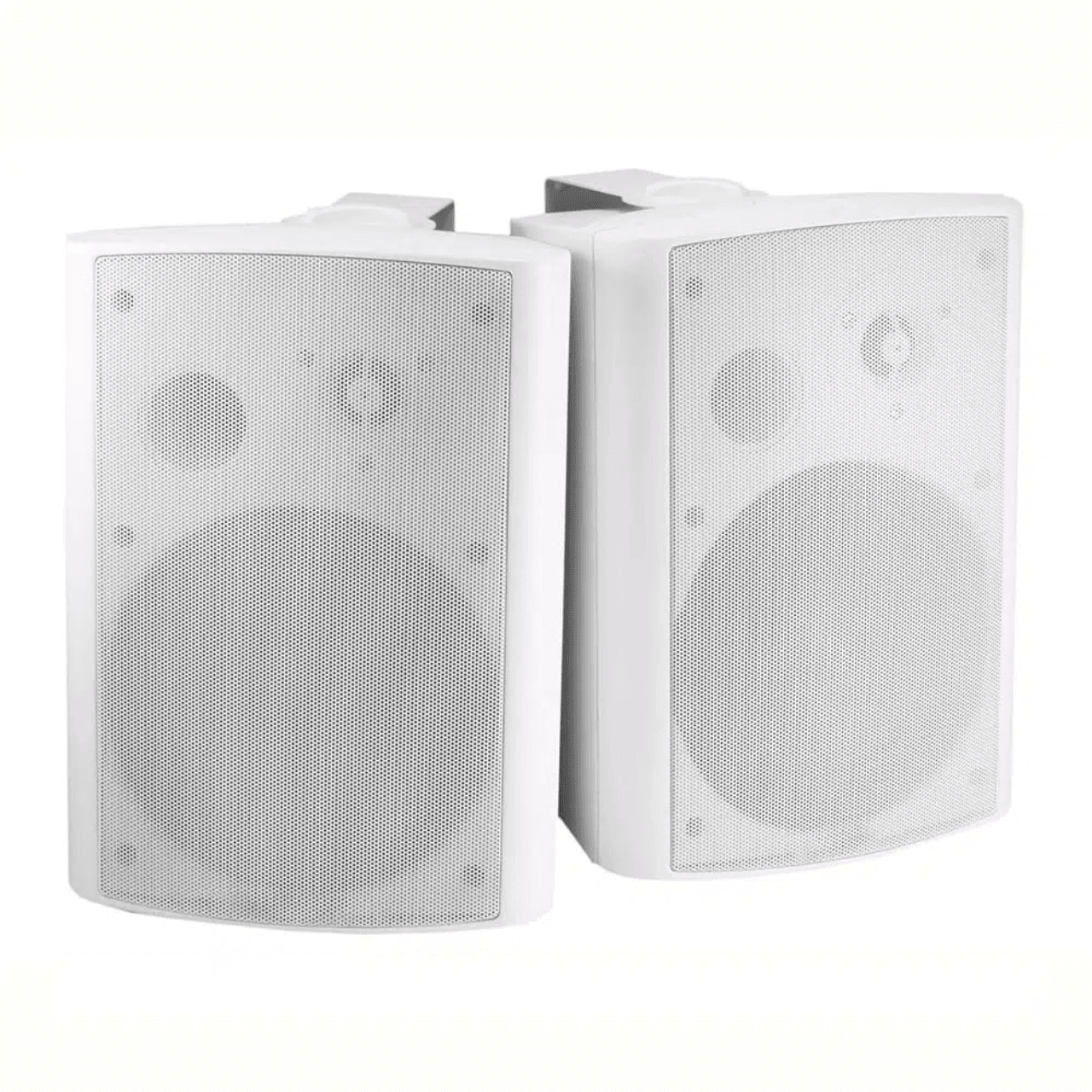

PowerWorks PW-SET6WH – 6″ Active Wall-mount Speaker (Pair)

The Active loudspeakers eliminate the need for a separate power amp providing easier installation options than when using traditional passive speakers. They also have the advantage of having an amp that is custom-tuned to the speakers they are driving.

This powered stereo loudspeaker is just such a speaker set. It consists of an active loudspeaker with a custom amp built-in for one channel and a passive slave loudspeaker for the other, to complete the stereo pair. It is an ideal choice for AV applications such as meeting rooms, multi-media usage, small presentations, and even as a powered speaker for your computer or portable music player. The active loudspeaker package comes with volume and tone controls and built-in stereo Class D 2x 20-watt amplifiers. They are also magnetically shielded to prevent interference with other devices.

Key Features

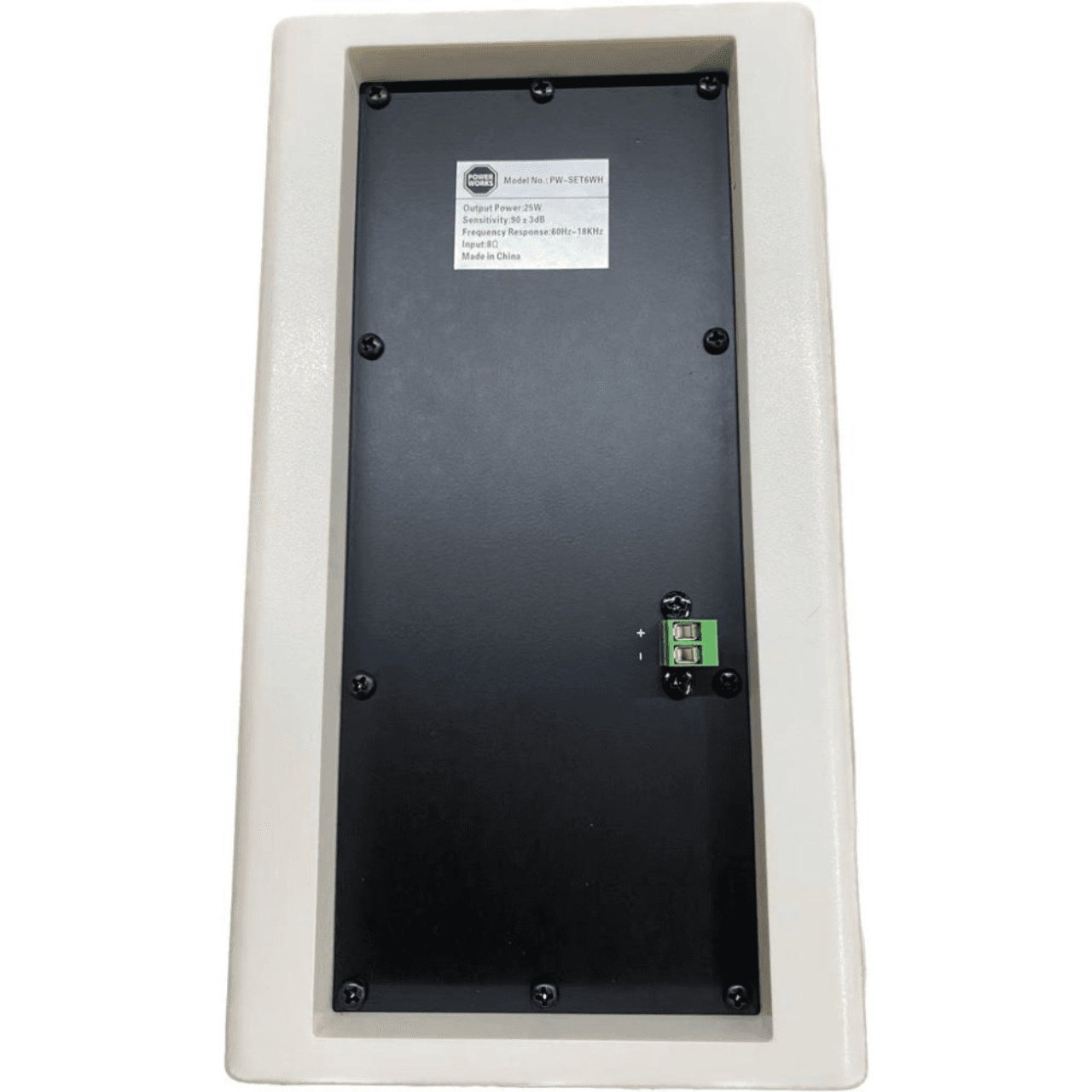

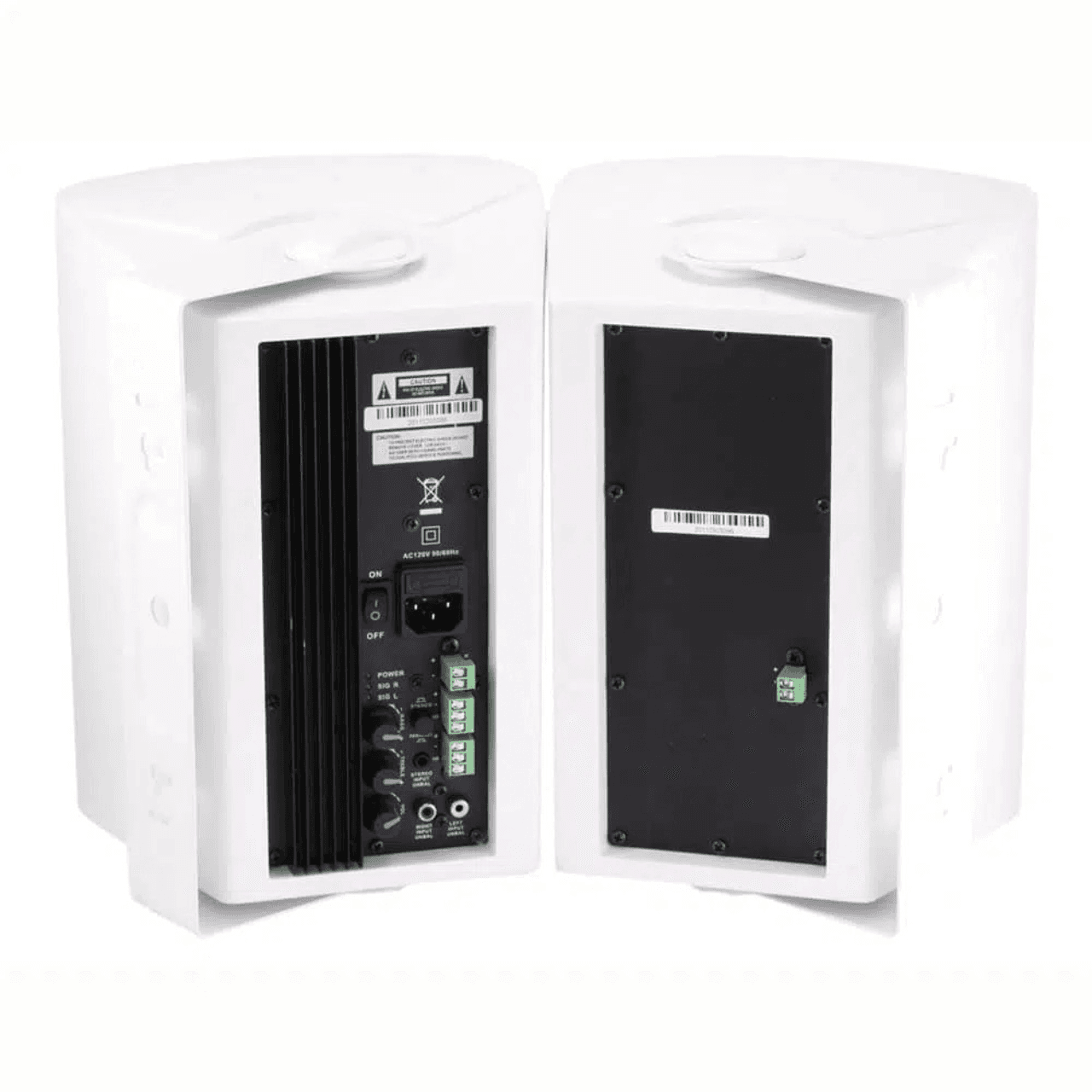

• The set consists of one active and one passive speaker system. Connection of the passive system to the active system via Phoenix terminal

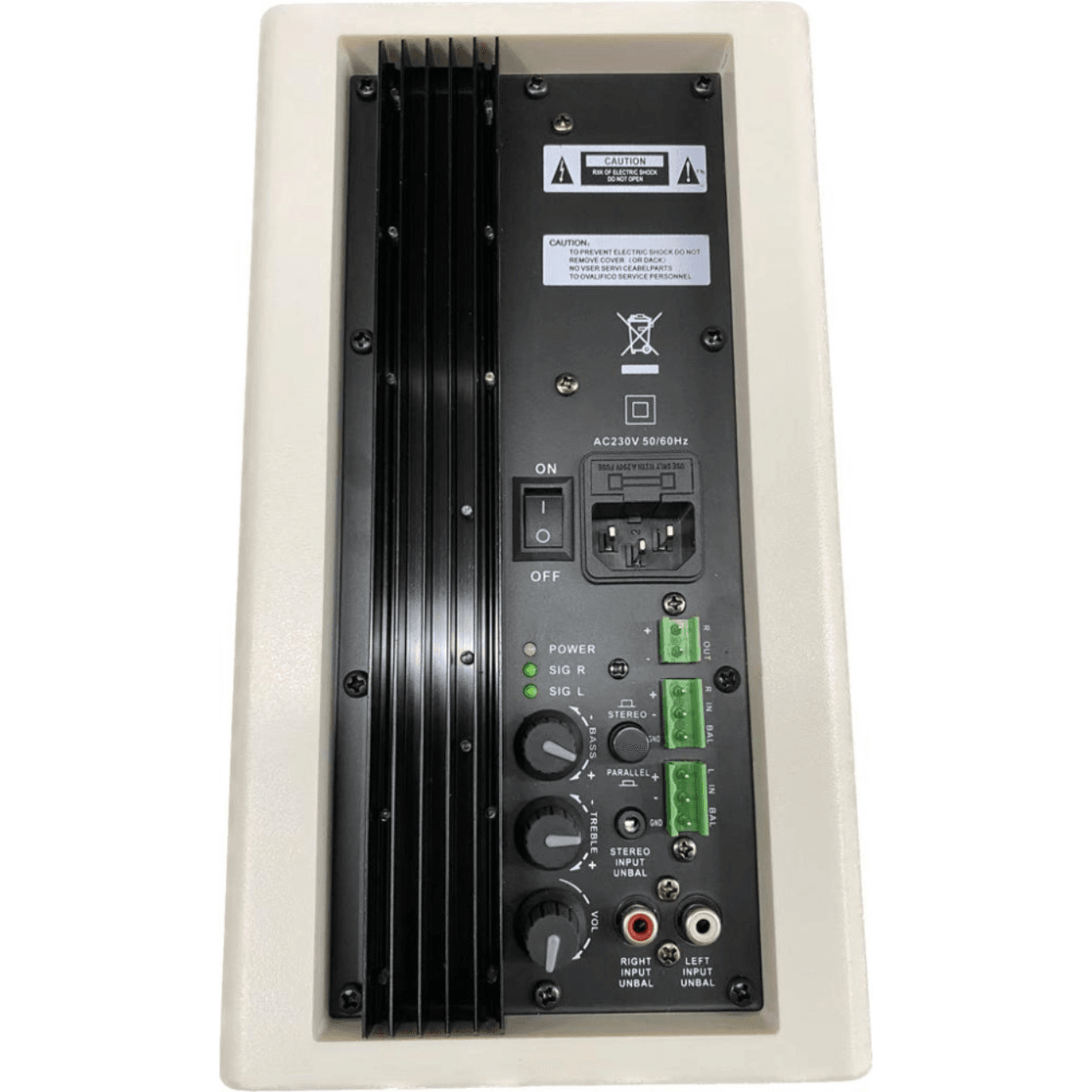

• Active speaker system with integrated 2-channel amplifier
• Stereo RCA input or balanced input L/R via Phoenix terminal strip
• Volume control and 2-way bass & treble tone controls
• Built-in power supply with 3-pin IEC jack
• 16 cm (6″) bass speaker system and dome tweeter
• Stylish white plastic cabinet
• Mounting bracket for pivoting and tilting
• Available in White or Black

General Specifications

• 6”+1″Active Wall-mounted Speaker; 25W/8Ω ;ABS body+Metal grill
• Rated Power: 25W/8Ω
• Input Sensitivity: 0.7V
• Frequency Response: 20Hz-20KHz/1W, ±0.5dB
• Total Harmonic Distortion: 20Hz-20KHz/1W, 0.05%
• Damping Coefficient: >200@8Ω/400Hz
• Conversion Rate: 30V/US
• Channel Separation Degree: >75dB
• Signal-to-Noise Ratio: >95dB
• Power Amplifier: AB class
• Indication: Power supply and channel signal
• Protection: High-temperature protection, overload protection, short circuit protection, distortion protection
• Treble Control: ±10dB
• Bass Control: ±10dB
• Input Connection: Balanced Phoenix end connection, dual RCA, stereo, 3.5 earphone Input
• Power Supply: 220V-240V/50Hz-60Hz
• Speaker Unit: 6″ x 1 1″ x 1
• Dimension: 295mm x 200mm x215mm
• N.W.: 10KG/pair
