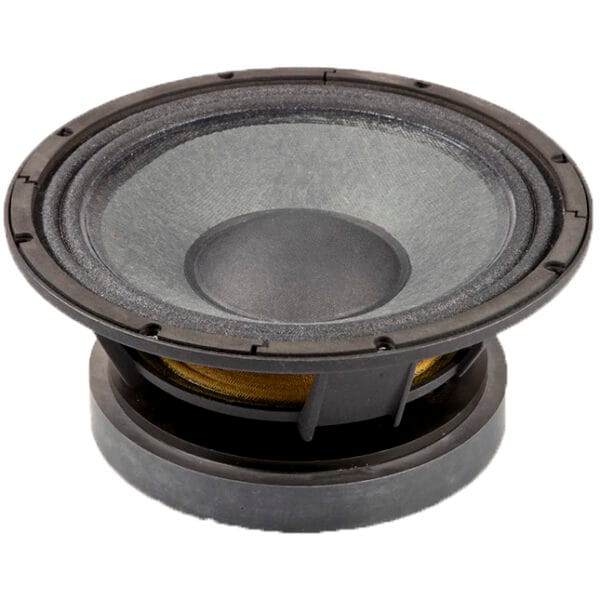

The 10FIND is a high efficiency, (97 dB 1watt / 1 meter) 10-inch woofer with linear frequency response characteristics, high power handling capability, while generating ultra low harmonic distortion artifacts. The 10FIND uses a lightweight glass fiber loaded cone assembly along with a high excursion triple roll surround. This combination provides a lightweight, yet strong, piston.

Magnetic Circuit

REDCATT engineers have developed a ferrite based magnetic circuit, capable of delivering the highest level of performance, providing a consistent, high integrity magnetic flux gap, ultra low distortion characteristic and high efficiency cooling system. The magnetic structure has integrated two aluminum shorting rings. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.

Specifications

Nominal Diameter

250 mm (10 in.)

Rated Impedance

8 ohm

Power Handling

AES Power

425 watts

PROGRAM Power

850 watts

PEAK Power

1,700 watts

Power Compression

@ -10dB

0.4 dB

@ 0dB

1.6 dB

@ Max. Power

2.2  dB

Max. Recommended X-OVER Freq.

2,500 Hz

Recommended Enclosure Volume

10 – 40 Liters

Cone Design / Cone Material

Exp. Gmtry, REDCATT Pulp

Voice Coil Diameter / Winding

2.5″

Voice coil Winding Height

13 mm

Front Plate Thickness

8 mm

T/S Parameters:

Fs

64 Hz

Re

6.04 Ohm

Sd

336 cm2 (53.6 in.2)

Qms

15.84

Qes

0.38

Qts

0.37

Vas

16 Liters

Mms

20.3 g

Bl product (Force Factor)

11.54 Tm

Peak To Peak Displacement

10 mm

Le (mH @ 1kHz)

0.41

Mechanical Parameters:

Overall Diameter

262 mm (10.3 in.)

No. Of Mounting Holes

8

Bolt Circle Diameter

246 mm (9.68 in.)

Front Mount Baffle cutout

231 mm (9.1 in.) Nominal

Rear Mount Baffle cutout

230 mm (9.05 in.) Nominal

Total Depth

117.5 mm (4.62 in.)

Flange and gasket thickness

7.75 mm (0.3 in.)

Packaging information”

Net Weight

4.55 kg (10 lbs.)

Shipping Weight

5.5 kg (12.1 lbs.)

Packaging Dimensions

275x275x125mm (11x11x6 in.)
