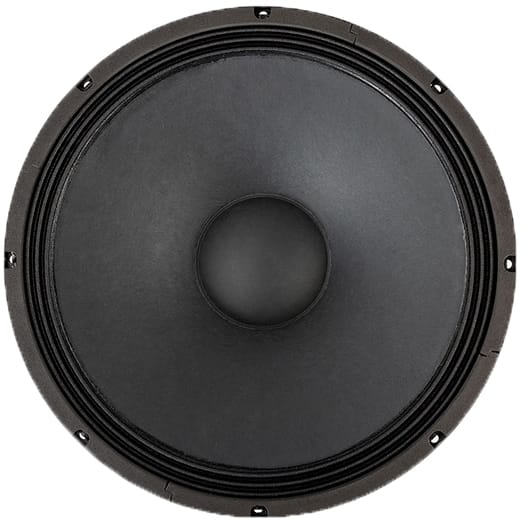

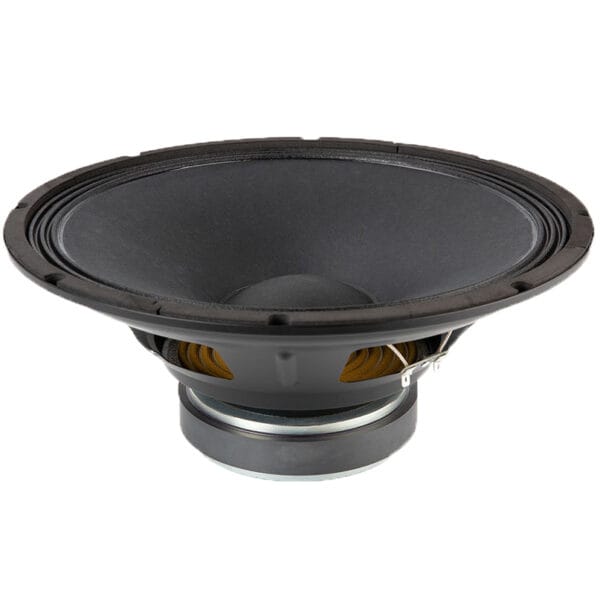

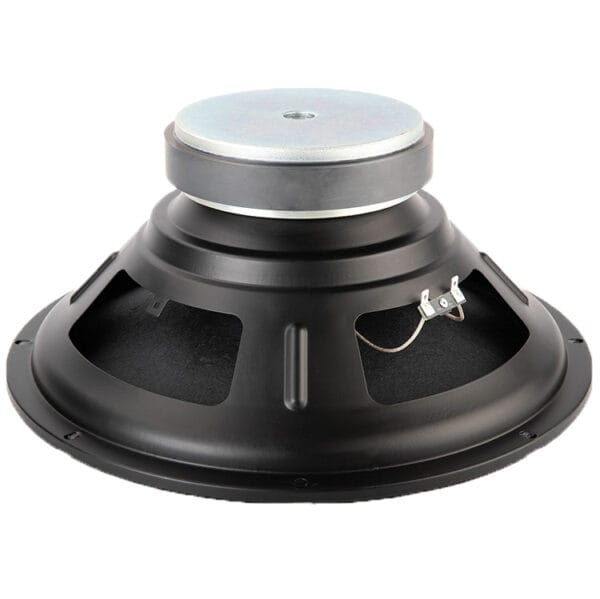

RedCatt 154FIND 8Ω
Check stock before ordering
R2,495.00
15inch 600RMS Woofer
Availability: In stock
Specifications:
Nominal Diameter
381 mm (15 in.)
Rated Impedance
8 ohm
Power Handling
AES Power
600 watts
PROGRAM Power
1,200 watts
PEAK Power
2,400 watts
Power Compression
@ -10dB
0.95 dB
@ 0dB
1.8 dB
@ Max. Power
2.8 dB
Max. Recommended X-OVER Freq.
3,500 Hz
Recommended Enclosure Volume
70 – 180 Liters
Cone Design / Cone Material
Exp. Gmtry, REDCATT Pulp
Voice Coil Diameter / Winding
2.5″
Voice coil Winding Height
17 mm
Front Plate Thickness
8 mm
T/S Parameters:
Fs
40 Hz
Re
5.5 Ohm
Sd
897.3 cm2
Qms
9.16
Qes
0.447
Qts
0.43
Vas
181 Liters
Mms
96 g
Bl product (Force Factor)
17.5 Tm
Peak To Peak Displacement
18 mm
Le (mH @ 1kHz)
0.68
Mechanical Parameters:
Overall Diameter
387 mm
No. Of Mounting Holes
8
Bolt Circle Diameter
374 mm
Front Mount Baffle cutout
355 mm Nominal
Rear Mount Baffle cutout
368 mm Nominal
Total Depth
163 mm
Flange and gasket thickness
8 mm
Packaging info:
Net Weight
8.5 kg
Shipping Weight
9.5 kg
Packaging Dimensions
41x41x21.5cm (16.2×16.2.5×8.5 in.)
