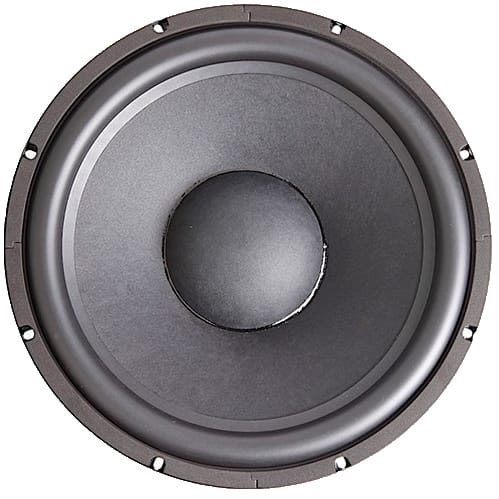

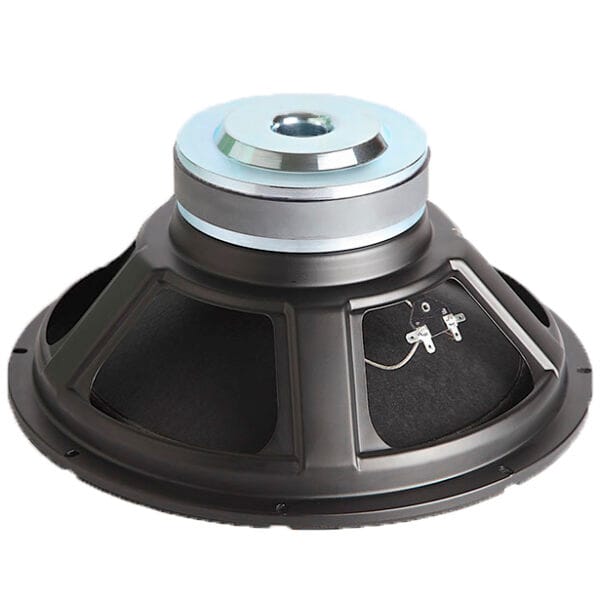

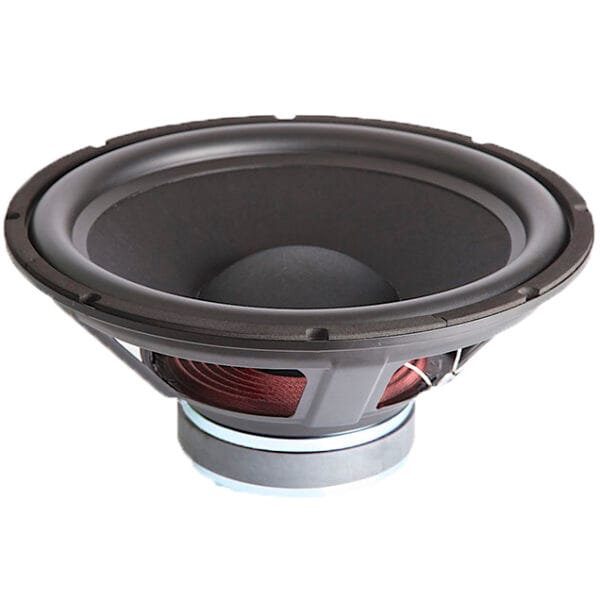

RedCatt 15FHW 8Ω
Check stock before ordering
R2,785.00
15inch 350RMS Woofer
Availability: In stock
Specifications:
Nominal Diameter
381 mm (15 in.)
Rated Impedance
8 ohm
Power Handling
AES Power
350 watts
PROGRAM Power
700 watts
PEAK Power
1,400 watts
Power Compression
@ -10dB
0.7 dB
@ 0dB
1.9 dB
@ Max. Power
2.4 dB
Max. Recommended X-OVER Freq.
1,400 Hz
Recommended Enclosure Volume
25 – 50 Liters
Cone Design / Cone Material
Strght. Gmtry, REDCATT Pulp
Voice Coil Diameter / Winding
2.97″
Voice coil Winding Height
19.6 mm
Front Plate Thickness
10 mm
T/S Parameters:
Fs
19 Hz
Re
5.9 Ohm
Sd
804 cm2 (124.6 in.2)
Qms
10
Qes
0.56
Qts
0.53
Vas
315 Liters
Mms
172 g
Bl product (Force Factor)
15.6 Tm
Peak To Peak Displacement
23 mm
Le (mH @ 1kHz)
0.852
Mechanical Parameters:
Overall Diameter
385 mm (15.12 in.)
No. Of Mounting Holes
8
Bolt Circle Diameter
371 mm (14.6 in.)
Front Mount Baffle cutout
247 mm (13.66 in.) Nominal
Rear Mount Baffle cutout
247 mm (13.66 in.) Nominal
Total Depth
184.2 mm (7.25 in.)
Flange and gasket thickness
10mm (0.39 in.)
Packaging info:
Net Weight
7.7 kg (17 lbs.)
Shipping Weight
8.9 kg (19.6 lbs.)
Packaging Dimensions
41x41x21.5cm
