Studiomaster have redefined the definition of ‘Compact Form Factor’ with the DigiLive Series of mixers.

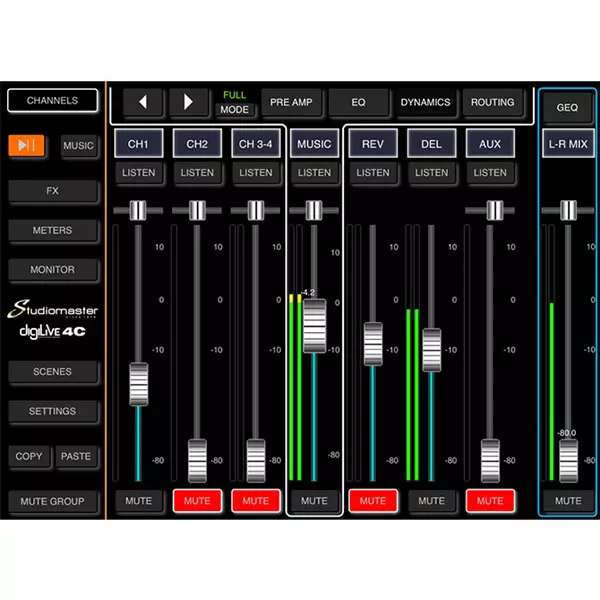

The unique interface allows control of your mix either via an app for phone or tablet or the failsafe feature of control using the on board controls should the WiFi fail.

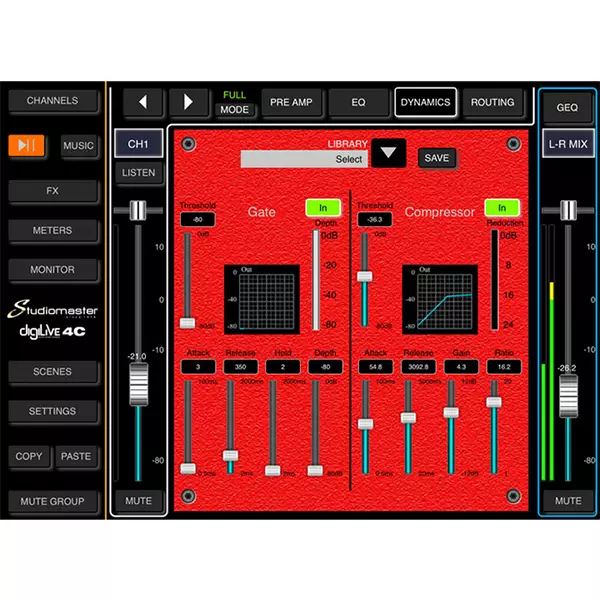

The surprisingly comprehensive DSP section takes care of the behind the scenes processing including Parametric EQ, Graphic EQ, Compressor/Gate, Digital Effects for Reverb and Delay plus many more useful features to take the effort from the mixing and leave the artist to concentrate, without distraction, on their performance.

The MP3 section offers playback and record at he same time which allows the user to overdub creating harmonies or their own performance tracks.

FEATURES:

• 4 input, 2 Mic, 1 Stereo
• Connect with any device with Wi-Fi or LAN
• PHONE – TABLET – LAPTOP – multi platform
• 2 effect busses
• Assignable footswitch input
• Complete control from the front panel
• analogue feel to operate
• Balanced input and output sockets
• Ultra compact
• Professional features throughout

SPECIFICATIONS:

• Power Supply: 90-240V ~ 50Hz Power Supply 12VDC Output
• Weight: 6 KG
• Input: 4 Analogue Inputs
• Mic Input: 2 MIC/LINE COMBO XLR/JACK
• Line Input: 1 STEREO Jacks/3.5mm Mini Jack
• Phantom Power: Switchable Per Channel
• Bit depth: 48KHz, 24 Bit
• Main Mix Output Connector: 2 Left/Right Balanced XLR
• Built in Audio: USB Interface: 2 For Playback/Recording – Scene Storage & System Updates
