The TVA video switcher is designed for live streaming and supports 4 HDMI inputs with a resolution of up to 4K@30Hz, as well as the HDCP 1.4 standard. It supports both HD embedded audio and external analog audio, which, after mixing, can be either embedded into the output HD signal or output through the analog port. The switcher automatically adapts to the resolution of the input signal, with an output resolution of 1920×1080@60Hz. It meets the needs of radio and television program production, live interview and speech broadcasts, outdoor events, school courseware production, and other video switching applications. This switcher is ideal for use in live streaming and various event venues.

FEATURES:

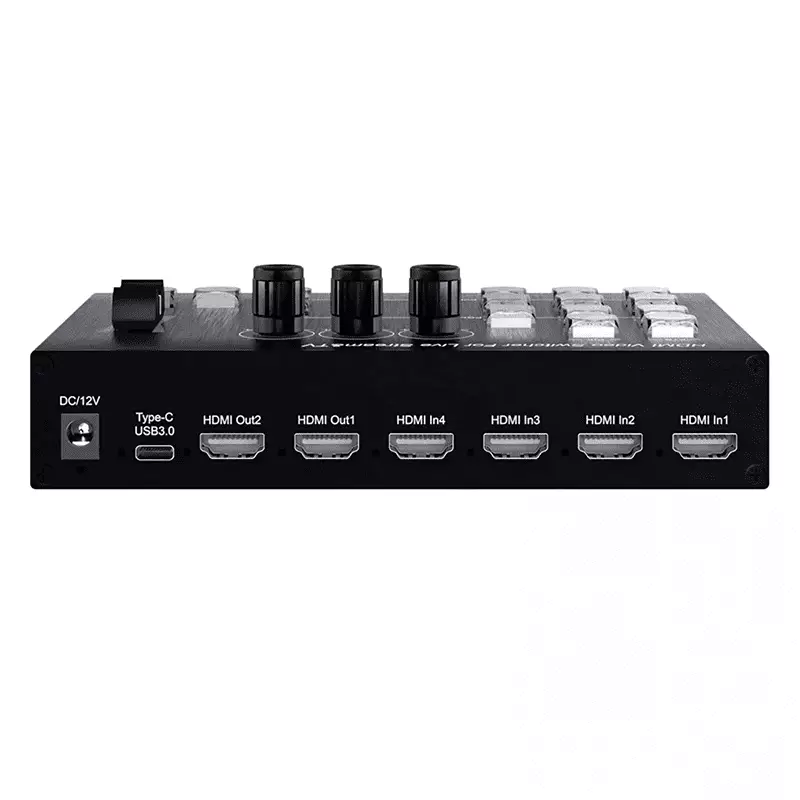

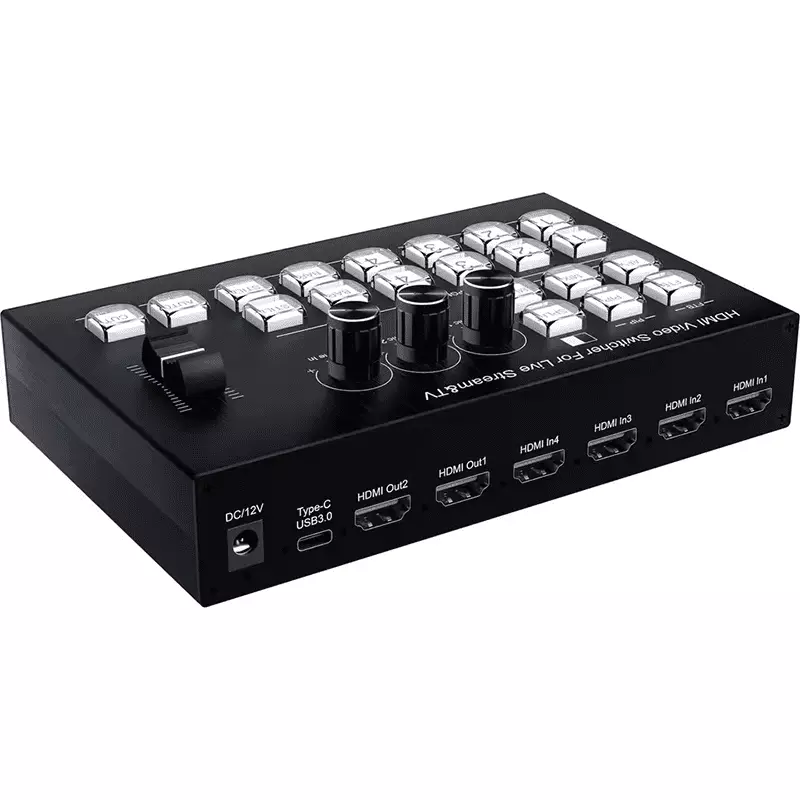

• 4 HDMI input; 2 HDMI output
• Type-C 3.0 capture and push network traffic port, supports video format YUY2

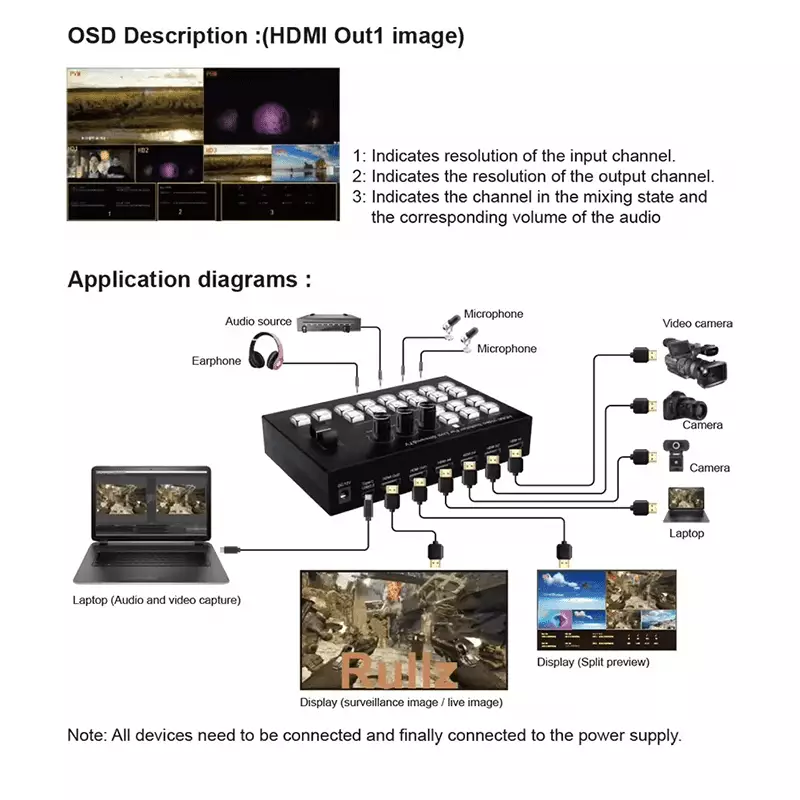

• Support OSD display input channel signal, resolution information, volume information
• Support MIC,LINE IN,mixing output (LINE OUT fixed mixing output)
• Support HD audio following (fixed following PGM)

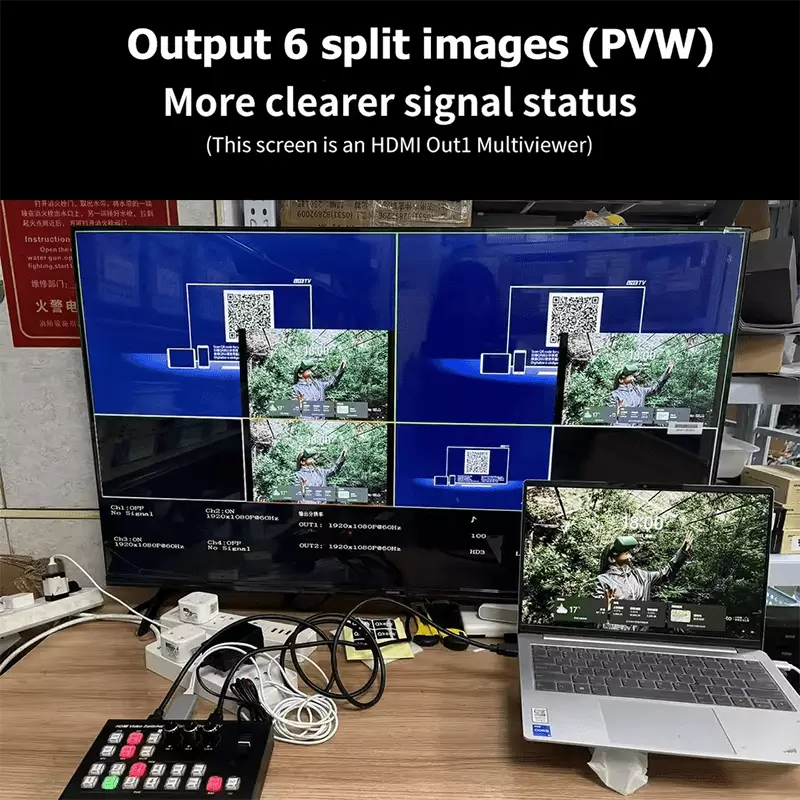

• Support left and right two segmentation (PGM on the left, PVW on the right)
• Support LINE OUT and HD audio output
• Support power-off save Settings

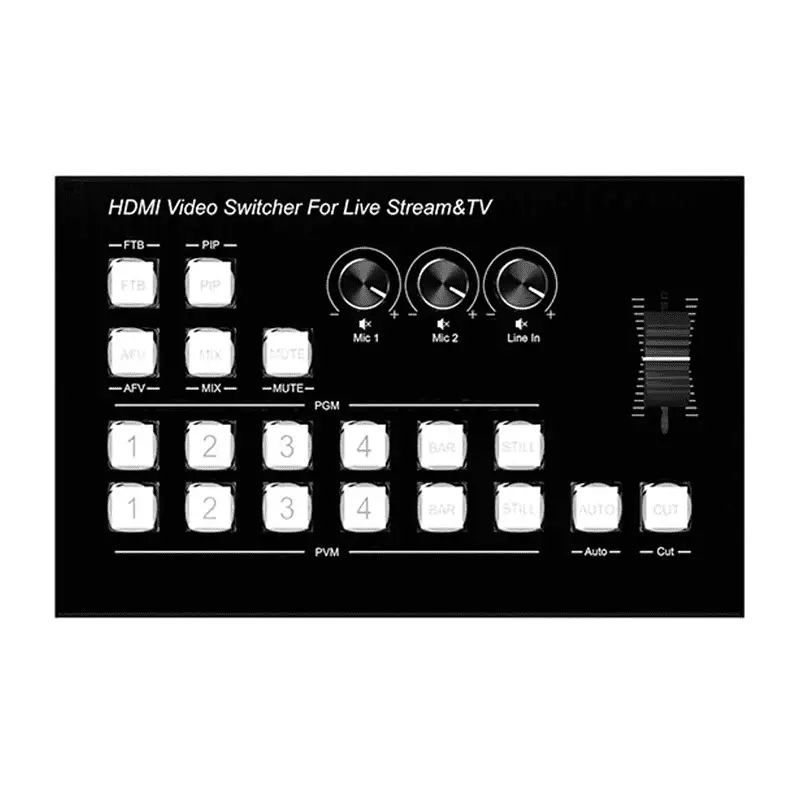

• High quality keys, color backlight design

SPECIFICATIONS:

• HDMI input resolution: up to 4K@30Hz

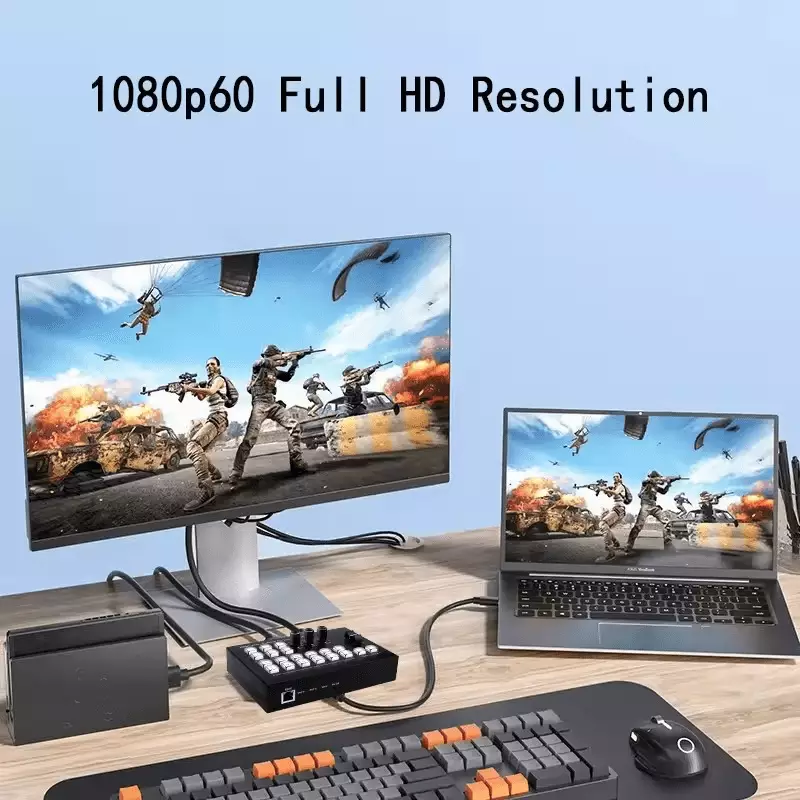

• HDMI output resolution: 1080P@60Hz
• Type-C 3.0 capture and push network traffic video format: YUY2,JPEG
• Supports audio format: PCM
• The maximum bandwidth transmission: 148.5MHz
• Maximum transmission rate: 1.65 x3Gbps
• The input cable length: 1080P/60Hz≤15 m AWG26 HDMI standard cable
• The output cable length: 1080P/60Hz≤15 m AWG26 HDMI standard cable
• Maximum working current: 0.7 A
• Power adapter specifications ………. Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
• Working temperature range: (-15℃ to +55℃)

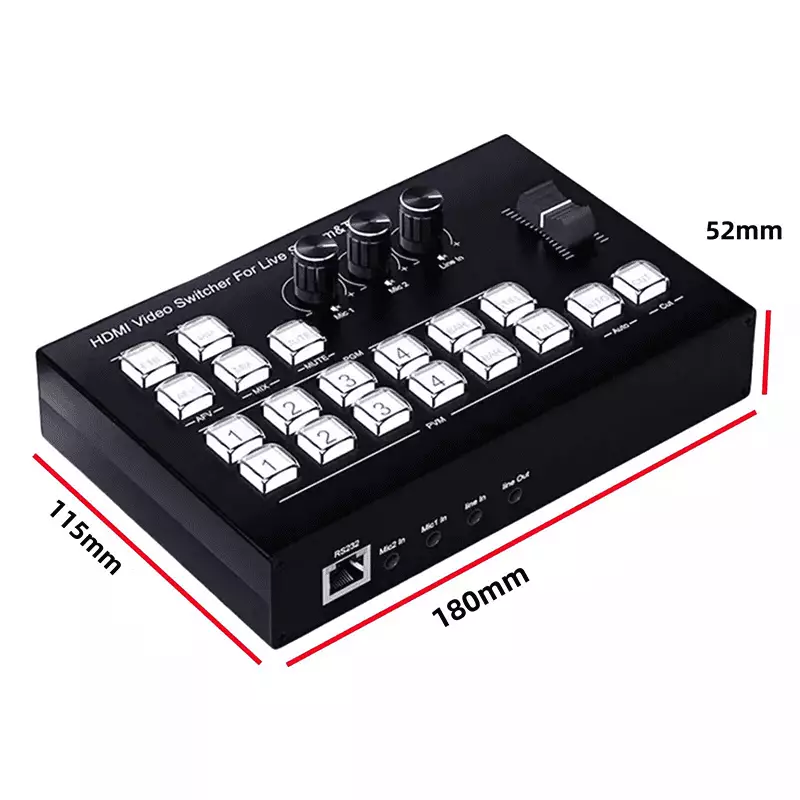

• Size: Approx. 180x115x52(mm)
