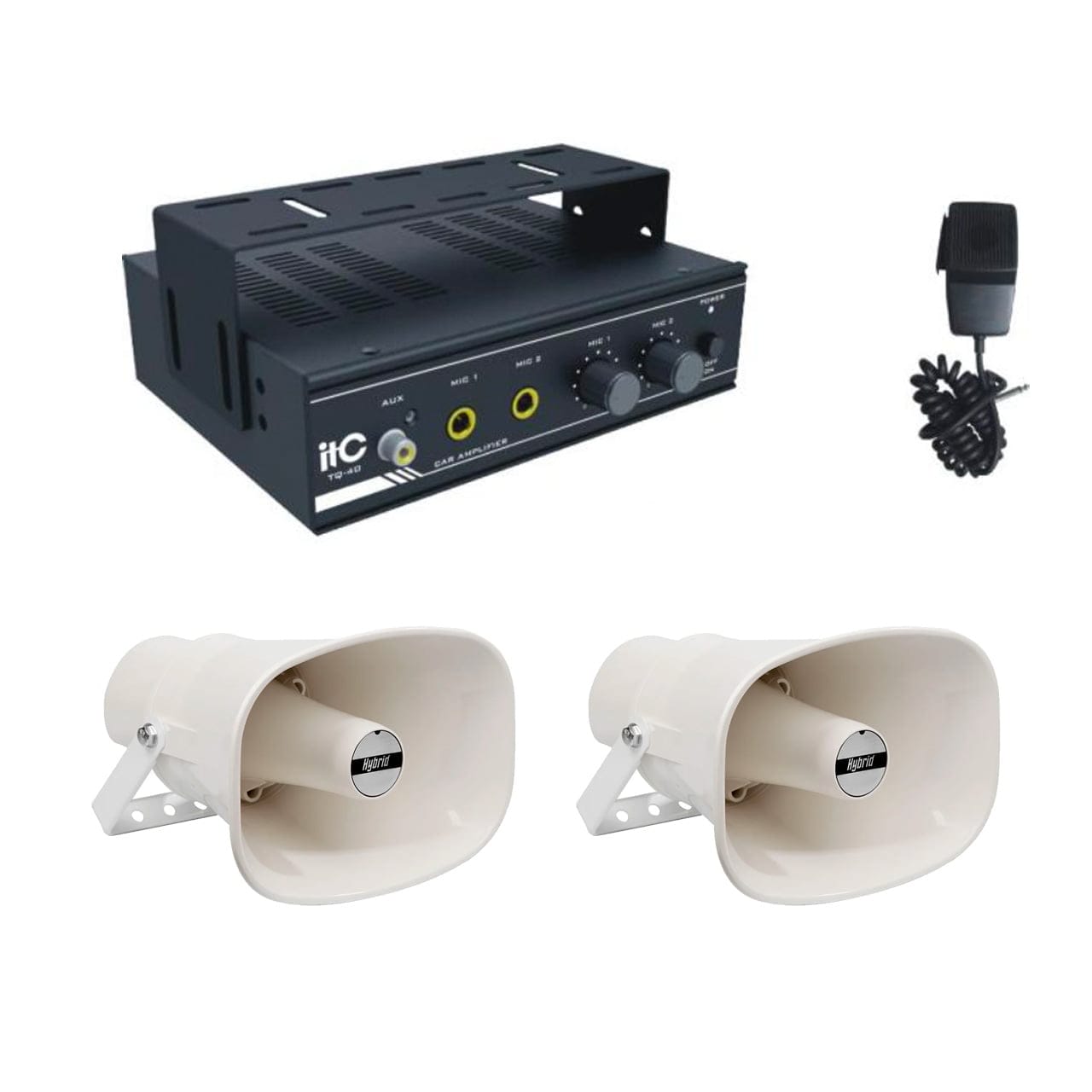

TQ-40

Mini Car Amplifier, 2x 20W @ 4Ω.

Key Features

•  MIC1, MIC2 the volume can be adjusted independently
• Power of 12-16v DC battery power directly, is equipped with power indicator
• Internal power output is 4Ω, 2 × 20W
• Overload, the overheat protection function automatically detects

General Specifications

• Control:  The power switch and volume control
• Instruction:  The power supply
• Protection:  Overload, overheating
• Power Source: ~ 110V / 60Hz or ~ 230V / 50Hz
• Power Source:  12-16v DC
• Dimensions:  178mm X 144mm X 50mm
• Weight:  1.50kg

Hybrid H15:

Horn Speaker – 15W/100V

The Hybrid H15 is a waterproof (IP65 rated), outdoor horn speaker suitable for speech announcements where long distance coverage is required.
When used as a 100V line horn, multiple H15 horns can be connected easily in parallel without the worry of impedance matching or losses over long cable lengths. With the inclusion of the rotatable selector switch, different power tappings can be chosen to suit the area the H15 needs to cover. The H15 can also be used in the standard 8 Ohm configuration.

The H15 has a rectangular horn flare with a round back cover, both of which are manufactured from weatherproof, hard-wearing ABS material. The securing wall bracket is metal and U-shaped with a powder coated finish. The H15 includes two wall anchor screws, a masonry drill bit and tightening spanner.

Power RMS: 15W
100V Power Tapping: 15/7.5/3.8/1.9 W
8 Ohm operation : Yes
Sensitivity(1W 1m): 105dB
Frequency response: 400-8KHZ
Wall Mount Bracket: Included, metal U-shape
Installation Kit: Includes drill bit, wall anchors and spanner
Horn Dimension: Rectangular, 220mm (Width) / 162mm (Height)
Dimension (WxHxD): 220 x 162 x 230mm
Unit Weight: 1.4Kg
Color: White
