Wharfedale Pro DP-4035i
In stock at supplier
LOW STOCK
R16,495.00
Wharfedale Pro DP 4035i 1U Amplifier, 4x 765W @ 2 Ohm/100v
Availability: In stock
The DP-4035i

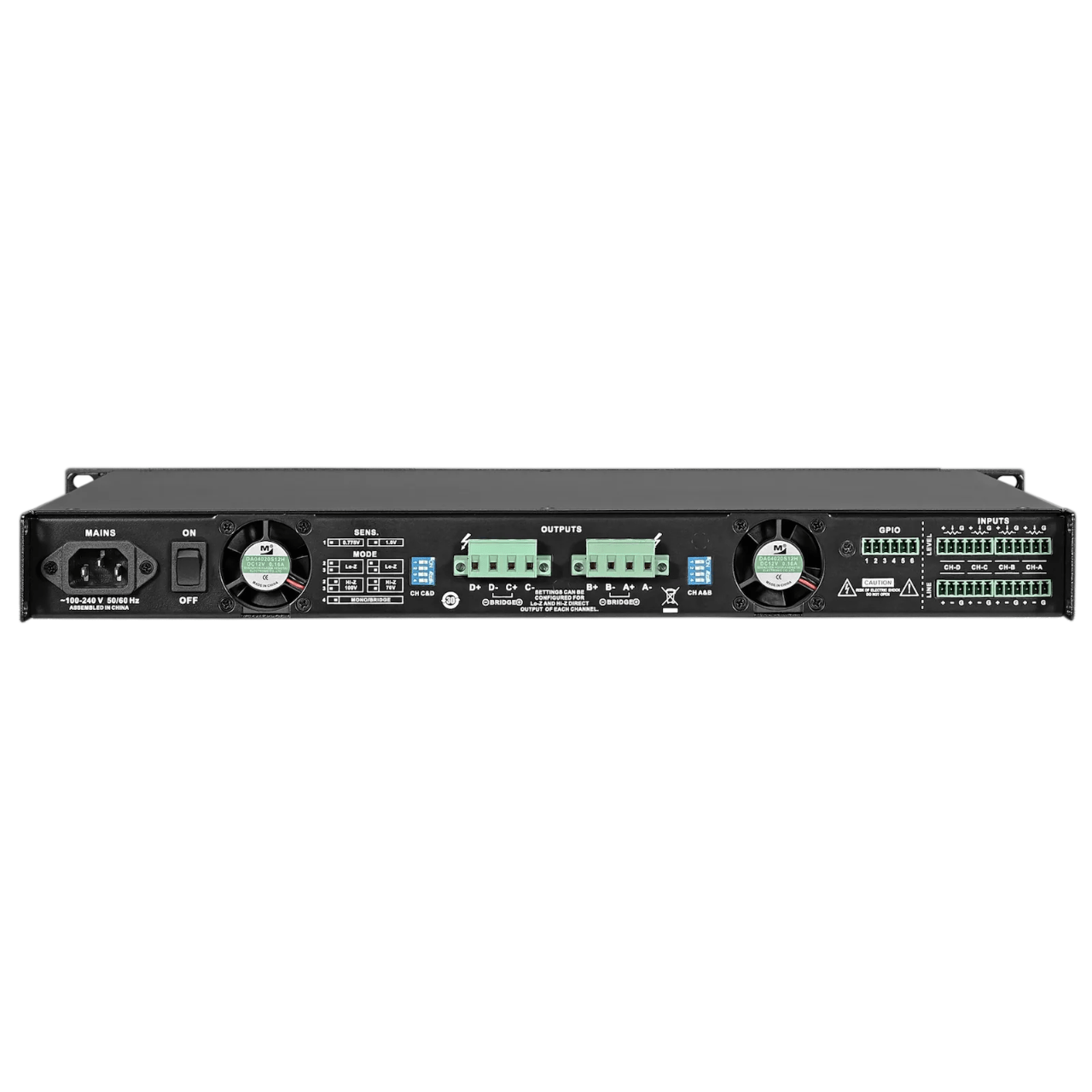

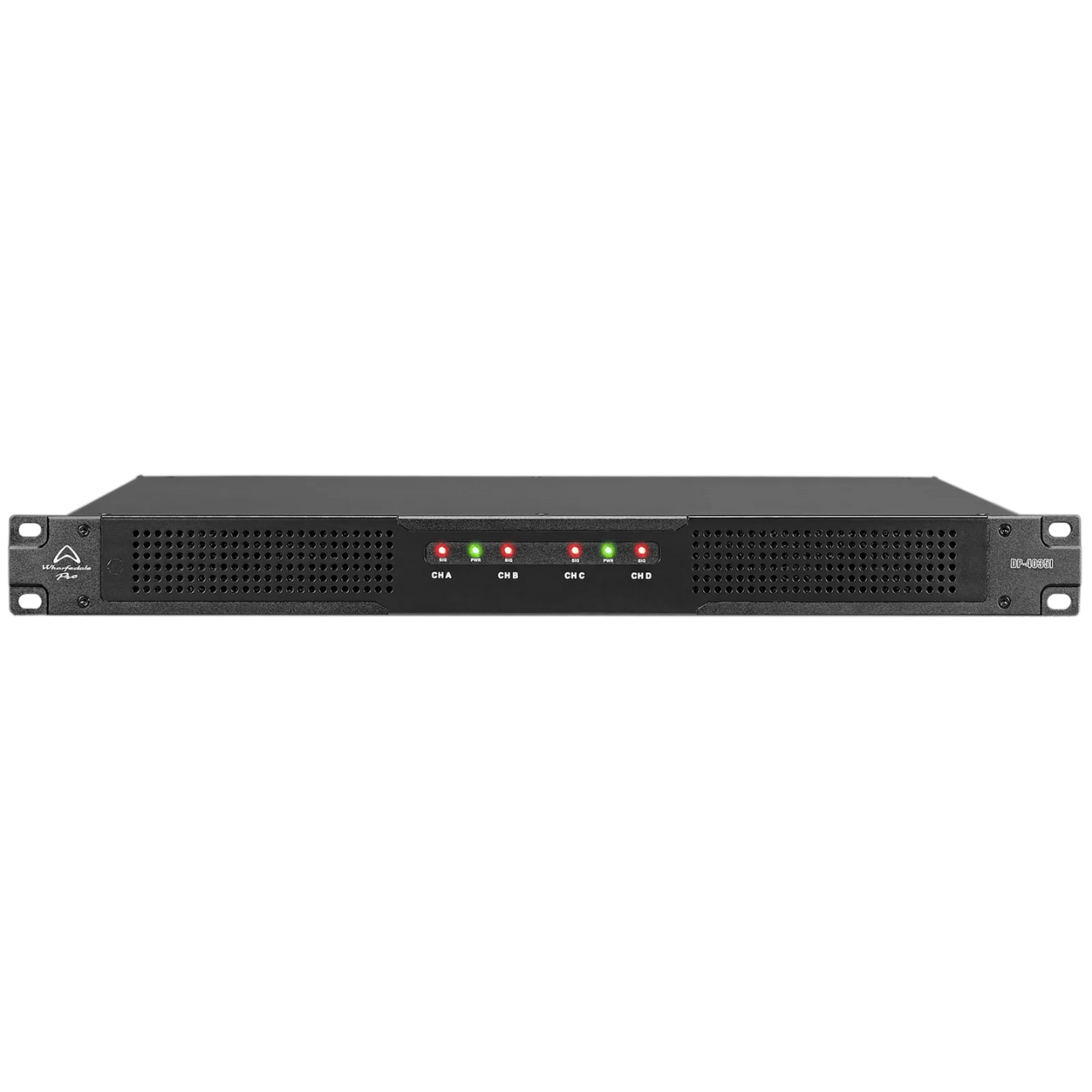

The new DP-4035i brings all the DNA of the DP series into a configuration which is perfect for fixed installation.  A versatile amplifier solution delivering 4 channels of power to either high or low impedance systems.  The hardware is designed with installation in mind. A tamper-proof front grille protects the channel volume controls, while Euroblocks are used for easy installation on rear panel connections, including GPIO. The power switch is also safely placed on the rear panel. As with the other models in the DP series, the input sensitivity is selectable between 1V and 0.775 V to cater for almost any input source. It is also able to deliver up to 4 x 765 W into 2 Ohms or 4 x 765 W to a 100 V Hi-Z system.

DP-4035i also has a wide range AC input, allowing it to be used, reliably in environments where the AC supply may fluctuate.
Key Features
- Made for installation
- GPIO connections
- 4-channel operation
- 2 Ohm stability
- 100 V / 70 V operation
- Low impedance operation
- Switchable input sensitivity
- Wide range AC input
- PFC for increased efficiency
General Specifications
| Model | DP-4035i | |
|---|---|---|
| Rated Power (W – THD = 1%, Each channel works simultaneously with continuous sinusoidal @ 1 KHz) | 8 Ω / Stereo | 4 x 450 |
| 4 Ω / Stereo | 4 x 765 | |
| 2 Ω / Stereo | 4 x 765 | |
| 16 Ω / Bridge | 2 x 900 | |
| 8 Ω / Bridge | 2 x 1530 | |
| 4 Ω / Bridge | 2 x 1530 | |
| 100 V Hi-Z | 4 x 765 | |
| 70 V Hi-Z | 4 x 450 | |
| Rear panel | ||
| Input Connectors | Phoenix MC 1,5/12-ST-3,81 | |
| Remote Level control (10 Kohm) connectors | Phoenix MC 1,5/12-ST-3,81 | |
| Output Connectors | Phoenix PC 5/8-STF1-7,62 | |
| GPIO – Remote ON/OFF – Link connectors | Phoenix MC 1,5/6-ST-3,81 | |
| Mode Switch | LO-Z, HI-Z 100 V, HI-Z 70 V, MONO-BRIDGE | |
| Input Sensitivity Switch | 1 V (35 dB), 0.775 V (38 dB) | |
| Front Panel | ||
| Signal LED | Green / -32 dBu – Yellow / Limit – Red / Protection | |
| Power LED | Green / ON – Yellow / High Temperature | |
| Level Control | ||
| THD+N | Typical: 0.05%. (10% Rated Power, 8 Ω) | |
| Cross-Talk | ≥90 dB (20 Hz-1 KHz, Below Rated Power) | |
| Frequency Response Lo-Z, 8 Ω | Typical:±0.5 dB (10% Rated Power, 20 Hz-20 KHz) | |
| Hi-Z | Typical:±0.5 dB(10% Rated Power,40 Hz-16 KHz) | |
| Input Impedance | 20 kΩ (Balanced)，10 kΩ (Unbalanced) | |
| Damp Factor | Typical:300 (20 Hz-200 Hz, Lo-Z, 8 Ω) | |
| SNR | ≥100 dB (A weighted, 20 Hz-20 KHz, 8 Ω) | |
| Main Power | 100~240 V AC ±10%，50/60 Hz | |
| Protection | Under voltage, DC, Over temperature, Limiter, Overload, Short. | |
| Net Size | 483 x 45 x 370 mm (W×H×D) | |
| Net Weight | 8.4 kg |
