Wharfedale Pro Typhon-AX15-BT

General Specifications

• Model Name: Typhon-AX15-BT
• System Type:  Active 15″ 2-way
• Frequency Response (+/-3 dB):  45 Hz-20 KHz
• Frequency Range (-10 dB):  40 Hz-20 KHz
• Maximum SPL (peak @1 m):  130 dB
• Sensitivity (@ 1 W / 1 m):  99 dB
• Low Frequency Transducer
  • Size (mm / inches):  381mm / 15″
  • Voice-Coil Size (mm / inches):  75mm / 3.0″
  • Rated Impedance:  4Ω
• High Frequency Transducer
  • HF Driver Type:  Compression Driver
  • Coil Size (mm / inches):  44mm / 1.75″
  • Exit Size (mm / inches):  25mm / 1″
  • Diaphragm Material:  Titanium
  • Rated Impedance:  8Ω
  • Nominal Coverage (H x V):  Hybrid Symmetry Horn 100° x 80°
  • Amplifiers:  2 X Class D
  • Power Ratings:  1540 W Peak (1300 W LF + 240 W HF), 770 W Continuous (650 W LF + 120 W HF)
• DSP Controls – D-EQ:  FLAT / MONITOR / BASS / PUNCH
• Amplifier Protection
  • Power On Protection:  Yes
  • Thermal Protection:  Yes
  • Low Line Voltage Shut Down:  Yes
  • Driver Protection:  Yes
  • DC Protection:  Yes
  • Short Protection:  Yes
  • Clip Limiter:  Yes
  • Limiter Indicator:  Yes
  • Power Indicator:  Yes
• Inputs
  • Input A – type:  Balanced/Bluetooth (aptX with link Stereo)
  • Input Sensitivity:  775 mV(0 dBu)
  • Maximum Input Level:  4V
  • Input Connector:  2 x XLR, 2 x 6.3 mm jack (Line/MIC)
  • Input Impedance:  20 K ohms
• Line Outputs
  • Line Output Connector:  XLR
  • Loop Gain:  0 dB
• AC Power Details
  • Power Supply:  220~240 V AC/100~120 V AC 50/60 Hz

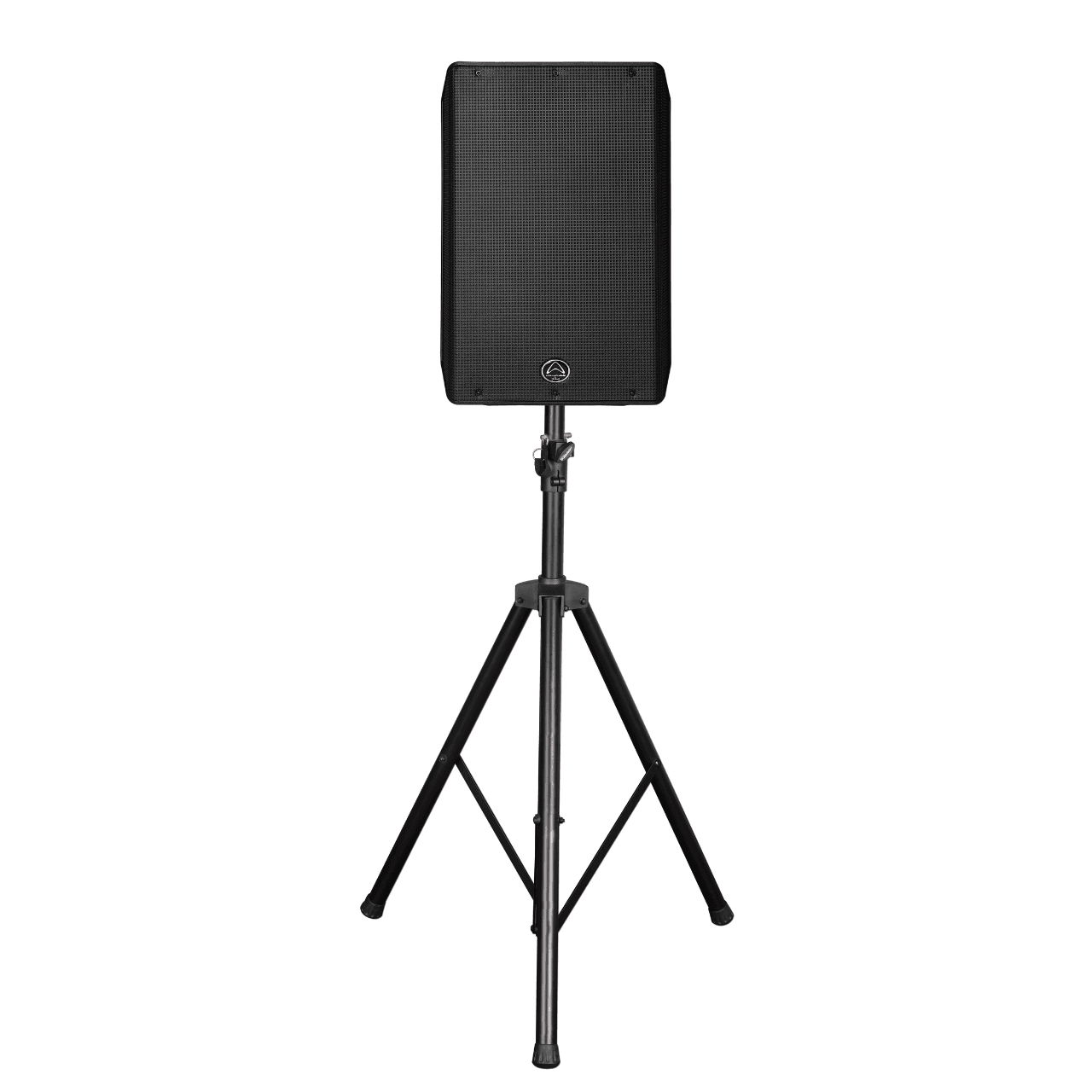

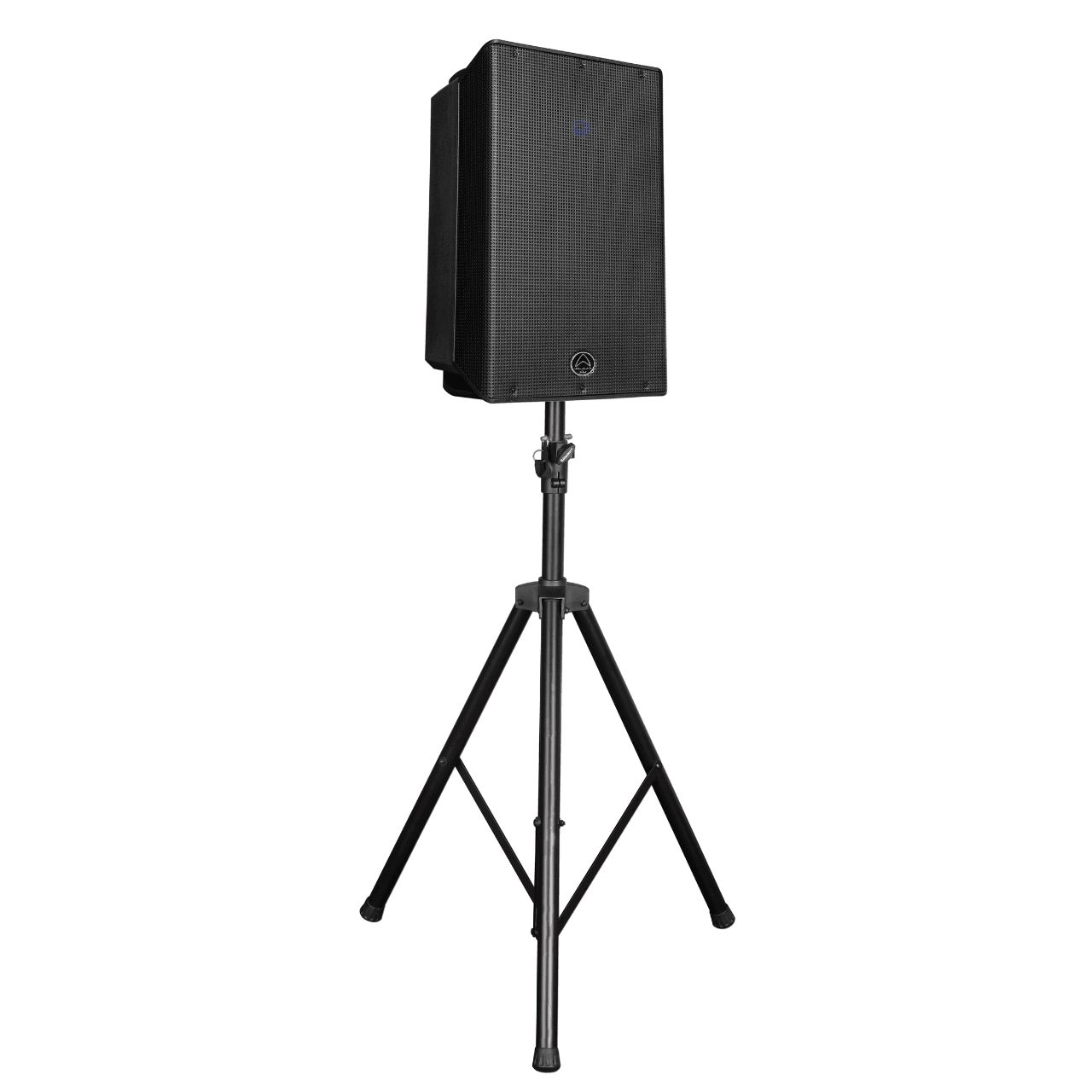

  • Rigging / Bracket / Mounting Options:  9 x M8 threaded inserts, Pole-mount receptacle with lock screw, Optional WPB-2 wall-mount bracket
• Handles:  2 carry handles (on top and bottom side)
• Enclosure
  • Enclosure Material and Finish:  Injection Moulded Polypropylene
  • Color Options:  Black paint
  • Grille Material & Finish:  Steel
• Dimensions (WXDXH)
  • Unpacked:  (WFront)  480mm (WRear) 186.2mm X 400mm X 697.7mm / (WFront) 18.9″ (WRear) 7.3″ X 15.7″ X 27.5″
  • Packed:  (WFront) 550mm (WRear) 550mm X 475mm X 788mm / (WFront) 21.9″ (WRear)  21.9″ X 18.7″ X 31.02″
• Weight
  • Net Weight:  27.3kg / 60.06lbs
  • Gross Weight:  30.0kg / 66lbs
