24 XLR Input / 12 XLR Output – 48kHz

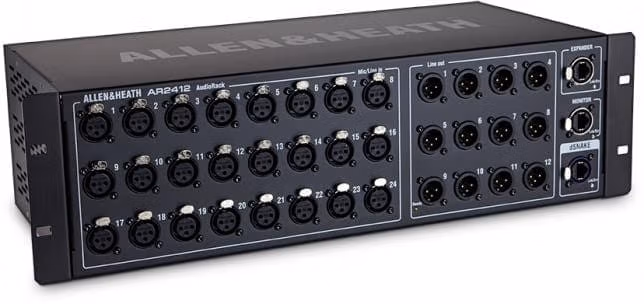

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.

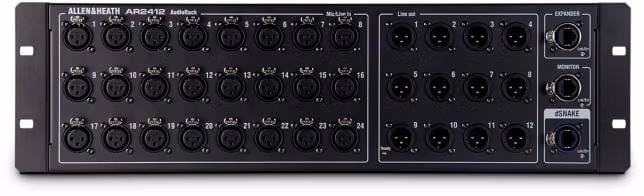

Features:

24 Mic Preamps on XLR
12 XLR Line Outs
dSNAKE Connection with locking Ethercon port
Expander Ethercon port for connection to an AR84 or AB168
Dedicated port for ME personal mixing system
Rack mountable

Price-Flex

Price Flex

Name: Allen & Heath GLD-AR2412 Audio Rack
Brand: Allen & Heath
SKU: ALLE-GLD AR2412
Availability: InStock
