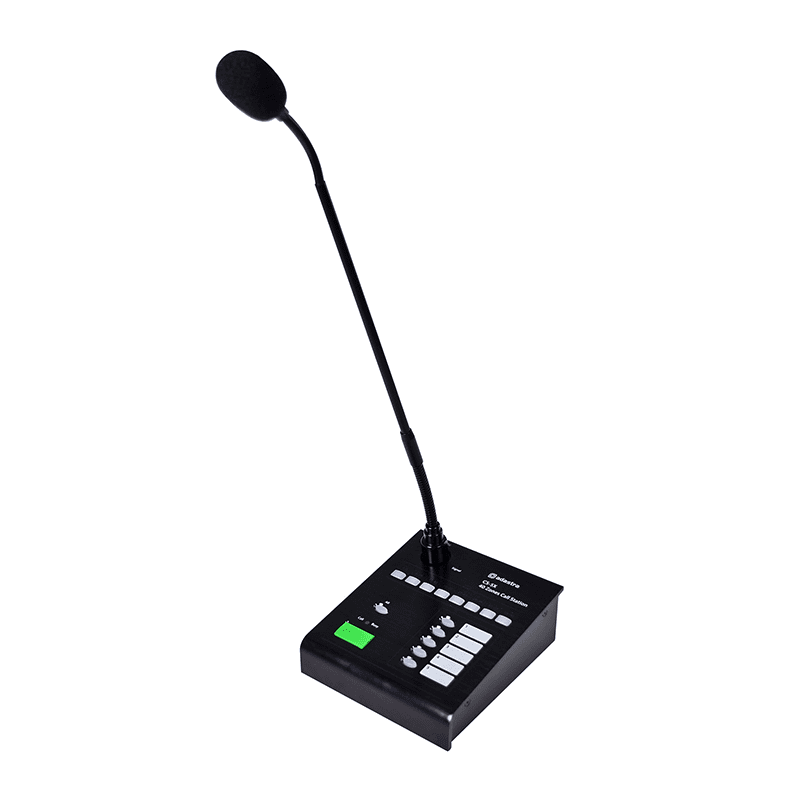

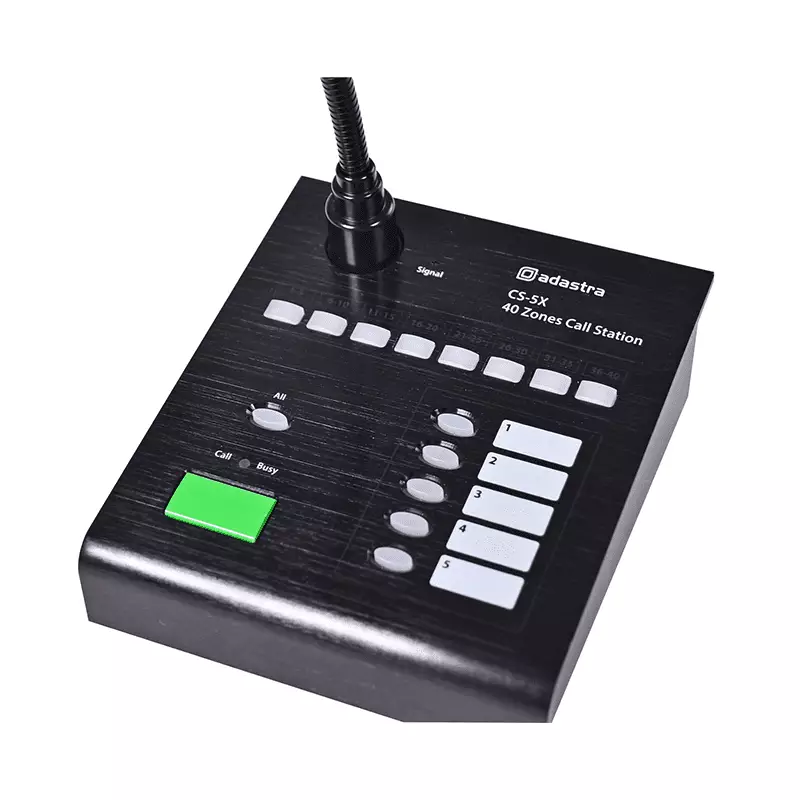

ADASTRA CS-5X CALL STATION FOR RX45
In stock at supplier
R4,315.00
ADASTRA CS-5X CALL STATION FOR RX45
Availability: In stock
FEATURES:
- Custom designed for the RX45 Audio matrix
- Individual and multiple paging possible up to 40 zones
- Power and signal connection via the supplied RJ45 cable
- Optional 24Vdc in for connection up to 1km from RX45
SPECIFICATIONS:
- Power supply: 24Vdc, 500mA from RJ45 or optional adaptor
- Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
- Capsule: Back electret condenser
- Polar pattern: Cardioid
- Controls: Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

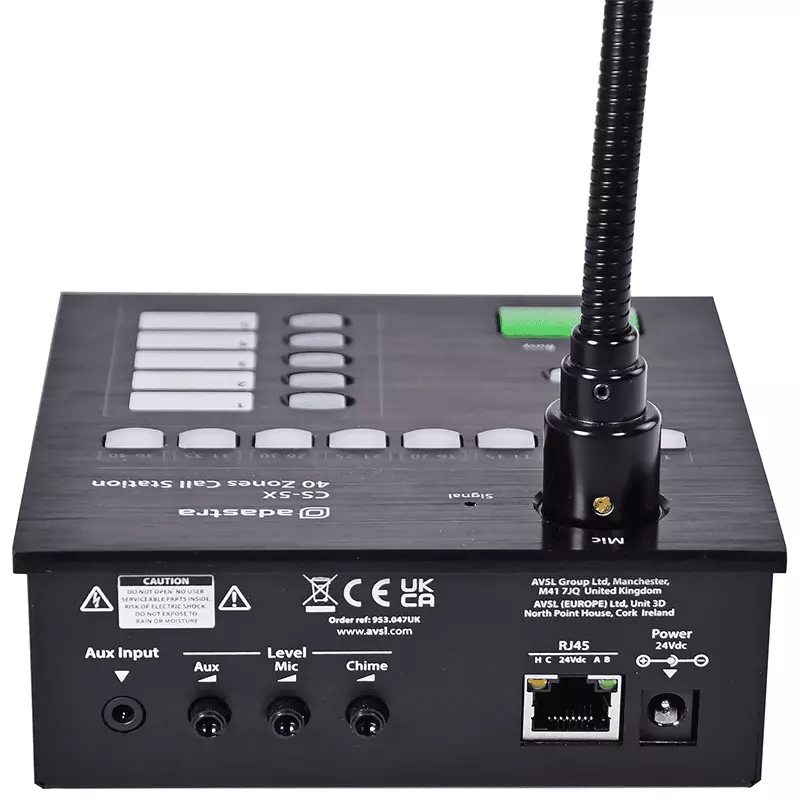

- Connectors: XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
- Frequency response : -3dB: 150Hz – 20kHz
- Input level: Mic: -46dBV, Aux: -10dBV
- Input impedance: Mic: 600 Ohms, Aux: 50k Ohms
- Output level: 10dBV
- Output impedance : balanced: 600 ohms
- S/N ratio: -60dB (all channels selected)
- Interface: RS-485 control
- Zone assign: 5 zones per RX45, any combination across 8 Group IDs
- Dimensions: 450 x 140 x 125mm
- Weight: 653g
