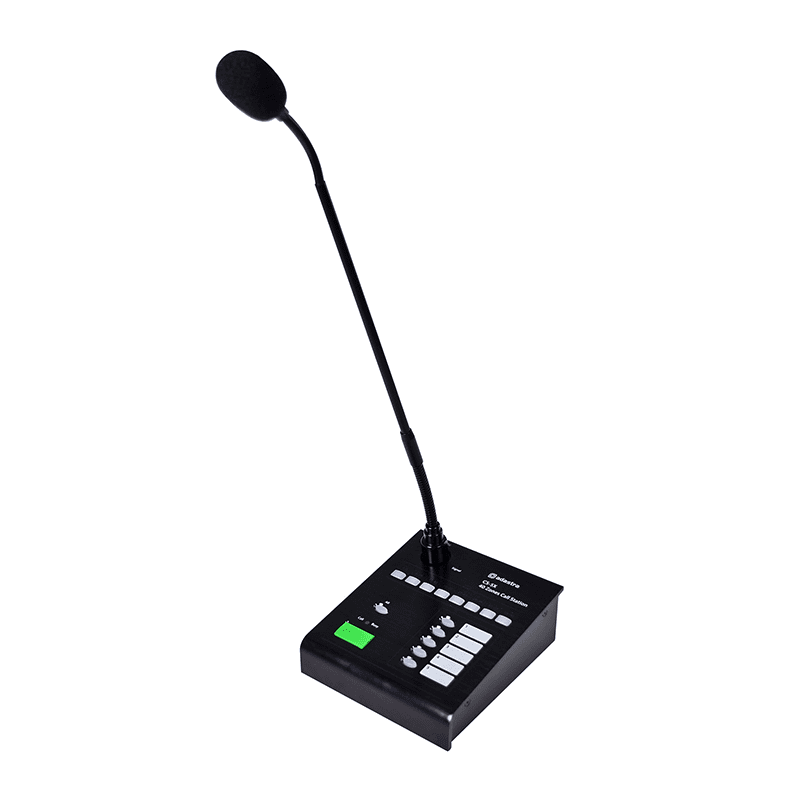

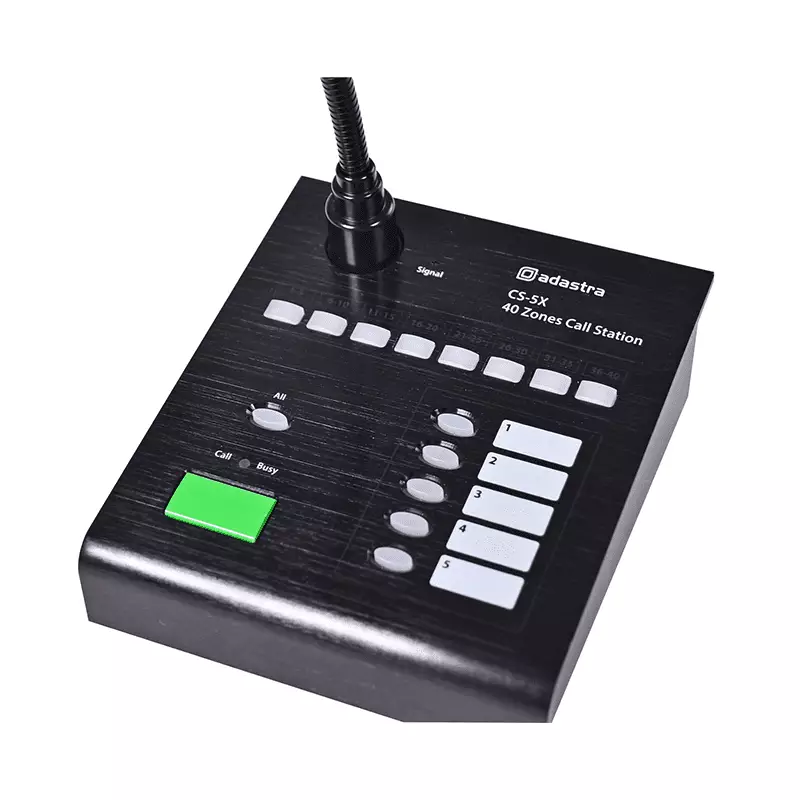

ADASTRA CS-5X CALL STATION FOR RX45

R4,255.00


Flexible payments from R709.17

Pay over 2-6 interest-free instalments with Stitch Pay Later

ADASTRA CS-5X CALL STATION FOR RX45

Availability: In stock

FEATURES:

  • Custom designed for the RX45 Audio matrix
  • Individual and multiple paging possible up to 40 zones
  • Power and signal connection via the supplied RJ45 cable
  • Optional 24Vdc in for connection up to 1km from RX45

SPECIFICATIONS:

  • Power supply: 24Vdc, 500mA from RJ45 or optional adaptor
  • Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
  • Capsule: Back electret condenser
  • Polar pattern: Cardioid
  • Controls: Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

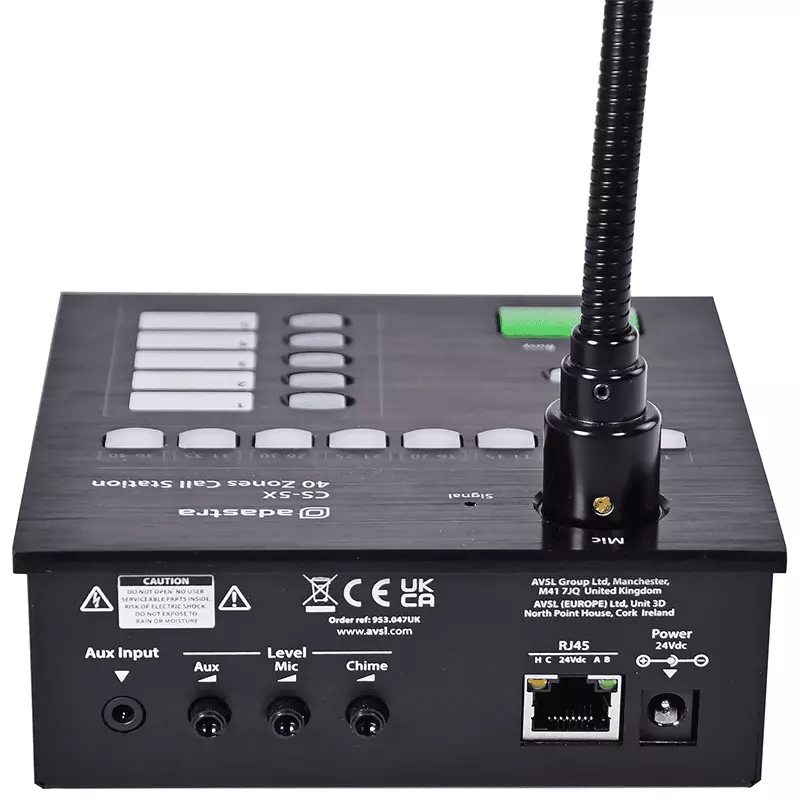

  • Connectors: XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
  • Frequency response : -3dB: 150Hz – 20kHz
  • Input level: Mic: -46dBV, Aux: -10dBV
  • Input impedance: Mic: 600 Ohms, Aux: 50k Ohms
  • Output level: 10dBV
  • Output impedance : balanced: 600 ohms
  • S/N ratio: -60dB (all channels selected)
  • Interface: RS-485 control
  • Zone assign: 5 zones per RX45, any combination across 8 Group IDs
  • Dimensions: 450 x 140 x 125mm
  • Weight: 653g
