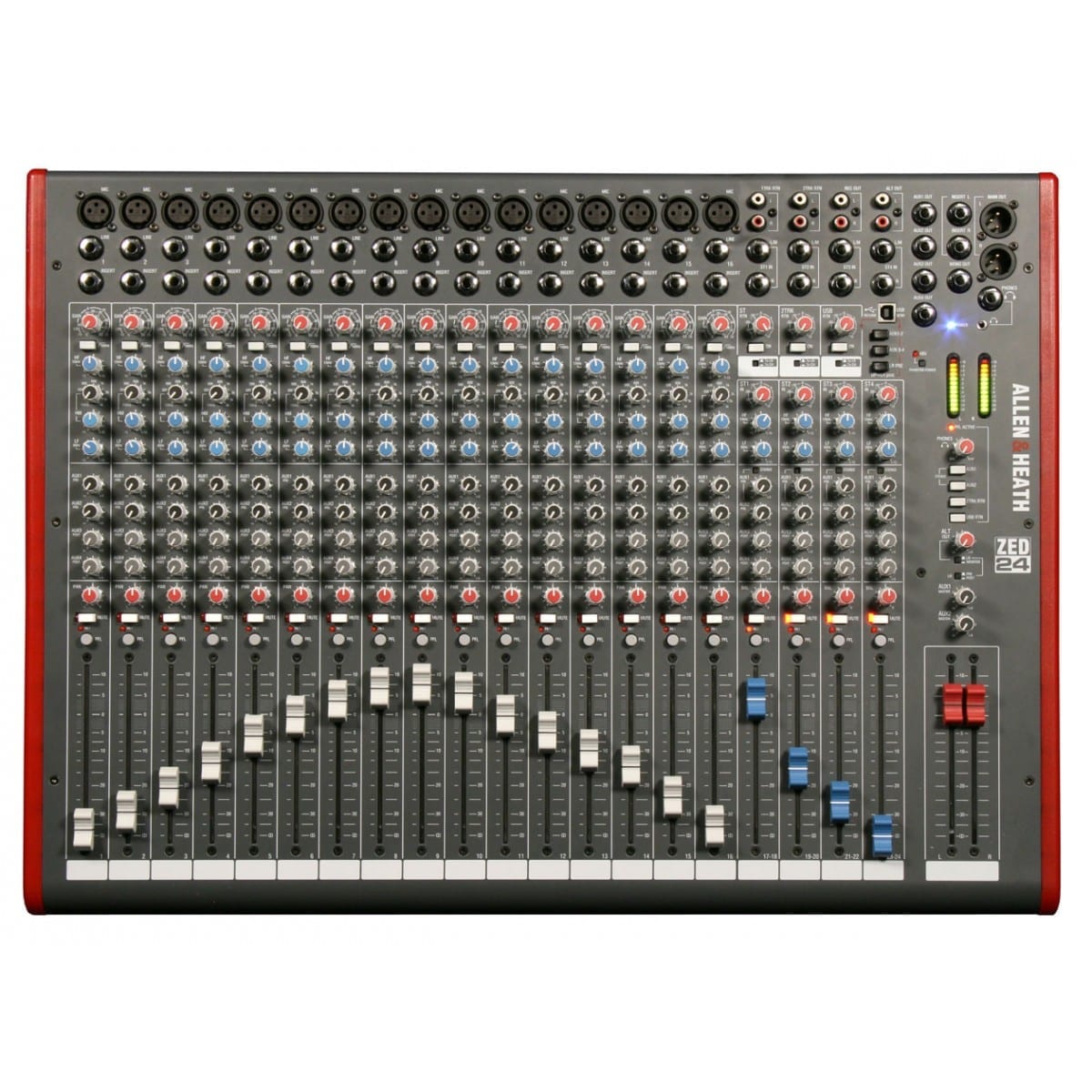

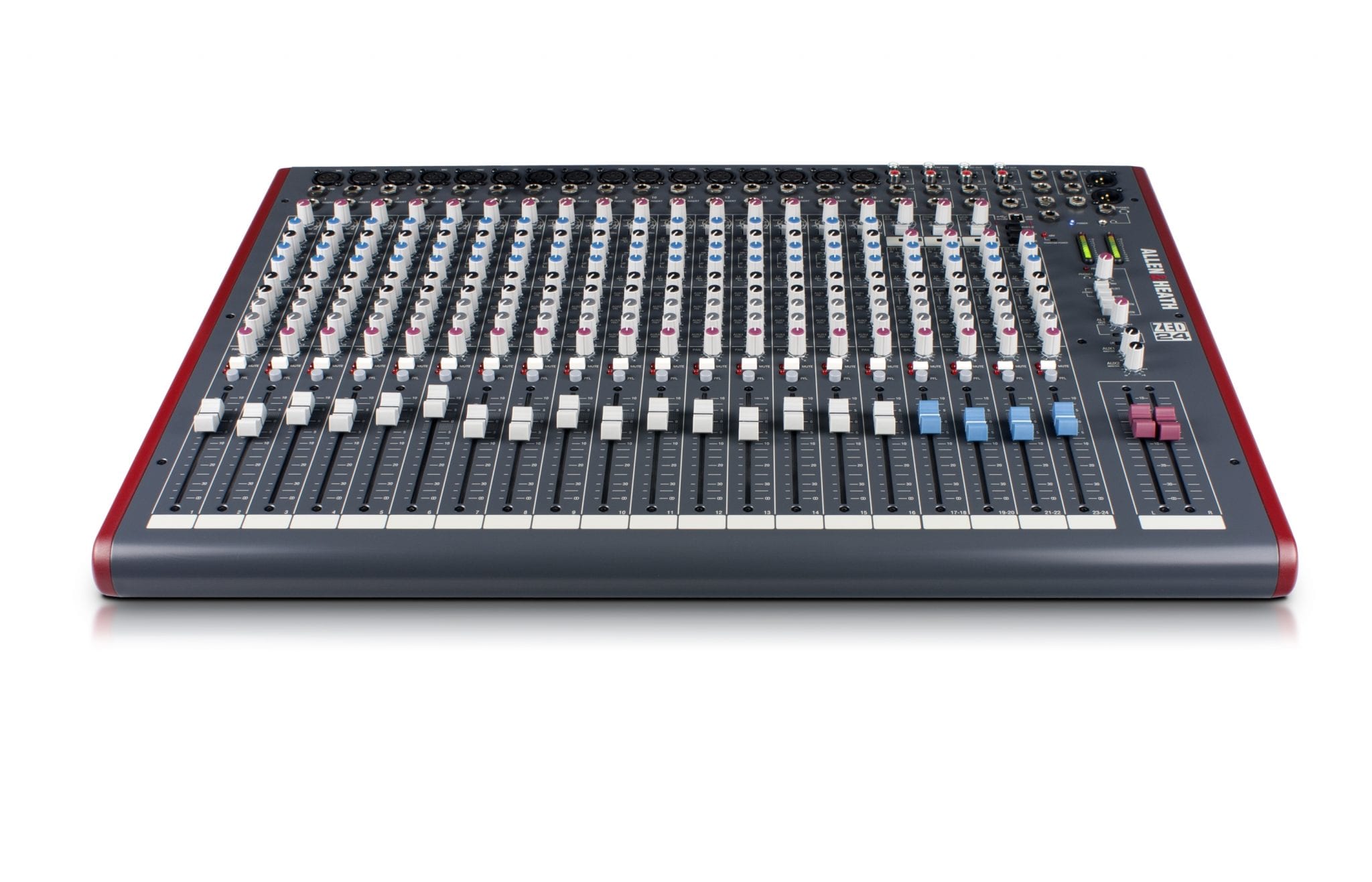

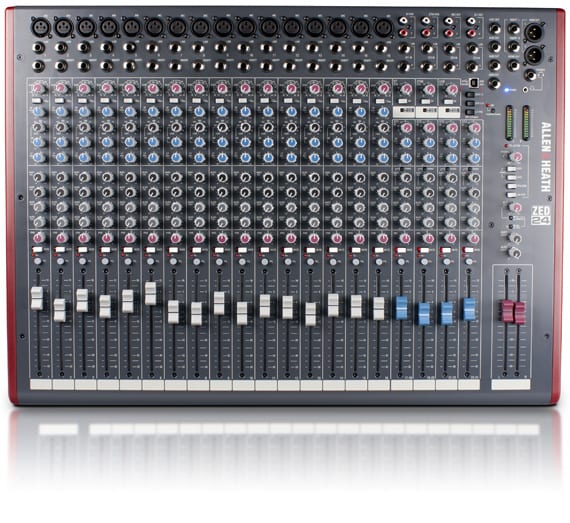

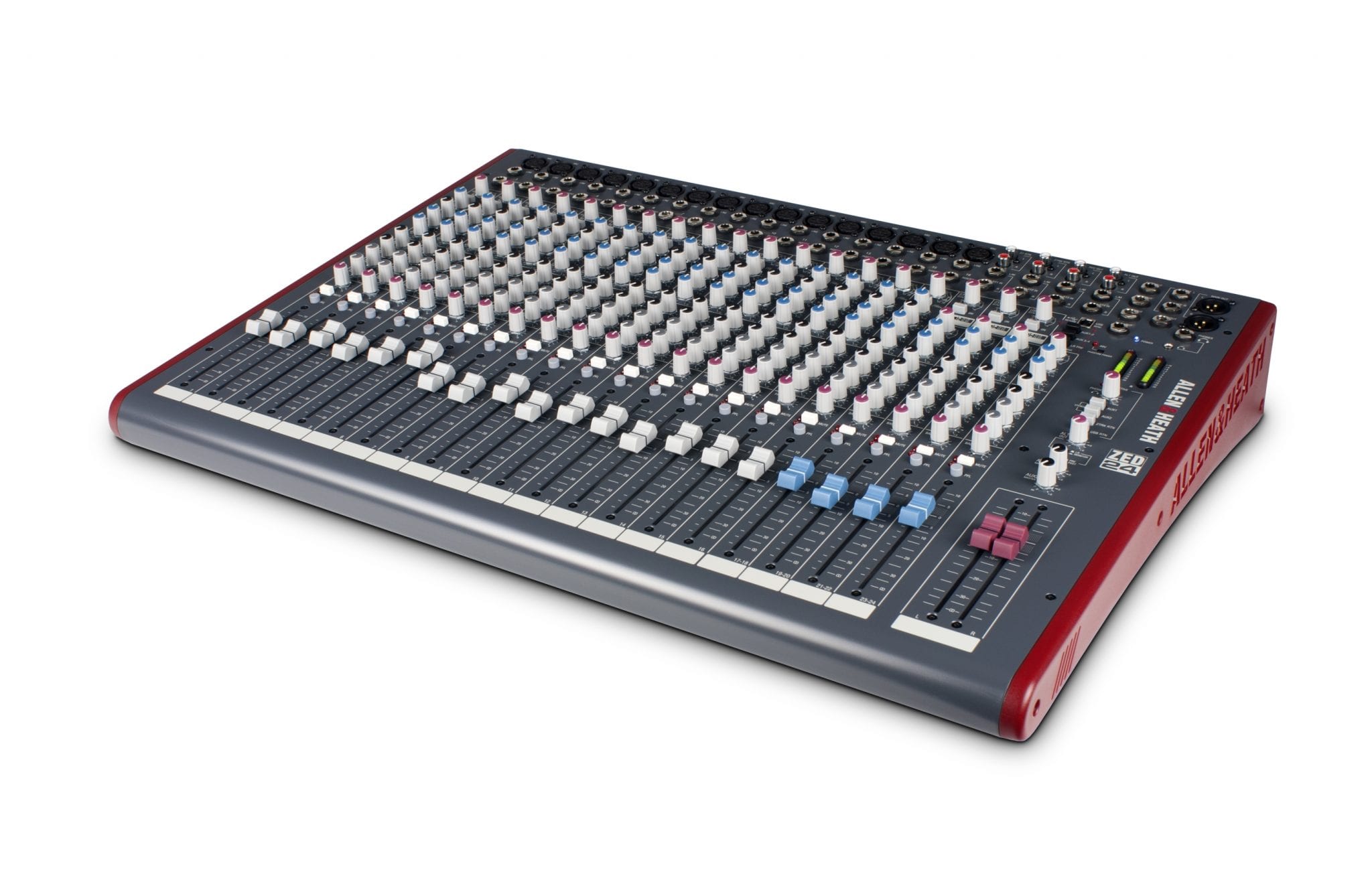

ZED-24 has an incredibly advanced feature-set for a mixer at this level – it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, Configurable USB audio in/out makes it easy to capture stereo recordings, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, ZED-24 is so packed full of great features that you’d think it would cost much, much more!

USB audio flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-

Send options

1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4

Return options

1) To Stereo 3 channel

MusiQ

ZED-24 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

DuoPre

Based on the proven pre-amps from the hugely successful PA series, ZED-24 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

Feature Summary:

16 mono channels

Neutrik mic XLR

Neutrik 1/4 inch jacks

Channel insert

Super wide gain ‘DuoPre’ mic line input

3 band EQ with MusiQ

4 auxes

Illuminated mute

Sound image pan

Illuminated PFL & peak warning indicator

ALPS 100mm faders

4 stereo channels with 2-band EQ and inputs for extra sources

Stereo returns & playback

All inputs with level control

12 bar meters

Mono/stereo function on auxes 1&2

Monitor output section

Alt stereo output source

Configurable USB stereo audio in/out

Price-Flex

Price Flex

Name: Allen & Heath ZED2402
Brand: Allen & Heath
SKU: ALLE-ZED2402
Availability: InStock
