Audio-Technica AT-LPW40WN

AT-LPW40WN

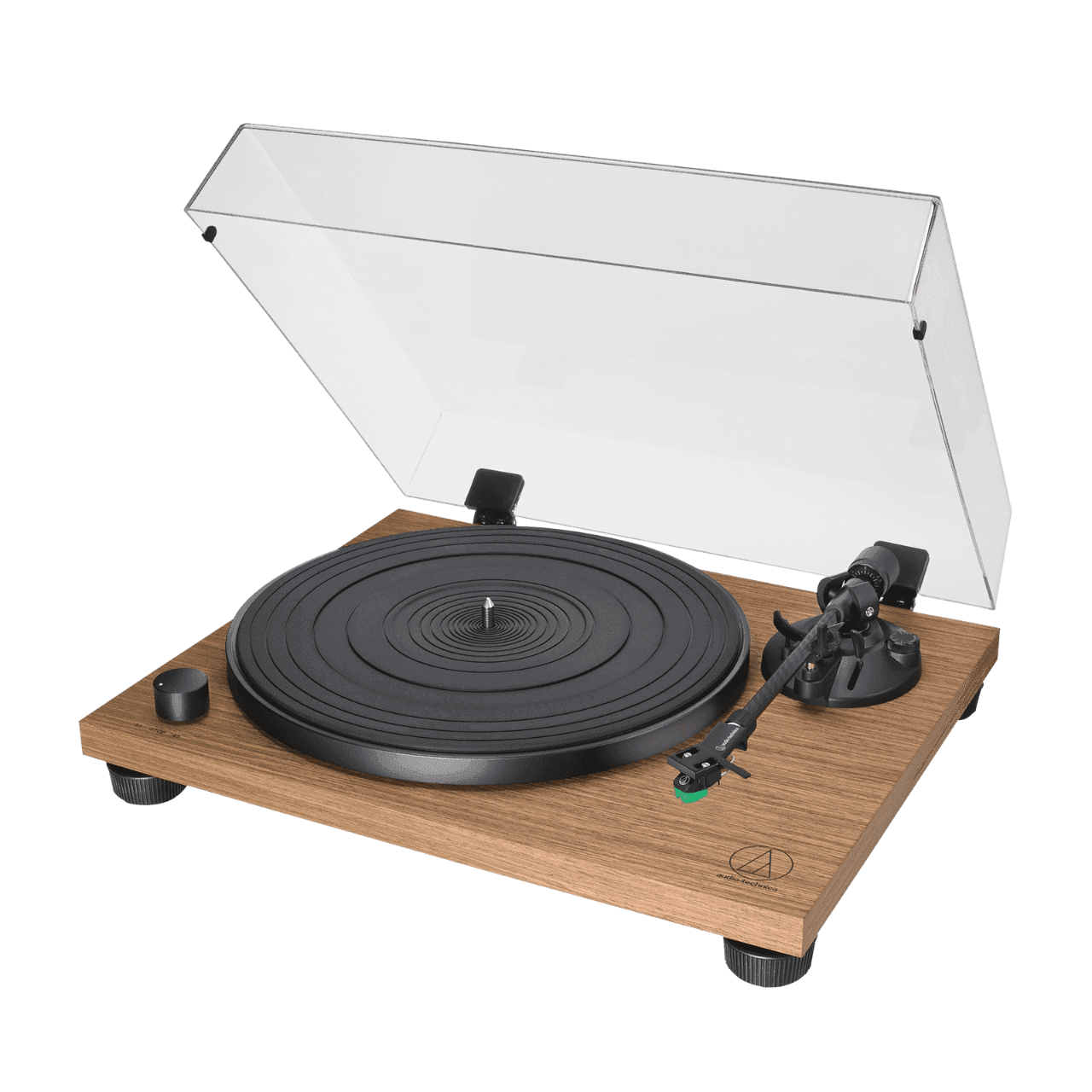

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½”-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Key Features

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminum platter with rubber mat
• AT-HS4 universal ½”-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
• Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
• Built-in switchable phono pre-amplifier for phono or line-level output
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

General Specifications

• Type:  Belt-drive manual turntable
• Motor:  DC Servo with Active Speed Stabilization
• Drive Method:  Belt-Drive
• Speeds:  331/3 RPM, 45 RPM
• Turntable Platter:  Die-Cast Aluminum
• Wow and Flutter:  < 0.15% WRMS (33 RPM) at 3 kHz
• Signal-to-Noise Ratio:  > 60dB
• Output Level:
  • Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec Pre-amp
  • “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain:  35 dB nominal, RIAA equalized
• Power Supply Requirements:  100-240 V, 50/60 Hz, 0.5 A Max.
• Dimensions (WxDxH):  420mm X  340mm X 116.9mm
• Weight: 4.72 kgs
• AC Adapter:  12 V, 0.5 A
• Tonearm Type:  Static balanced straight carbon tonearm
• Effective Arm Length:  223.6 mm
• Overhang:  18.6 mm
• Tracking Error Angle:  <2 degrees
• Stylus Pressure Adjustment Range:  0-3 g
• Applicable Cartridge Weight:  12-17 g
• Replacement Stylus:  AT-VMN95E

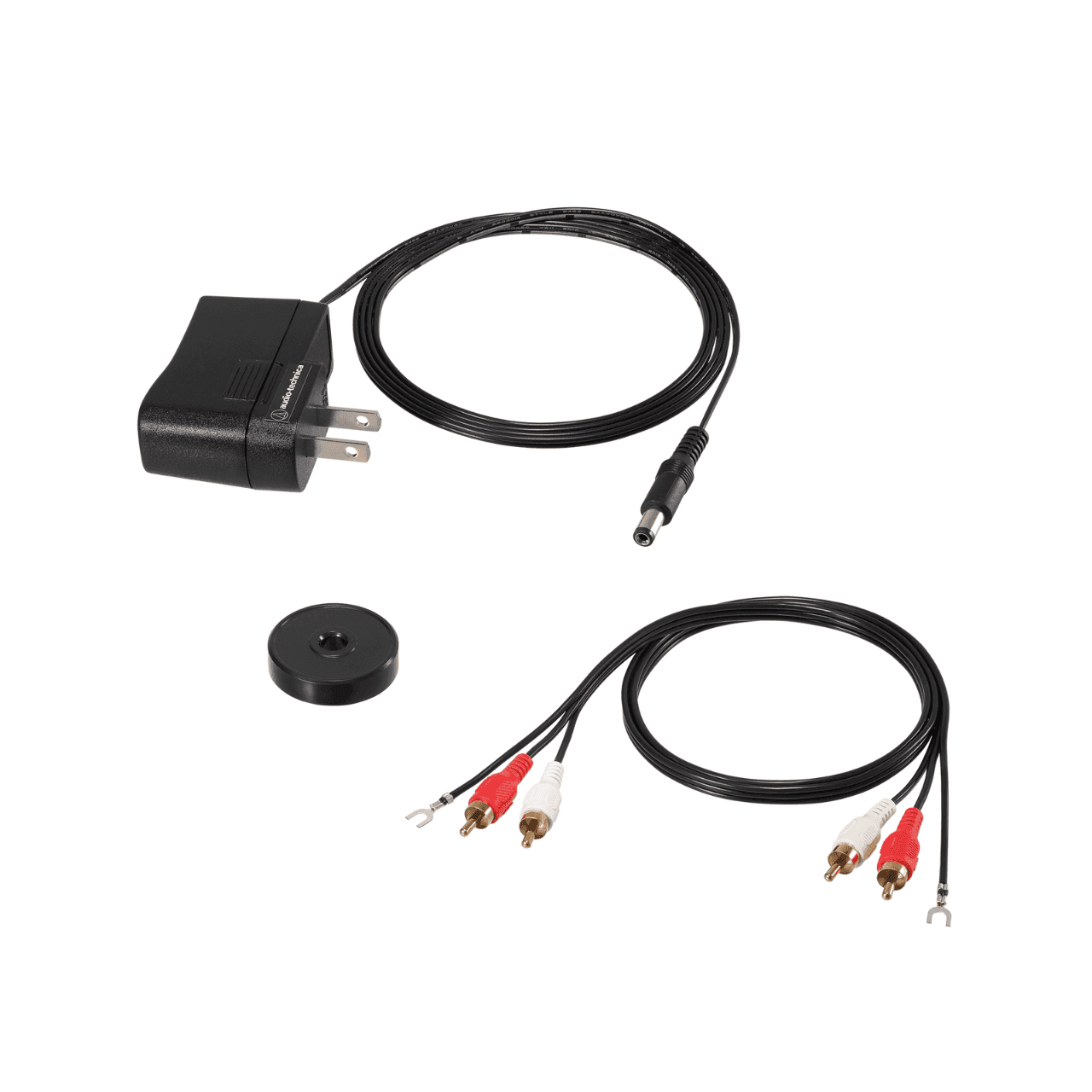

• Accessories Included:  Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3′)), AC adapter (approx. 1.5 m (4.9′)) (AD-SA1205WE), Dust cover hinges
