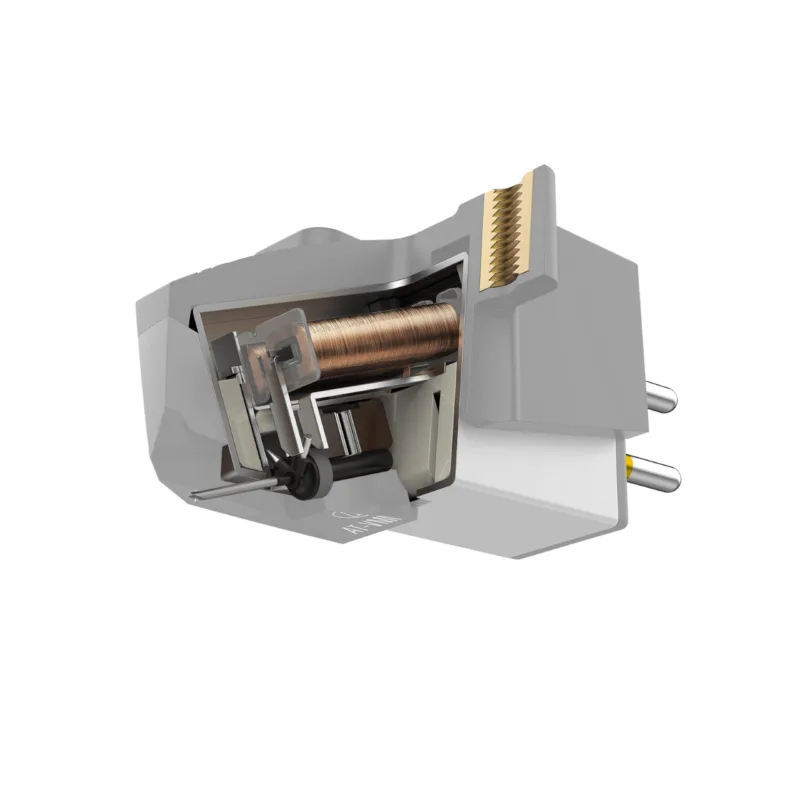

Audio Technica AT-VM95EN

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

General Specifications

• Frequency Response:  20 – 23,000 Hz
• Channel Separation:  22 dB (1 kHz)
• Vertical Tracking Angle:  23°
• Vertical Tracking Force:  1.8 to 2.2g (2.0g standard)
• Stylus Construction:  Nude Round Shank
• Recommended Load Impedance:  47,000 Ω
• Coil Impedance:  3.3 kΩ (1 kHz)
• DC Resistance:  485 Ω
• Coil Inductance:  550 mH (1 kHz)
• Output Voltage:  3.5 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance:  2.0 dB (1 kHz)
• Stylus Shape:  Elliptical
• Cantilever:  Aluminium Pipe
• Static Compliance:  20 x 10 – 6 cm / dyne
• Dynamic Compliance:  7 x 10 – 6 cm / dyne (100 Hz)
• Mounting:  1/2” centres
• Cartridge:  Weight 6.1g
• Dimensions:  17.2 x 18.9 x 28.3 ( H x W x D mm)
• Accessories Included:  Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver
• Model:  AT-VM95EN
• Recommended Load Capacitance:  100-200 pF
• Replacement Stylus:  AT-VMN95EN
• Stylus Size:  0.3 x 0.7 mil
• Type:  VM Stereo Dual Magnet
• Wire Used for Coil:  T.P. Copper
