Audio Technica AT-VM95SH Dual Moving Magnet Cartridge
OUT OF STOCK
R4,135.00

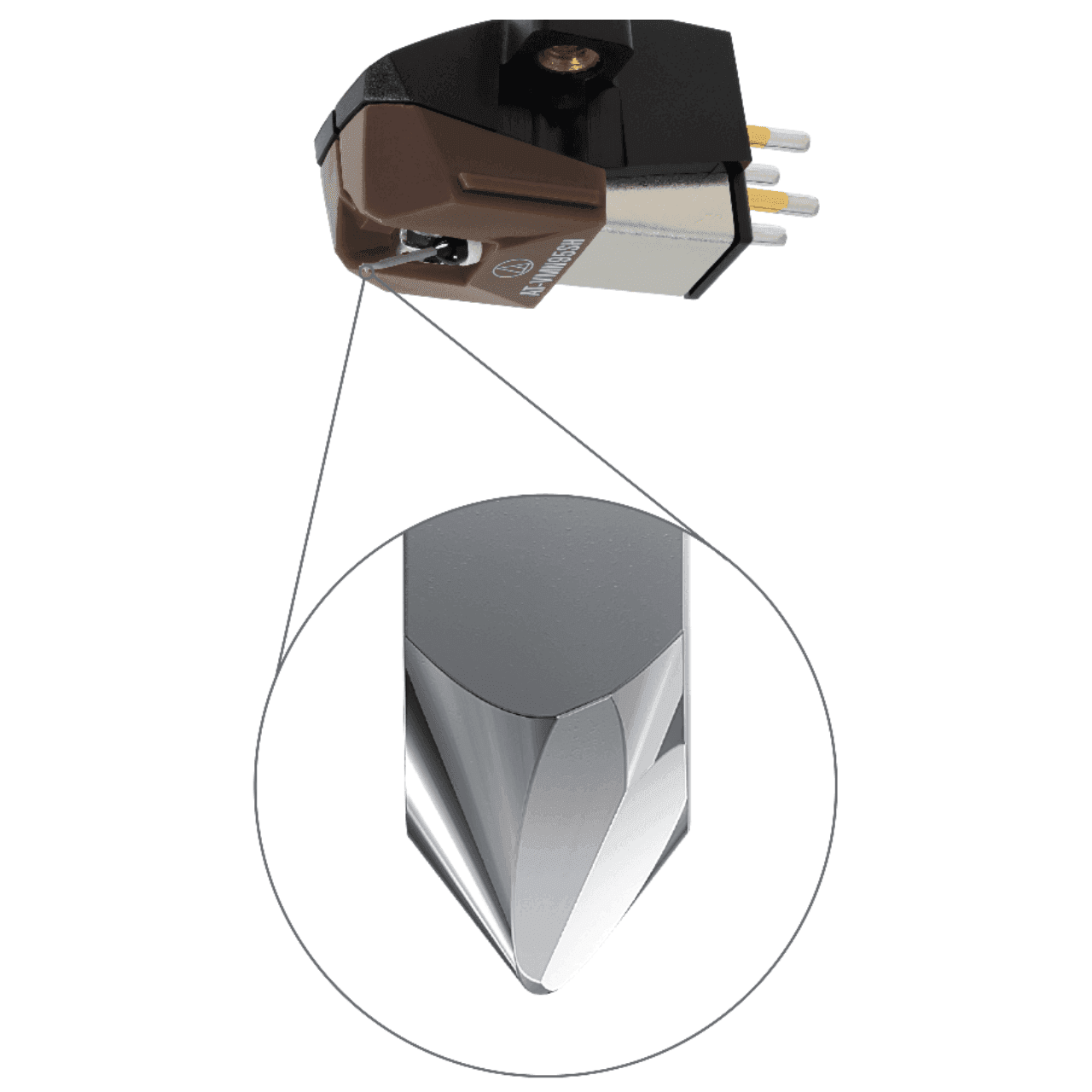

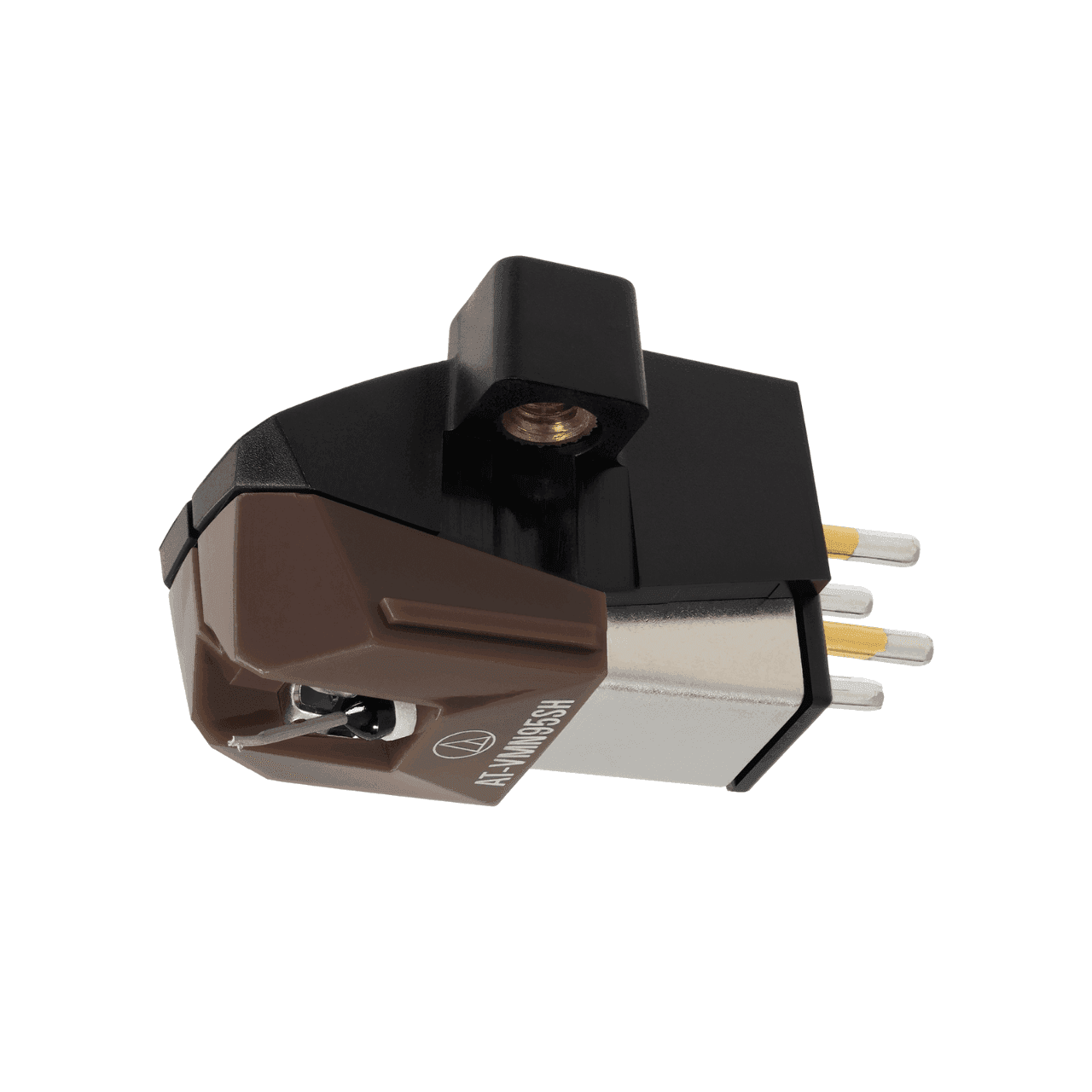

Audio Technica AT-VM95SH Dual Moving Magnet Cartridge with Shibata Stylus
Availability: Out of stock
AT-VM95SH
This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
General Specifications
- Frequency Response: 20 – 25,000 Hz
- Channel Separation: 23 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude square shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: Shibata
- Cantilever: Aluminium Pipe
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
- Mounting: 1/2” centre
- Cartridge Weight: 6.1g
- Dimensions (WxDxH): 18.9mm X 28.3mm X 17.2mm
- Accessories Included: Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver
- Model: AT-VM95ML
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: AT-VMN95SH
- Stylus Size: 2.7 x 0.26 mil
- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper
