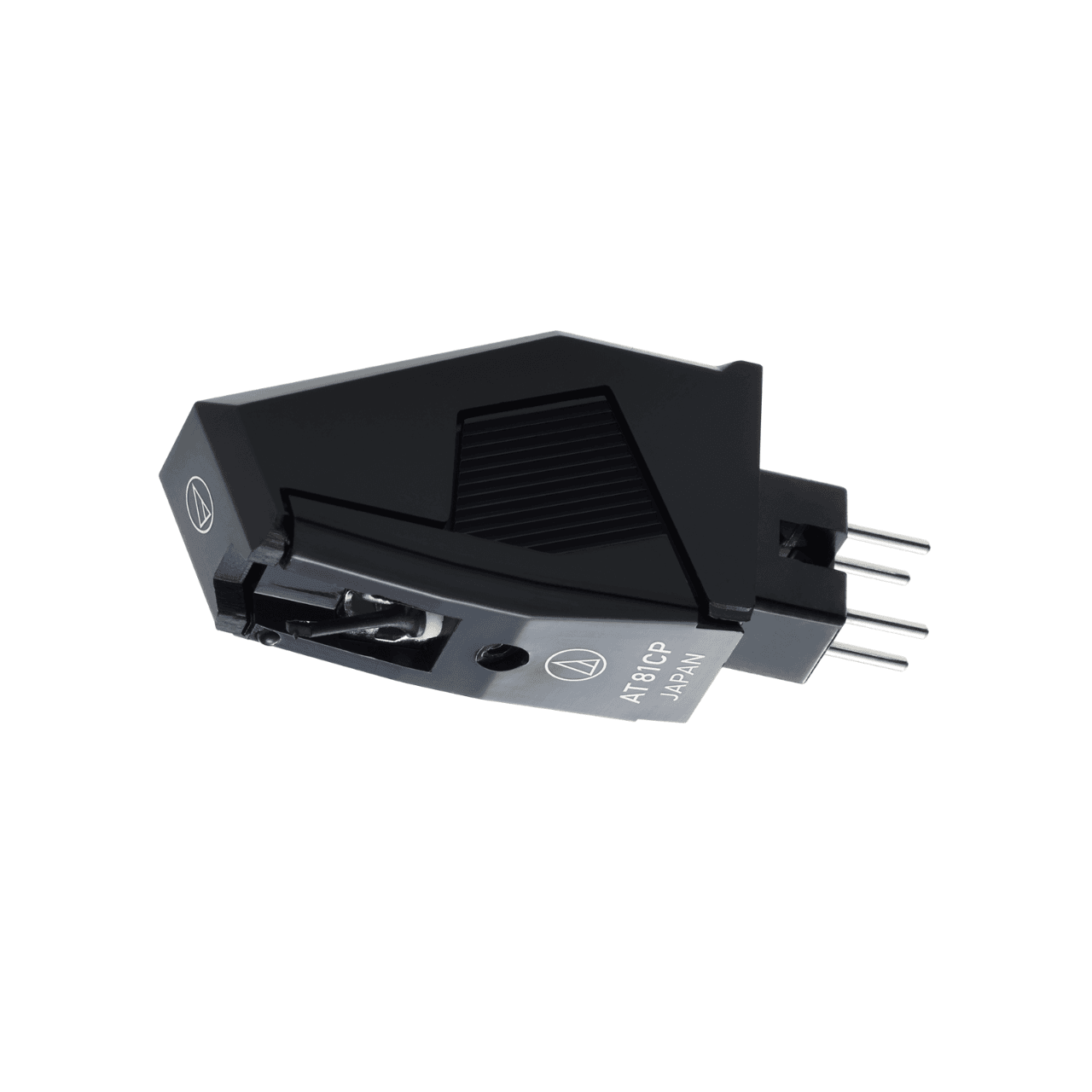

Audio Technica AT81CP

The AT81CP is a 0.6 mil conical cartridge that fits P-mount turntables.

General Specifications

• Frequency Response:  20-20,000 Hz
• Channel Separation:  18 (dB at 1 kHz)
• Vertical Tracking Angle:  20°
• Vertical Tracking Force:  1.0-1.5 g (1.25 g standard)
• Stylus Construction:  Bonded round shank
• Recommended Load Impedance:  47,000 ohms
• Coil Impedance: 2.8 k ohms (1 kHz)
• DC Resistance:  410 ohms
• Coil Inductance:  400 mH (1 kHz)
• Output Voltage:  3.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance:  2.5 dB (1 kHz)

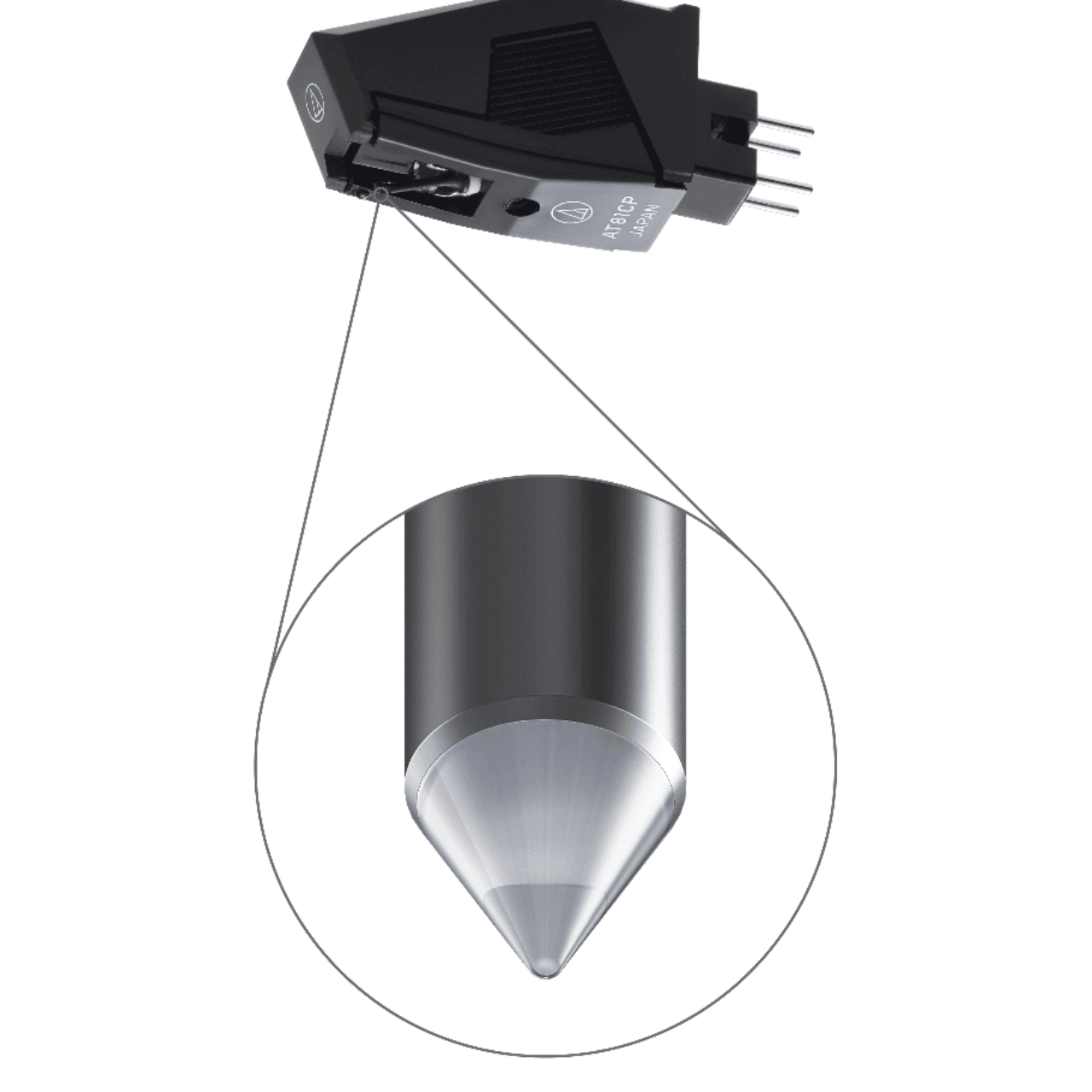

• Stylus Shape:  0.6 mil conical
• Cantilever:  Carbon fiber-reinforced ABS
• Mounting Feature:  P-mount
• Dimensions (WxDxH):  10mm x 35.1mm x 15.3 mm / 0.39″ x  1.38″ x 0.60″
• Recommended Load Capacitance:  100 to 200 pF
• Replacement Stylus: ATN81CP
• Stylus Size:  0.6 mil
• Type:  Dual Magnet
• Weight:  6.0 g
