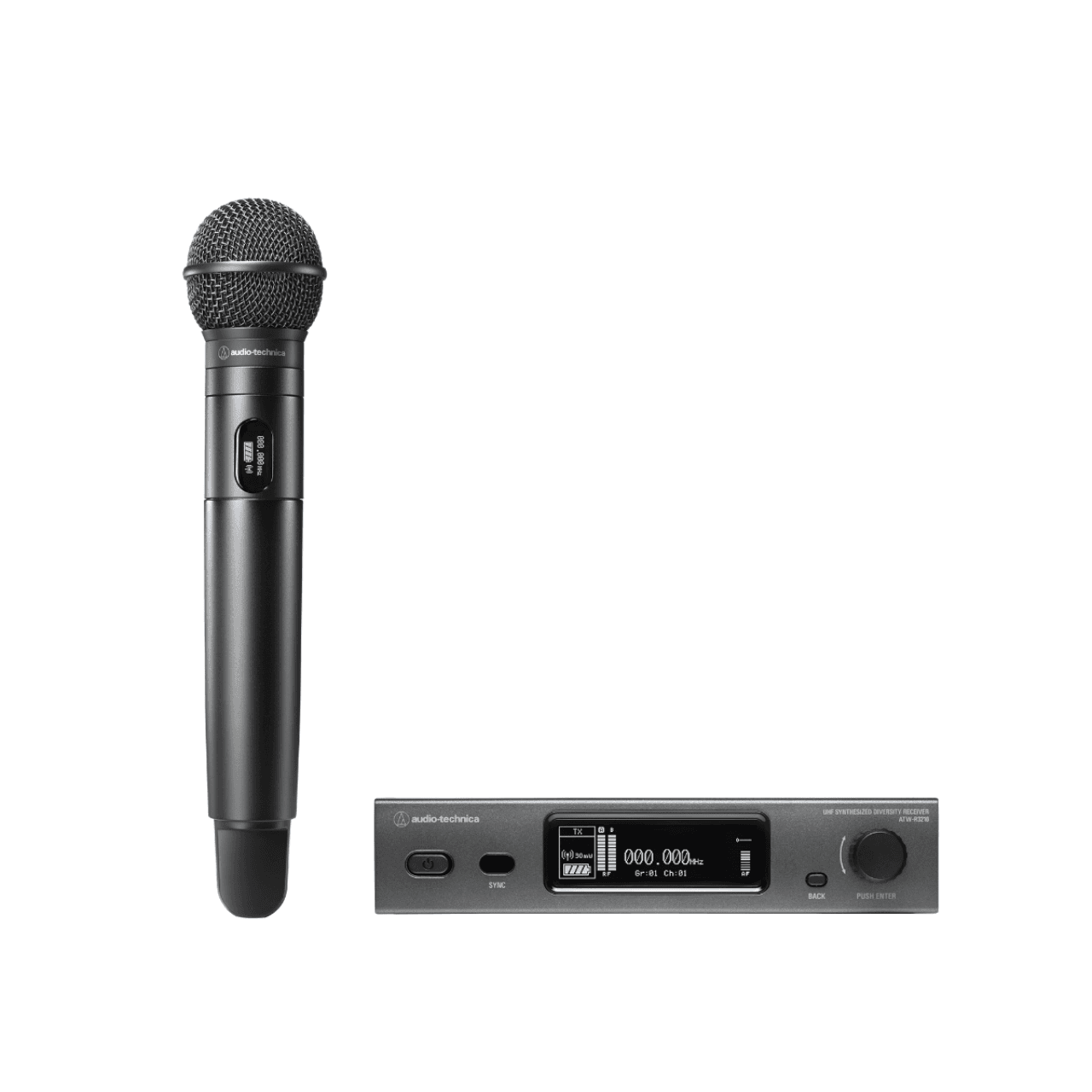

Audio Technica ATW-3212/C510

ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 cardioid dynamic microphone capsule.

General Specifications

• Operating Frequencies
  • Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
  • Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
  • Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
  • Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
• Operating Frequencies
  • Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
  • Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
  • Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
  • Band FG1: 650.000 to 699.875 MHz (1996 frequencies) – Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation
  • ATW-T3201: ±38 kHz (THD:10%)
  • ATW-T3202: ±36 kHz (THD:10%)
• Frequency Response
  • ATW-T3201: 31 Hz to 15,500 Hz
  • ATW-T3202: 25 Hz to 16,700 Hz – Frequency response depends on the attached microphone element
• Operating Range: 100 m (328′) – Open range environment with no interfering signals.
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
• Simultaneous Use: 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representative. *Region and band dependent

Handheld Transmitter

• RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
• Spurious Emissions: Following Federal and National Regulations
• Microphone Capsule: Interchangeable industry-standard thread
• Battery Type: Two 1.5V AA, not included
• Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), 9.5 hours (Ni-MH 1900mAh) – Depending on battery type, usage, and environmental conditions.
• Dimensions: ATW-T3202 (without capsule): 193 mm (7.60″) long, 37 mm (1.46″) maximum diameter ATW-T3202/C510: 265 mm (10.43″) long, 54 mm (2.13″) maximum diameter ATW-T3202/C710: 271 mm (10.67″) long, 50 mm (1.97″) maximum diameter
• Net Weight: ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries

Body Pack

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
• Battery Life: High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) – Depending on battery type, usage, and environmental conditions.
• Battery Type: Two 1.5V AA, not included
• Dimensions (WxDxH): 64mm x 82mm x 23mm
• Input Connections: cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V
• Net Weight: 102 g (3.6 oz), without batteries
• Spurious Emissions: Following Federal and National Regulations
• High-pass (low-freq. roll-off): 125Hz, 12dB/octave

Receiver

• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Maximum Output Level: XLR, balanced: +14 dBV 6.3 mm (1/4″), unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 ohms
• Antenna Power: 12 V DC, 160 mA (combined)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
• Dimensions (WxDxH): 210mm x 191mm x 43.4mm
• Weight: 1100 g (38.8 oz), without accessories
• Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
