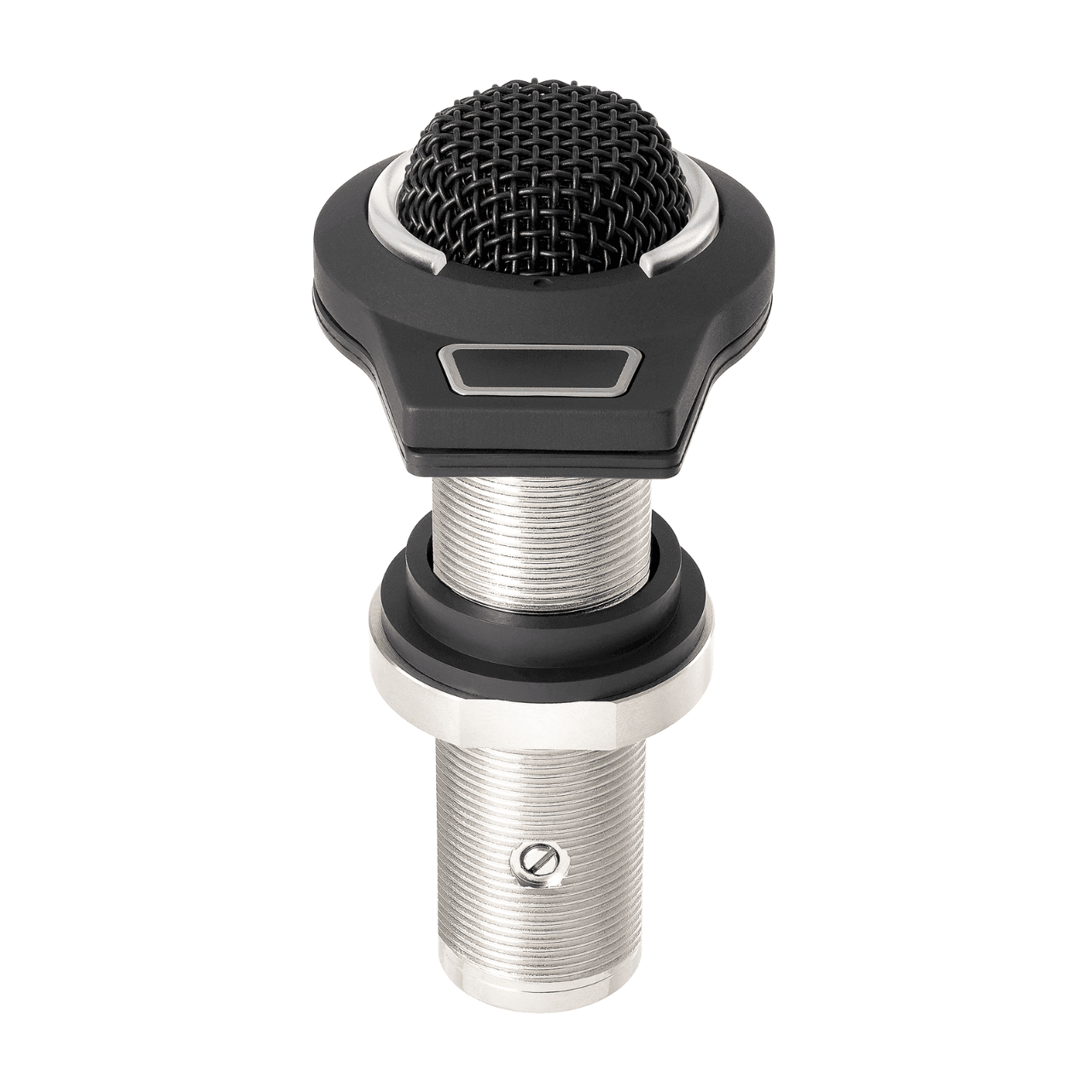

This phantom-powered cardioid condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES947C/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to indicate mute status.

The microphone’s cardioid polar pattern provides a 120° pickup angle. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES947C/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Key Features

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Capacitive touch switch enables local muting of the microphone

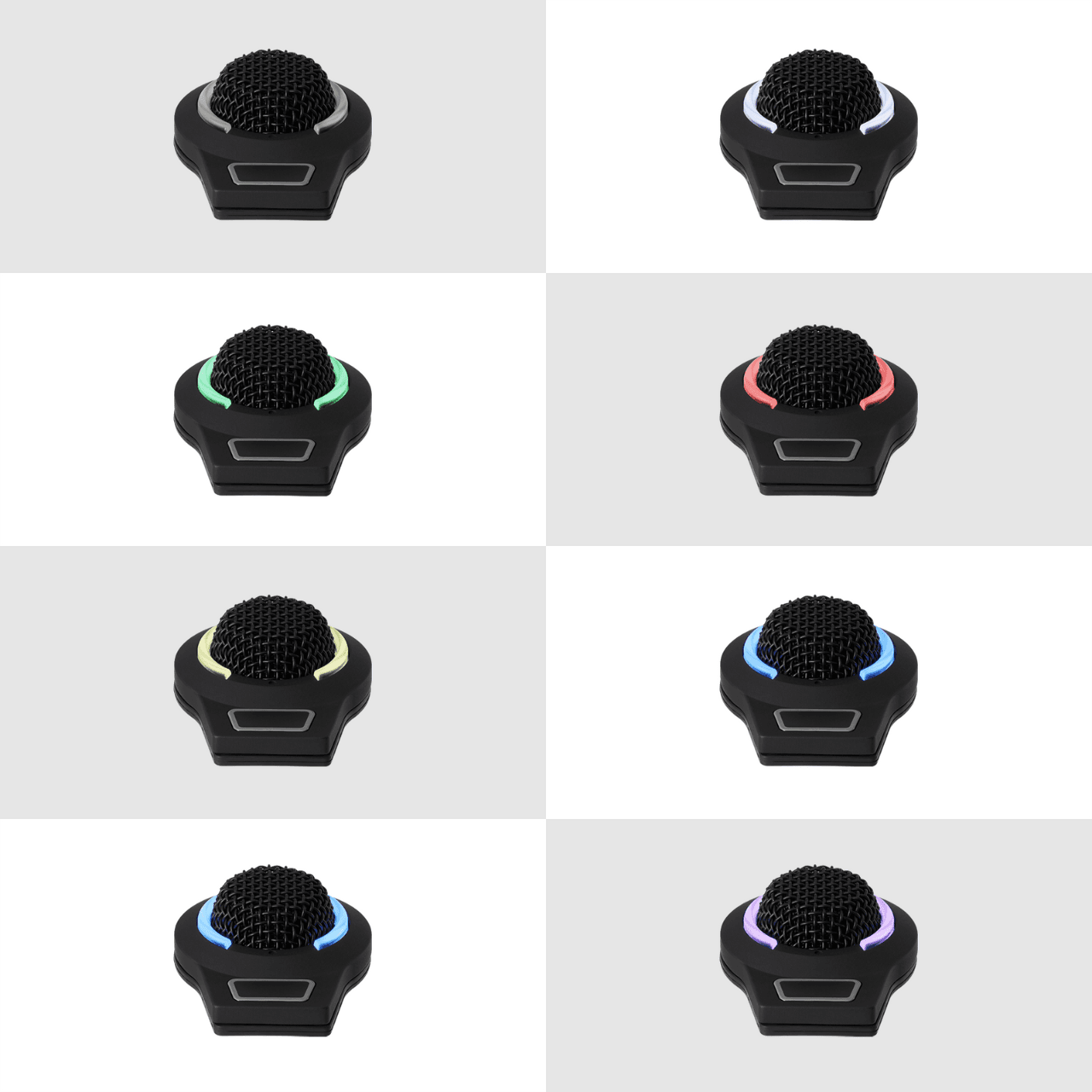

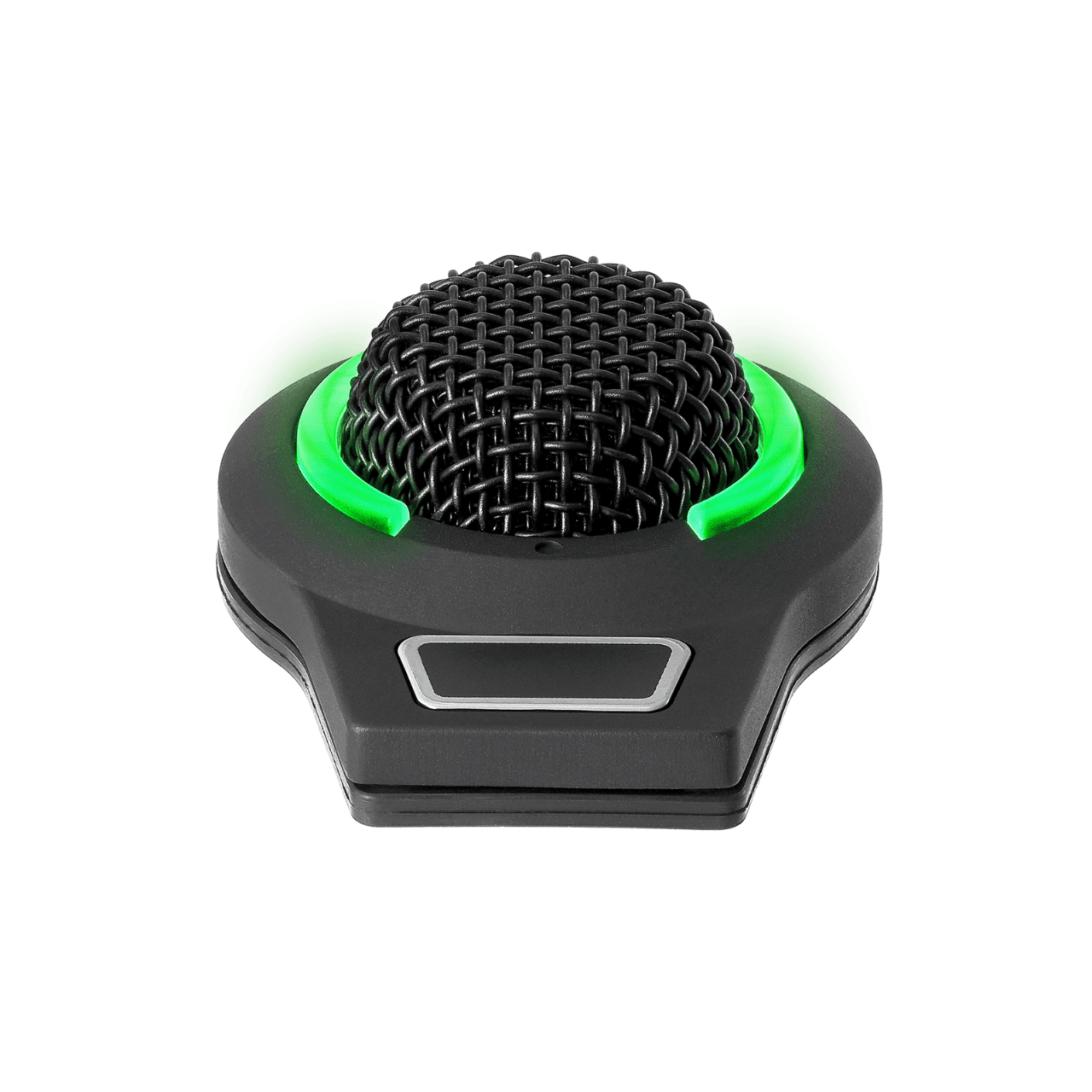

Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle

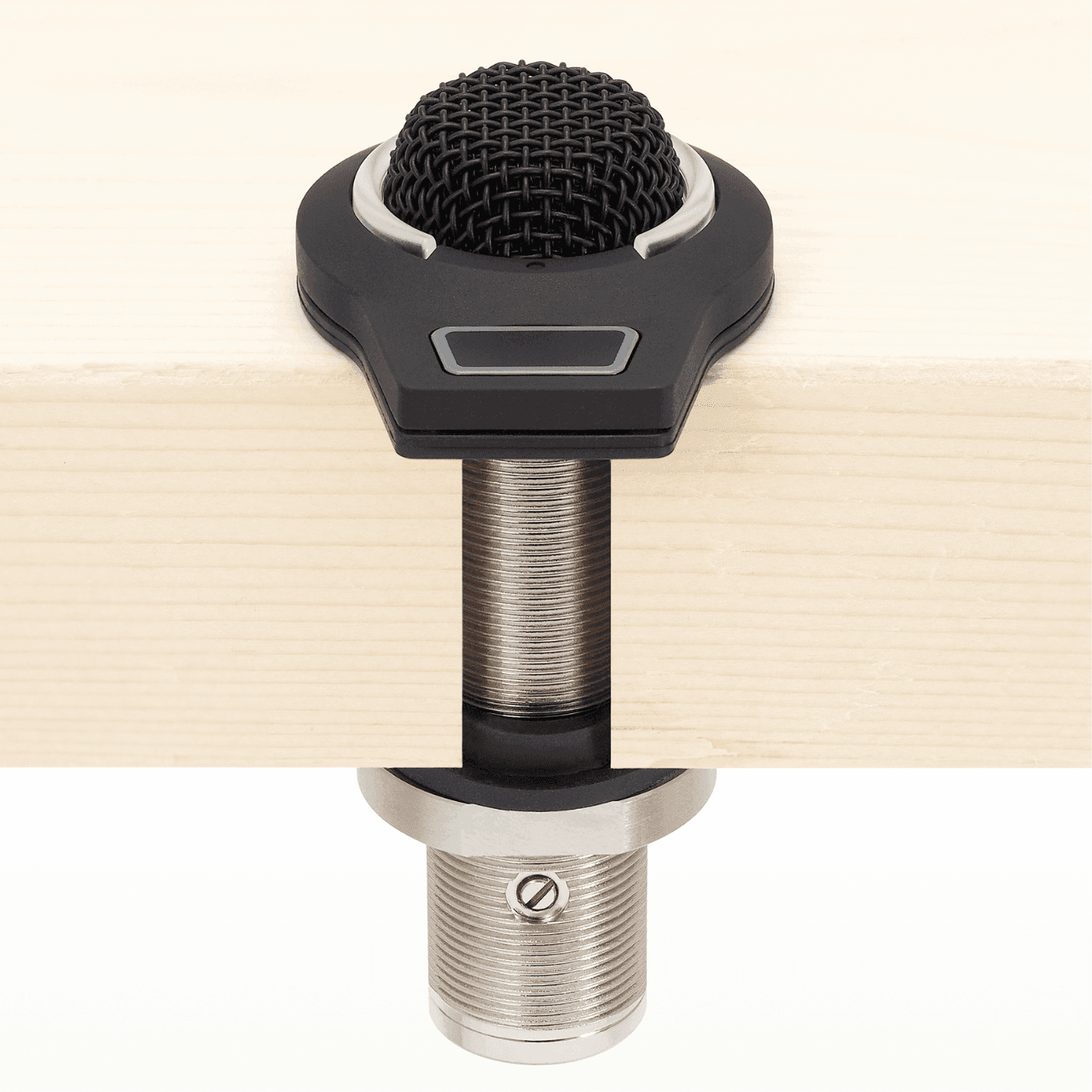

Mounts unobtrusively in tabletops and panels
Self-contained power module with 3-pin XLR output connector
Rugged all-metal case with a two-layer steel mesh grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

General Specifications

Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 70-15,000 Hz
Open Circuit Sensitivity: -37 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance: 60 ohms
Maximum Input Sound Level: 134 dB SPL (1 kHz at 1% THD)
Dynamic Range: (typical) 110 dB (1 kHz at max SPL)
Signal-to-Noise Ratio: 70 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements: 11-52V DC, 7.5 mA
Weight: 59 g (2.1 oz)
Dimensions: 38.0 mm (1.50″) W x 48.0 mm (1.89″) D x 84.8 mm (3.34″) H

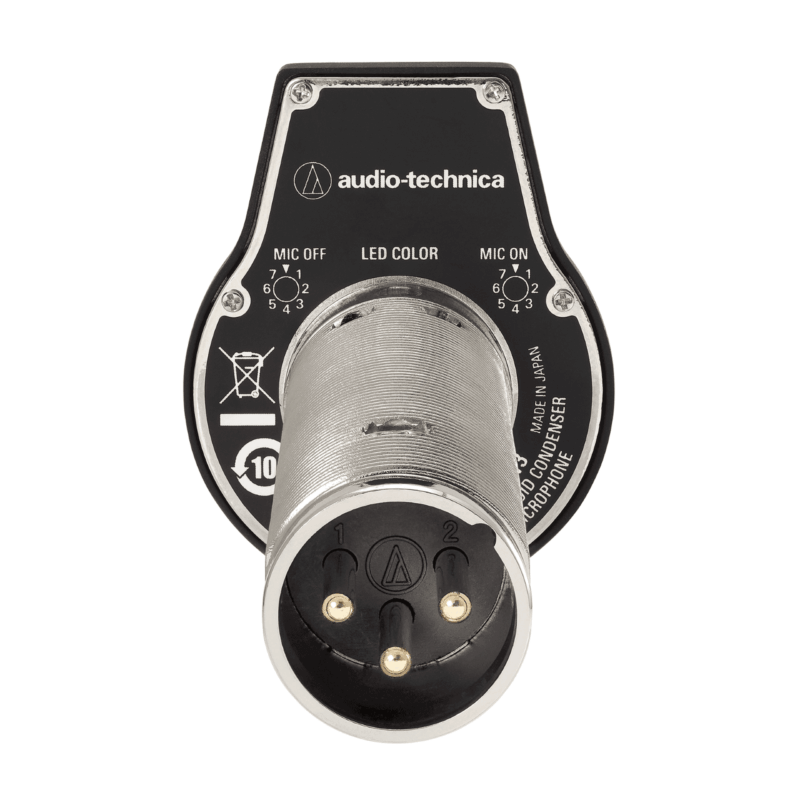

Output Connector: 3-pin XLRM-type

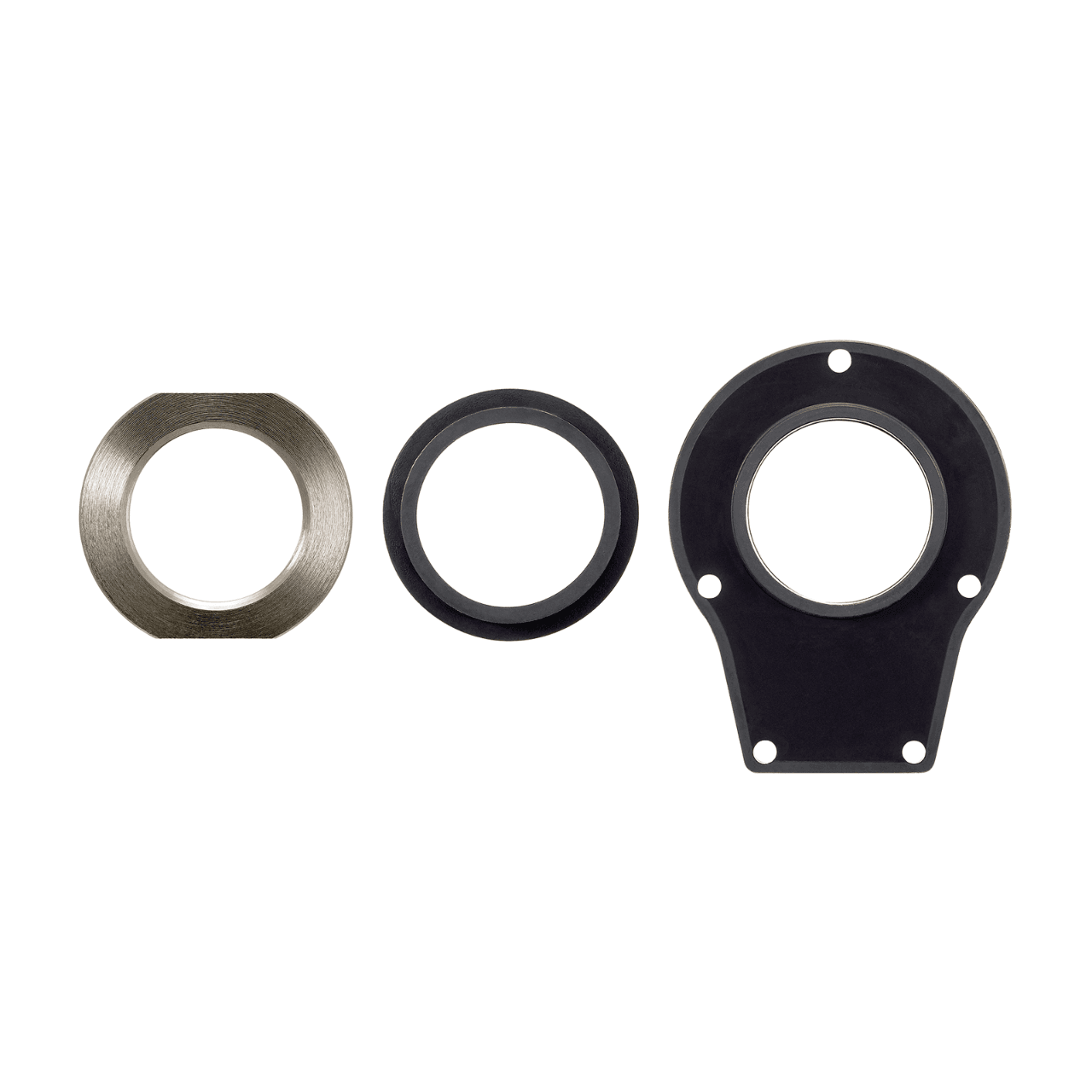

Accessories Included: Rubber isolators (two types), nut

Price-Flex

Price Flex

Name: Audio Technica ES947C/FM3
Brand: Audio Technica
SKU: ES947C/FM3
Availability: InStock
