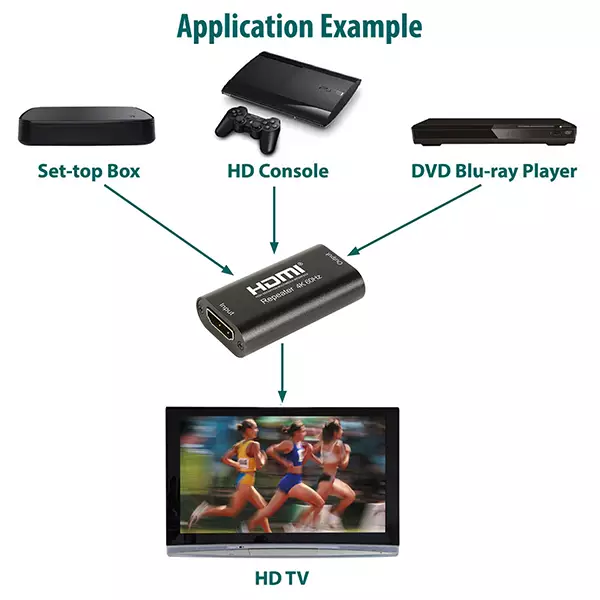

A compact 4K HDMI repeater to connect HDMI cables of up to 40m combined length with minimal signal degradation. Combine up to 10m cable for 4K@60Hz resolution, or up to 40m for 4K@30Hz and FHD resolutions. This updated version will support HDMI v2.0 which is compatible with the latest 4K digital TV boxes producing 3840 x 2160 @ 60Hz resolution.
FEATURES:
- Maintains 4K@60Hz resolution without signal loss over combined 10m cable length
- Maintains 4K@30Hz and FHD resolution without signal loss over combined 40m cable length
- Easy connection and installation
- Supports HDMI v2.0b resolutions up to 3840x 2160 @ 60Hz
SPECIFICATIONS:
- HDMI version – v2.0b
- Video resolution – Up to 3840 x 2160P @ 60Hz
- Audio format – DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
- HDCP version – 2.2
- Max. bandwidth – 600Mhz[
- Max. baud rate[ – 3x 6Gbps
- Max. working current – 300mA
- Transmission distance – 10m 4K@60Hz (5m input/5m output), 40m 4K@30Hz and 1080p (20m input/20m output)
- Dimensions – 50 x 30 x 18mm
- Weight – 21g
