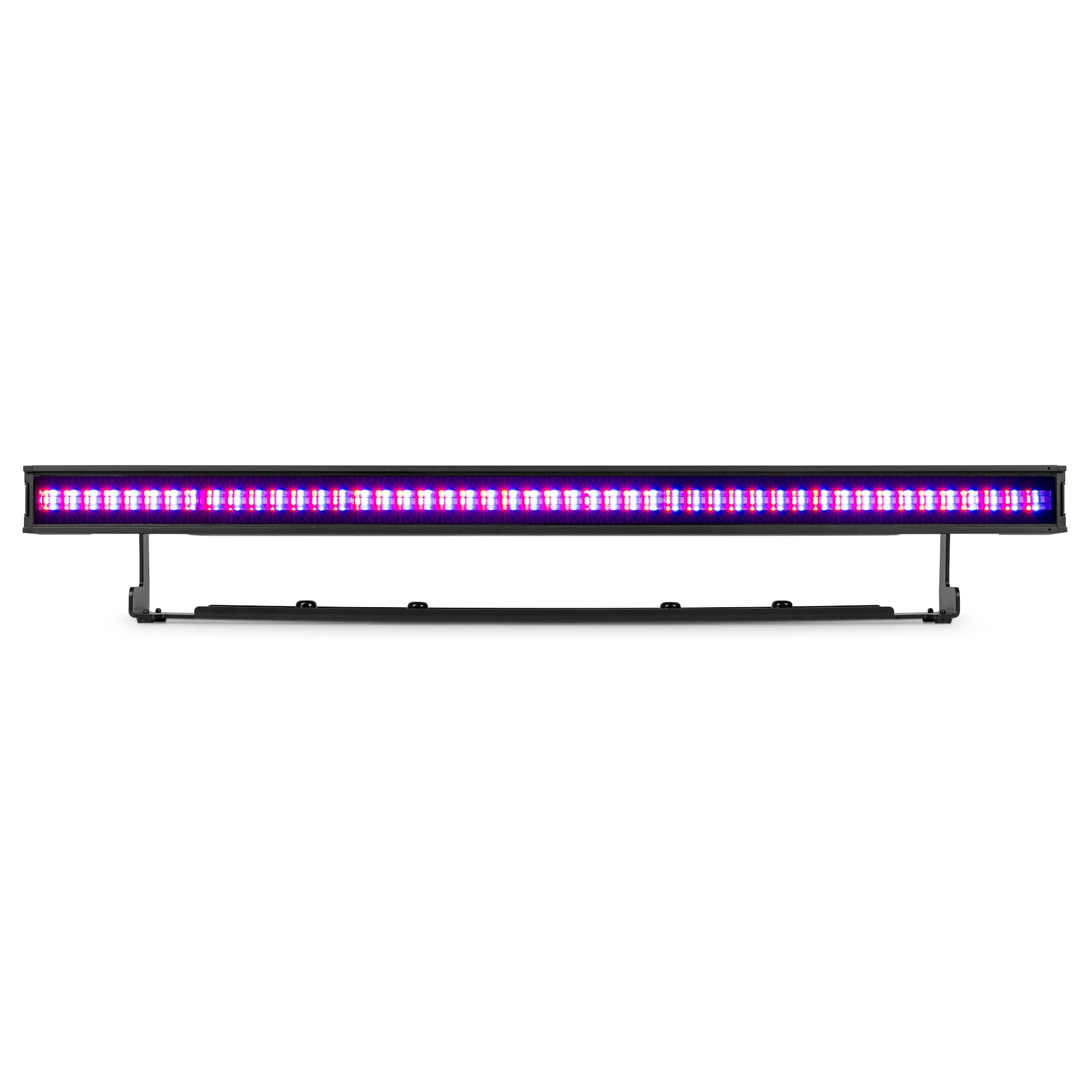

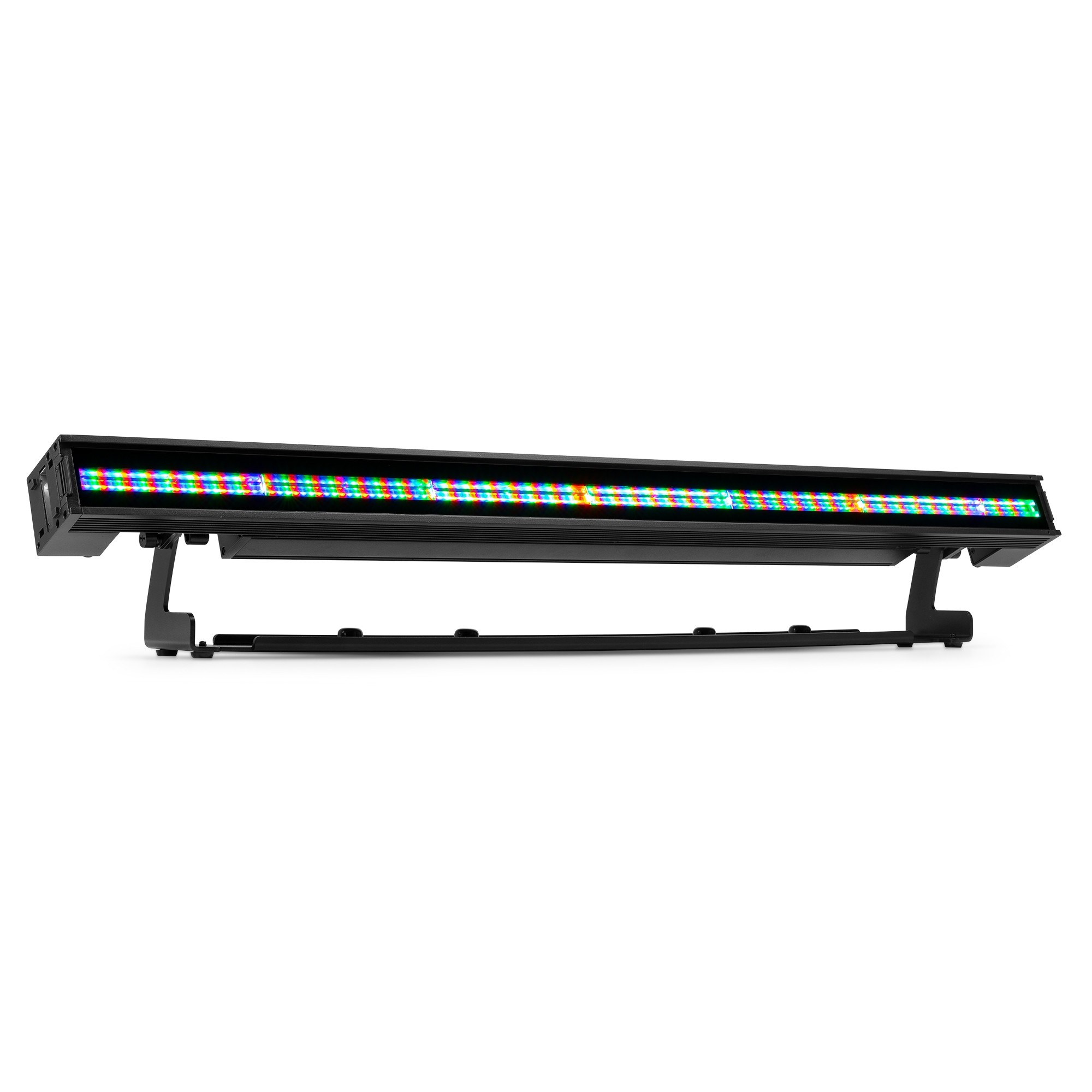

The DotBar CYC1 is equipped with 144 high-quality LEDs divided into 48 LEDs for each primary colour: red, blue and green. This ensures your stage or building is brilliantly illuminated, highlighting every detail for your audience. The versatile RGB LED technology allows for a wide range of colour combinations, from soft pastel shades to intense, vibrant hues. This flexibility makes it easy to create the perfect atmosphere for any event.

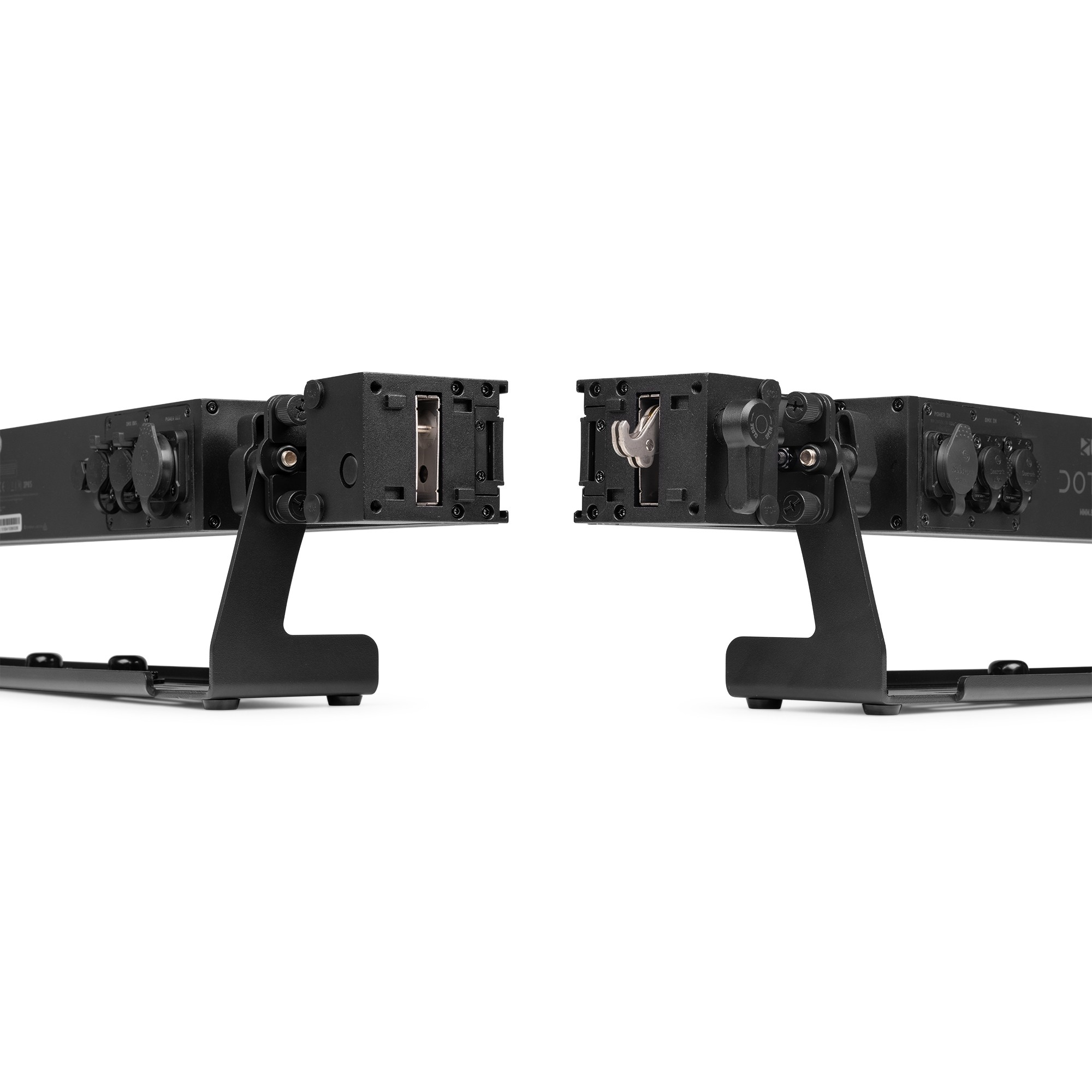

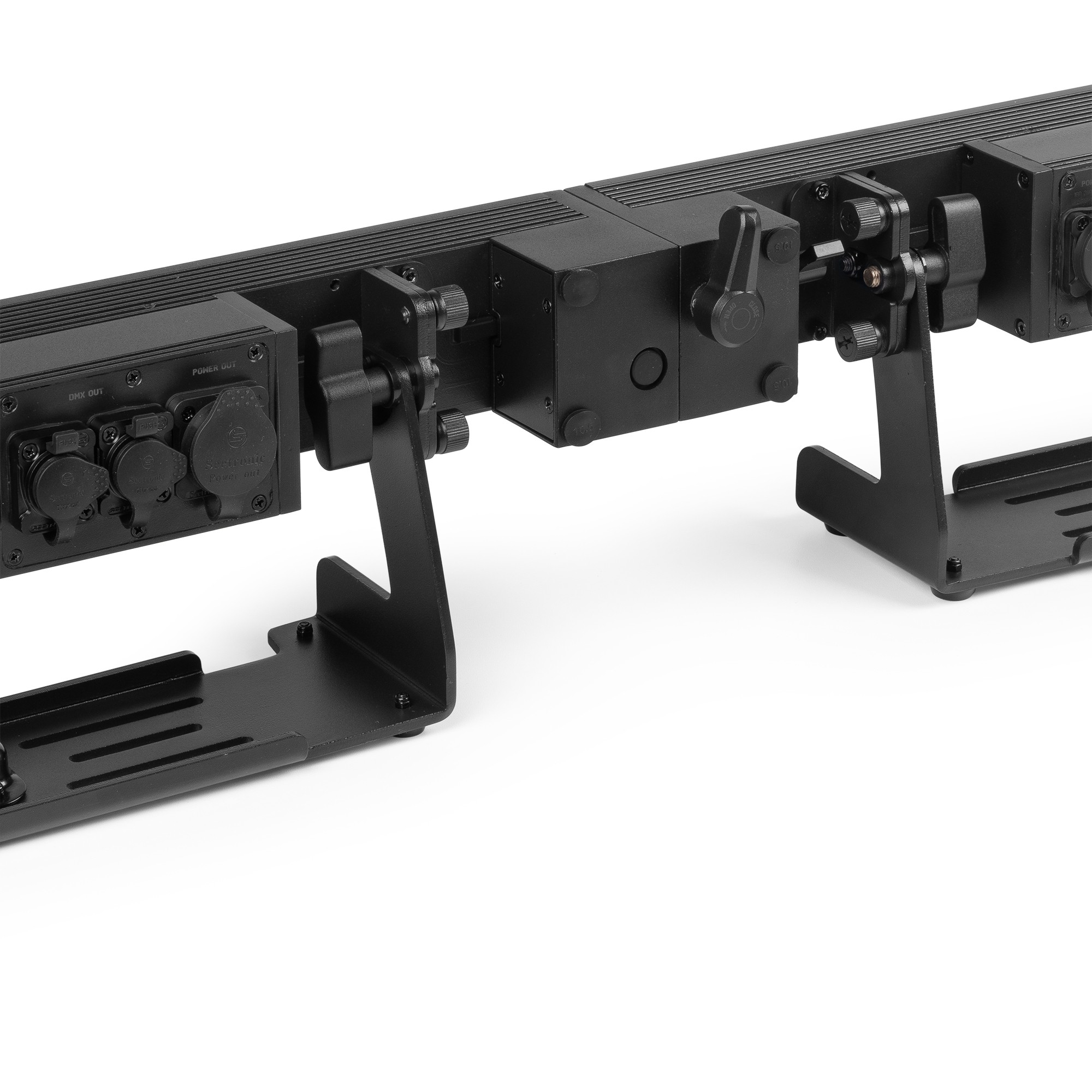

Built for durability, the DotBar CYC1 is designed to withstand the demands of touring and frequent use. Its robust construction and reliable performance make this Bar a favourite choice for lighting professionals and stage designers. The DOTBAR series features an easy and quick-to-use coupling system. The coupling system built into each Bar allows quick alignment and installation, making it easy to align and couple the different Bars in the DOTBAR series with each other. These fixtures can also be placed directly on the ground using the optionally available Baseplate, which features the same coupling system to ensure absolute stability. Truss mounting is also possible.

FEATURES:

Multi-Colour LED Wash RGB
IP65 for indoor/outdoor use
48pcs 1W Red + 48pcs 1W Blue + 48pcs 1W Green LED
RGB colour mixing
Pre-programmed shows and adjustable speed
4 Selectable dimming curves
DMX and Stand-alone mode
Master/slave function
DMX in/output via 3/5-pin XLR
P-Con TR Powerconnector input/output

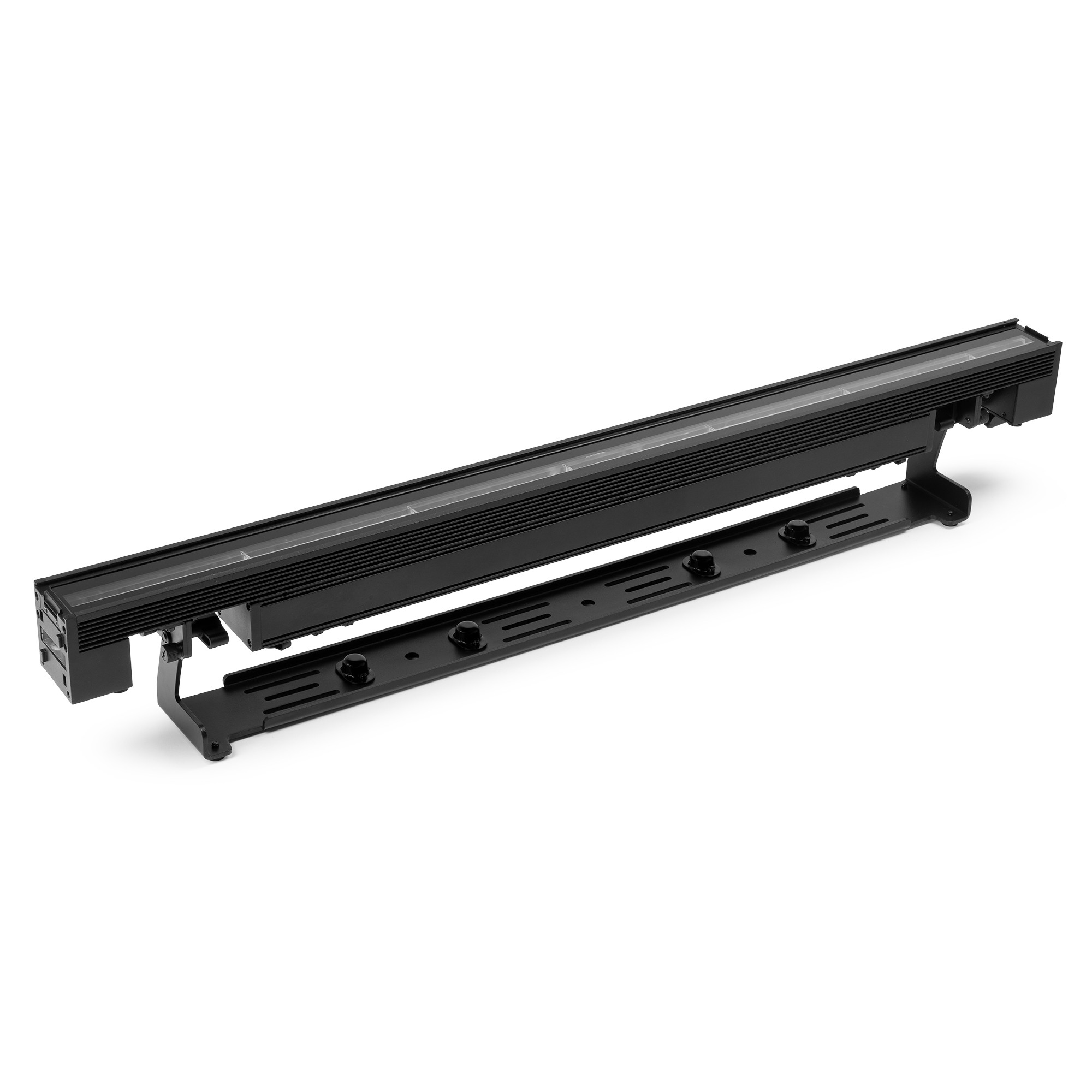

Aluminium housing with convection cooling

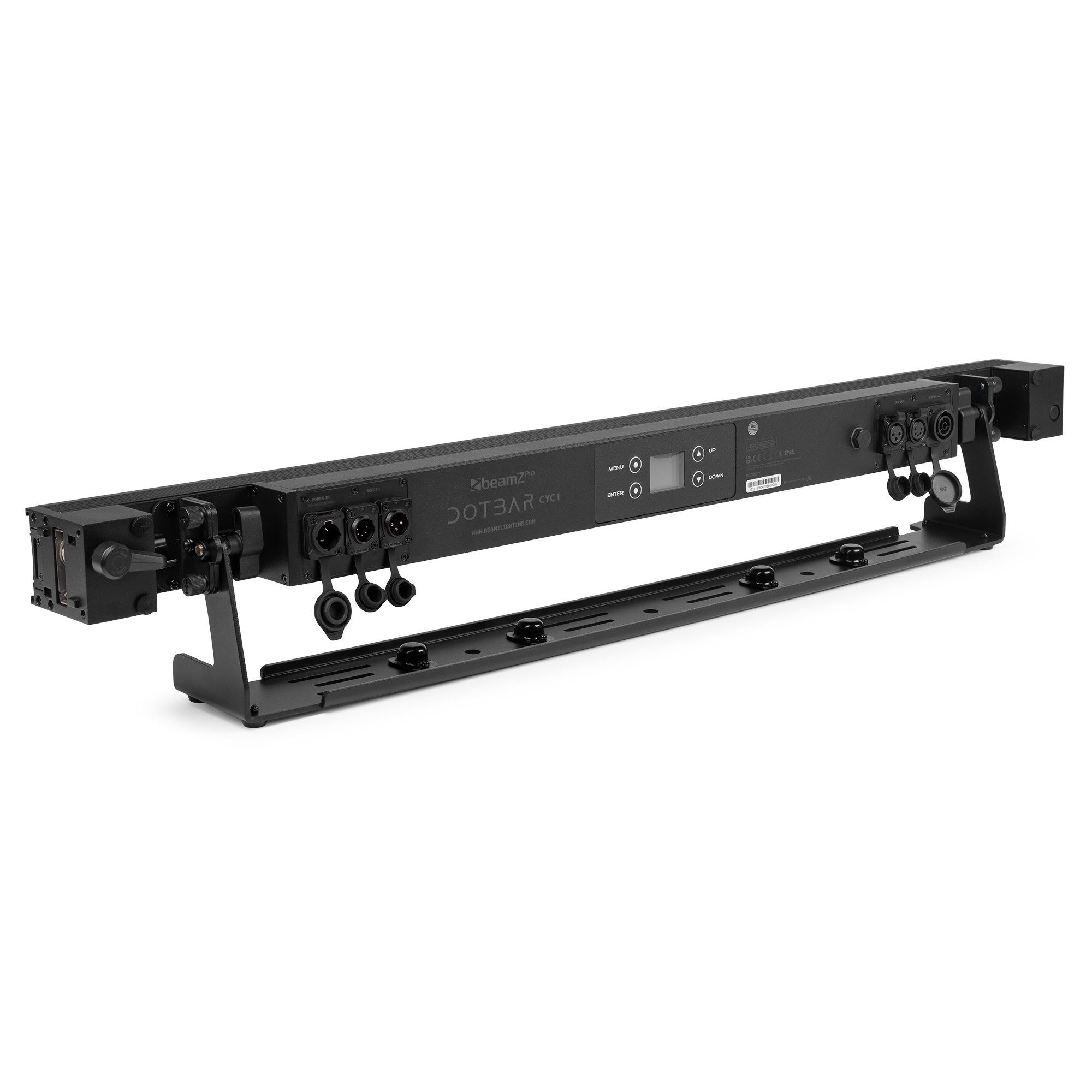

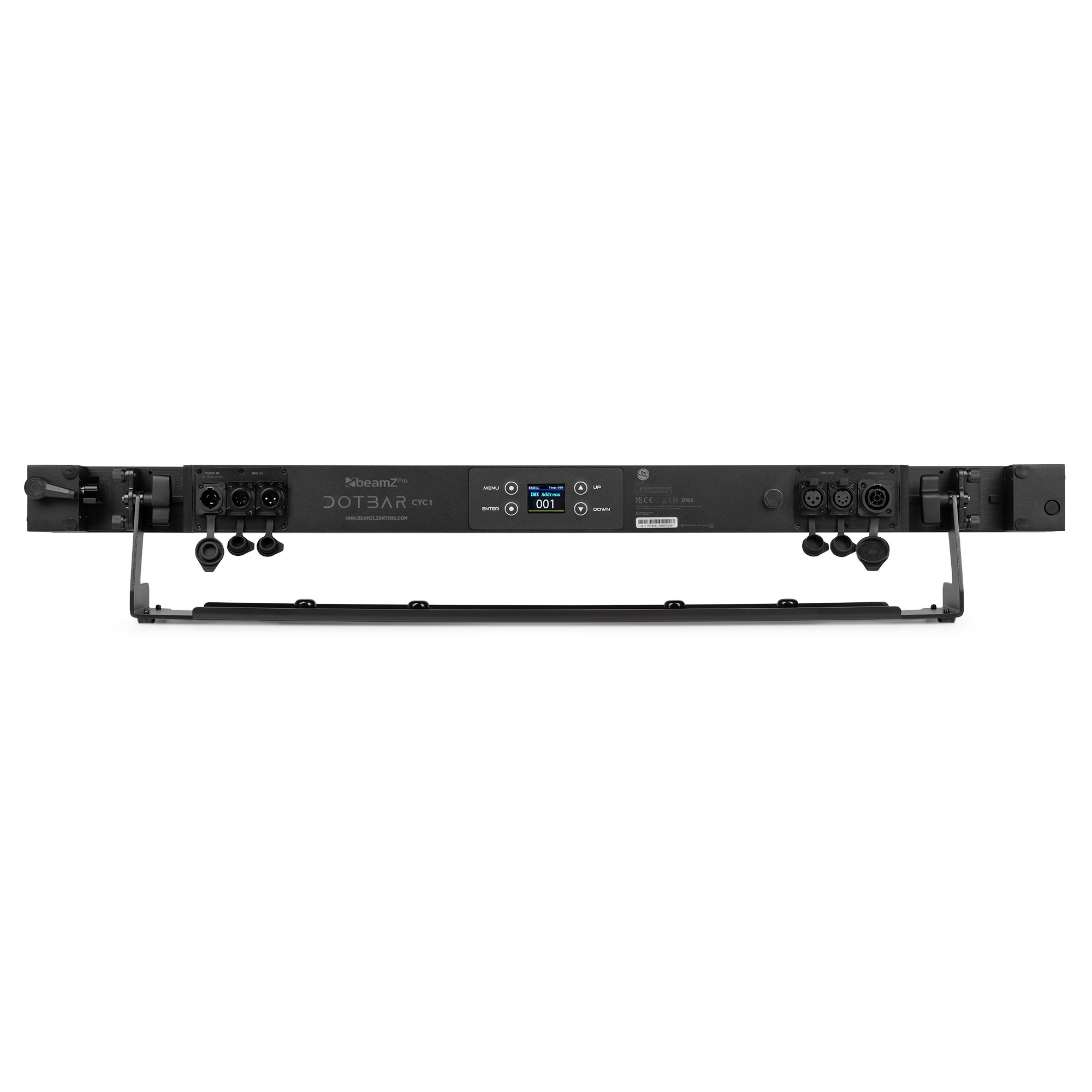

Control panel with LCD display
Adjustable bracket up to 90 degrees
Linkable with the quick-to-use coupling system
Including Omega Quick Lock brackets

SPECIFICATIONS:

Light source: 4-in-1 LED
Colours: Red, Green, Blue
LED power: 1W
Quantity of LEDs: 144
Beam angle: 14°
Field angle: 28°
Illuminance: 16.055 lx @ 1m
Flash rate per second: 1 – 23Hz
Modes: Automatic programs, DMX, Master/Slave
RDM: Yes
DMX channels: 3, 7, 11, 48, 53
DMX connection: 3-pin XLR, 5-pin XLR
IP rating: IP65
Cooling: Convection
Display: LCD
Power plug: P-Con TR1
Power consumption: 1.496 – 0.732A
Power supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 1010 x 90 x 160mm
Weight (kg): 7.3

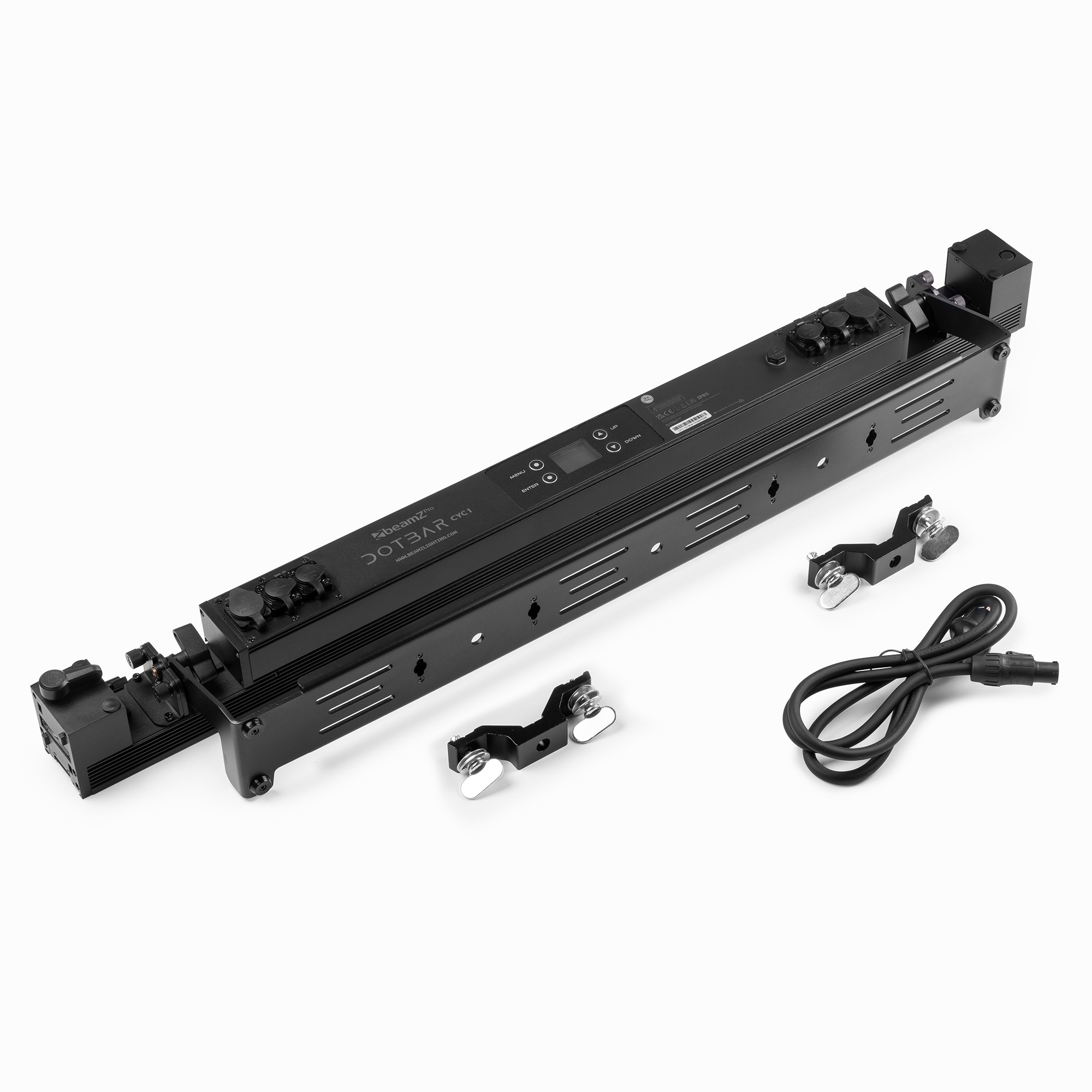

Included accessories: Remote control (wireless), Mounting bracket

Price-Flex

Price Flex

Name: BEAMZPRO DOTBAR CYC1 LED BAR RGB IP65
Brand: BeamZPro
SKU: 151.804B
Availability: InStock
