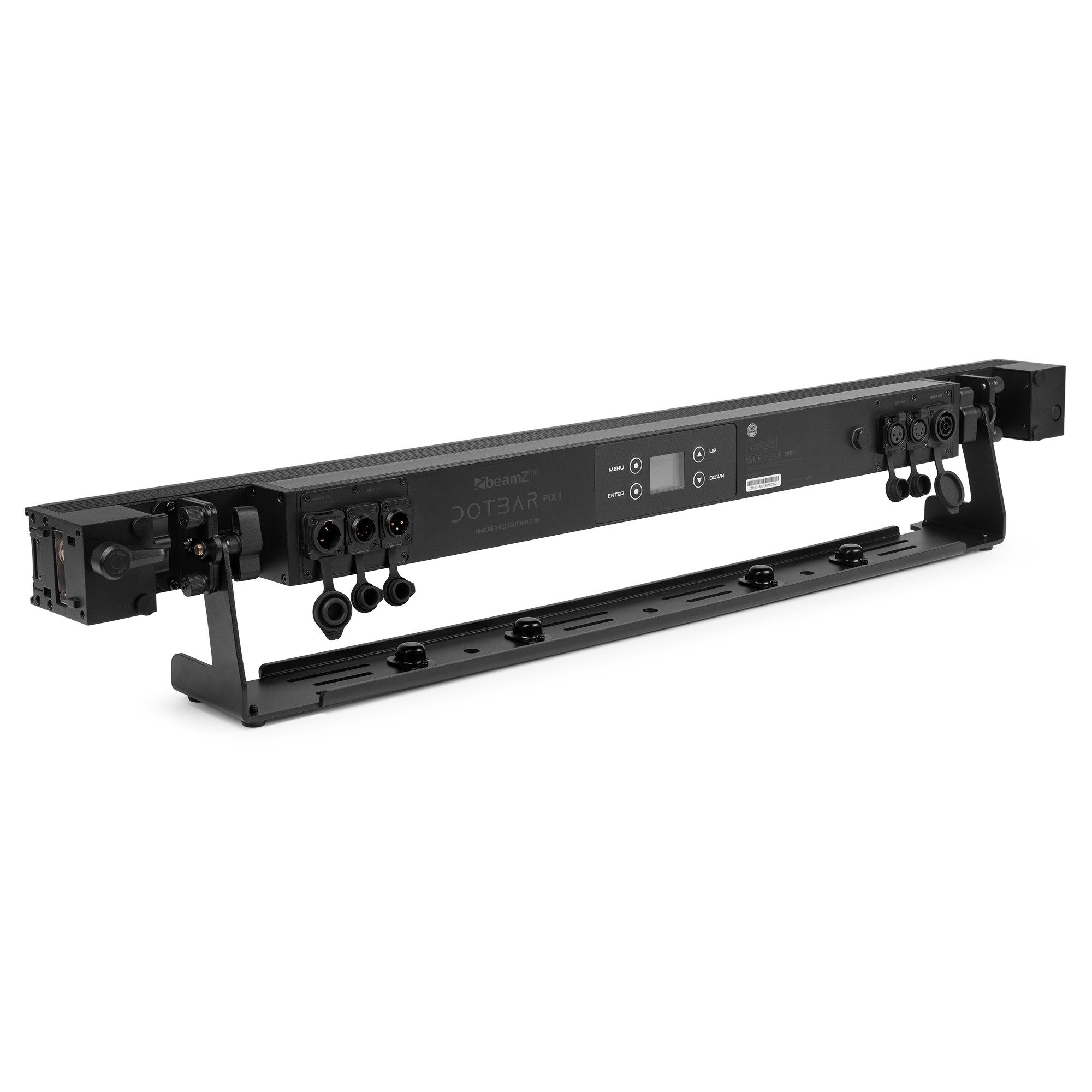

The DotBar Pix1 is an advanced compact STROBE BAR-Wall Washer with electronic frost, specially designed for indoor and outdoor use. The DotBar Pix1 guarantees a massive light output, but on the other hand is also energy-efficient, consuming 70% less energy than traditional lighting fixtures, with no flickering, UV or infrared radiation.
This advanced lighting solution features two zones: Zone 1 with 384 RGB LEDs, individually controllable over 32 zones with 12 LEDs, and Zone 2 with 96 CW LEDs controllable over 16 zones with 6 LEDs. Thanks to the unique design of the LED module, the white and coloured LEDs work seamlessly together, providing smooth dimming, dynamic macro-tracking and a wide range of strobe effects. The DOTBAR series features an easy and quick-to-use coupling system. The coupling system built into each Bar allows quick alignment and installation, making it easy to align and couple the different Bars in the DOTBAR series with each other. These fixtures can also be placed directly on the ground using the optionally available Baseplate, which features the same coupling system to ensure absolute stability. Truss mounting is also possible.

FEATURES:

STROBE BAR-Wall Washer RGBW
Electronic Frost
IP65 for indoor/outdoor use
384x SMD RGB LEDs
96x SMD Cool White LEDs
Separate controllable sections (32 RGB and 12 CW sections)
Flicker Free LED driver
Pre-programmed shows and adjustable speed
Strobe effect and Electronic dimming
DMX and Stand-alone mode
Master/slave function
DMX in/output via 3/5-pin XLR
P-Con TR Powerconnector input/output
Aluminium housing with convection cooling

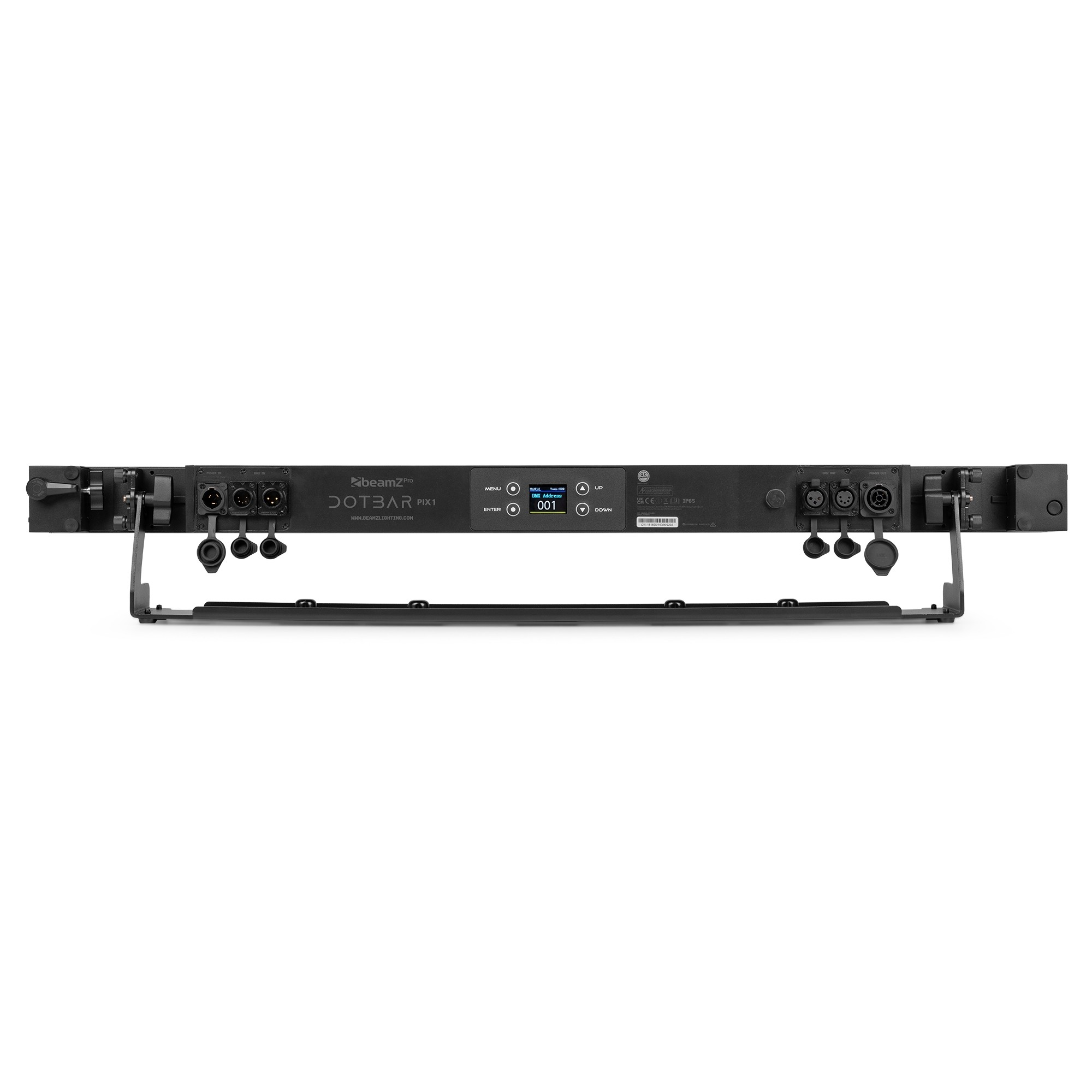

Control panel with LCD display
Adjustable bracket up to 90 degrees

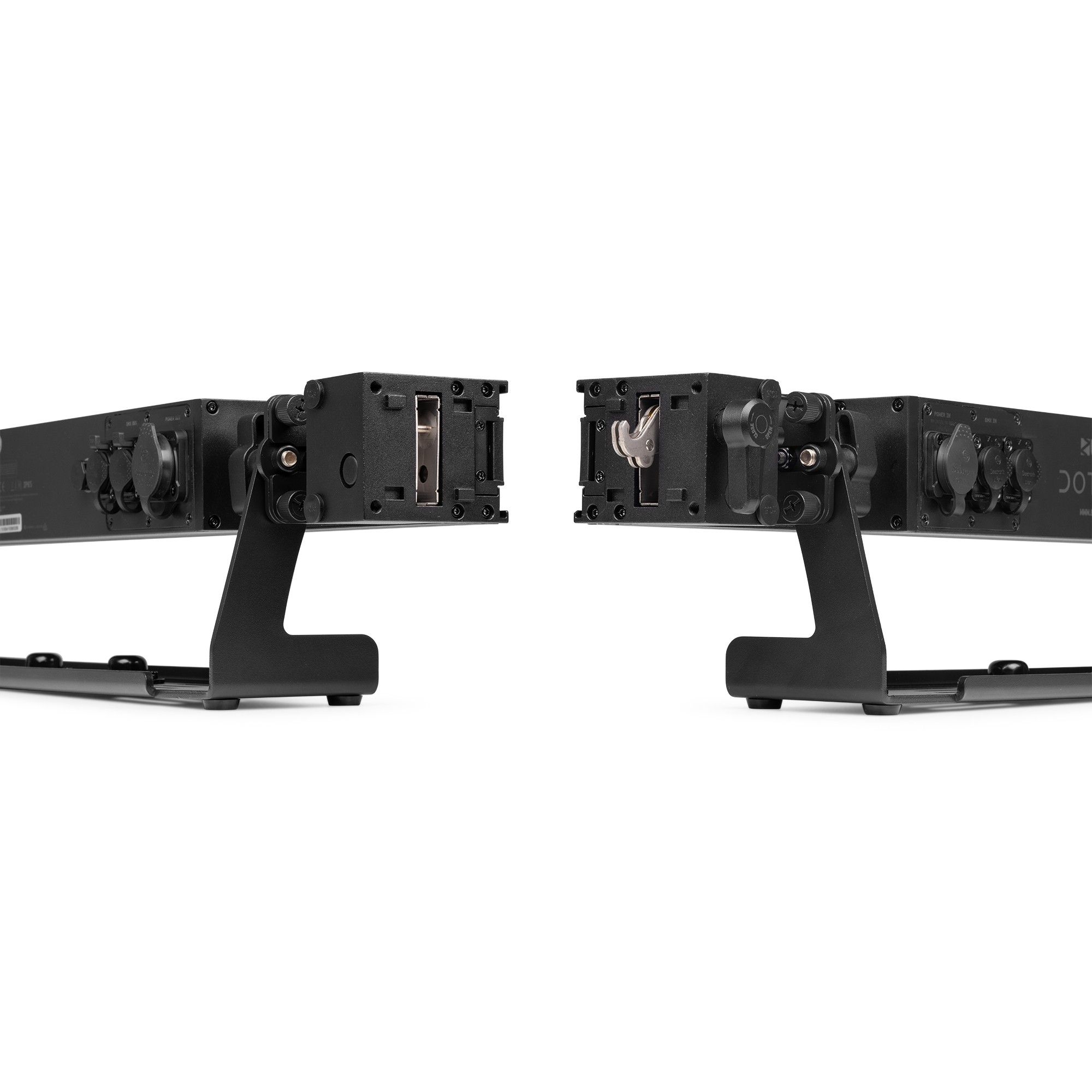

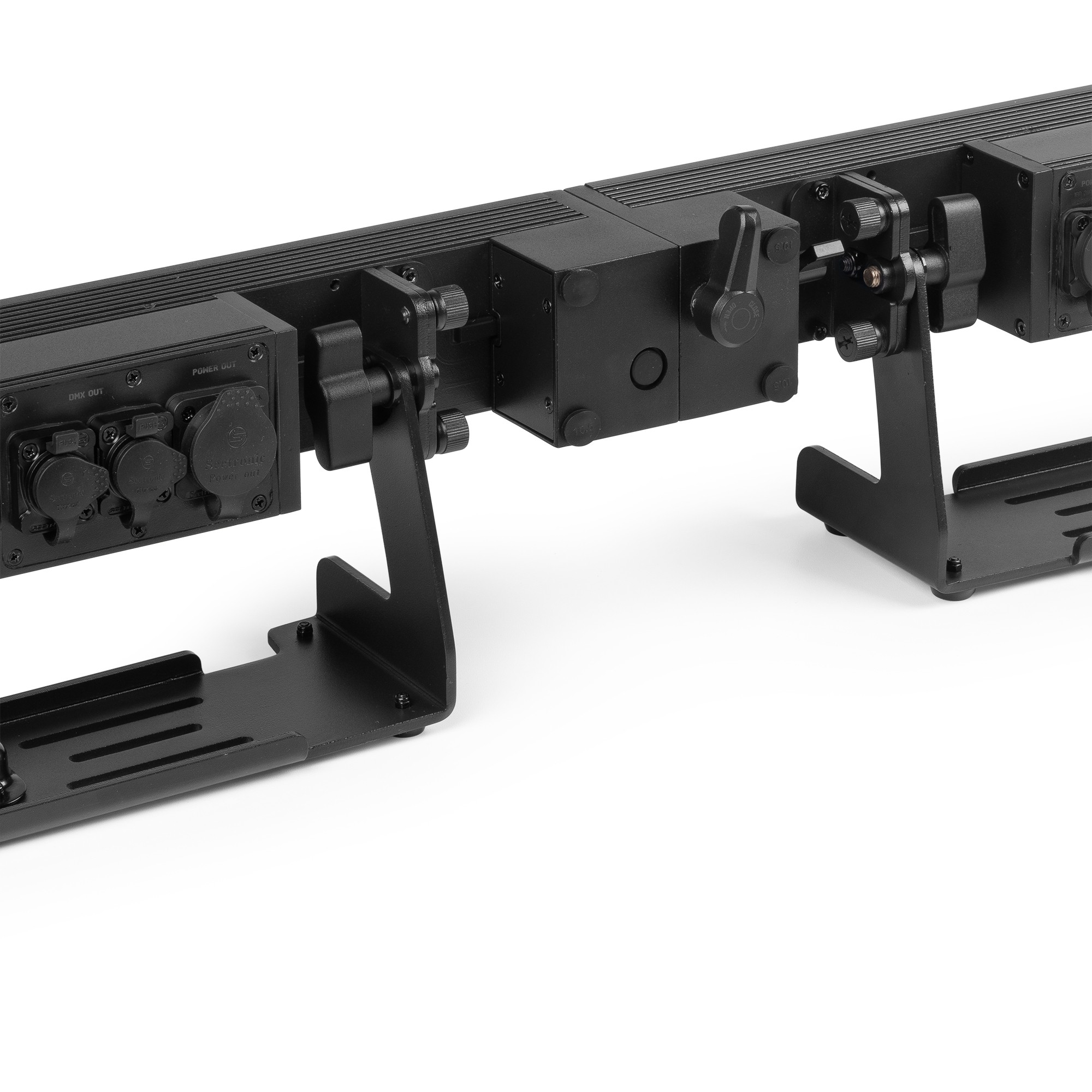

Linkable with the quick-to-use coupling system
Including Omega Quick Lock brackets

SPECIFICATIONS:

Light source: Single colour LED, 3-in-1 LED
Colours: Red, Green, Blue, Cool White
LED power: 0.5W, 1W
Colour temperature: 6500K
Quantity of LEDs: 384 RGB
Quantity of strobe: LEDs 96 CW
Beam angle: 46° x 58°
Field angle: 105° x 105°
Illuminance: 12.984 lx @ 0.5m
Flash rate per second: 1 – 19Hz
Modes: Automatic programs, DMX, Master/Slave
RDM: Yes
DMX channels: 3, 13, 24, 38, 52, 96
DMX connection: 3-pin XLR, 5-pin XLR
IP rating: IP65
Cooling: Convection
Display: LCD
Power plug: P-Con TR1
Power consumption: 1.028 – 0.509A
Power supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 1000 x 90 x 160mm
Weight (kg): 6.65

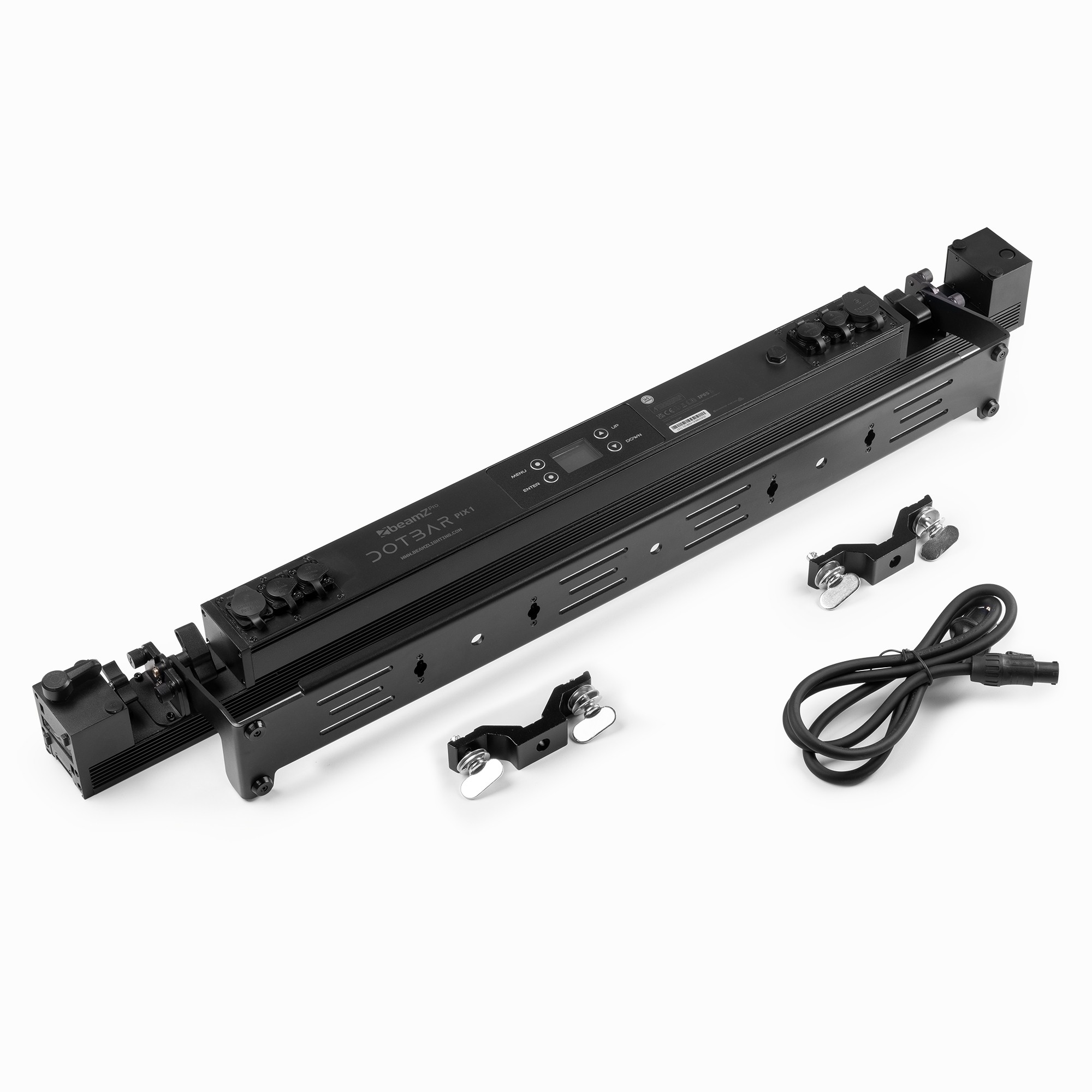

Included accessories: Mounting bracket

Price-Flex

Price Flex

Name: BEAMZPRO DOTBAR PIX1 LED BAR RGBCW IP65
Brand: BeamZPro
SKU: 151.800B
Availability: InStock
