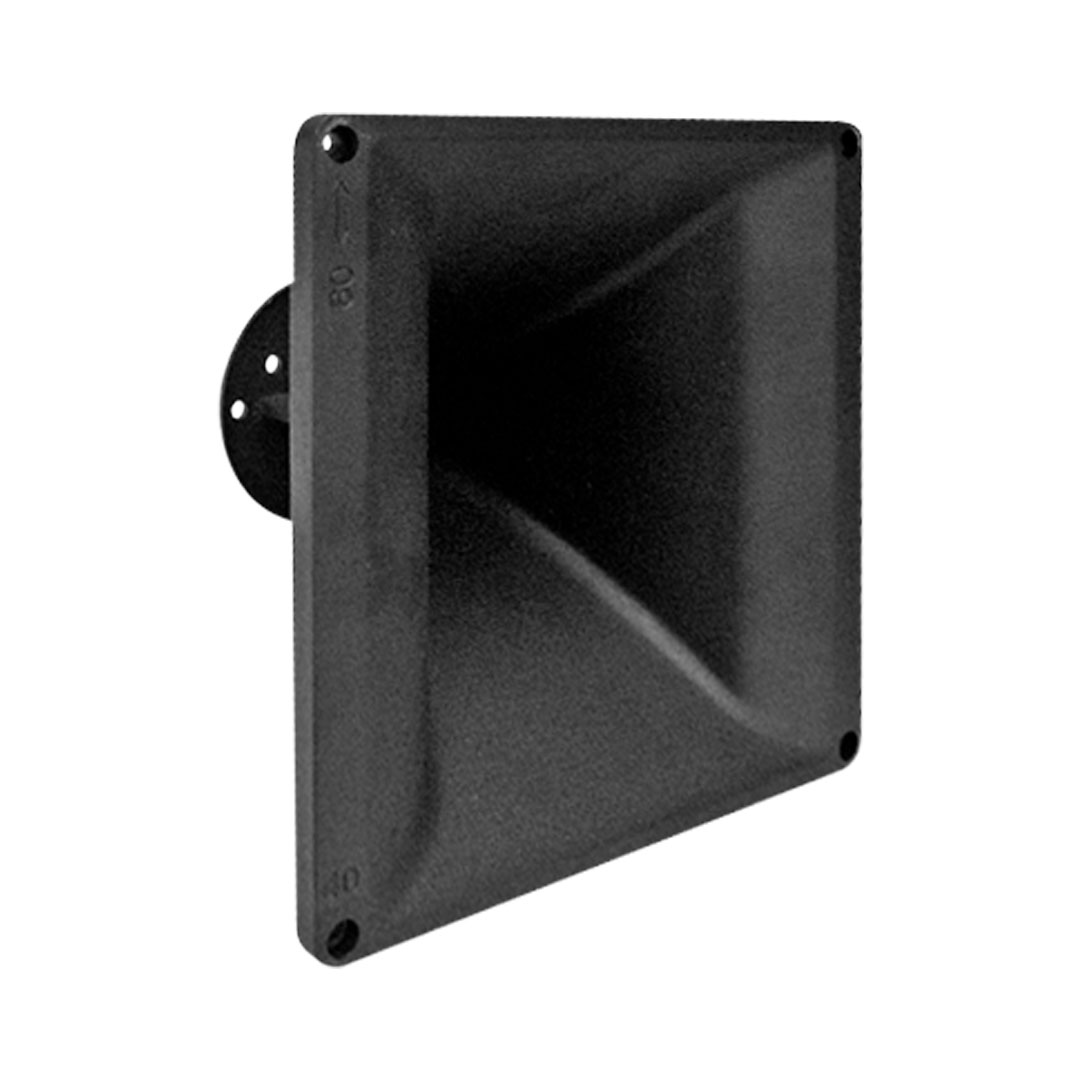

TD-164 – Constant Directivity Horn

The TD-164 is a robust horn designed for use with 1” compression drivers, delivering coverage angles of 60° horizontally and 40° vertically for precise directivity control within its pass band. Its square, compact design provides versatile mounting options, making it adaptable to various sound system configurations. Constructed from durable cast aluminium, the TD-164 offers superior strength, reliability, and acoustic performance for professional audio applications.

Technical Specifications
Throat diameter: 25,4 mm (1”)
Horizontal beamwidth: 60º (+10º, -5º) (-6 dB, 2 – 16 kHz)
Vertical beamwidth: 40º (+31º, -2º) (-6 dB, 3 – 16 kHz)
Directivity factor (Q): 14,1 (average 0,8 – 16 kHz)
Directivity factor (Dl): 11 dB (+2 dB, -6,4 dB)
Cut-off frequency: 1200 Hz
Dimensions (W x H x D): 202 x 202 x 145 mm
Cut-out dimensions (W x H): 177 x 177 mm
Net weight: 1 kg
Shipping weight: 1,3 kg
Material: Cast Aluminium
