Beyma TD-196P
OUT OF STOCK
R0
Availability: Out of stock

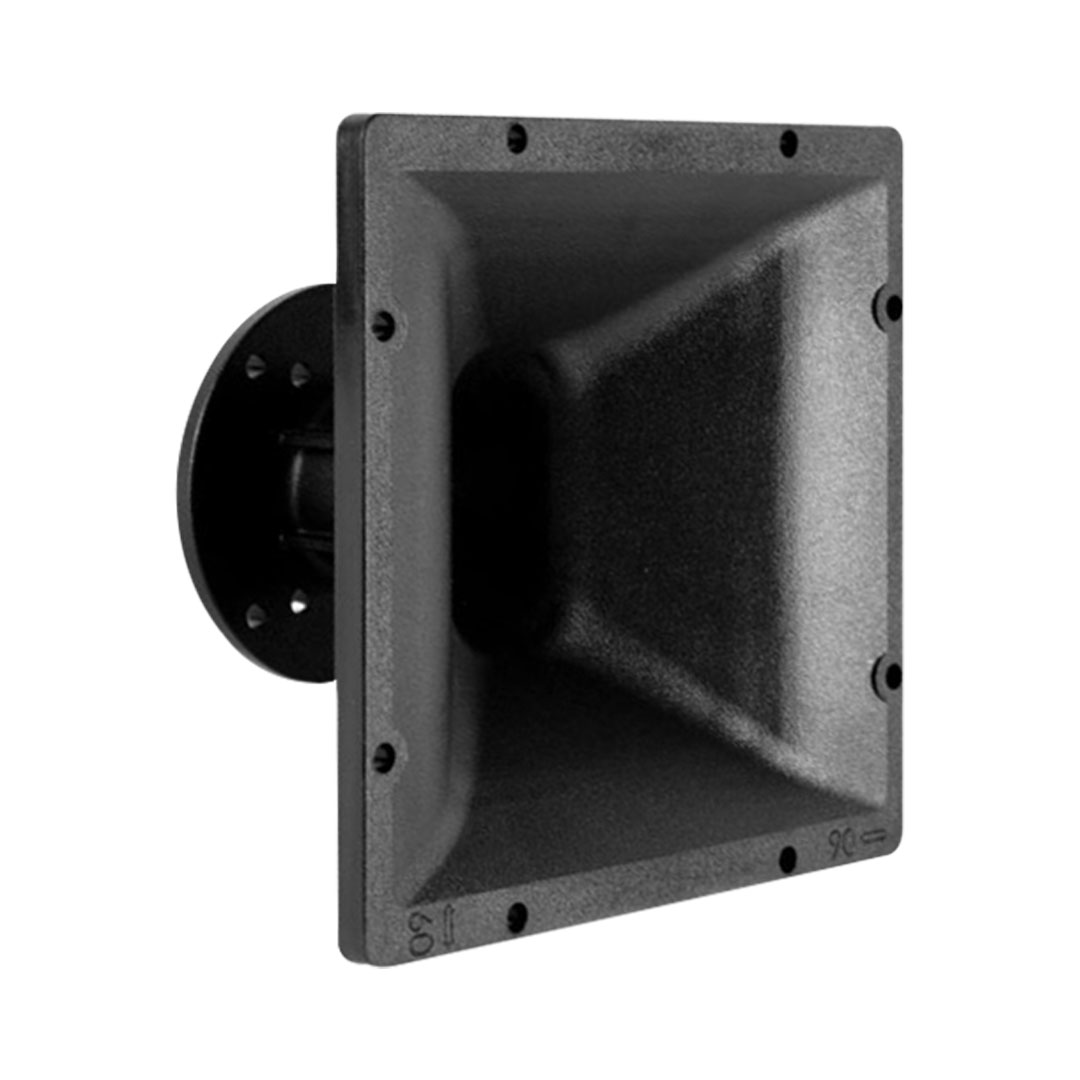

TD-196P – Constant Directivity Horn
The TD-196P is a high-performance horn designed for compression drivers with a 1” (25.4 mm) throat diameter. It provides wide coverage angles of 90° horizontally and 60° vertically, ensuring precise directivity control across its operating band. Its squared, compact design allows for versatile, rotatable mounting options, making it suitable for a range of sound reinforcement applications. Built from heavy-duty reinforced polycarbonate, the TD-196P offers exceptional durability, while its F.E.M.-optimized flare enhances acoustic efficiency and delivers clear, consistent sound dispersion.
Technical Specifications
Throat diameter: 25,4 mm (1”)
Nominal Coverage Horizontal: 90 °
Nominal coverage Vertical: 60°
Directivity Index (DI): 8.8 dB
Cut-off frequency: 1500 Hz
Material: Reinforced Polycarbonate
