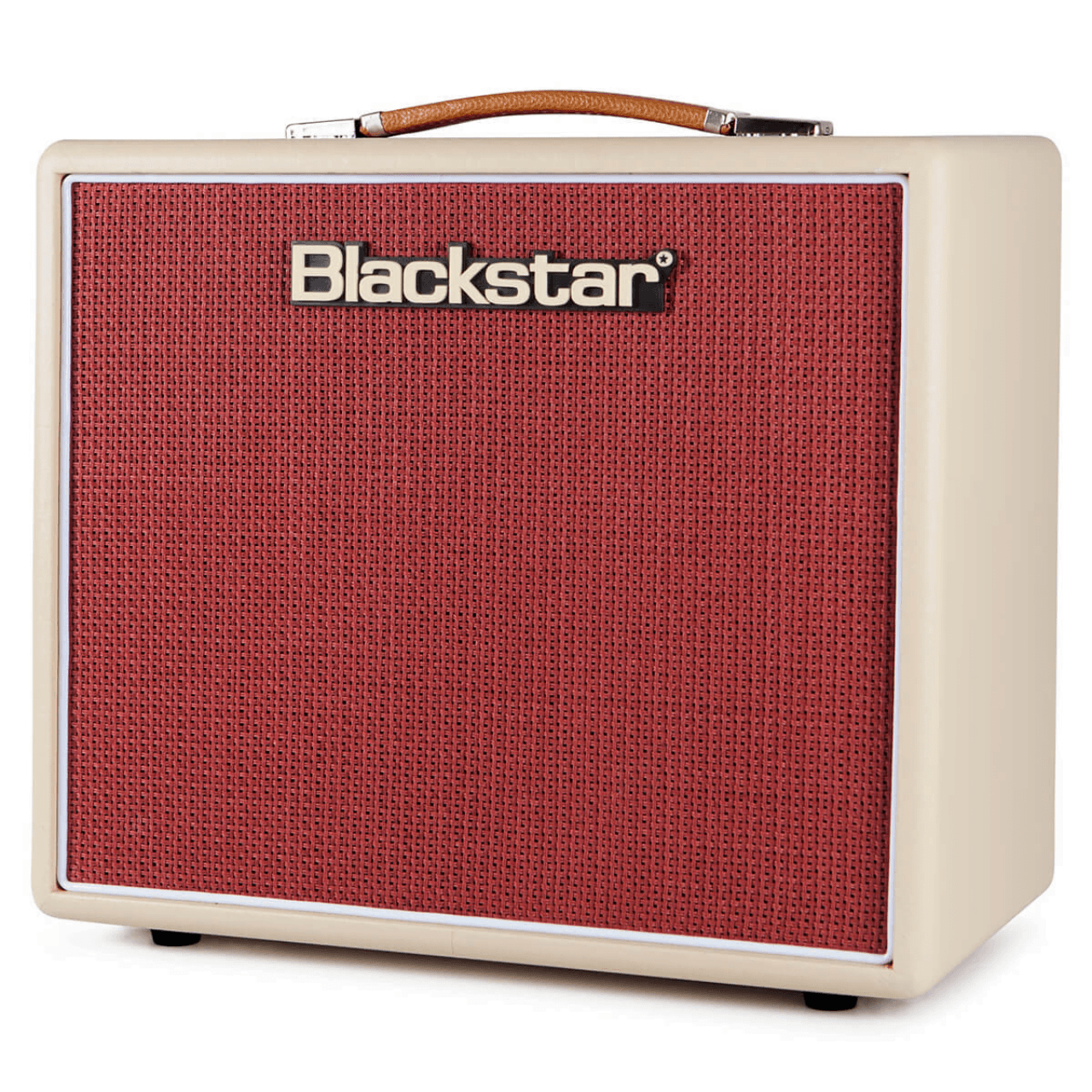

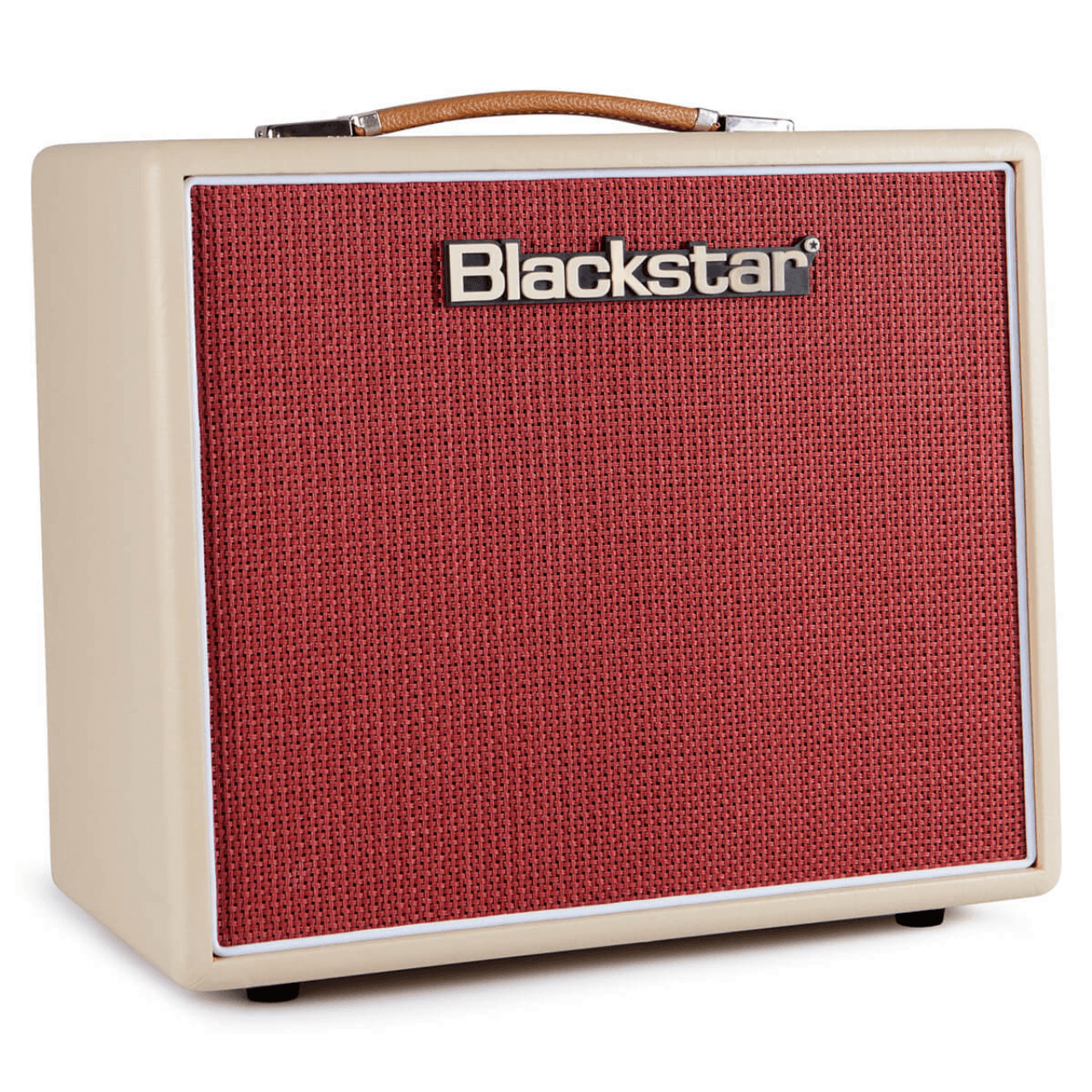

Studio 10 6L6 deploys a 6L6 output valve and an ECC83 in the preamp stage to give this amp a distinctively American bright clean sound and searing lead tone. The built-in overdrive circuit – inspired by our renowned HT-Drive pedal – takes the lead tone from dynamic crunch to a singing, smooth legato and remains composed and graceful.

Key Features

• Front Panel – Input Sockets, Gain, Drive, Tone, Reverb, Master, Standby, Power
• Rear Panel
  • Emulated Output (Mono, taken after the power amp)
  • Series effects loop
  • Effects level switch
  • Footswitch (Supplied 1-button to activate boost feature, or use an optional 2-button for boost or overdrive and reverb)
  • Mains in
  • 3 speaker outputs – 1 x 16 Ohm, 1 x 8 Ohm and 2 x 16 Ohm

General Specifications

• Power:  10W
• Valves
  • 1x ECC83
  • 1x 6L6
• Speaker:  1x 12″ Celestion Seventy-80
• Boost/Drive Option:  Drive
• Controls
  • Gain
  • Tone
  • Reverb
  • Master
  • Drive Button
• Emulated Output:  Yes
• Effects Loop:  Yes (Series)
• Speaker Output
  • 1 x 16 Ohm
  • 1 x 8 Ohm
  • 2 x 16 Ohm
• Dimensions:  473mm X 421mm X 251mm
• Weight:  14.7kg
