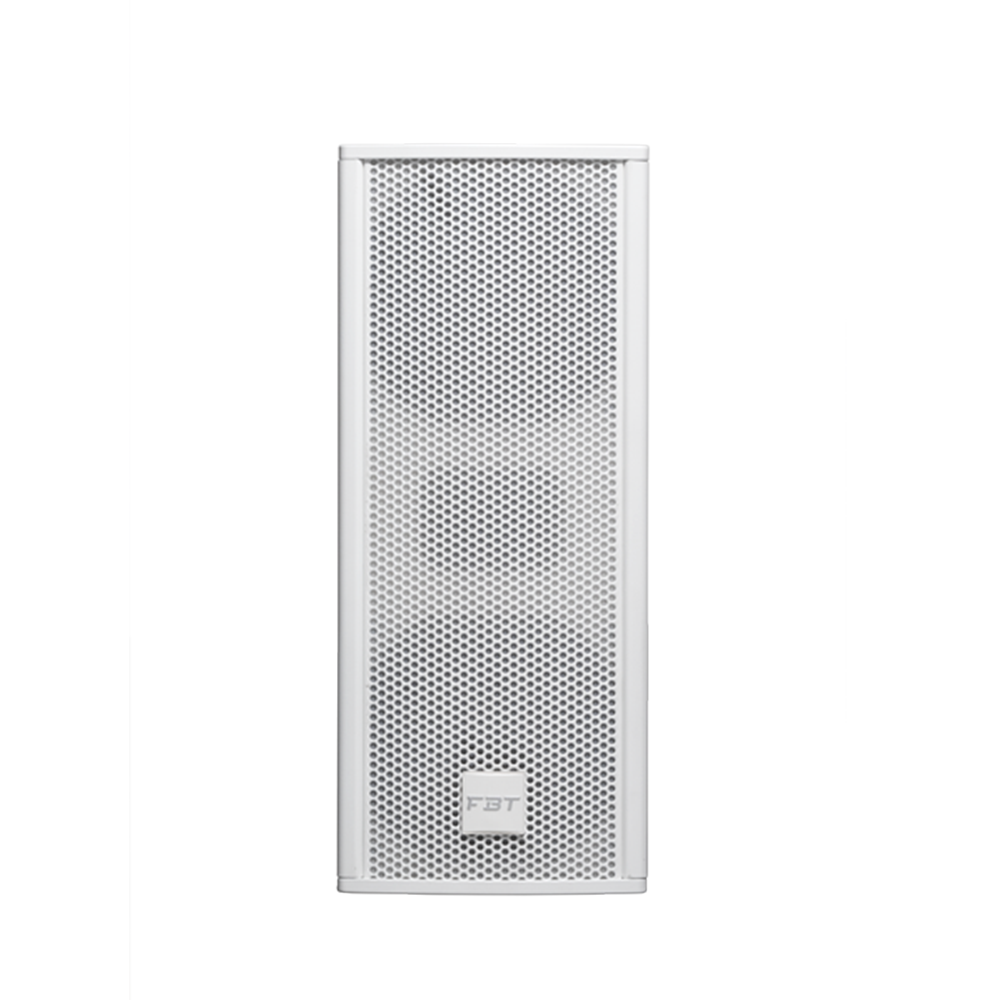

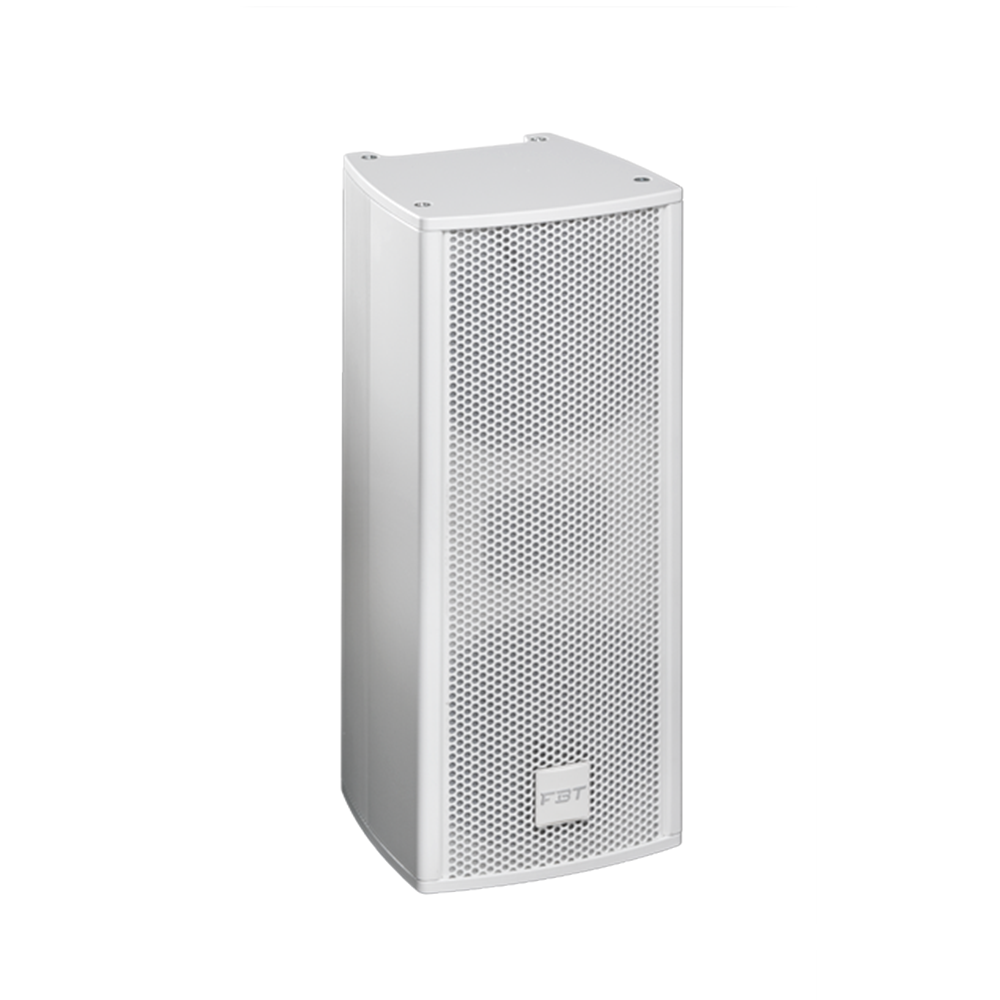

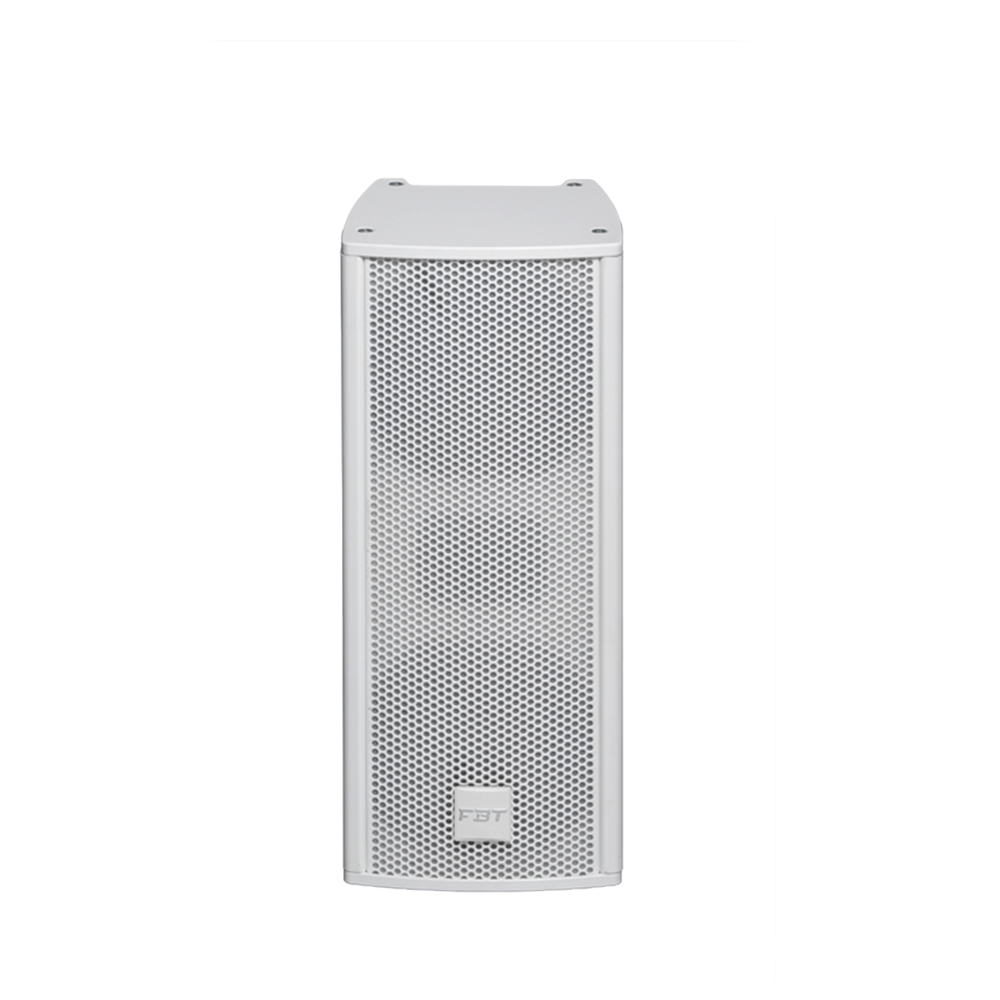

BT VERTUSCLA204TW 2X4″ PASSIVE COLUMN LINE ARRAY 80W RMS 100V WHITE

VERTUS CLA 204T is a passive 2-way column speaker designed for fixed indoor installations where high speech intelligibility, compact design, and architectural integration are key. The enclosure houses two custom 4″ woofers with 1″ voice coils and a 1″ neodymium dome tweeter, in an extruded aluminum body available in black or white finishes. It integrates a switchable 70V/100V transformer with power taps at 30/20/10/5W, and offers an 8 Ohm low-impedance input. Connection is via ceramic screw-terminal block with through wiring. With a frequency response from 130 Hz to 20 kHz and SPL of 103 dB, the CLA 204T is ideal for speech and background music distribution. Horizontal and vertical dispersion patterns ensure wide coverage in small to medium-sized spaces. The enclosure is EN 54-24 certified and IP21C rated. Four integrated rear mounting points allow installation via the optional WM-23 adjustable wall bracket.

FEATURES:

• Configuration: 2-way
• Low Frequency Woofer: 2 × 4″ / 1″ VC
• High Frequency Driver: 1″ neodymium dome tweeter
• Transformer: 70V/100V – taps: 30 / 20 / 10 / 5 W taps
• Recommended Amplifier: 80W RMS
• Max SPL: 103 dB
• Material: Extruded aluminum with perforated steel grille

SPECIFICATIONS:

• Configuration: 2 way
• Recommended amplifier: 80W RMS
• Nominal impedance: 8 Ohm
• Frequency response: 130Hz – 20kHz @ 6dB
• High frequency driver:1″ Dome
• Low frequency driver: 4×3” – 0.75” VC Fullrange Driver
• Sensitivity (@1W/1m): 88
• Maximum SPL cont/peak: 103/91dB
• Dispersion: 120°x130° HxV (2kHz)
• Recommended HP filter: 110hz – 24dboct
• Input connector: Ceramic screw bloc
• Net Dimensions (W × H × D):130 x 312 x 147 mm
• Net Weight: 3.5kg
