ChamSys MagicQ MQ70 Compact Console

R0.00


ChasmSys MagicQ MQ70 Compact Console

Availability: Out of stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: CHAM-MQ70 COMPACT Categories: Brand:

Product Description

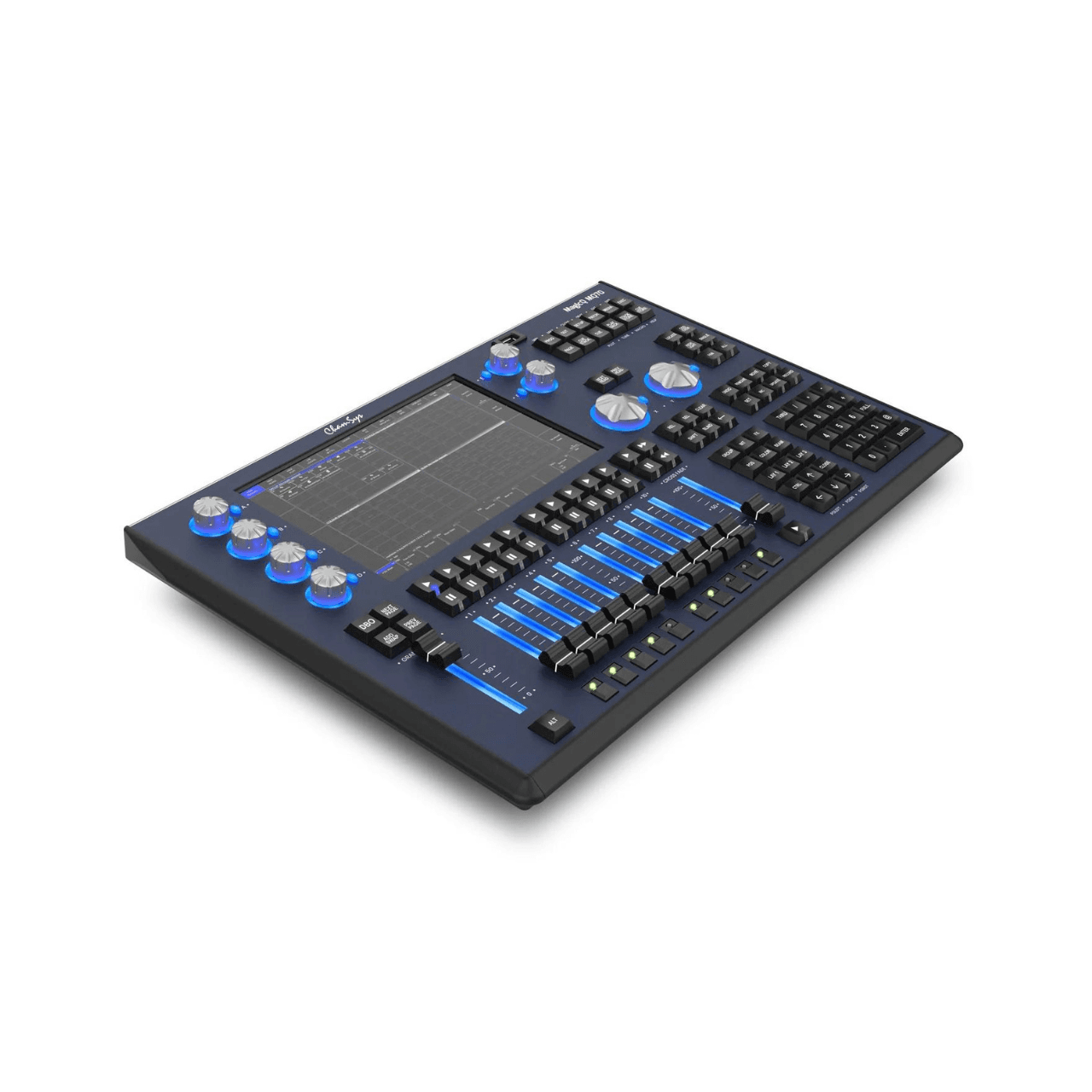

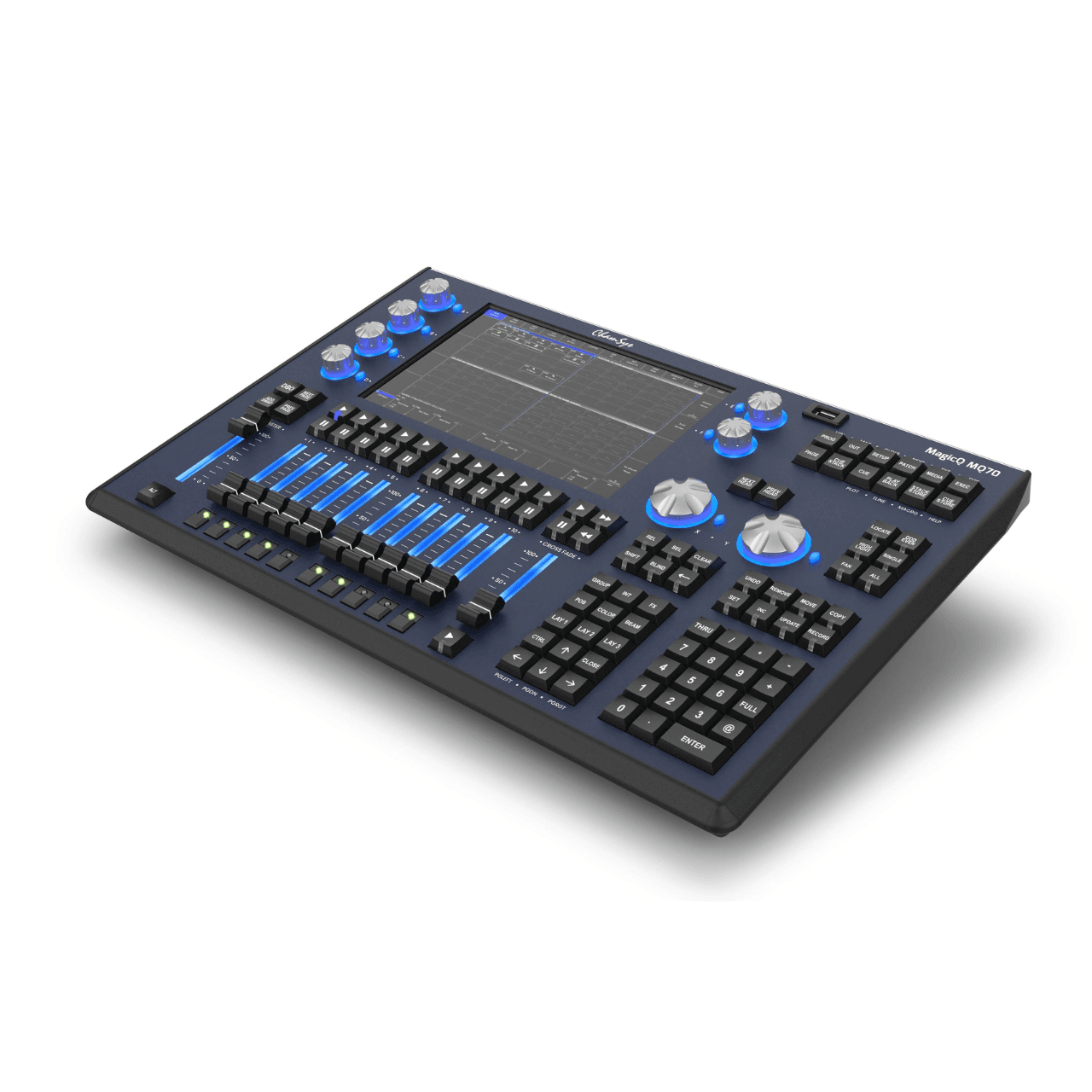

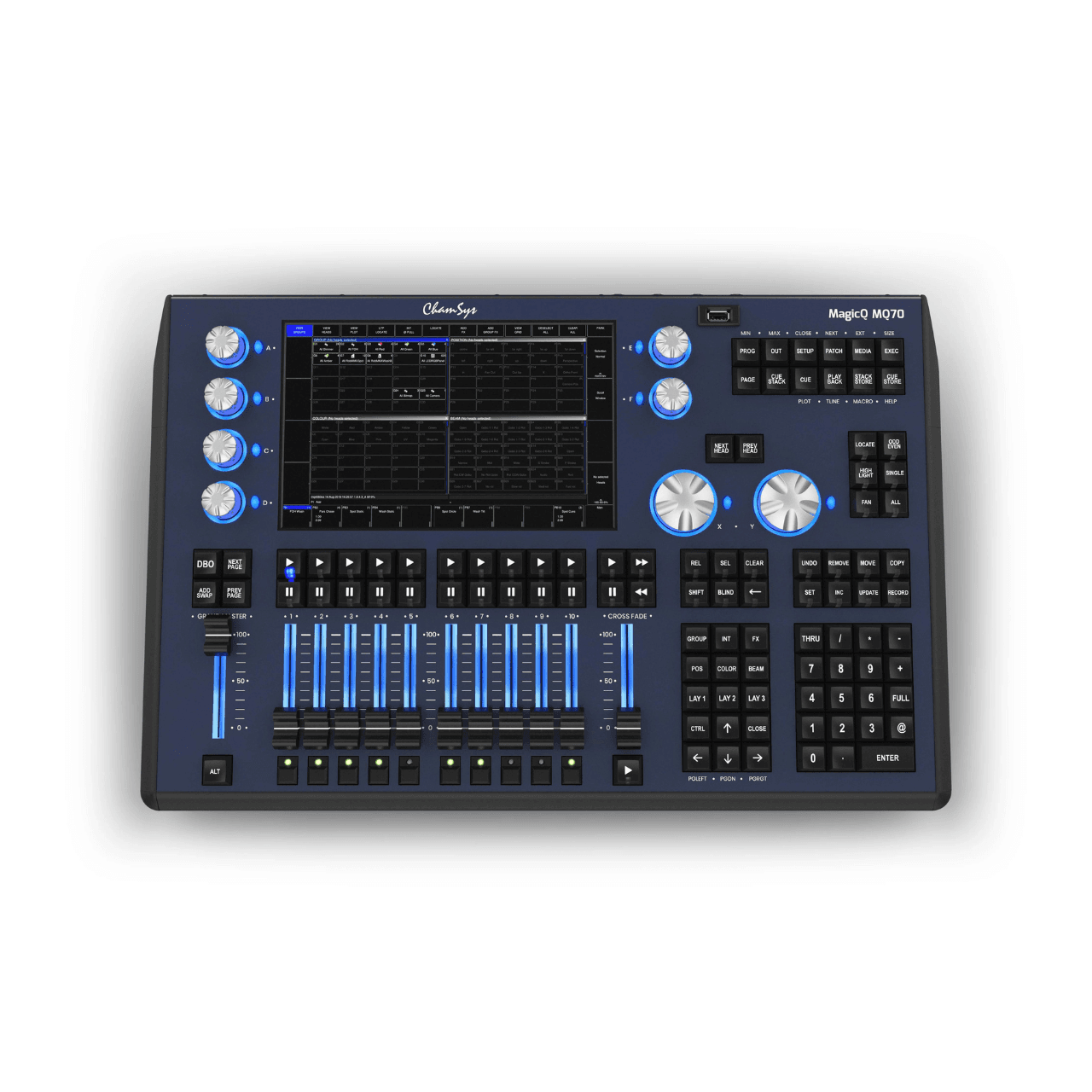

MagicQ MQ70 is the latest offering in the Compact Console range of small and lightweight consoles that you can fly with. The MagicQ MQ70 fits within hand luggage carry on restrictions of all the major budget airlines including, Southwest, Easyjet and Ryanair. The console features a 10.1” Multi touch display, with illuminated encoder and fader tracks.

The console supports 24 universes with an option to expand to 48. The console has three network ports enabling ArtNet and sACN direct from the console, whilst also having four assignable physical DMX ports supporting RDM. This feature packed console also includes WIFI inbuilt to the console for quick connection to ChamSys MagicQ Remote focus application without the need for external networking hardware.

The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan – enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.

With built-in MIDI input and output, LTC and audio input for synchronization, the MagicQ MQ70 provides many options for integration with show control and audio systems.

The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).

Key Features

  • 24 universes direct from the console, expandable to 48
  • Fits as carry-on luggage for all major budget airlines
  • High-resolution 10.1″ multi-touch display
  • In-built WiFi for quick connection to MagicQ Remote App
  • UPS built into the console
  • RDM support via direct DMX Ports and Network
  • Silent operation, ideal for theatres

MagicQ Software

MagicQ software offers powerful lighting control, full lighting visualisation, pixel mapping, and HD media playback that lighting designers rely on for everything from simple to the most complex shows.

MagicQ Software

General Specifications

  • Universes Direct From The Console (via Artnet/sACN/Pathport): 24 *Expandable to 48
  • Direct DMX Outputs: 4
  • RDM Support: Yes
  • In-built WiFi: Yes
  • Playbacks: 10
  • Grand Master Fader: 1
  • Crossfade Master Fader: 1
  • Attribute Encoders: 8
  • Dual Colour Illuminated Playbacks: Yes
  • Illuminated Encoders: Yes
  • Network Ports: 3
  • Inbuilt 10.1″ HD Multi-Touch Display: 1
  • External Monitor up to 1920×1200 Resolution – HDMI: 1
  • USB Ports: 5
  • Audio Input (1 channel, 7 band): Yes
  • Audio Output: Yes
  • MIDI Ports: 1 in, 1 out
  • LTC Timecode In Port:1
  • Remote Input Port: 1
  • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
  • Max Number of DMX Channels: 12288 *expandable to 24576
  • Max Number of Fixtures Supported: 12288 *expandable to 24576
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Numbers of Shows: Virtually unlimited
  • Dimensions (WxDxH):  525mm x 350mm x 60mm / 20.6″ x 13.7″ x 2.3″
  • Weight: 7kgs / 15.4lbs
  • Accessories Included: 1x dual colour desk light, 1x dust cover, 1x Neutrik powerCON TRUE1 power cable
  • The MQ70 uses a 12v Sealed Lead Acid Battery. MSDS (Manufacturer battery Safety sheet) can be found here

*48 Universe upgrade available via software key. The 48 universe upgrade to MQ70’s is non-transferable between consoles. Once upgraded, the console will always run 48 universes. Contact your local distributor for pricing
