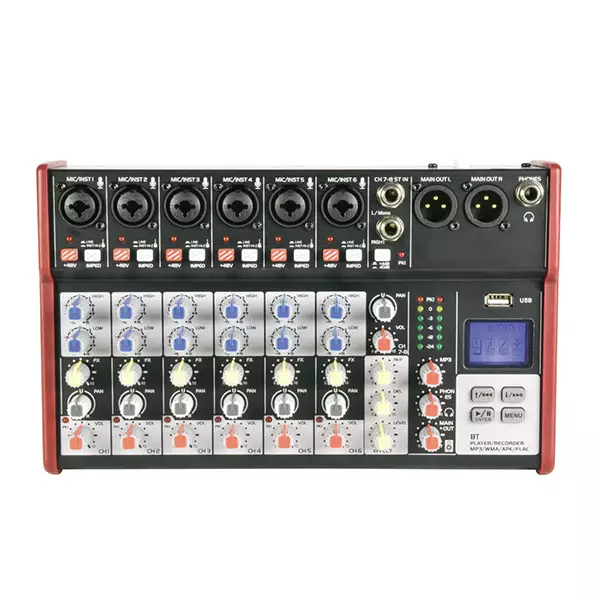

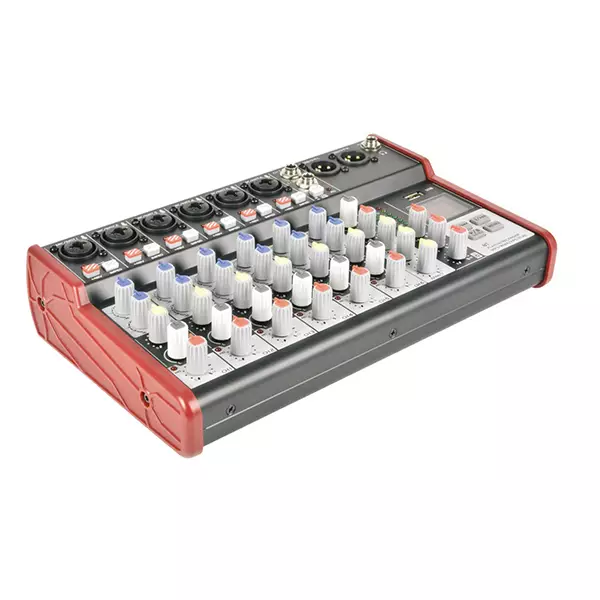

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

FEATURES:

Integral USB multi-format audio player
BT wireless connectivity
Digital delay effect for vocals or instruments
Individually switchable +48V phantom power
Built in record function
Supplied with DC power adaptor

SPECIFICATIONS:

Inputs: 2 x combo XLR/jack + stereo jack
Dimensions: 166 x 165 x 66mm
Power supply: 5Vdc 1A (adaptor included)
Power consumption: max.5W
Gain: -14 to +40dB
EQ: low: ±15dB @ 80Hz
EQ: high: ±15dB @ 12kHz
Phantom power: +48V individually switchable (XLR inputs only)
Input impedance: mic2k Ohms
Input impedance: instrument1M Ohms
Input impedance: line20k Ohms
Audio source: Internal USB player/recorder & BT receiver
Audio format: USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version: 2.1 + EDR
Frequency response: 20Hz – 20kHz (±0.5B)
THD +N<0.03%: @ 1kHz
Dynamic range: 102dB
Crosstalk : stereo: 92dB

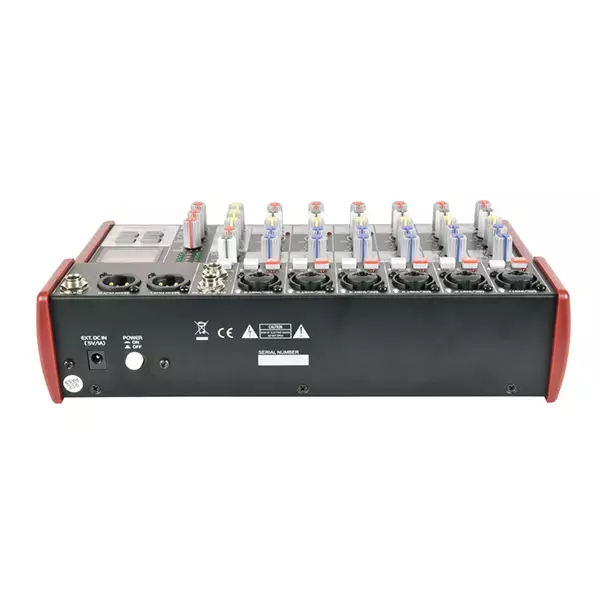

OutputLeft + Right balanced: XLR
Output impedance: 120 Ohms
Max. output level: 3Vrms

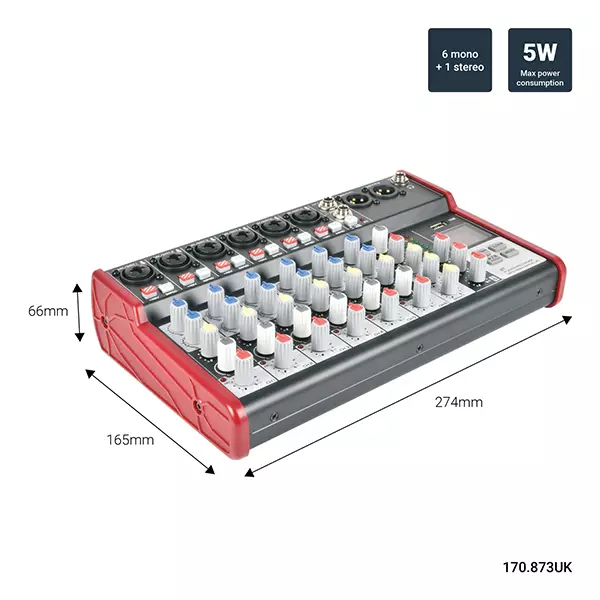

Inputs: 6 x combo XLR/jack + stereo jack
Dimensions: 274 x 165 x 66mm
Weight: 1.45kg

Price-Flex

Price Flex

Name: CITRONIC CSM-8 MUSIC MIXER BT/USB/MP3 8CH
Brand: Citronic
SKU: 170.873CT
Availability: OutOfStock
