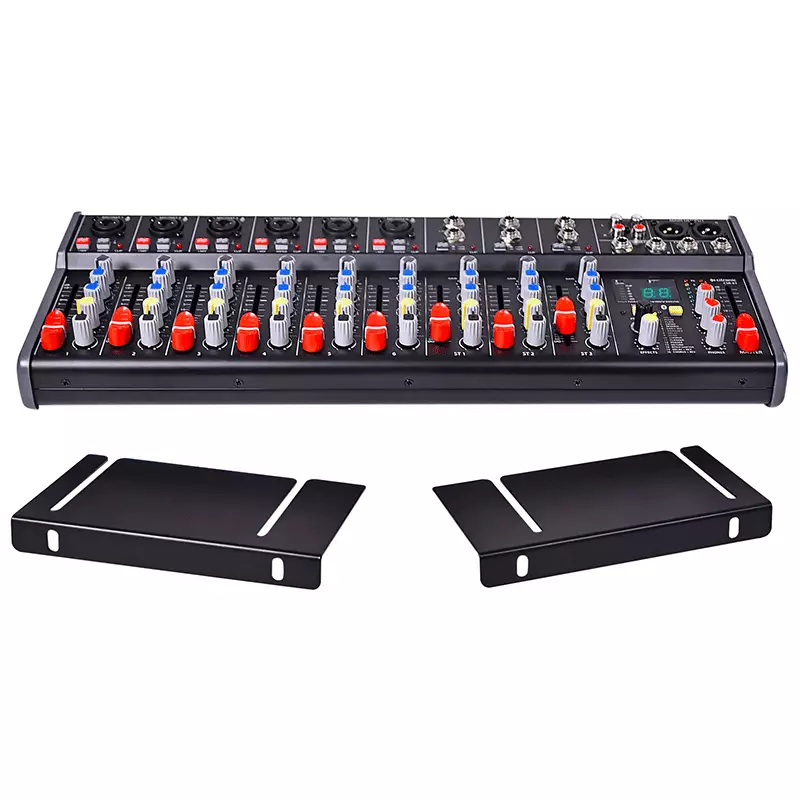

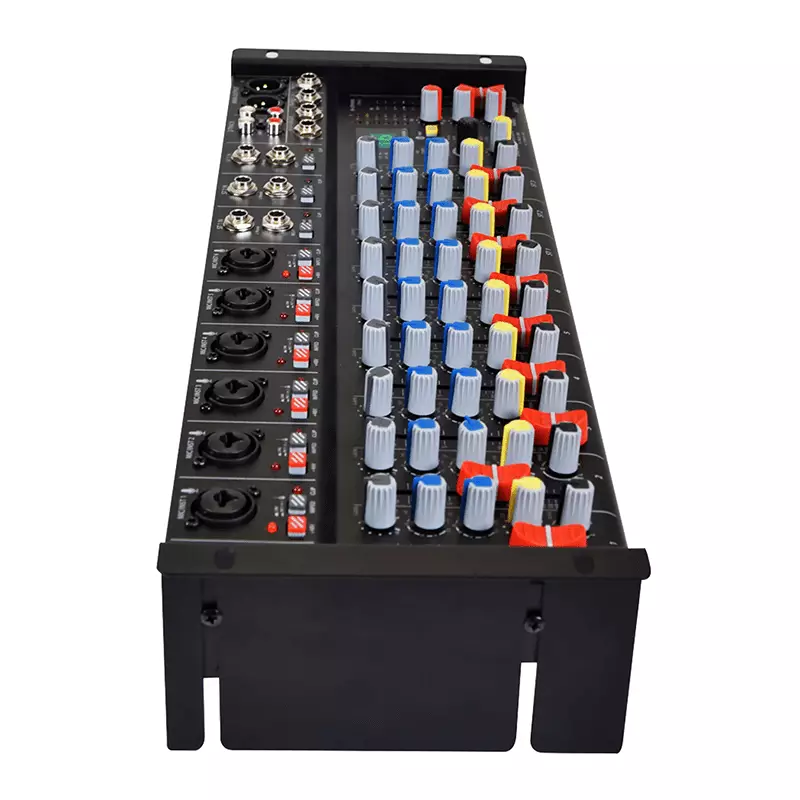

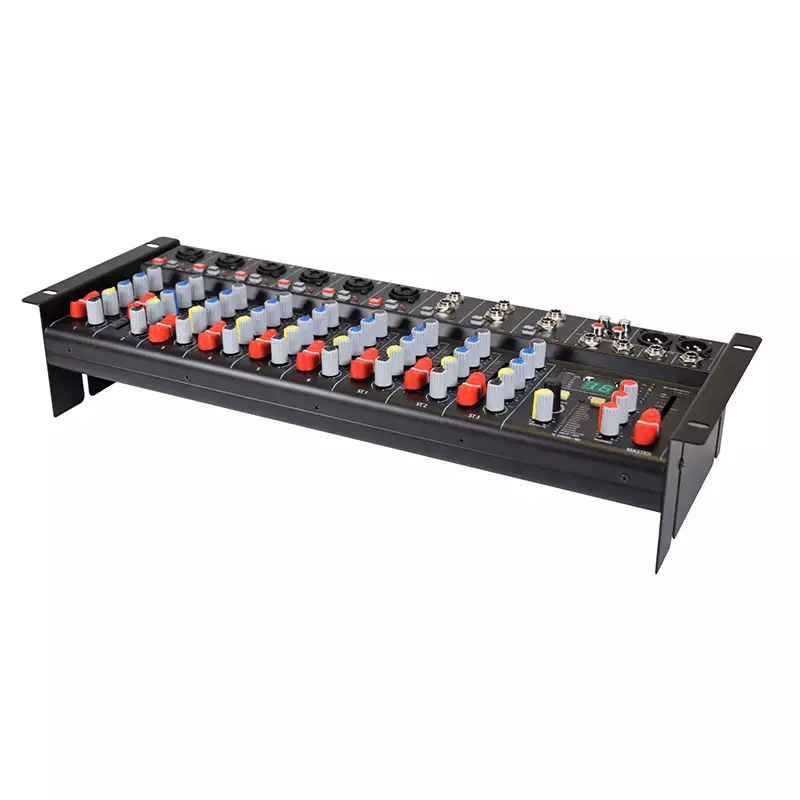

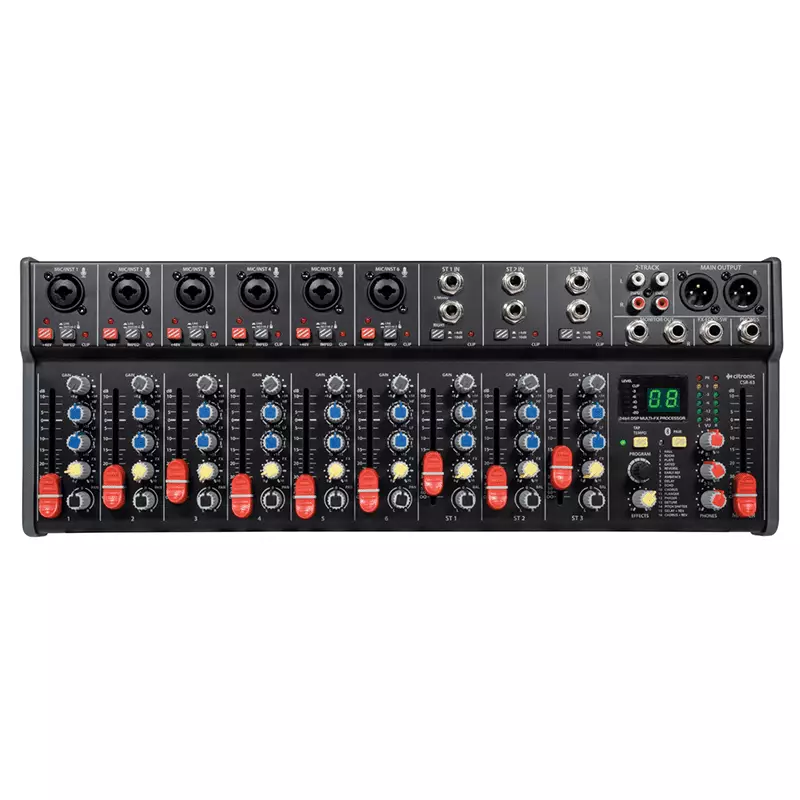

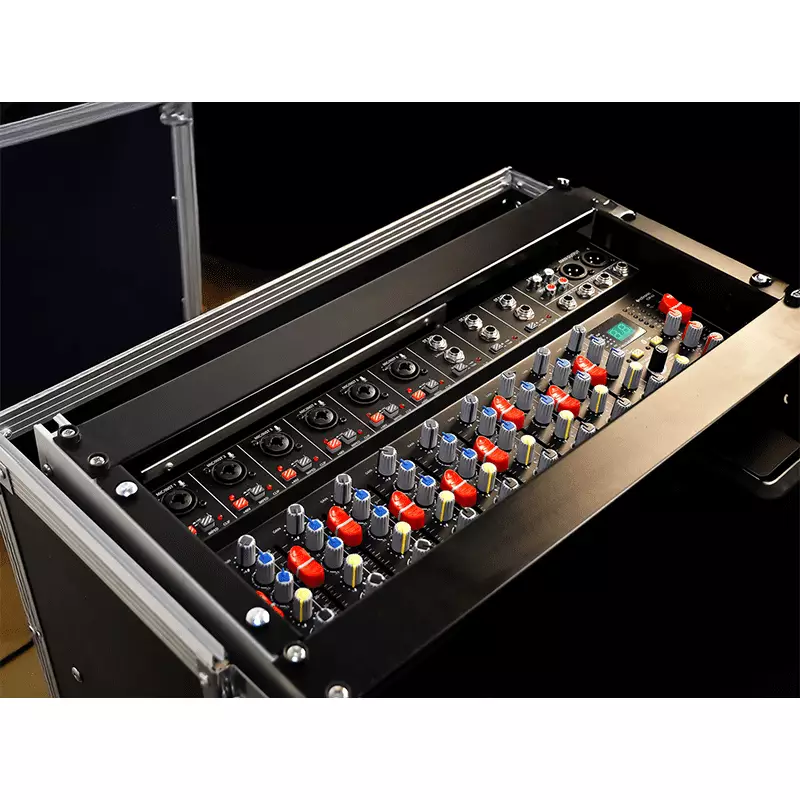

The Citronic CSR-63 rack-mountable mixing console is built to offer full-size mixer features in a slim profile format. Equipped with 6 mic/line channels and 3 stereo line channels, each has individual Gain, 2-band EQ, FX and PAN control with a 60mm Level fader. Mono channels also have individually switchable +48V phantom power and can accept a mic, line or instrument input. For live performers, a DSP effects section has 16 editable presets and can be activated remotely via a foot switch if needed. Balanced main outputs are joined by 2-track in and out, monitor out, headphones out and a Bluetooth receiver for wireless music playback. Uniquely designed end panels are supplied to enable installation into a 19″ rack or left off for free-standing operation. When rack-mounted, the CSR-63 occupies a little less than 4U height, allowing space to feed cables through the rear of the rack frame from the top-mounted connectors. The end panels also have adjustable depth fixing, enabling controls to stand proud of the rack for easy access or deeper behind the frame for protection. Unlike most rack mixers, this mixer has a shallow housing depth to allow back-to-back mounting with other equipment in racks with rear mounting strips. Overall, the CSR-63 can find its home in numerous different audio setups and provides a problem-solver for both installed and mobile PA systems.

FEATURES:

16-preset 24-bit DSP effects section
60mm level fader for each channel

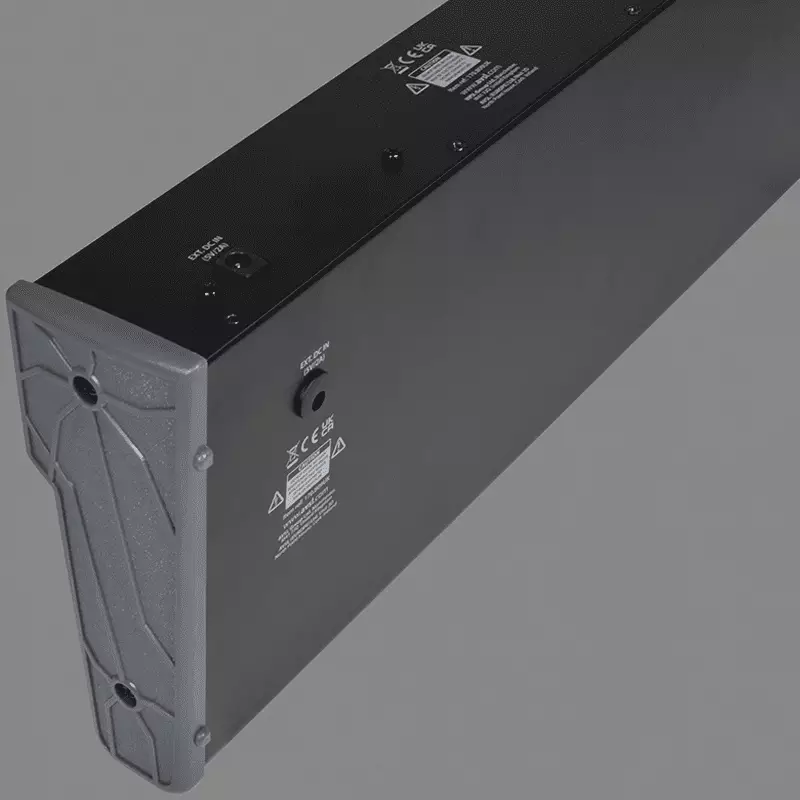

Power input at rear or underside for rack-mounting
Internal Bluetooth receiver
Individually switchable +48V phantom power
Supplied with optional rack side panels (<4U height)

SPECIFICATIONS:

Power supply: 5Vdc, 1A (adaptor included)
Output: Left + Right balanced XLR
Effects: 16 program DSP (24-bit sigma-delta, 40kHz)
Power consumption max: 10W
Inputs: 6 x combo XLR/jack + 3 x L(mono)+R jack
EQ: low: ±15dB @ 80Hz
EQ: high: ±15dB @ 12kHz
Phantom power: +48V individually switchable (XLR inputs only)
Input impedance : mic: 2k Ohms
Input impedance : instrument: 1M Ohms
Input impedance : line: 20k Ohms
Audio source: Bluetooth receiver
Frequency response: 20Hz – 20kHz (±0.5B)
THD +N: <0.03% @ 1kHz
Dynamic range: 102dB
Crosstalk : stereo: 92dB
Output impedance: 120 Ohms
Max. output level3: Vrms
Dimensions: 482 x 160 x 90mm
Weight: 2.745kg

Price-Flex

Price Flex

Name: CITRONIC CSR-63 MUSIC MIXER DSP/BT 9CH 19IN
Brand: Citronic
SKU: 170.809CT
Availability: OutOfStock
